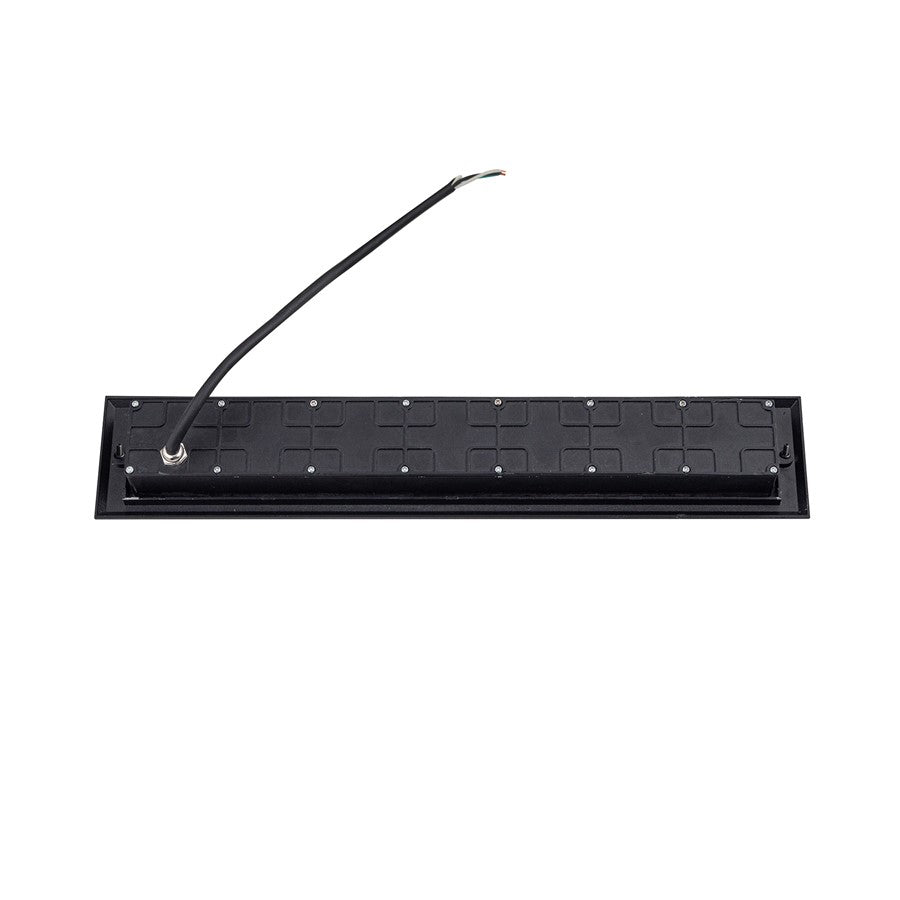

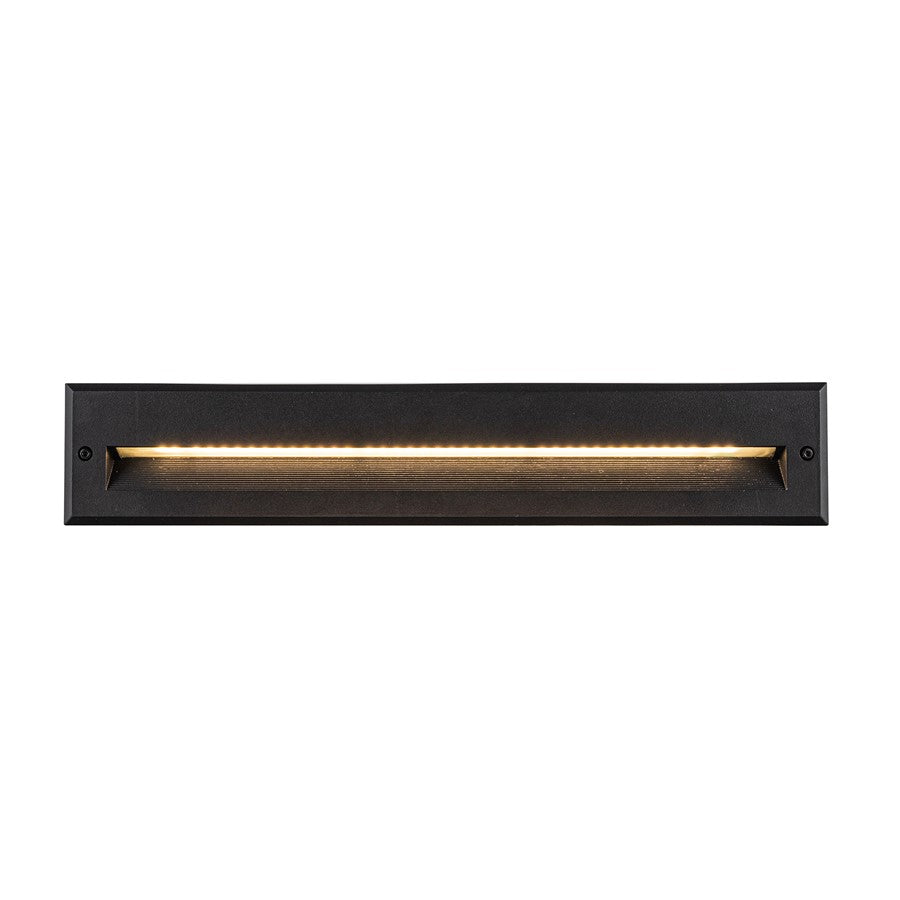

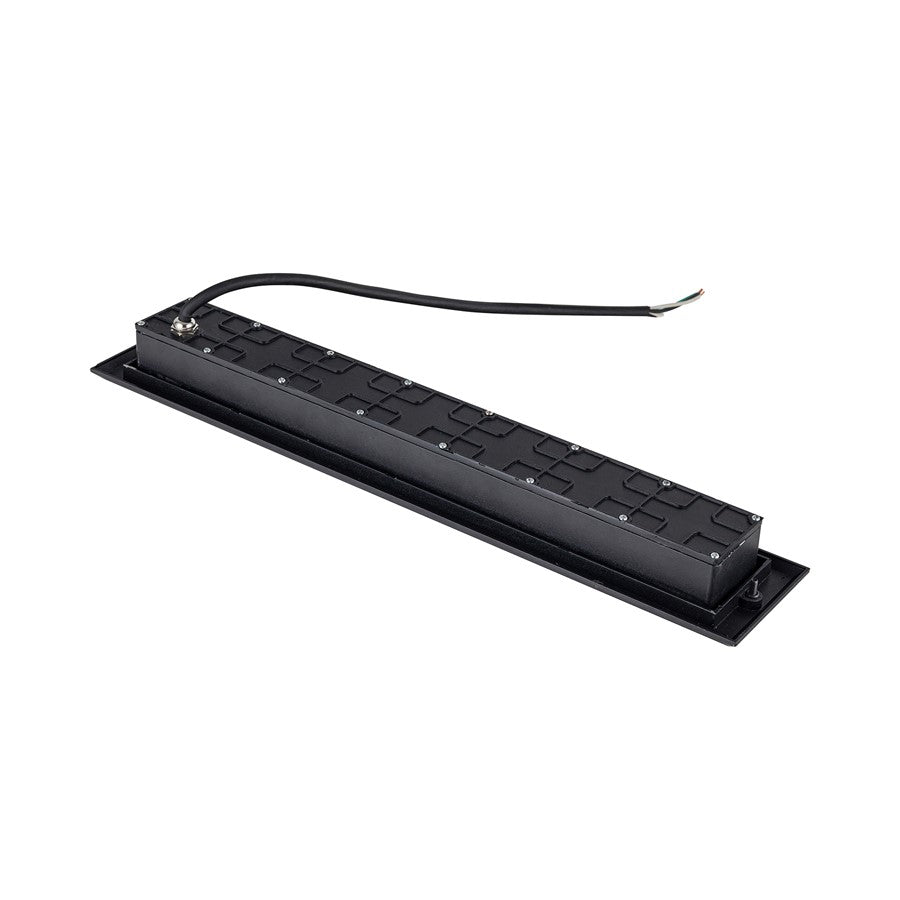

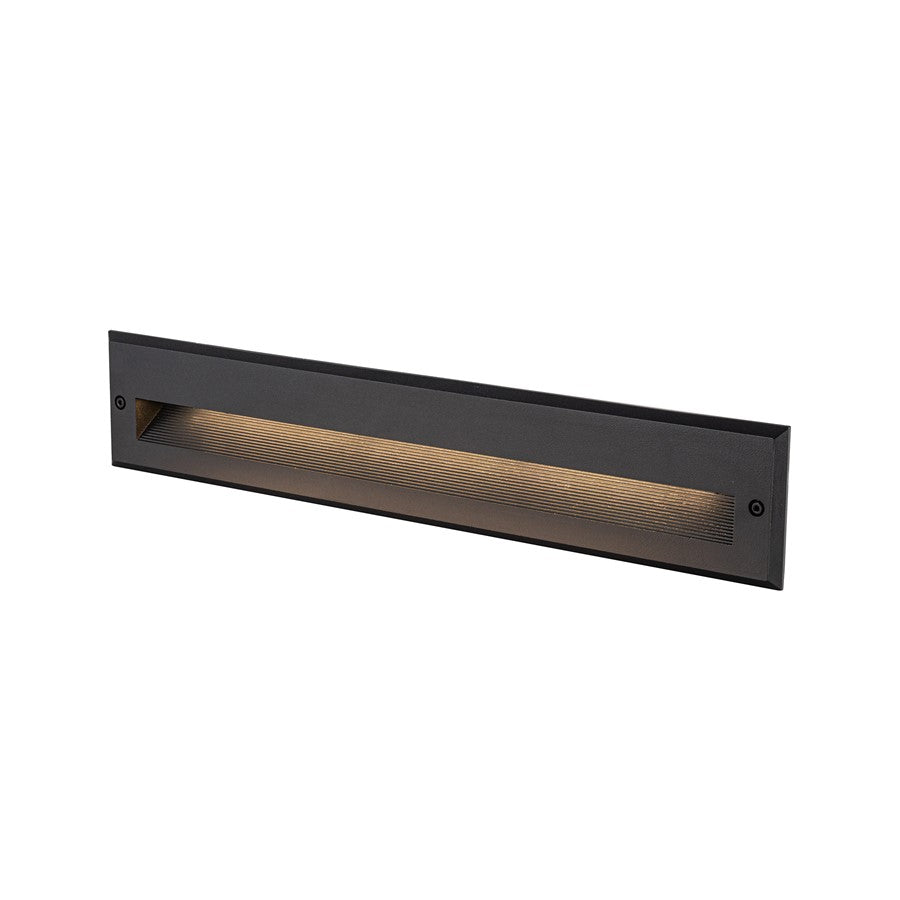

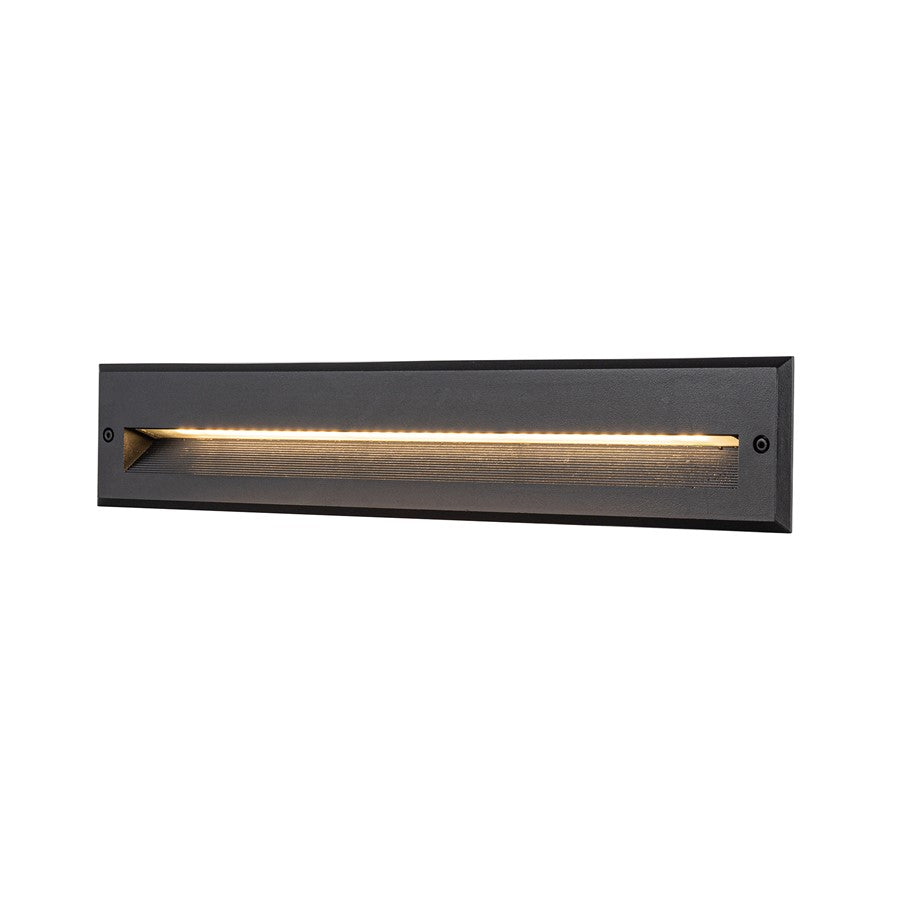

A 20-inch LED exterior wall/step light from Kuzco's Newport collection, designed for outdoor stairs, pathways, and any area needing concealed illumination - rated for wet locations.
This recessed light features a classic rectangular die-cast aluminum housing with a frosted glass diffuser, providing downlight for exterior or interior staircases. The integrated LED delivers 1275 lumens of warm 3000K light at 90 CRI. Choose from black or gray powder coat. Requires back-box (sold separately).
Best for
- Outdoor staircases and steps, recessed into walls or risers for safe navigation
- Covered patios and entryways where wet-rated lighting is required
- Interior stairwells where a low-profile, concealed light source is desired
- Pathways and walkways, mounted low to the ground for subtle illumination
Not ideal for
- General room lighting indoors - this is a directional downlight for specific areas
- Spaces where up-lighting or wide flood illumination is needed
- Installations without the required back-box (sold separately)
How bright is it?
1275 lumens total, with 335 delivered lumens - about as bright as a 40W incandescent, ideal for accent and safety lighting on steps and pathways. The downlight direction focuses light where it's needed.
Light color and feel
3000K warm white - a soft, golden tone that flatters outdoor materials like stone and wood. 90 CRI ensures accurate color rendering. Dimmable from 100% to 10% with an ELV dimmer (optional, not included).
Sizing and fit
Overall dimensions: 19.375 in width x 3.625 in height x 2.125 in extension. Mounts down only. Requires back-box: ER718-MBOX (dry location) or ER718-CBOX (wet location), sold separately.
Specifications
- Part of the Newport Collection
- Finish: Black
- Material: Aluminum
- Diffuser: Frosted Glass
- 16W LED (integrated)
- Bulb Color Temp: 3000K
- Bulb Average Hours: 50,000 hours
- Bulb Lumens: 1275lm
- Bulb Delivered Lumens: 335lm
- Bulb CRI: 90CRI
- Voltage: 120V
- Light Source: AC LED Module
- Dimming Range: 100% - 10%
- Dimming Type: ELV Compatible (Optional, Not Included)
- Illumination Direction: Down
- Mounting Style: Wall Mount Down Only
- ADA Compliant
- Safety Rating: ETL Listed
- For Use in Wet, IP65 Locations
Frequently asked
Is the bulb included? The LED is integrated; no replacement bulbs needed.
Is it dimmable, and what dimmer should I use? Yes, dimmable 100%-10% with an ELV dimmer (not included).
Can I install this in a bathroom or outdoors? Yes, rated for wet locations (IP65) - suitable for outdoor use and covered areas.
What's the warranty? Warranty information not specified by manufacturer.
What back-box do I need? Use ER718-MBOX for dry locations or ER718-CBOX for wet locations (both sold separately).
