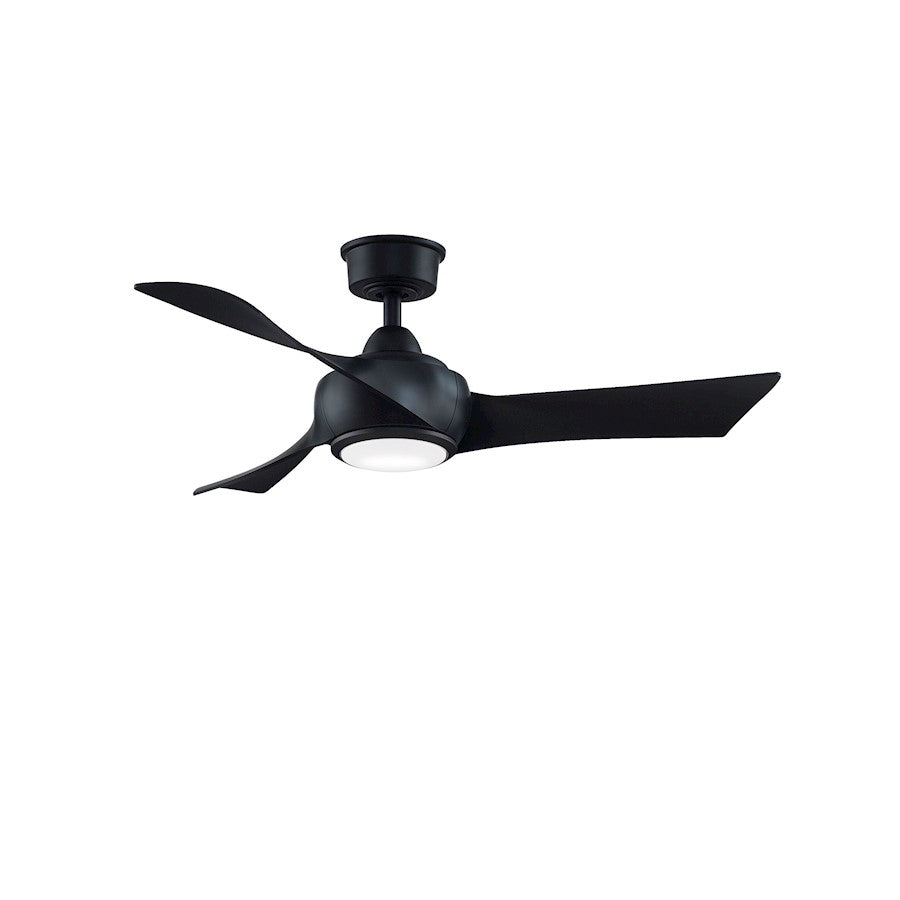

A Wrap Custom ceiling fan motor in black, designed for those who want a versatile, damp-rated fan that works indoors or in covered outdoor areas.
This Fanimation Wrap Custom motor is the core of a customizable ceiling fan system. With a DC motor and reversible airflow, it delivers efficient air movement for any season. The black finish is damp-rated, making it suitable for covered patios, porches, and bathrooms. Blades, light kit, and controls are sold separately, allowing you to tailor the fan to your space.
Best for
- Covered patios, porches, and sunrooms where a damp-rated fan is needed
- Living rooms, bedrooms, and dining rooms with ceilings up to 60 inches, paired with 44-60 inch blades
- Spaces where you want to control the fan via the Fanimation Bluetooth fanSync app
- Indoor or outdoor areas needing a quiet, multi-speed DC motor
Not ideal for
- Wet locations exposed to direct rain, as this fan is only damp-rated
- Small rooms under 8x8 feet, as the minimum blade sweep is 44 inches
- Those looking for a complete fan with blades and light kit included, as these are sold separately
How bright is it?
This is a ceiling fan motor only; it does not include a light kit. An optional LED Light Kit is available separately, allowing you to add illumination to your fan.
Light color and feel
Not applicable, as this is a motor only. When paired with the optional LED light kit, you can select the brightness and color temperature to suit your space.
Sizing and fit
The motor is designed to fit blade sweeps from 44 to 60 inches, making it suitable for medium to large rooms. The overall height is 12.46 inches, and the canopy is 6.14 inches in diameter. It can be mounted with a downrod (included) or flush to the ceiling.
Specifications
- Part of the Wrap Custom Collection
- Finish: Black
- WiFi compatible (required controls sold separately)
- FanSync Bluetooth included
- Multiple blade finishes available, sold separately
- Optional LED Light Kit sold separately
- Damp rated for indoor or outdoor use
- Number of Blades: 3
- Length of Electrical Wire: 80
- Length of Downrod: 4.5
- Motor Type: DC
- Motor Reversible: Yes
- Ceiling to Blade Edge: 11.83
- Blade Pitch Degrees: Varied
- Motor Size: 158x22
- Voltage: 120V
- For Use in Damp Locations
- Warranty Info: Limited Lifetime Warranty
Frequently asked
Is the bulb included? No, this is a motor only; light kit and blades are sold separately.
Is it dimmable, and what dimmer should I use? This motor is not dimmable, but it has variable speeds controlled by the included remote or the fanSync app.
Can I install this in a bathroom or outdoors? This motor is damp-rated, so it can be installed in bathrooms, covered patios, or other damp locations, but not in areas directly exposed to water.
What's the warranty? Fanimation offers a Limited Lifetime Warranty on this motor.
What blade sizes can I use with this motor? This motor supports blade sweeps from 44 to 60 inches, giving you flexibility to choose the right size for your room.
