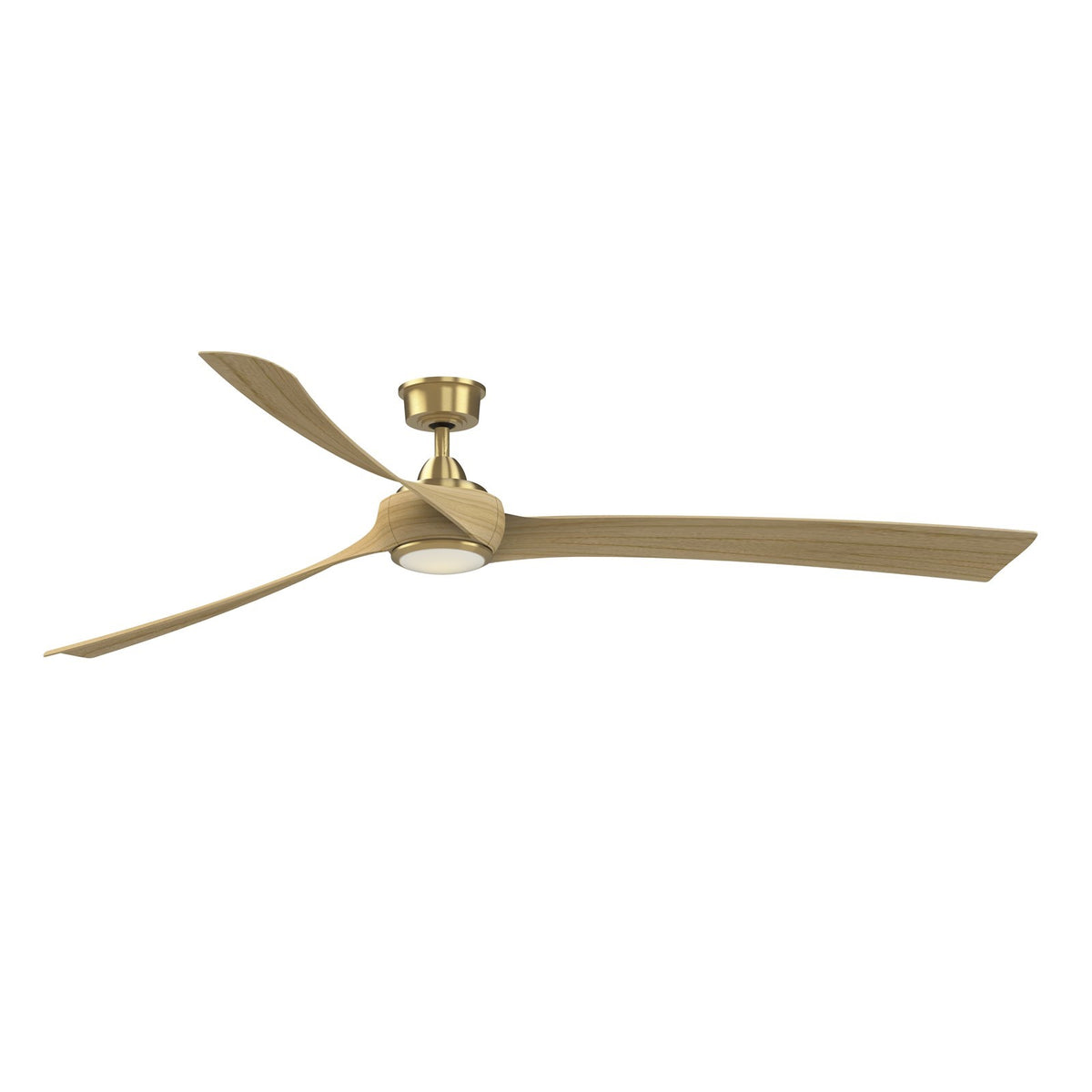

A 84-inch smart ceiling fan with an integrated LED light kit from Fanimation's Wrap Custom collection, finished in brushed satin brass with natural composite blades, designed for covered outdoor and large indoor spaces.
The Wrap Custom ceiling fan with light kit combines striking design with practical illumination. Its smoothly curved and twisted blades create a sculptural silhouette, while the brushed satin brass finish and natural blade tone add warmth to any space. The integrated 18-watt LED light kit features CCT Select technology, letting you choose from warm white, bright white, or daylight. Powered by a high-efficiency DC motor, this fan delivers powerful airflow with quiet, energy-efficient operation. It includes a handheld remote and works with the FanSync app for smart device or voice control.
Best for
- Covered patios and porches, where the damp-rated construction handles humidity without direct rain exposure
- Large living rooms and great rooms with ceilings 9 ft or higher, providing both air circulation and ambient lighting
- Sunrooms and three-season rooms that need year-round comfort and adjustable light
- Bedrooms and home offices where quiet operation and 16 speeds allow precise airflow control
- Open-concept spaces where the sculptural blade design and integrated light become a focal point
Not ideal for
- Outdoor areas exposed directly to rain or water, as the fan is damp-rated, not wet-rated
- Rooms with ceilings under 8 ft, as the included 8-inch downrod may place the fan too low
- Spaces where a separate light fixture is preferred, since the integrated light is always present
How bright is it?
The integrated 18-watt LED light kit delivers 1600 lumens, roughly equivalent to a 100-watt incandescent bulb. This provides ample ambient light for medium to large rooms, and it is dimmable for adjustable brightness.
Light color and feel
With CCT Select technology, you can choose from three color temperatures: 3000K warm white, 4000K bright white, or 5000K daylight. With a CRI of 90, colors appear vivid and accurate, ideal for living areas and kitchens. The light is dimmable, allowing you to adjust brightness to suit the mood.
Sizing and fit

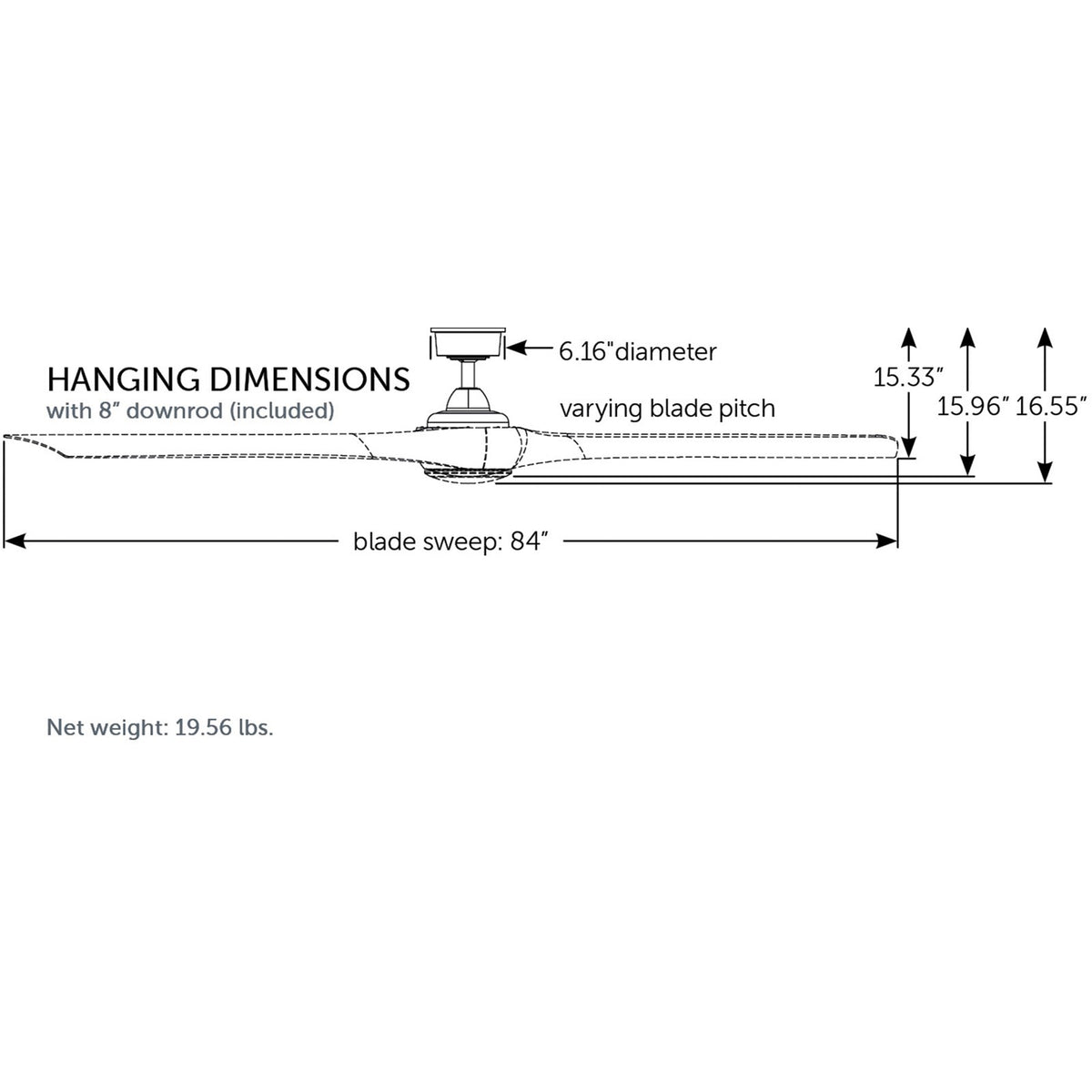

With an 84-inch blade sweep and overall dimensions of 84 x 84 x 16.55 inches, this fan is best suited for large rooms of 18 x 18 ft or larger. The included 8-inch downrod places the fan 16.55 inches from the ceiling; optional downrods up to 72 inches are available to achieve the recommended 7–9 ft hanging height. It fits flat or sloped ceilings up to 27 degrees.
Specifications
- Primary Finish: Brushed Satin Brass
- Blade Material: Composite
- Blade Finish: Natural
- Shade Finish: Opal Frosted
- Collection: Wrap Custom
- Blade Sweep: 84"
- Number of Blades: 3
- Blade Pitch: Varied°
- Motor Type: DC
- Motor Size: 153 X 25
- Motor Reversible: True
- Number of Speeds: 16
- Reverse Switch Location: Control
- Light Kit Included: True
- Cap Included: True
- Included Control: TR305
- Control Type: Handheld
- Bulb Base: Connector Pin
- Bulb Max Wattage: 18W
- Color Temperature: 3000/4000/5000K
- CRI: 90
- Lumens: 1600
- Voltage: 120V
- Avg CFM: 8762
- CFM High: 11206
- Avg Energy Use: 21W
- Max Slope: 27°
- Location Rating: Damp
- Safety Rating: UL/cUL Listed
- Energy Star: True
- Warranty: Limited Lifetime Warranty
- Overall Dimensions: 84"(L)84"(W) x 16.55"(H)
- Housing Diameter: 8.88"
- Canopy Dimensions: 6.14"(Dia) x 2.55"(H)
- Downrod Length: 8"
- Leadwire Length: 80"
- Ceiling to Bottom (With Light Kit): 16.55"
- Item Weight: 20.99 lbs.
Frequently asked
Is the bulb included? Yes, the integrated LED light kit is included and does not require a replaceable bulb.
Is it dimmable, and what dimmer should I use? Yes, the LED light is dimmable and can be controlled via the included remote or the FanSync app. No separate dimmer switch is needed.
Can I install this in a bathroom or outdoors? Yes, the fan is damp-rated, making it suitable for covered outdoor areas, bathrooms, and laundry rooms. However, it should not be directly exposed to rain or water.
What's the warranty? Fanimation offers a Limited Lifetime Warranty for the original purchaser, covering the motor. For assistance, contact Fanimation Tech Support at 1-888-567-2055.
How does the smart control work? The fan connects to your home Wi-Fi and can be controlled via the FanSync app on your smart device or with voice assistants like Amazon Alexa and Google Assistant. The included TR305 remote also provides full control.
