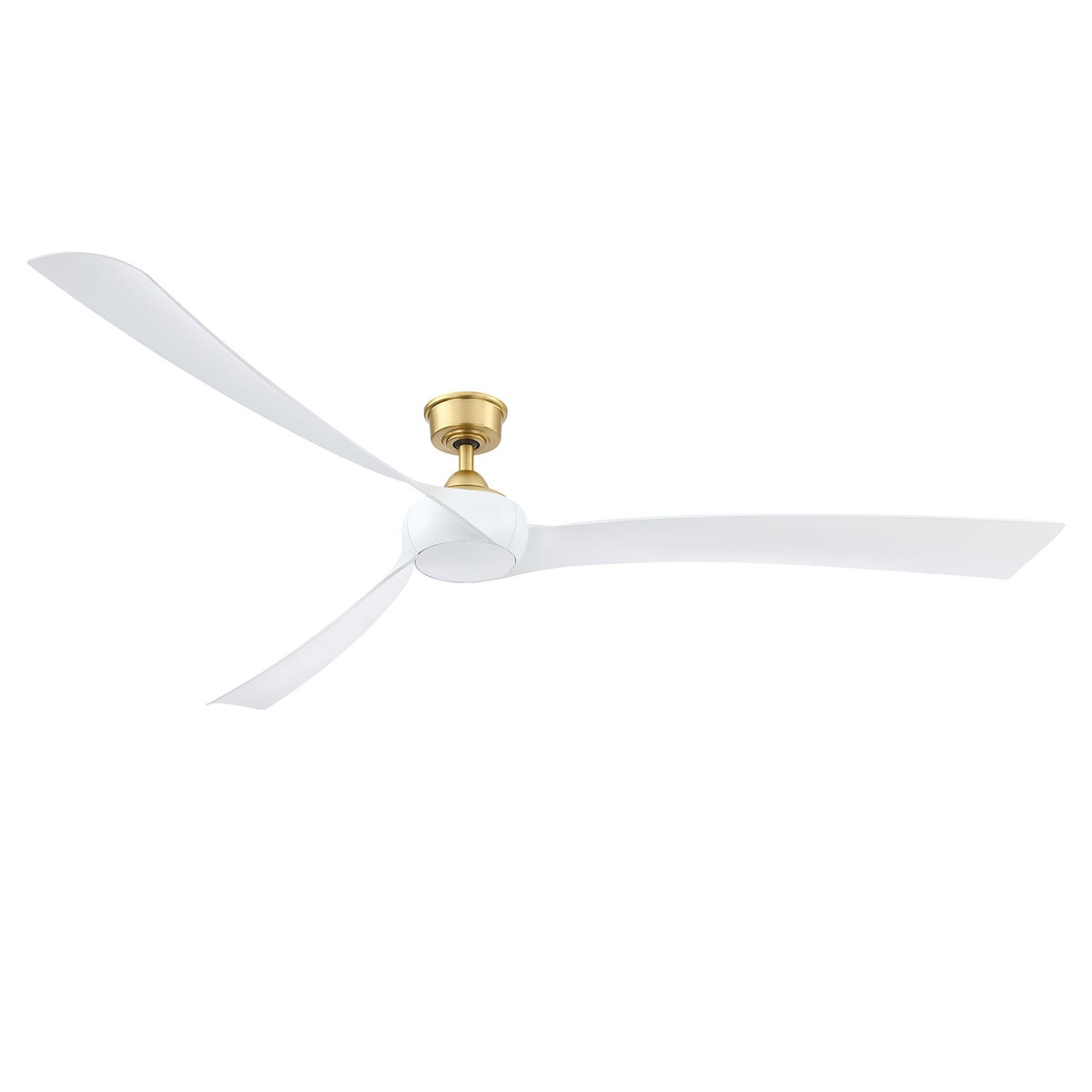

A damp-rated 84-inch smart ceiling fan with integrated LED light kit for covered patios, sunrooms, and large indoor spaces, finished in brushed satin brass with matte white composite blades.
The Wrap Custom ceiling fan from Fanimation showcases a unique, elegant design with smoothly curved and twisted blades. Powered by a high-efficiency DC motor, it delivers powerful air circulation while remaining quiet and energy efficient. This version includes an integrated 18-watt LED light kit with CCT Select technology, allowing you to choose from warm white, bright light, or daylight. It includes three blades, a handheld remote, and FanSync app compatibility for smart device or voice control.
Best for
- Covered patios and porches, where damp-rated construction withstands humidity without direct rain exposure
- Sunrooms and large great rooms needing high airflow up to 11,206 CFM
- Bathrooms and laundry rooms with high humidity levels
- Open-plan living areas with ceilings up to 27° slope
- Smart home setups with voice assistants via the FanSync app
Not ideal for
- Outdoor areas exposed directly to rain or water - damp-rated, not wet-rated
- Small rooms under 12x12 ft where an 84-inch sweep is oversized
- Spaces with ceilings steeper than 27° without additional mounting hardware
How bright is it?
The integrated LED light kit provides 1600 lumens - about as bright as a 100W incandescent bulb, suitable for ambient lighting in large rooms. It is dimmable for adjustable brightness.
Light color and feel
With CCT Select technology, you can choose from 3000K warm white, 4000K bright white, or 5000K daylight. The 90 CRI ensures accurate color rendering, ideal for living spaces. The opal frosted shade diffuses light softly.

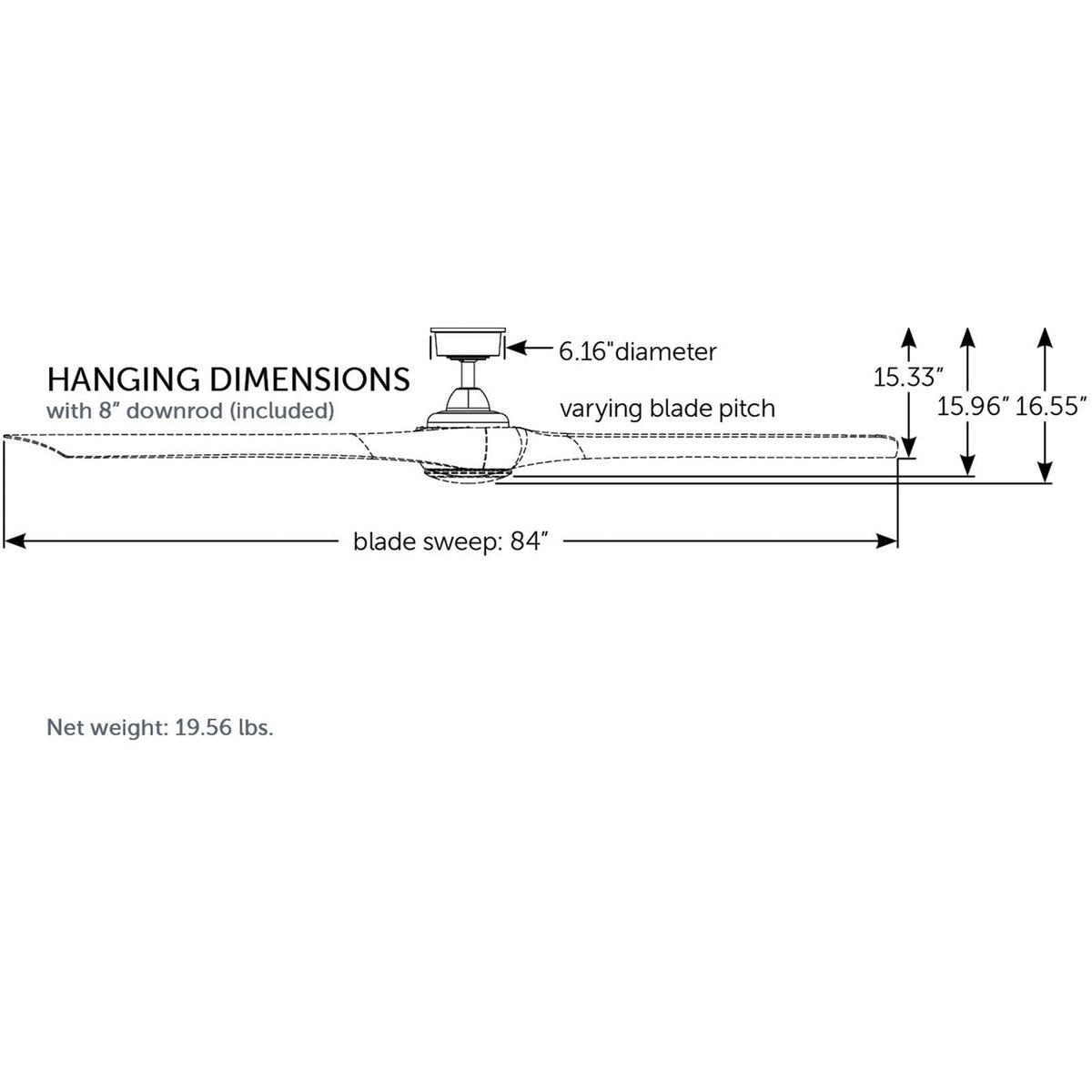

Sizing and fit
With an 84-inch blade sweep and overall dimensions of 84 x 84 x 16.55 inches, this fan suits large rooms and covered outdoor areas. It comes with an 8-inch downrod; optional downrods up to 72 inches are available to achieve the optimal 7-9 ft hanging height. Designed for flat or slightly sloped ceilings up to 27°.
Specifications
- Primary Finish: Brushed Satin Brass
- Blade Material: Composite
- Blade Finish: Matte White
- Shade Finish: Opal Frosted
- Collection: Wrap Custom
- Blade Sweep: 84"
- Number of Blades: 3
- Blade Pitch: Varied°
- Motor Type: DC
- Motor Size: 153 X 25
- Motor Reversible: True
- Number of Speeds: 16
- Reverse Switch Location: Control
- Light Kit Included: True
- Cap Included: True
- Included Control: TR305
- Control Type: Handheld
- 1 Bulb(s)
- Bulb Type: 18W LED Module
- Bulb Base: Connector Pin
- Bulb Max Wattage: 18W
- Color Temperature: 3000/4000/5000K
- CRI: 90
- Lumens: 1600
- Voltage: 120V
- Avg CFM: 8762
- CFM High: 11206
- Avg Energy Use: 21W
- Max Slope: 27°
- Location Rating: Damp
- Safety Rating: UL/cUL Listed
- Energy Star: True
- Warranty: Limited Lifetime Warranty
- Overall Dimensions: 84"(L) x 84"(W) x 16.55"(H)
- Housing Diameter: 8.88"
- Canopy Dimensions: 6.14"(Dia) x 2.55"(H)
- Downrod Length: 8"
- Leadwire Length: 80"
- Ceiling to Bottom (With Light Kit): 16.55"
- Item Weight: 20.99 lbs.
Frequently asked
Is the bulb included? Yes, the integrated 18W LED module is included and not replaceable.
Is it dimmable, and what dimmer should I use? Yes, the light is dimmable via the included remote or the FanSync app. No separate wall dimmer is required.
Can I install this in a bathroom or outdoors? Yes, it is damp-rated for covered outdoor areas, bathrooms, and laundry rooms. It should not be directly exposed to rain or water.
What's the warranty? Limited Lifetime Warranty for the original purchaser.
Can I change the light color temperature? Yes, use the remote or app to select between 3000K, 4000K, or 5000K.
