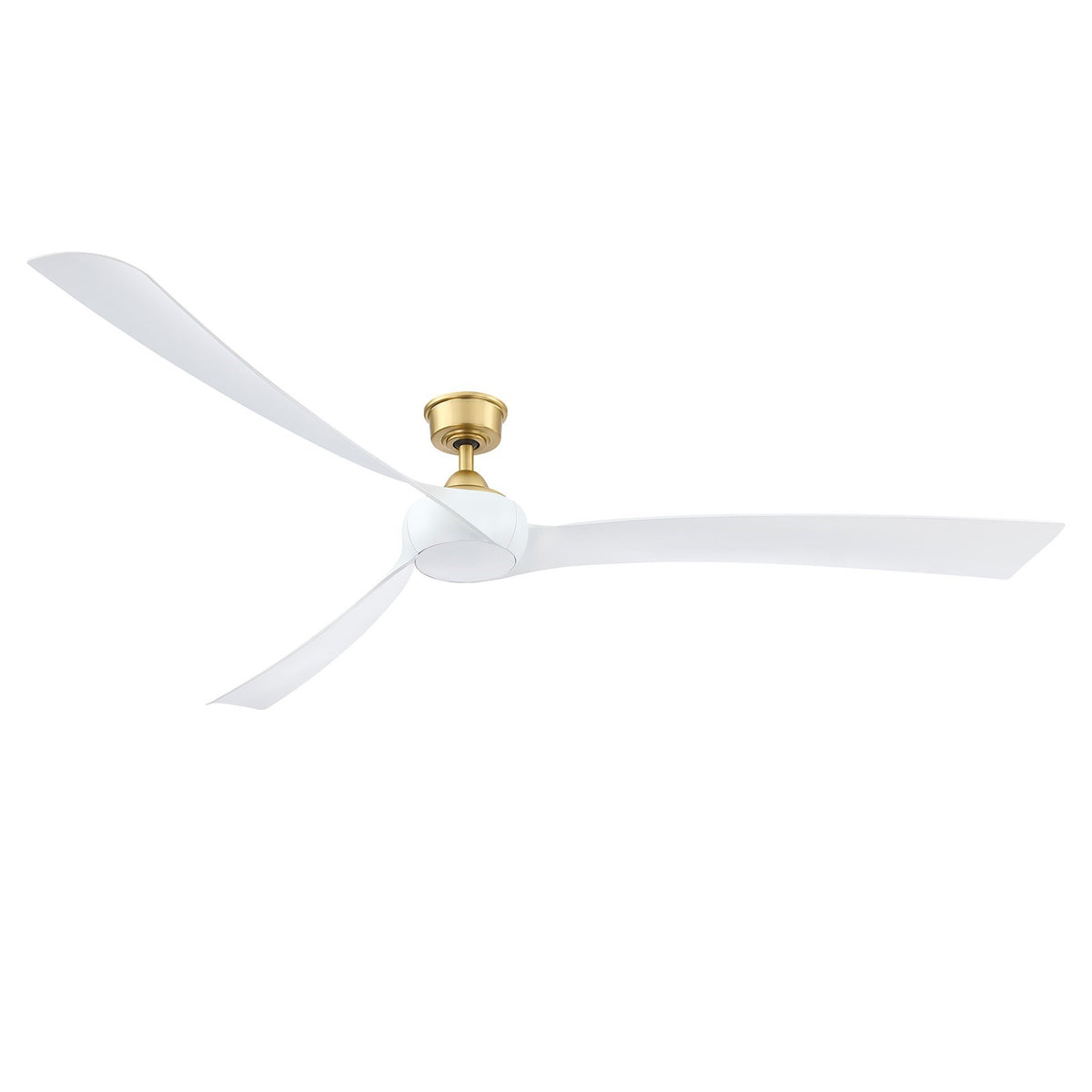

A damp-rated 84-inch smart ceiling fan for covered patios, sunrooms, and large indoor spaces, finished in brushed satin brass with matte white composite blades.
The Wrap Custom ceiling fan from Fanimation showcases a unique, elegant design with smoothly curved and twisted blades. Powered by a high-efficiency DC motor, it delivers powerful air circulation while remaining quiet and energy efficient. This version does not include a light kit, offering a clean, minimalist profile ideal for areas where overhead lighting is not needed. It includes three blades, a handheld remote, and FanSync app compatibility for smart device or voice control.
Best for
- Covered patios and porches, where damp-rated construction withstands humidity without direct rain exposure
- Sunrooms and large great rooms needing high airflow up to 11,206 CFM
- Bathrooms and laundry rooms with high humidity levels
- Open-plan living areas with ceilings up to 27° slope
- Smart home setups with voice assistants via the FanSync app
Not ideal for
- Outdoor areas exposed directly to rain or water - damp-rated, not wet-rated
- Small rooms under 12x12 ft where an 84-inch sweep is oversized
- Spaces with ceilings steeper than 27° without additional mounting hardware
How bright is it?
This fan does not include a light kit, so it provides no illumination. It is designed for spaces with separate lighting.
Light color and feel
No light kit included. If you add the optional integrated 18-watt dimmable LED light kit (sold separately), it offers CCT Select technology with 3000K/4000K/5000K color temperatures and 1600 lumens.
Sizing and fit

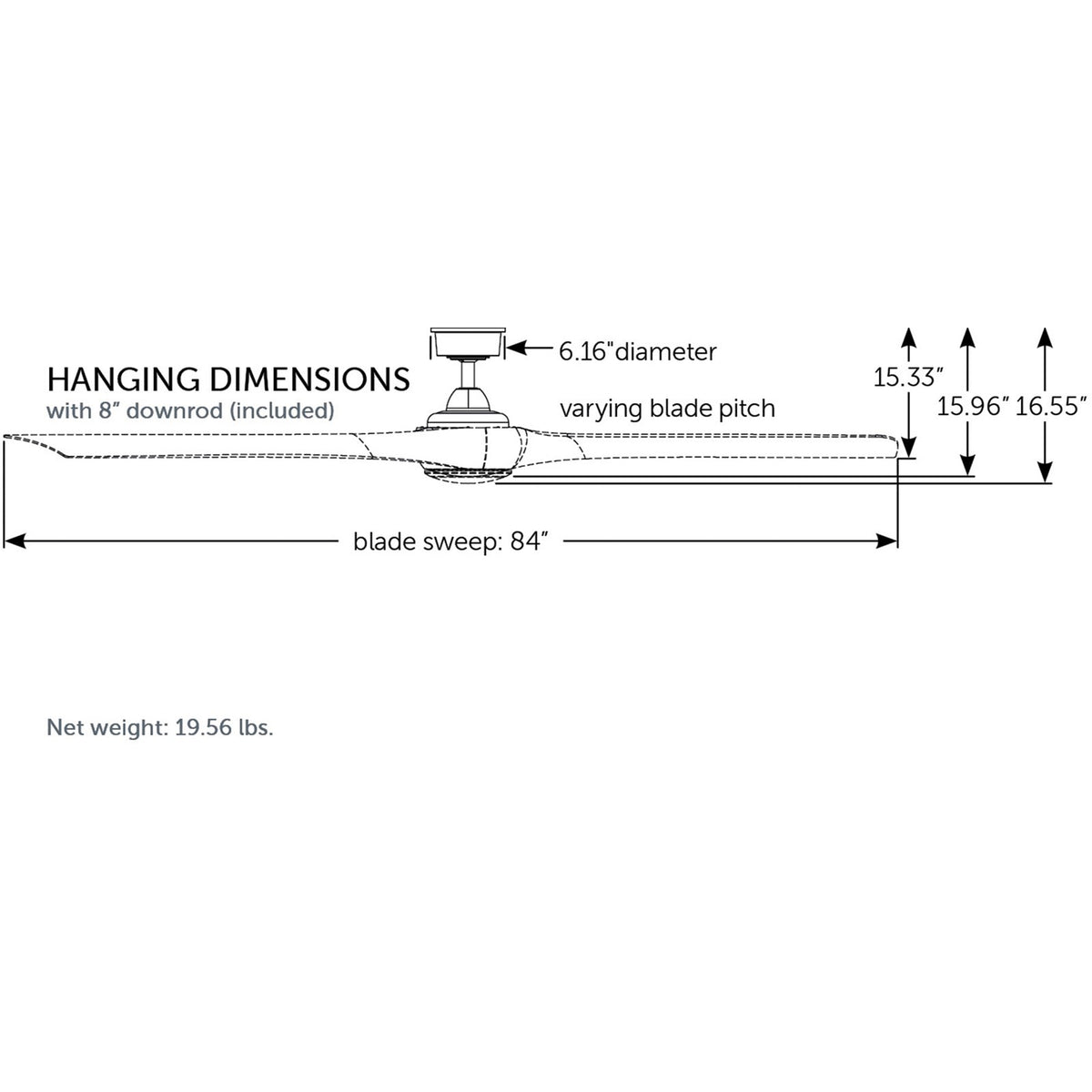

With an 84-inch blade sweep and overall dimensions of 84 x 84 x 15.96 inches, this fan suits large rooms and covered outdoor areas. It comes with an 8-inch downrod; optional downrods up to 72 inches are available to achieve the optimal 7-9 ft hanging height. Designed for flat or slightly sloped ceilings up to 27°.
Specifications
- Primary Finish: Brushed Satin Brass
- Blade Material: Composite
- Blade Finish: Matte White
- Collection: Wrap Custom
- Blade Sweep: 84"
- Number of Blades: 3
- Blade Pitch: Varied°
- Motor Type: DC
- Motor Size: 153 X 25
- Motor Reversible: True
- Number of Speeds: 16
- Reverse Switch Location: Control
- Cap Included: True
- Included Control: TR305
- Control Type: Handheld
- Voltage: 120V
- Avg CFM: 8762
- CFM High: 11206
- Avg Energy Use: 21W
- Max Slope: 27°
- Location Rating: Damp
- Safety Rating: UL/cUL Listed
- Energy Star: True
- Warranty: Limited Lifetime Warranty
- Overall Dimensions: 84"(L) x 84"(W) x 15.96"(H)
- Housing Diameter: 8.88"
- Canopy Dimensions: 6.14"(Dia) x 2.55"(H)
- Downrod Length: 8"
- Leadwire Length: 80"
- Ceiling to Bottom (No Light Kit): 15.96"
- Item Weight: 19.56 lbs.
Frequently asked
Is the bulb included? No light kit is included with this model. It is compatible with an optional integrated 18-watt LED light kit (sold separately).
Is it dimmable, and what dimmer should I use? The fan speed is variable with 16 speeds via the included remote. The optional light kit is dimmable and controlled via the remote or app.
Can I install this in a bathroom or outdoors? Yes, it is damp-rated for covered outdoor areas, bathrooms, and laundry rooms. It should not be directly exposed to rain or water.
What's the warranty? Limited Lifetime Warranty for the original purchaser.
How does the smart control work? The fan is compatible with the FanSync app and voice assistants via Wi-Fi, allowing control from your smart device.
