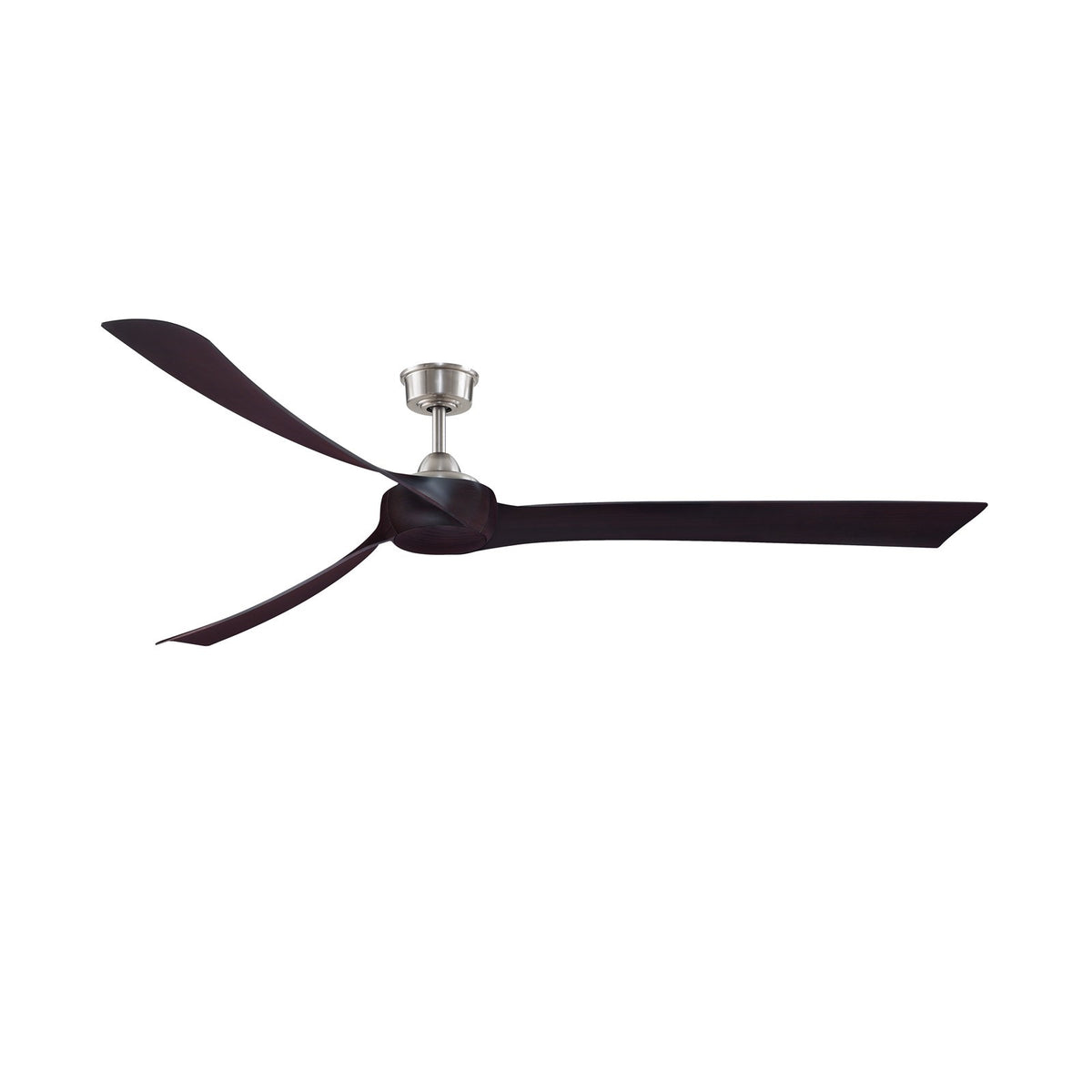

A damp-rated 84-inch smart ceiling fan for covered patios, porches, and large living spaces, finished in brushed nickel with dark walnut composite blades.
The Wrap Custom is a statement piece: Its smoothly curved and twisted blades create a sculptural silhouette that stands out even when the fan is off. Powered by a quiet, energy-efficient DC motor, it moves up to 11,206 CFM of air—enough to cool a great room or covered outdoor area. This version ships without a light kit, keeping the profile clean and minimalist for spaces where overhead lighting is already handled.
Best for
- Covered patios, porches, and sunrooms where damp-rated construction is a must
- Great rooms and open-plan living areas 20x20 ft or larger that need serious air movement
- Bathrooms and laundry rooms with high humidity (damp-rated, not for direct rain)
- Smart-home setups—control via the fanSync app or voice assistant
- High ceilings up to 27° slope, using optional downrods up to 72 in
Not ideal for
- Spaces directly exposed to rain or water—this is damp-rated, not wet-rated
- Small rooms under 12x12 ft where an 84-inch sweep would overwhelm the space
- Anyone who wants a light kit included—this version is fan-only
How bright is it?
This fan does not include a light kit, so there is no brightness to report. It is compatible with an optional integrated 18-watt LED light kit (sold separately) if you want to add lighting later.
Light color and feel
No light included. If you add the optional LED kit, it offers CCT Select technology with 3000K/4000K/5000K color temperatures and a 90 CRI for accurate color rendering.
Sizing and fit
Overall dimensions are 84 in wide by 84 in deep by 15.96 in high (from ceiling to bottom without a light kit). The fan comes with an 8-inch downrod; optional downrods up to 72 inches are available to achieve the optimal 7–9 ft hanging height. Designed for flat or slightly sloped ceilings up to 27°.
Specifications
- Primary Finish: Brushed Nickel
- Blade Material: Composite
- Blade Finish: Dark Walnut
- Collection: Wrap Custom
- Blade Sweep: 84"
- Number of Blades: 3
- Blade Pitch: Varied°
- Motor Type: DC
- Motor Size: 153 X 25
- Motor Reversible: True
- Number of Speeds: 16
- Reverse Switch Location: Control
- Cap Included: True
- Included Control: TR305
- Control Type: Handheld
- Voltage: 120V
- Avg CFM: 8762
- CFM High: 11206
- Avg Energy Use: 21W
- Max Slope: 27°
- Location Rating: Damp
- Safety Rating: UL/cUL Listed
- Energy Star: True
- Warranty: Limited Lifetime Warranty
Frequently asked
Is the bulb included? No light kit is included with this fan. It is compatible with an optional integrated LED light kit (sold separately).
Is it dimmable, and what dimmer should I use? The fan is not dimmable; speed is controlled via the included TR305 remote or the fanSync app. If you add the optional LED light kit, it is dimmable via the remote or app.
Can I install this in a bathroom or outdoors? Yes, this fan is damp-rated, making it suitable for bathrooms, covered patios, porches, and sunrooms. It should not be directly exposed to rain or water.
What's the warranty? Limited Lifetime Warranty for the original purchaser, covering the motor. Contact Fanimation Tech Support at 1-888-567-2055 for assistance.
Can I use this on a sloped ceiling? Yes, it is designed for flat or slightly sloped ceilings up to 27°.
