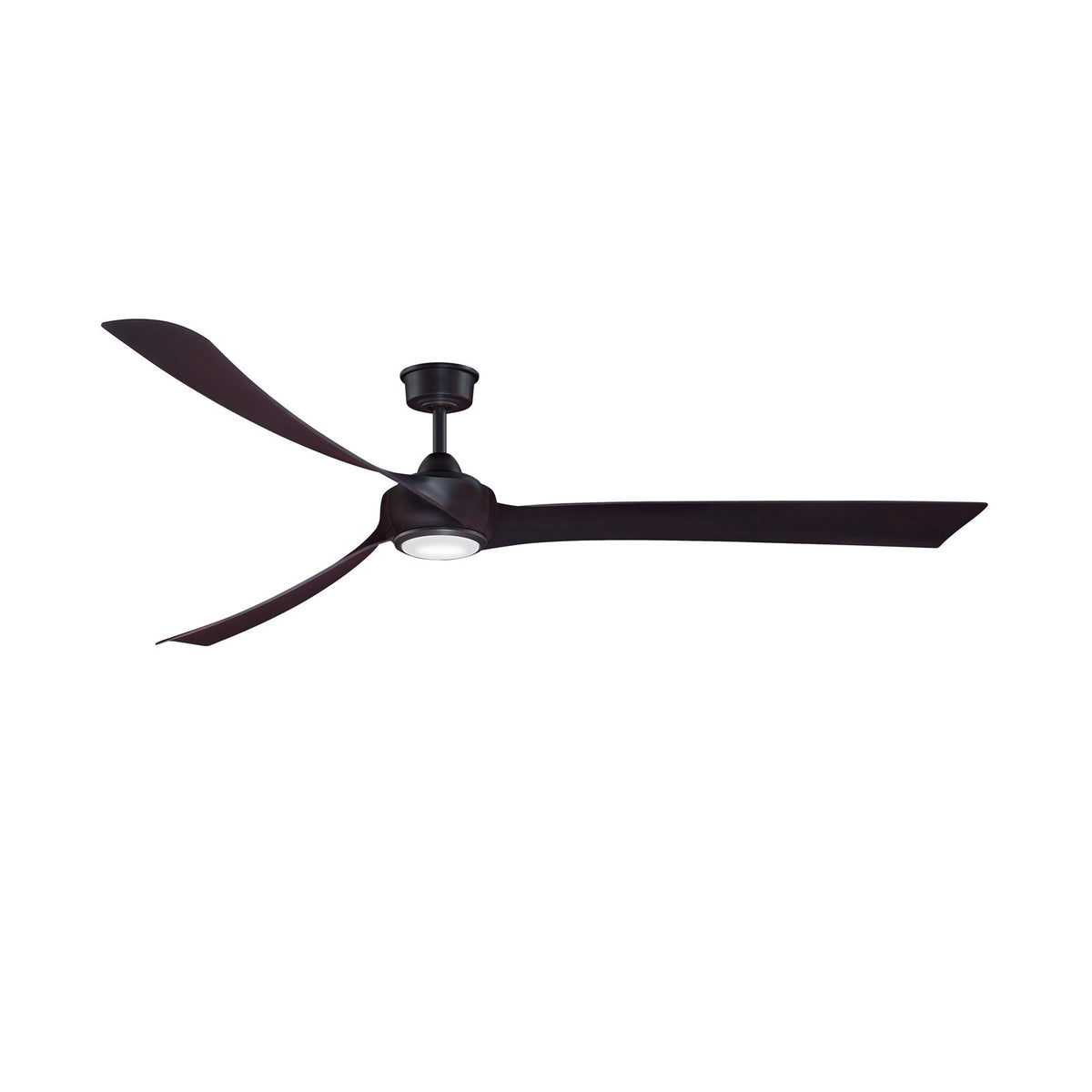

A 84-inch smart ceiling fan with integrated LED light for large covered patios, porches, and great rooms, finished in dark bronze with dark walnut composite blades.
The Wrap Custom Ceiling Fan with Light Kit showcases a unique, elegant design with smoothly curved and twisted blades that create a striking visual statement. Damp-rated and Energy Star certified, this fan features a high-efficiency DC motor for powerful air circulation in a variety of settings. It includes three sleek blades, a remote control, and is compatible with the FanSync app for smart device or voice assistant control. This version comes equipped with an integrated 18-watt LED light kit featuring CCT technology for customizable lighting.
Best for
- Covered patios and porches up to 20x20 ft, where damp-rated construction handles humidity without direct rain exposure
- Great rooms and open-plan living areas with ceilings 9 ft or higher, mounted with the included 8-inch downrod
- Sunrooms and three-season rooms that need both air movement and ambient light
- Bedrooms and living spaces where smart control via the FanSync app or voice assistant is desired
- Kitchens and dining areas needing adjustable light color from warm to daylight
Not ideal for
- Outdoor areas directly exposed to rain or water - this fan is damp-rated, not wet-rated
- Rooms under 12x12 ft where an 84-inch sweep may feel oversized
- Spaces where a separate light fixture is preferred - the integrated LED is always present
How bright is it?
The integrated 18-watt LED light provides 1600 lumens - about as bright as a 100W incandescent bulb - suitable for ambient lighting in medium to large rooms. It is dimmable for adjustable brightness.
Light color and feel
The CCT Select technology offers three color temperatures: 3000K (warm white), 4000K (bright white), and 5000K (daylight). This lets you switch from a cozy, golden glow to crisp, energizing daylight. The light has a CRI of 90, rendering colors accurately for art or decor.

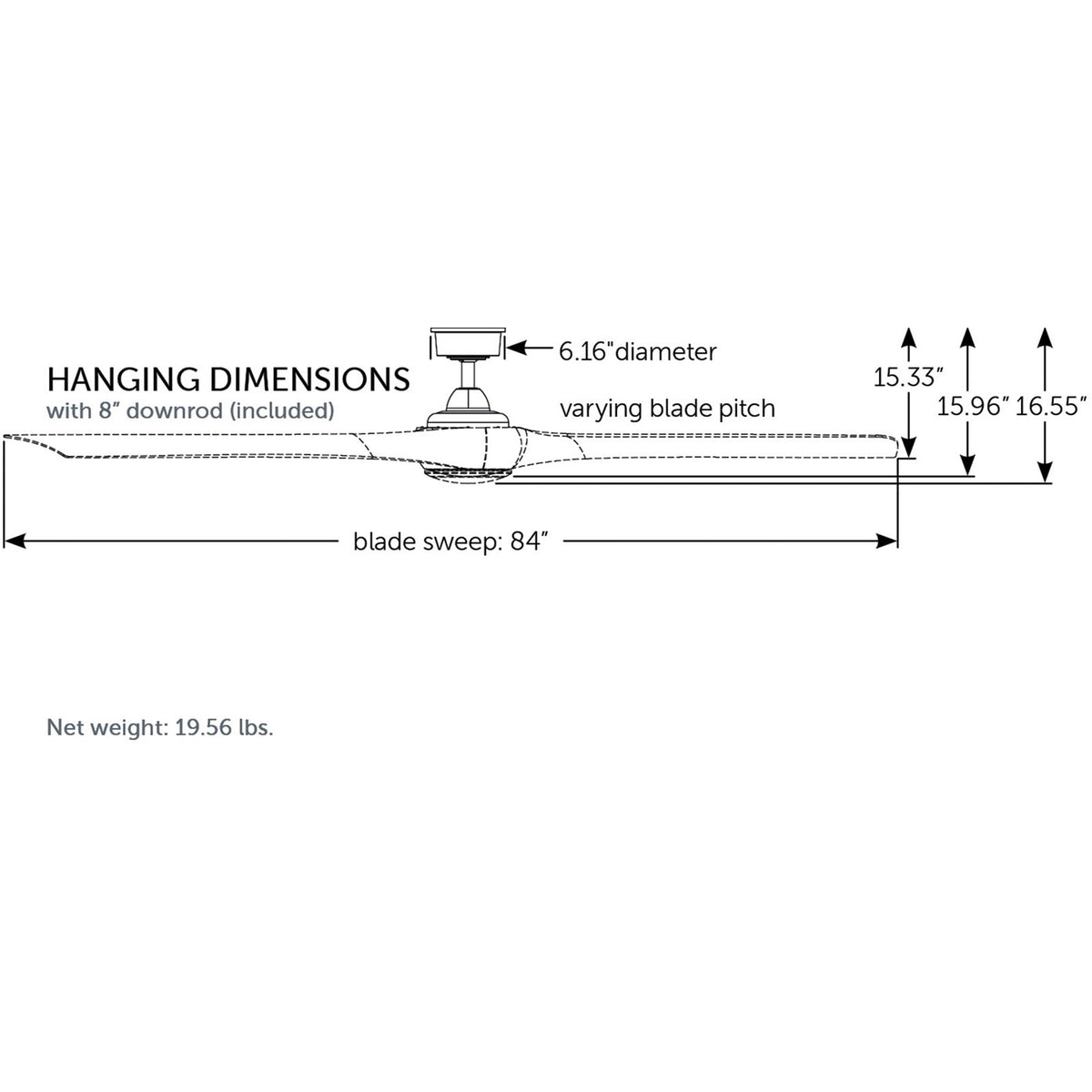

Sizing and fit
Overall dimensions are 84"(L) x 84"(W) x 16.55"(H) with a blade sweep of 84 inches. The housing diameter is 8.88 inches, and the canopy is 6.14 inches in diameter. It comes with an 8-inch downrod; optional downrods up to 72 inches are available to achieve the optimal 7-9 ft hanging height. Designed for flat or slightly sloped ceilings up to 27 degrees.
Specifications
- Primary Finish: Dark Bronze
- Blade Material: Composite
- Blade Finish: Dark Walnut
- Shade Finish: Opal Frosted
- Collection: Wrap Custom
- Blade Sweep: 84"
- Number of Blades: 3
- Blade Pitch: Varied°
- Motor Type: DC
- Motor Size: 153 X 25
- Motor Reversible: True
- Number of Speeds: 16
- Reverse Switch Location: Control
- Light Kit Included: True
- Cap Included: True
- Included Control: TR305
- Control Type: Handheld
- 1 Bulb(s)
- Bulb Type: 18W LED Module
- Bulb Base: Connector Pin
- Bulb Max Wattage: 18W
- Color Temperature: 3000/4000/5000K
- CRI: 90
- Lumens: 1600
- Voltage: 120V
- Avg CFM: 8762
- CFM High: 11206
- Avg Energy Use: 21W
- Max Slope: 27°
- Location Rating: Damp
- Safety Rating: UL/cUL Listed
- Energy Star: True
- Warranty: Limited Lifetime Warranty
Frequently asked
Is the bulb included? Yes, the integrated 18W LED module is included and not replaceable.
Is it dimmable, and what dimmer should I use? Yes, the light is dimmable and controlled via the included TR305 remote or the FanSync app. No separate wall dimmer is needed.
Can I install this in a bathroom or outdoors? Yes, this fan is damp-rated, making it suitable for covered outdoor areas, bathrooms, and laundry rooms. It should not be directly exposed to rain or water.
What's the warranty? Limited Lifetime Warranty for the original purchaser, covering the motor. Contact Fanimation Tech Support at 1-888-567-2055 for assistance.
Can I change the light color? Yes, the CCT Select technology lets you choose between 3000K, 4000K, and 5000K using the remote or app.
