A 84-inch smart ceiling fan for large covered patios, porches, and great rooms, finished in dark bronze with dark walnut composite blades.
The Wrap Custom Ceiling Fan showcases a unique, elegant design with smoothly curved and twisted blades that create a striking visual statement. Damp-rated and Energy Star certified, this fan is powered by a high-efficiency DC motor, ensuring powerful air circulation in both indoor and covered outdoor spaces. This version does not include a light kit, offering a clean, minimalist profile ideal for areas where overhead lighting is not needed.
Best for
- Covered patios and porches up to 20x20 ft, where damp-rated construction handles humidity without direct rain exposure
- Great rooms and open-plan living areas with ceilings 9 ft or higher, mounted with the included 8-inch downrod
- Sunrooms and three-season rooms that need powerful air movement without a light fixture
- Bedrooms and living spaces where smart control via the FanSync app or voice assistant is desired
- Large bedrooms or home offices needing quiet, energy-efficient airflow with 16 speeds
Not ideal for
- Outdoor areas directly exposed to rain or water - this fan is damp-rated, not wet-rated
- Rooms under 12x12 ft where an 84-inch sweep may feel oversized
- Spaces where an integrated light is required - this model has no light kit (sold separately)
How bright is it?
This fan does not include a light kit, so brightness is not applicable. It is compatible with an optional 18-watt LED light kit (sold separately) that provides 1600 lumens - about as bright as a 100W incandescent bulb - for ambient lighting when added.
Light color and feel
No light included. If you add the optional LED light kit, it offers CCT Select technology with 3000K (warm white), 4000K (bright white), and 5000K (daylight) - letting you choose the mood from cozy to crisp. The kit is dimmable and has a CRI of 90 for accurate color rendering.
Sizing and fit

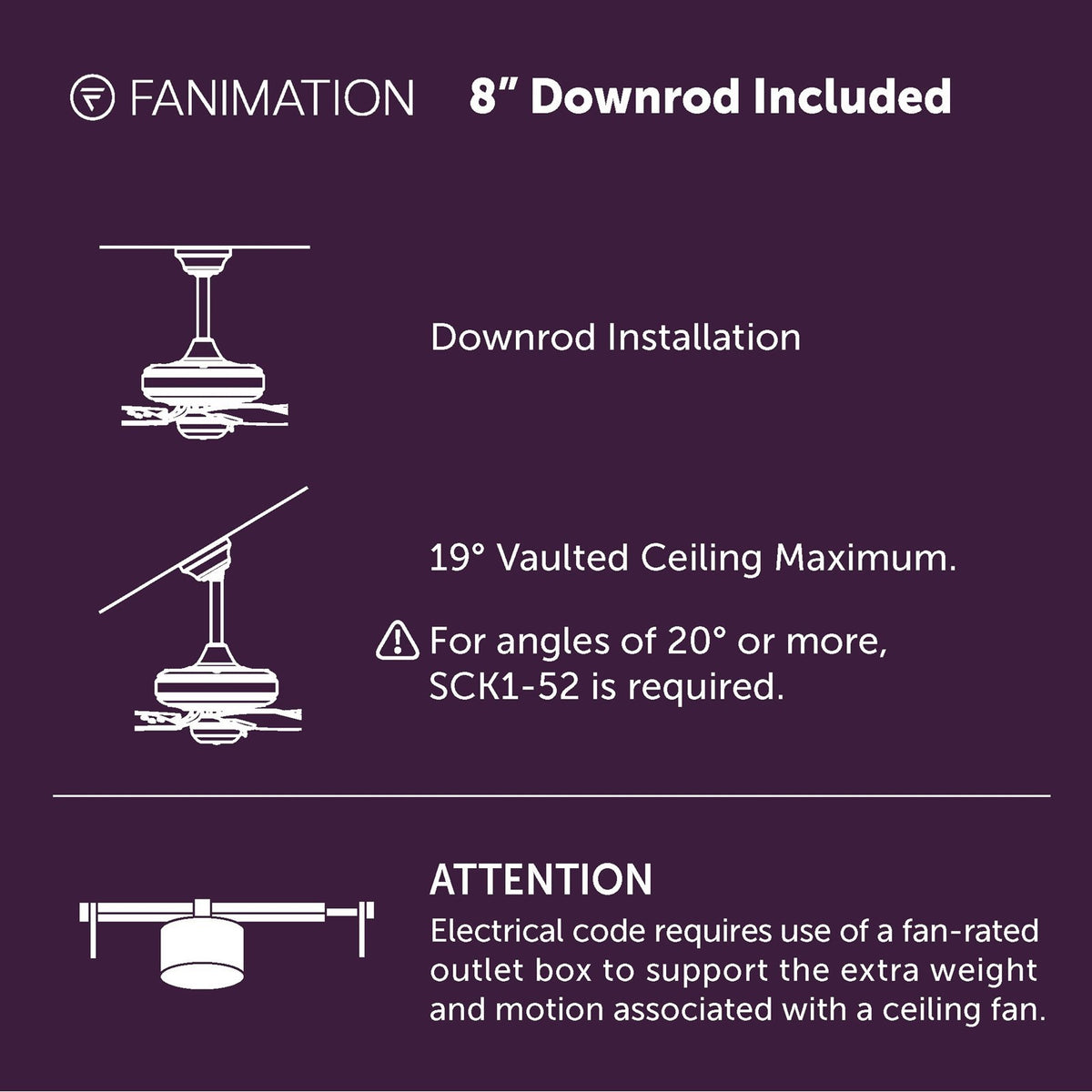

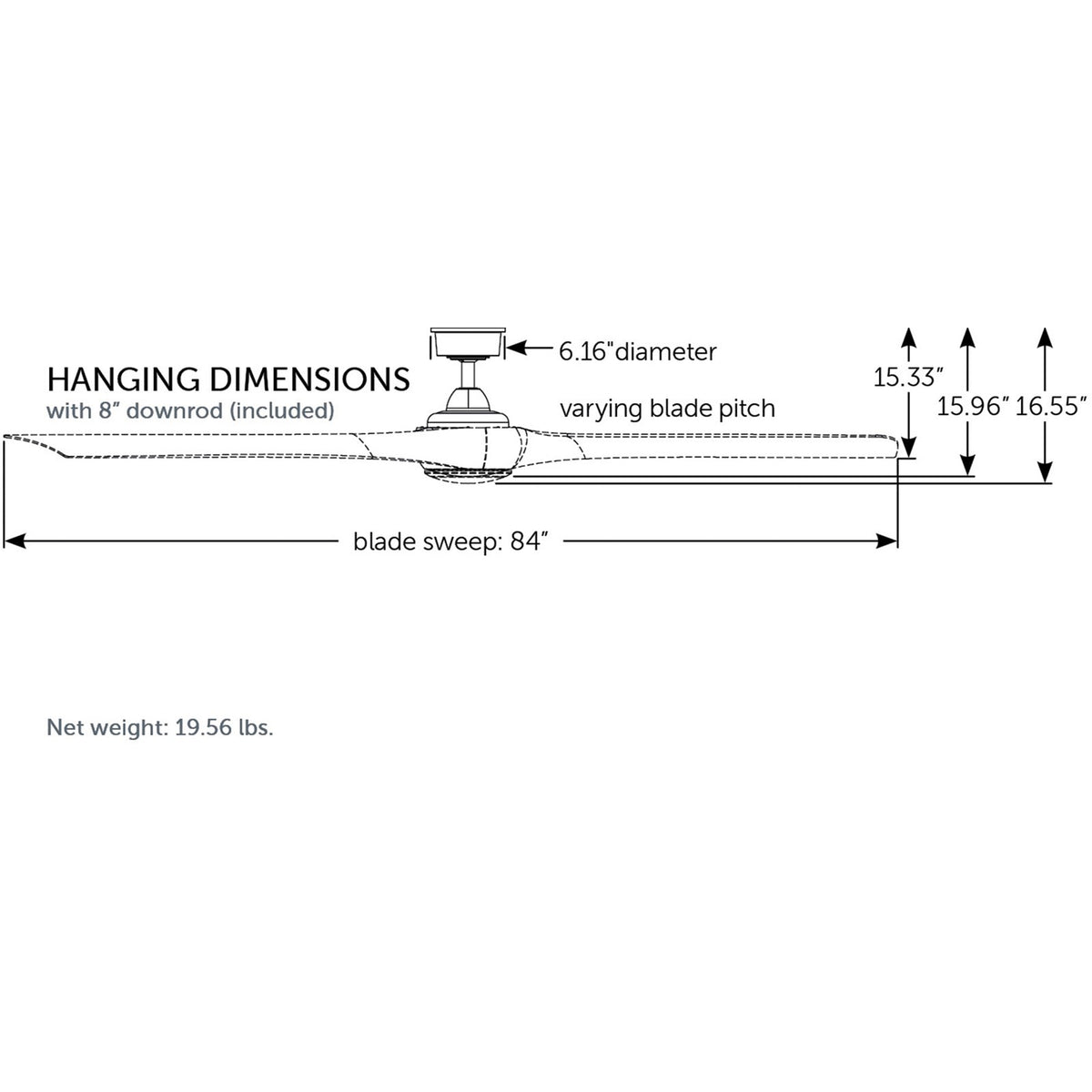

Overall dimensions are 84"(L) x 84"(W) x 15.96"(H) with a blade sweep of 84 inches. The housing diameter is 8.88 inches, and the canopy is 6.14 inches in diameter. It comes with an 8-inch downrod; optional downrods up to 72 inches are available to achieve the optimal 7-9 ft hanging height. Designed for flat or slightly sloped ceilings up to 27 degrees.
Specifications
- Primary Finish: Dark Bronze
- Blade Material: Composite
- Blade Finish: Dark Walnut
- Collection: Wrap Custom
- Blade Sweep: 84"
- Number of Blades: 3
- Blade Pitch: Varied°
- Motor Type: DC
- Motor Size: 153 X 25
- Motor Reversible: True
- Number of Speeds: 16
- Reverse Switch Location: Control
- Cap Included: True
- Included Control: TR305
- Control Type: Handheld
- Voltage: 120V
- Avg CFM: 8762
- CFM High: 11206
- Avg Energy Use: 21W
- Max Slope: 27°
- Location Rating: Damp
- Safety Rating: UL/cUL Listed
- Energy Star: True
- Warranty: Limited Lifetime Warranty
Frequently asked
Is the bulb included? No light kit is included with this model. It is compatible with an optional 18W LED light kit (sold separately).
Is it dimmable, and what dimmer should I use? The fan speed is controlled via the included TR305 remote or the FanSync app. The optional light kit is dimmable and controlled through the same remote/app.
Can I install this in a bathroom or outdoors? Yes, this fan is damp-rated, making it suitable for covered outdoor areas, bathrooms, and laundry rooms. It should not be directly exposed to rain or water.
What's the warranty? Limited Lifetime Warranty for the original purchaser, covering the motor. Contact Fanimation Tech Support at 1-888-567-2055 for assistance.
Does this fan work with smart home systems? Yes, it is Wi-Fi enabled via fanSync, compatible with smart devices and voice assistants like Amazon Alexa and Google Assistant.
