A 72-inch smart ceiling fan with an integrated dimmable LED light kit, designed for large covered outdoor spaces and open indoor areas that need powerful airflow and versatile lighting.

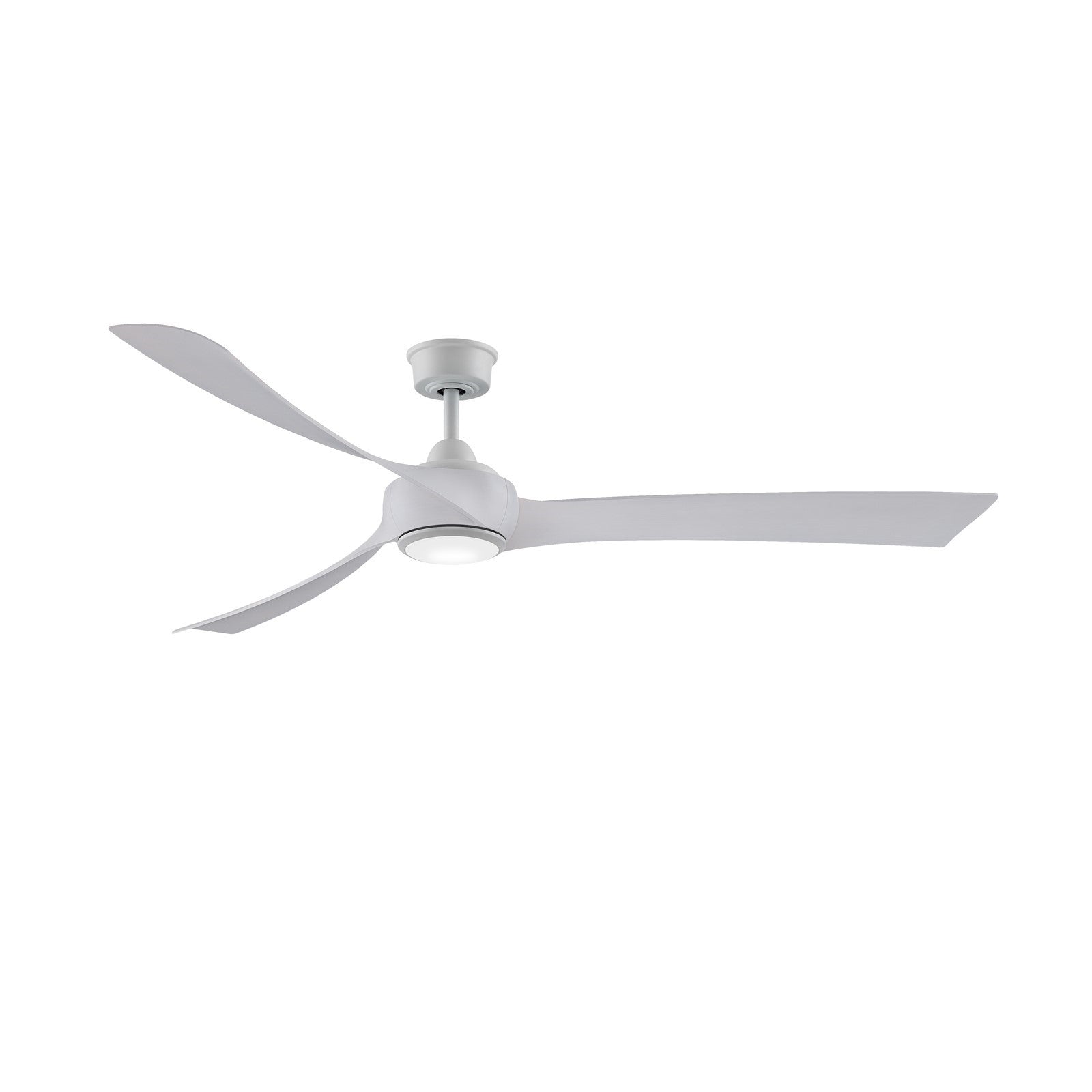

The Wrap Custom with Light Kit combines the sculptural, twisted-blade design of the Wrap Custom with the convenience of built-in lighting. Finished in matte white with white washed blades, it brings a modern, artistic touch to any space. The high-efficiency DC motor delivers up to 10,846 CFM of airflow, while the integrated 18-watt LED light kit offers three color temperatures (3000K, 4000K, 5000K) so you can set the perfect mood. Control everything via the included remote or the FanSync app with voice assistant compatibility.
Best for
- Covered patios, porches, and sunrooms where damp-rated construction is a must
- Great rooms, open-plan living areas, and large bedrooms 20x20 ft or larger
- Bathrooms and laundry rooms with high humidity (damp-rated, but not for direct rain)
- Homes with sloped ceilings up to 27 degrees
- Smart-home setups wanting voice control via Alexa or Google Assistant
Not ideal for
- Outdoor areas exposed directly to rain or water - this is damp-rated, not wet-rated
- Small rooms under 12x12 ft where a 72-inch sweep would overwhelm the space
- Anyone who prefers a fan without a light kit - this version includes one
How bright is it?
The integrated 18-watt LED light kit produces 1600 lumens - roughly equivalent to a 100-watt incandescent bulb - making it suitable as a primary light source for medium to large rooms. It is dimmable, so you can adjust brightness to suit the time of day.
Light color and feel
With CCT Select technology, you can choose 3000K warm white for a cozy, golden glow; 4000K bright white for a clean, energetic feel; or 5000K daylight for a crisp, cool tone. With a CRI of 90, colors render accurately, making it a good choice for kitchens or art-filled rooms. The light is dimmable, and the included remote or app lets you adjust brightness and color temperature.
Sizing and fit

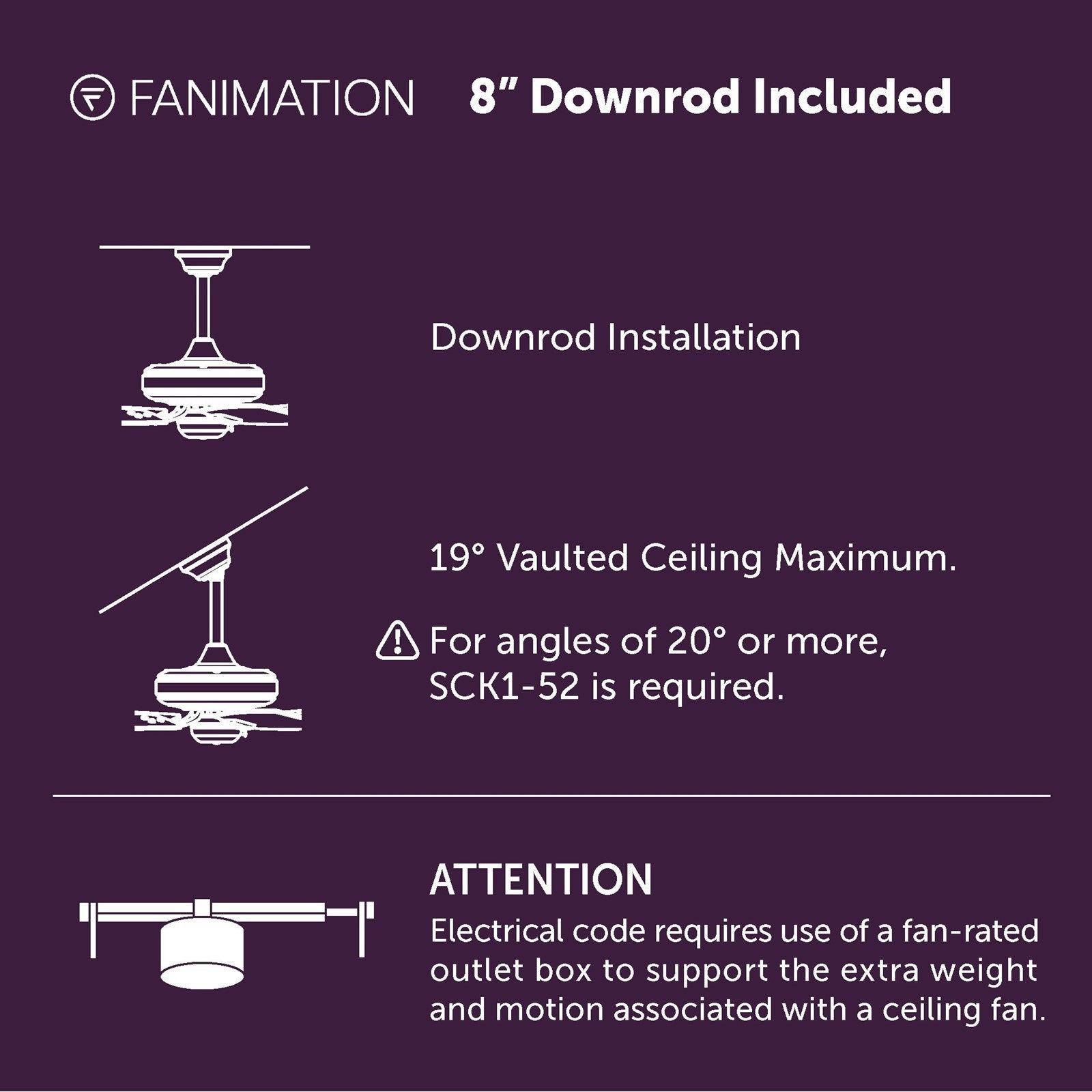

With a 72-inch blade sweep and overall dimensions of 72 x 72 x 16.55 inches, this fan is designed for large spaces. It hangs 16.55 inches from the ceiling to the bottom of the fan (with light kit) using the included 8-inch downrod. For higher ceilings, optional downrods up to 72 inches are available to achieve the optimal 7-9 ft hanging height. It fits flat or sloped ceilings up to 27 degrees.
Specifications
- Primary Finish: Matte White
- Blade Material: Composite
- Blade Finish: White Washed
- Shade Finish: Opal Frosted
- Collection: Wrap Custom
- Blade Sweep: 72"
- Number of Blades: 3
- Blade Pitch: Varied°
- Motor Type: DC
- Motor Size: 153 X 25
- Motor Reversible: True
- Number of Speeds: 16
- Reverse Switch Location: Control
- Light Kit Included: True
- Cap Included: True
- Included Control: TR305
- Control Type: Handheld
- 1 Bulb(s)
- Bulb Type: 18W LED Module
- Bulb Base: Connector Pin
- Bulb Max Wattage: 18W
- Color Temperature: 3000/4000/5000K
- CRI: 90
- Lumens: 1600
- Voltage: 120V
- Avg CFM: 7685
- CFM High: 10846
- Avg Energy Use: 21W
- Max Slope: 27°
- Location Rating: Damp
- Safety Rating: UL/cUL Listed
- Energy Star: True
- Warranty: Limited Lifetime Warranty
- Overall Dimensions: 72"(L) x 72"(W) x 16.55"(H)
- Housing Diameter: 8.88"
- Canopy Dimensions: 6.14"(Dia) x 2.55"(H)
- Downrod Length: 8"
- Leadwire Length: 80"
- Ceiling to Bottom (No Light Kit): 15.96"
- Ceiling to Bottom (With Light Kit): 16.55"
- Item Weight: 19.8 lbs.
Frequently asked
Is the bulb included? Yes, the integrated LED light kit is included and features a built-in 18W LED module. No additional bulb is needed.
Is it dimmable, and what dimmer should I use? Yes, the LED light is dimmable, and dimming is controlled via the included TR305 remote or the FanSync app. No wall dimmer is required.
Can I install this in a bathroom or outdoors? Yes, this fan is damp-rated, so it is safe for covered outdoor areas, bathrooms, and laundry rooms. It should not be directly exposed to rain or water.
What's the warranty? Fanimation offers a Limited Lifetime Warranty for the original purchaser, covering the motor. Contact Fanimation Tech Support at 1-888-567-2055 for assistance.
Can I control this fan with my voice? Yes, the FanSync app works with Amazon Alexa and Google Assistant for voice control, and the included TR305 remote also provides full control.
