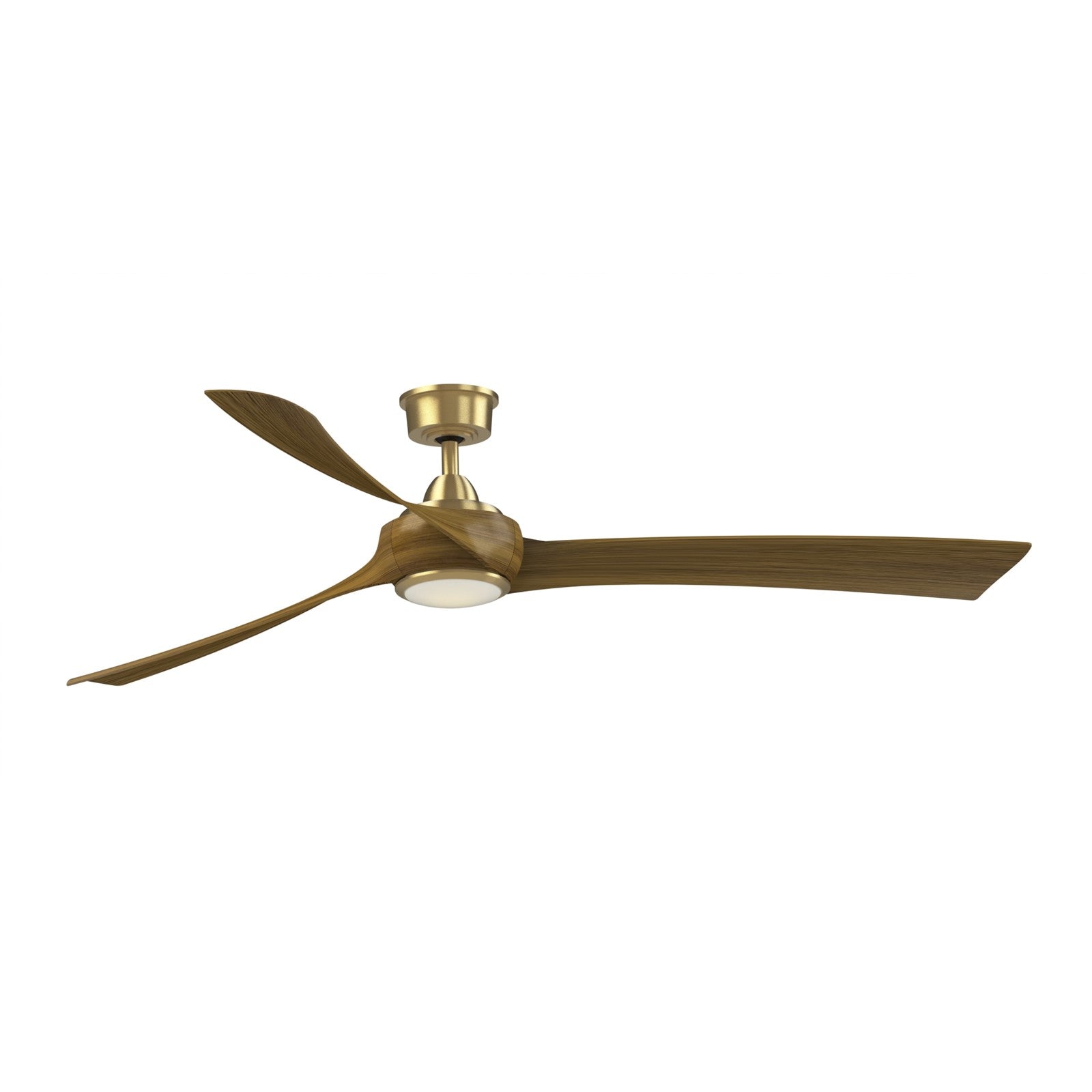

A 72-inch smart ceiling fan with an integrated LED light kit, sculpted koa-finish composite blades, and a brushed satin brass motor housing, designed for covered outdoor and large indoor spaces.
The Wrap Custom's smoothly curved and twisted blades create a striking visual statement while the high-efficiency DC motor moves air powerfully and quietly. Damp-rated and Energy Star certified, this fan is built to handle humidity in covered patios, porches, sunrooms, and bathrooms. This version includes an integrated 18-watt LED light kit with CCT Select technology, letting you choose from warm white, bright white, or daylight. Control it with the included handheld remote or your smart device via the FanSync app.
Best for
- Covered patios and porches where damp-rated construction is essential
- Large living rooms and great rooms up to 400 sq ft, mounted on flat or sloped ceilings
- Sunrooms and three-season rooms with high humidity
- Bathrooms and laundry rooms that need reliable air circulation
- Bedrooms and home offices where whisper-quiet operation and integrated lighting are desired
Not ideal for
- Areas directly exposed to rain or water - this fan is damp-rated, not wet-rated
- Rooms with ceilings under 8 ft unless you use a flush mount (not included) to maintain safe clearance
- Spaces needing a very bright primary light - the 1600-lumen LED kit is best for ambient lighting
How bright is it?
The integrated 18-watt LED light kit delivers 1600 lumens - about as bright as a 100W incandescent bulb - providing ample ambient light for most rooms. It is dimmable via the remote or app.
Light color and feel
The CCT Select technology offers three color temperatures: 3000K warm white, 4000K bright white, and 5000K daylight. The 90 CRI rating ensures colors appear vivid and accurate, ideal for living spaces and kitchens. The light is dimmable, and you can adjust the color temperature to suit your mood or activity.

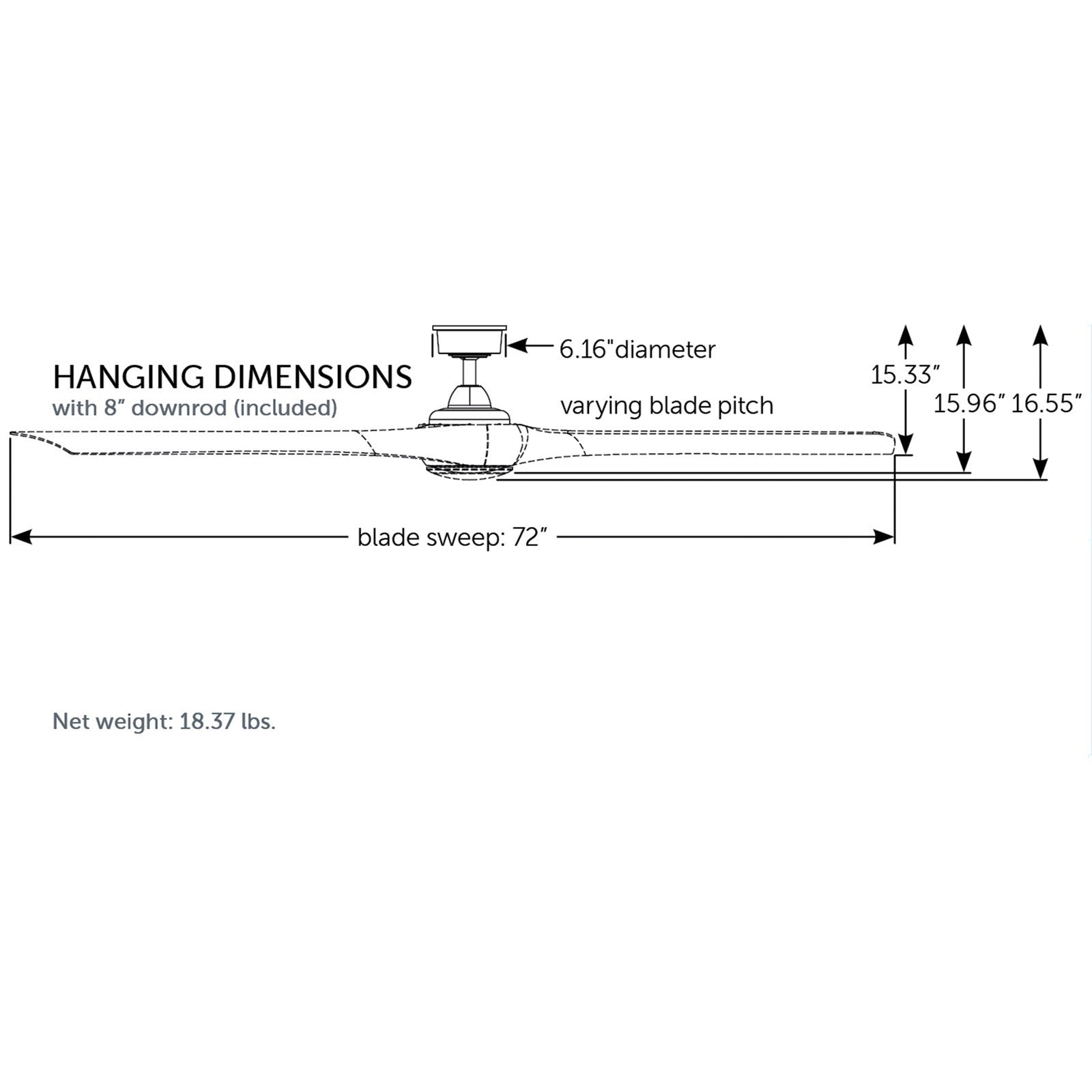

Sizing and fit
With a 72-inch blade sweep and overall dimensions of 72 x 72 x 16.55 inches, this fan suits large rooms. It comes with an 8-inch downrod; optional downrods up to 72 inches are available to achieve the optimal 7-9 ft hanging height. The canopy fits flat or sloped ceilings up to 27 degrees.
Specifications
- Primary Finish: Brushed Satin Brass
- Blade Material: Composite
- Blade Finish: Koa
- Shade Finish: Opal Frosted
- Collection: Wrap Custom
- Blade Sweep: 72"
- Number of Blades: 3
- Blade Pitch: Varied°
- Motor Type: DC
- Motor Size: 153 X 25
- Motor Reversible: True
- Number of Speeds: 16
- Reverse Switch Location: Control
- Light Kit Included: True
- Cap Included: True
- Included Control: TR305
- Control Type: Handheld
- 1 Bulb(s)
- Bulb Type: 18W LED Module
- Bulb Base: Connector Pin
- Bulb Max Wattage: 18W
- Color Temperature: 3000/4000/5000K
- CRI: 90
- Lumens: 1600
- Voltage: 120V
- Avg CFM: 7685
- CFM High: 10846
- Avg Energy Use: 21W
- Max Slope: 27°
- Location Rating: Damp
- Safety Rating: UL/cUL Listed
- Energy Star: True
- Warranty: Limited Lifetime Warranty
- Overall Dimensions: 72"(L)72"(W) x 16.55"(H)
- Housing Diameter: 8.88"
- Canopy Dimensions: 6.14"(Dia) x 2.55"(H)
- Downrod Length: 8"
- Leadwire Length: 80"
- Ceiling to Bottom (With Light Kit): 16.55"
- Item Weight: 19.8 lbs.
Frequently asked
Is the bulb included? Yes, the integrated 18W LED module is included and not replaceable.
Is it dimmable, and what dimmer should I use? The light is dimmable via the remote or app, not a wall dimmer. The fan speed is variable with 16 speeds.
Can I install this in a bathroom or outdoors? Yes, this fan is damp-rated for covered outdoor areas and bathrooms, but it should not be directly exposed to rain or water.
What's the warranty? Limited Lifetime Warranty for the original purchaser, covering the motor. Contact Fanimation Tech Support at 1-888-567-2055.
Can I change the light color temperature? Yes, the CCT Select technology lets you choose between 3000K, 4000K, and 5000K via the remote or app.
