A 56-inch damp-rated smart ceiling fan for covered patios, porches, and large bedrooms, finished in brushed satin brass with black composite blades.

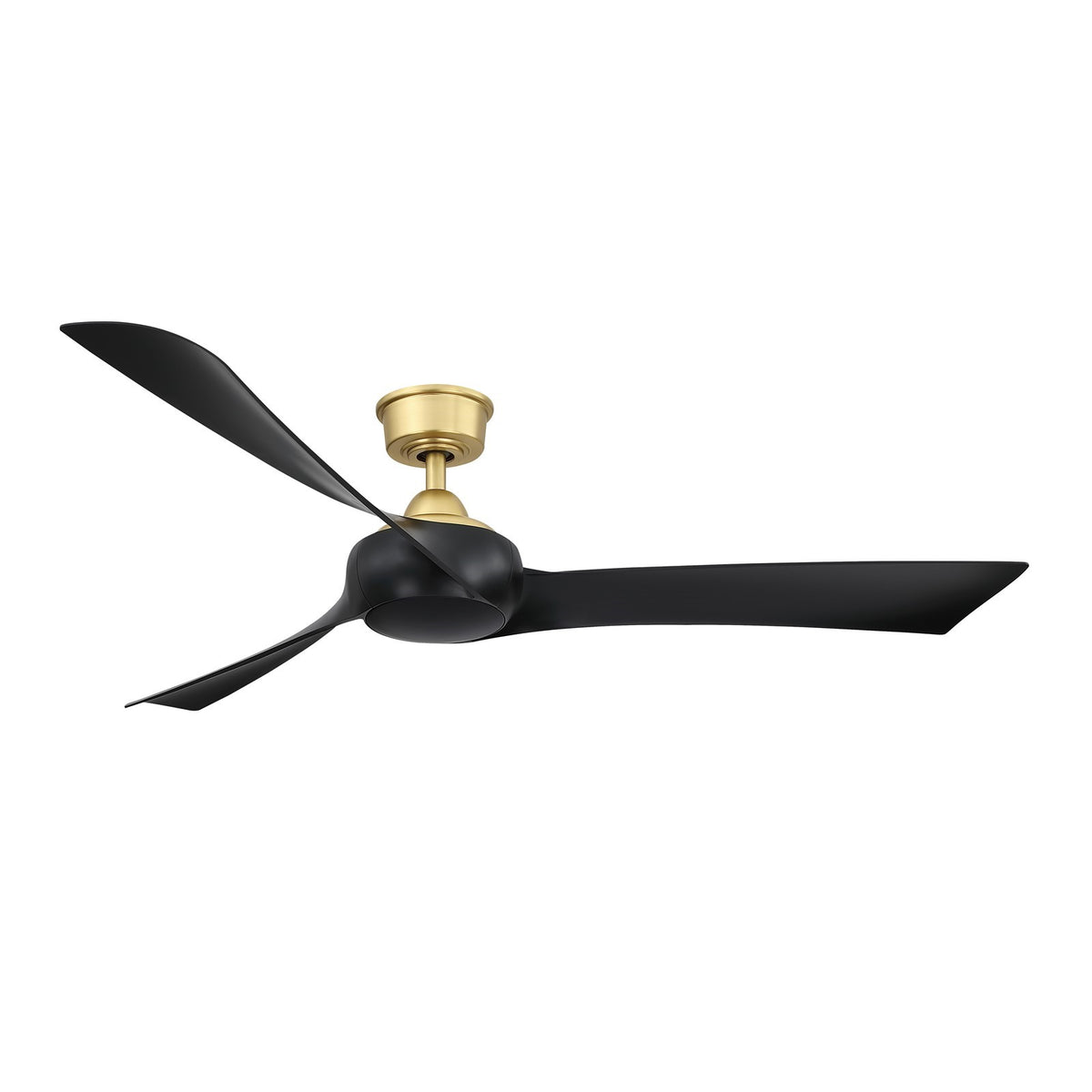

The Wrap Custom from Fanimation makes a striking visual statement with its smoothly curved and twisted blades, a sculptural look that stands out even when the fan is off. The brushed satin brass motor housing pairs with three black composite blades for a contemporary, high-contrast profile. Powered by a quiet, energy-efficient DC motor, it delivers powerful airflow while keeping energy use low. This version does not include a light kit, offering a clean, minimalist profile ideal for areas where overhead lighting is not needed.
Best for
- Covered patios and porches, where the damp-rated motor and moisture-resistant blades handle humidity without direct rain exposure

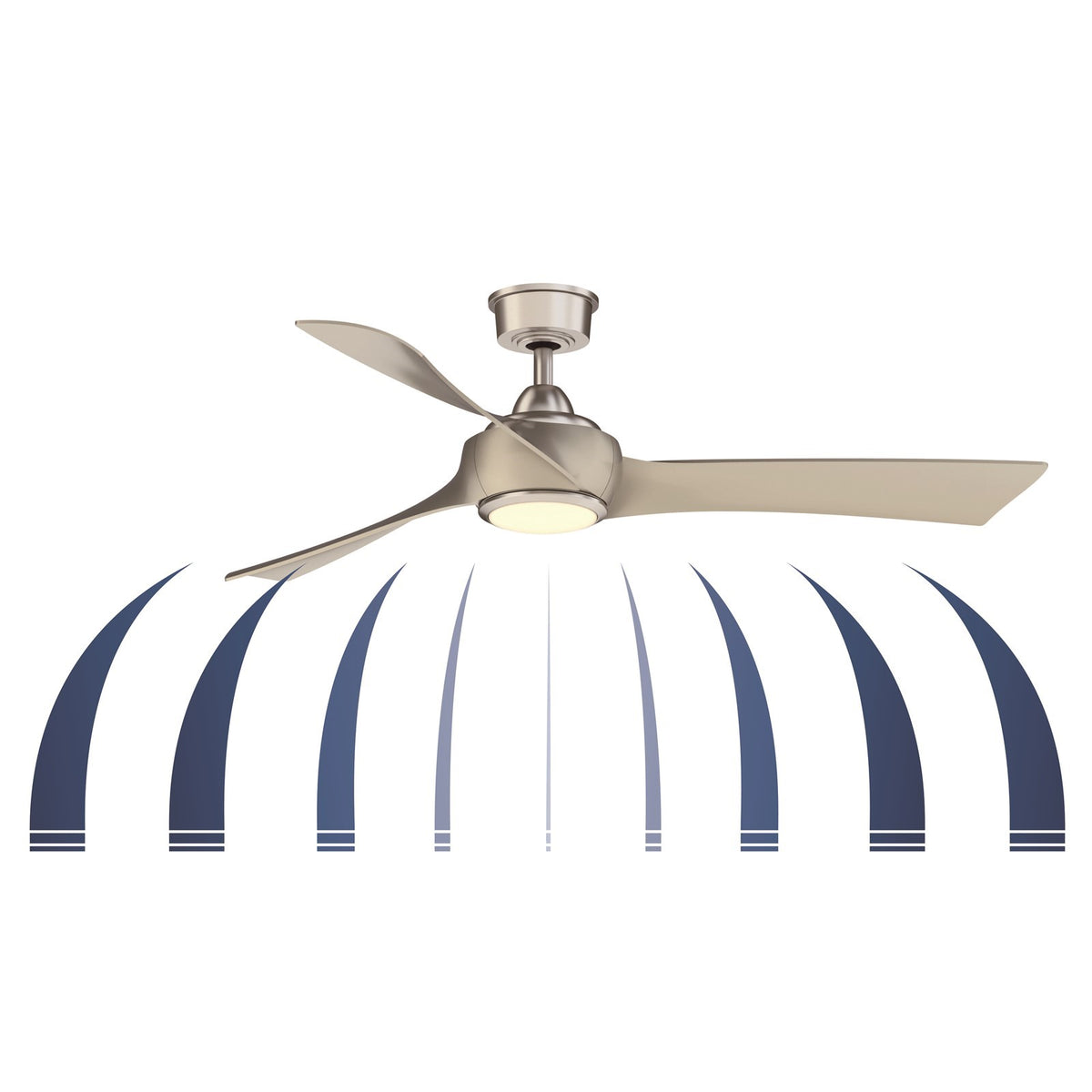

- Large primary bedrooms and living rooms up to 20x20 ft, providing strong airflow at 6,814 CFM on high
- Sunrooms and three-season rooms that need year-round comfort with a reversible motor
- Smart-home setups, controlled via the FanSync app, voice assistants, or the included TR305 handheld remote
- Sloped ceilings up to 27 degrees, using the included 4.5-inch downrod or optional longer downrods
Not ideal for
- Areas directly exposed to rain or water spray - this fan is damp-rated, not wet-rated
- Rooms where you need an integrated light fixture, since this model has no light kit (a separate light kit is available)
- Small spaces under 8x8 ft, where the 56-inch blade sweep may feel oversized
How bright is it?
This fan does not include a light kit, so there is no built-in brightness. It is compatible with an optional integrated 18-watt dimmable LED light kit (sold separately) that provides 1,600 lumens - roughly equivalent to a 100W incandescent bulb - with selectable color temperatures.
Light color and feel
When paired with the optional LED light kit, you can choose from 3000K warm white, 4000K bright white, or 5000K daylight. With a CRI of 90, colors render accurately, making it suitable for art or task areas. The light is dimmable via the remote or app.
Sizing and fit

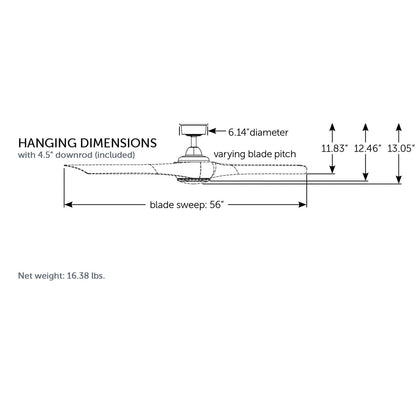

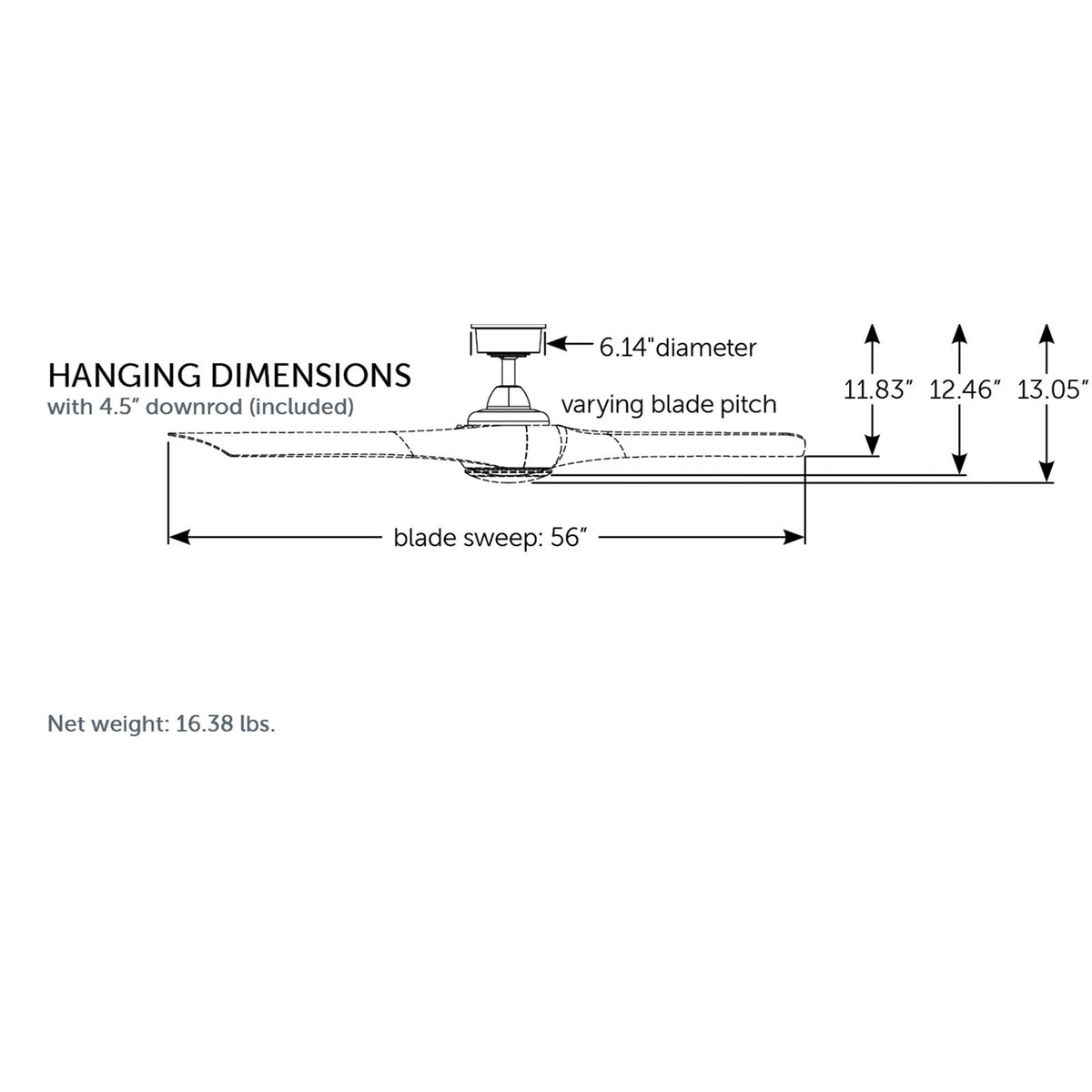

With a 56-inch blade sweep and an overall height of 12.46 inches (from ceiling to bottom without a light kit), this fan suits rooms at least 12x12 ft. The included 4.5-inch downrod works for standard 8-9 ft ceilings; optional downrods up to 72 inches allow for higher or sloped ceilings. The canopy is 6.14 inches in diameter, and the lead wire is 80 inches long.
Specifications
- Primary Finish: Brushed Satin Brass
- Blade Material: Composite
- Blade Finish: Black
- Collection: Wrap Custom
- Blade Sweep: 56"
- Number of Blades: 3
- Blade Pitch: Varied°
- Motor Type: DC
- Motor Size: 158 X 22
- Motor Reversible: True
- Number of Speeds: 16
- Reverse Switch Location: Control
- Cap Included: True
- Included Control: TR305
- Control Type: Handheld
- Voltage: 120V
- Avg CFM: 5011
- CFM High: 6814
- Avg Energy Use: 23W
- Max Slope: 27°
- Location Rating: Damp
- Safety Rating: UL/cUL Listed
- Energy Star: True
- Warranty: Limited Lifetime Warranty
Frequently asked
Is the bulb included? This fan does not include a light kit or bulb. It is compatible with an optional 18W LED module (sold separately).
Is it dimmable, and what dimmer should I use? The fan speed is variable with 16 speeds via the remote or app. The optional LED light kit is dimmable and controlled through the same remote or app.
Can I install this in a bathroom or outdoors? Yes, it is damp-rated, making it suitable for covered outdoor areas, bathrooms, and laundry rooms. It should not be directly exposed to rain or water.
What's the warranty? Fanimation offers a Limited Lifetime Warranty for the original purchaser, covering the motor. For assistance, contact Fanimation Tech Support at 1-888-567-2055.
How do I control the fan with my smart home? The fan is Wi-Fi enabled via FanSync, allowing control through the FanSync app, Amazon Alexa, or Google Assistant. The included TR305 remote also provides full control.
