A 52-inch smart ceiling fan with an integrated dimmable LED light kit and sculpted Koa composite blades, designed for covered outdoor and indoor spaces that need both airflow and illumination.
The Wrap Custom from Fanimation is a study in motion: Its three blades curve and twist in a continuous ribbon, so the fan looks like a piece of kinetic sculpture even when it's still. The matte white motor housing keeps the profile clean, letting the Koa blade finish add warmth. This version includes an 18-watt LED light kit with CCT Select technology, so you can switch between warm, bright, or daylight tones. It's damp-rated, Energy Star certified, and runs on a whisper-quiet DC motor with 16 speeds.
Best for
- Covered patios, porches, and sunrooms where humidity is a concern but rain isn't direct
- Bedrooms and living rooms with 8-foot or higher ceilings, mounted with the included 4.5-inch downrod
- Open-plan spaces up to 400 square feet that need strong air movement (up to 6,279 CFM)
- Smart-home setups—control via the FanSync app or voice assistants
- Rooms with sloped ceilings up to 27 degrees
Not ideal for
- Areas directly exposed to rain or water spray—this is damp-rated, not wet-rated
- Rooms that need a very bright primary light—the 1600-lumen LED is good for ambient lighting, not task lighting
- Very low ceilings under 7 feet, unless you use a flush mount (not included)
How bright is it?
The integrated LED light kit produces 1600 lumens—about as bright as a 100-watt incandescent bulb. That's suitable for ambient lighting in a bedroom or covered patio, but you may want additional task lighting for reading or cooking.
Light color and feel
The CCT Select technology lets you choose from 3000K warm white, 4000K bright white, or 5000K daylight. With a CRI of 90, colors render accurately, making it a good choice for spaces where you want to see true tones. The light is dimmable via the remote or app.
Sizing and fit

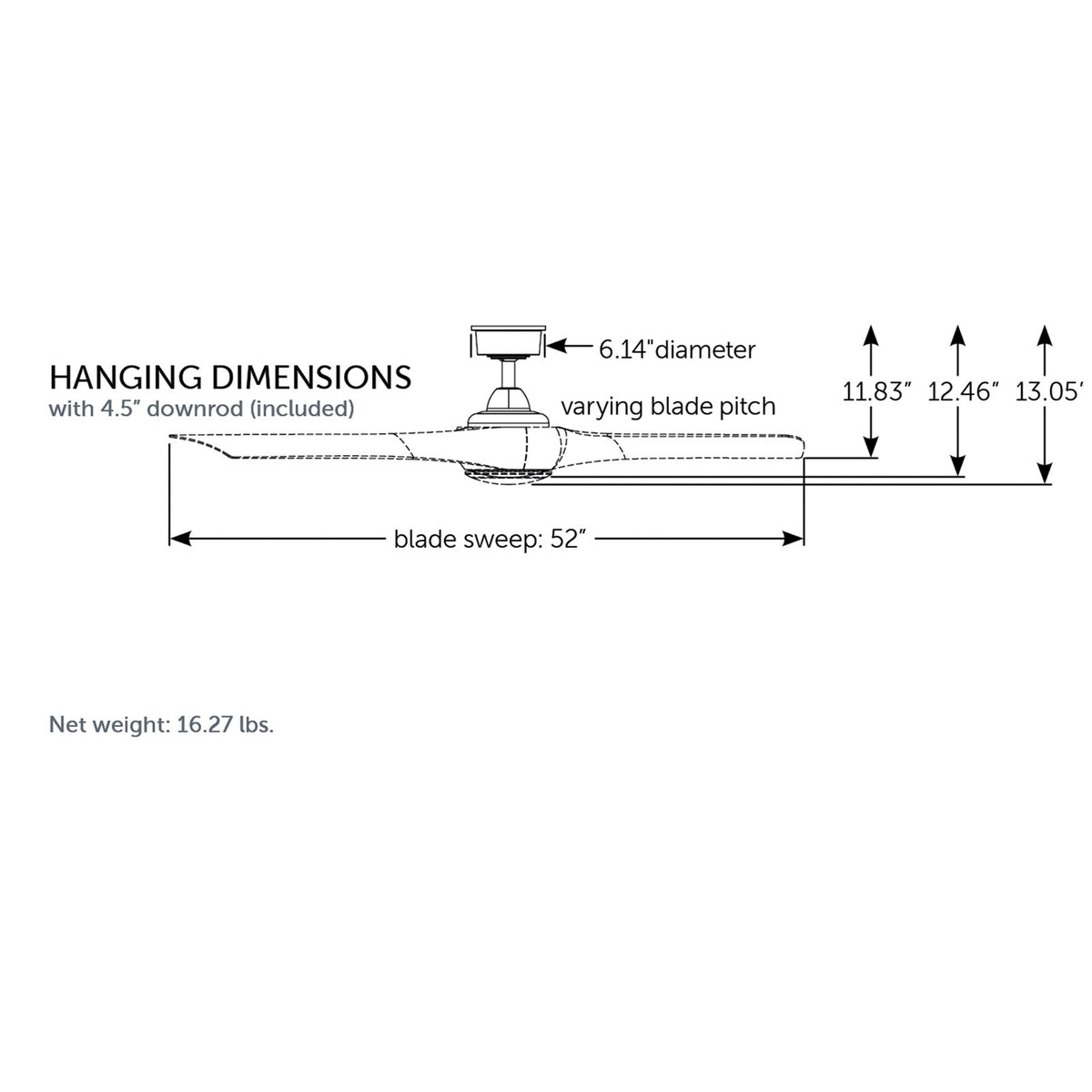

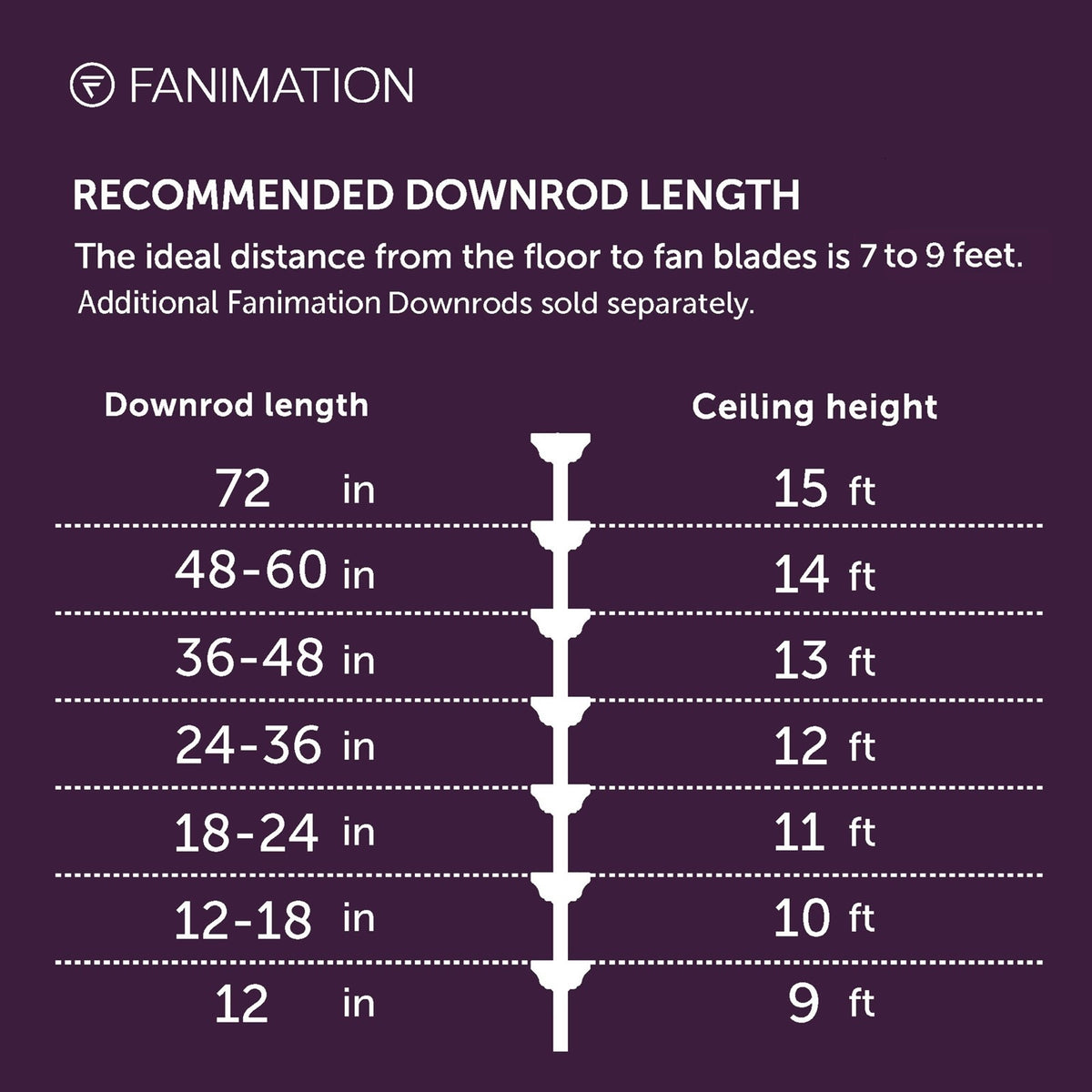

The fan measures 52 inches in diameter and hangs 13.05 inches from the ceiling with the included 4.5-inch downrod. It's designed for flat or sloped ceilings up to 27 degrees. Optional downrods up to 72 inches are available to achieve the recommended 7–9 foot hanging height. The canopy is 6.14 inches in diameter, and the housing is 8.88 inches wide.
Specifications
- Primary Finish: Matte White
- Blade Material: Composite
- Blade Finish: Koa
- Shade Finish: Opal Frosted
- Collection: Wrap Custom
- Blade Sweep: 52"
- Number of Blades: 3
- Blade Pitch: Varied°
- Motor Type: DC
- Motor Size: 158 X 22
- Motor Reversible: True
- Number of Speeds: 16
- Reverse Switch Location: Control
- Light Kit Included: True
- Cap Included: True
- Included Control: TR305
- Control Type: Handheld
- 1 Bulb(s)
- Bulb Type: 18W LED Module
- Bulb Base: Connector Pin
- Bulb Max Wattage: 18W
- Color Temperature: 3000/4000/5000K
- CRI: 90
- Lumens: 1600
- Voltage: 120V
- Avg CFM: 4411
- CFM High: 6279
- Avg Energy Use: 21W
- Max Slope: 27°
- Location Rating: Damp
- Safety Rating: UL/cUL Listed
- Energy Star: True
- Warranty: Limited Lifetime Warranty
- Overall Dimensions: 52"(L)52"(W) x 13.05"(H)
- Housing Diameter: 8.88"
- Canopy Dimensions: 6.14"(Dia) x 2.55"(H)
- Downrod Length: 4.5"
- Leadwire Length: 80"
- Ceiling to Bottom (No Light Kit): 12.46"
- Ceiling to Bottom (With Light Kit): 13.05"
- Item Weight: 17.7 lbs.
Frequently asked
Is the bulb included? Yes, the integrated 18W LED module is included and cannot be replaced by the user. It's rated for 18W and uses a connector pin base.
Is it dimmable, and what dimmer should I use? Yes, the light is dimmable, and you can adjust brightness using the included TR305 remote or the FanSync app. No wall dimmer is required.
Can I install this in a bathroom or outdoors? Yes, it's damp-rated, so it's safe for covered outdoor areas like patios and porches, as well as bathrooms and laundry rooms. It should not be directly exposed to rain or water.
What's the warranty? Fanimation offers a Limited Lifetime Warranty for the original purchaser, covering the motor. Contact Fanimation Tech Support at 1-888-567-2055 for assistance.
How do I change the light color temperature? Use the CCT Select button on the remote or in the FanSync app to cycle through 3000K, 4000K, and 5000K.
