A 52-inch damp-rated smart ceiling fan with an integrated LED light kit from Fanimation's Wrap Custom collection, ideal for covered outdoor spaces and large indoor rooms.

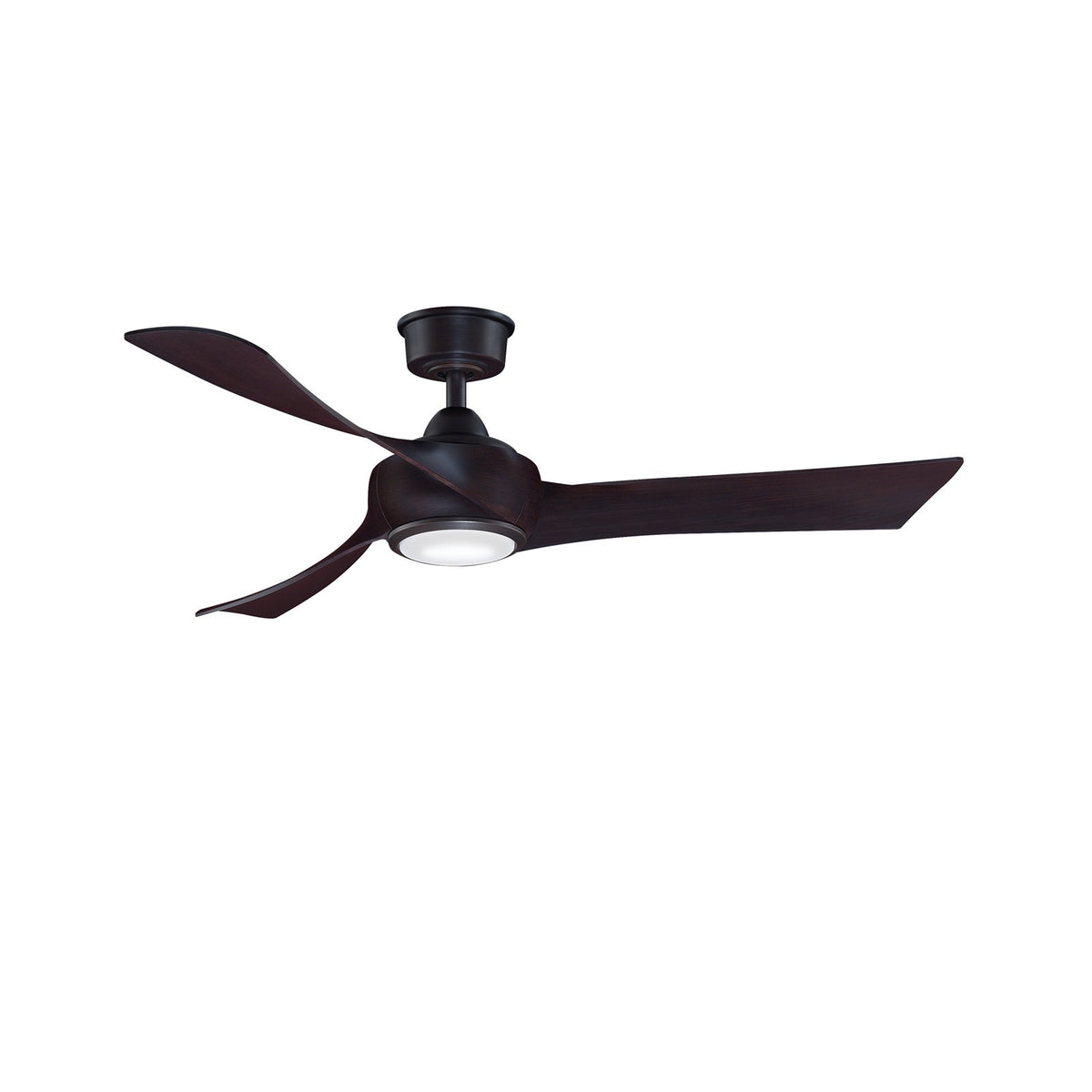

The Wrap Custom ceiling fan with light kit combines a striking design of curved, twisted dark walnut composite blades with a dark bronze motor housing. The integrated 18-watt LED module offers CCT Select technology, letting you choose from warm white, bright white, or daylight. Powered by a high-efficiency DC motor, this fan delivers powerful airflow while staying quiet and energy-efficient. Control it with the included handheld remote or your smart device via the FanSync app, and enjoy 16 speeds plus seasonal reverse.
Best for
- Covered patios and porches, where the damp-rated construction withstands humidity without direct rain exposure
- Large bedrooms and living rooms up to 400 sq ft, providing both air circulation and adjustable lighting
- Sunrooms and three-season rooms that need year-round comfort and smart control
- Bathrooms and laundry rooms with high humidity, thanks to the damp-rated design
- Tech-savvy homeowners who want voice or app control via FanSync
Not ideal for
- Outdoor areas directly exposed to rain or water - this fan is damp-rated, not wet-rated
- Rooms with very low ceilings under 8 feet without a shorter downrod, as the included 4.5-inch downrod may hang too low
- Spaces that require a separate light fixture for higher brightness, as the 1600-lumen LED is suitable for ambient lighting but not task lighting
How bright is it?
The integrated 18-watt LED module produces 1600 lumens - roughly equivalent to a 100-watt incandescent bulb. This is suitable for ambient lighting in medium to large rooms, but not as a primary task light for detailed work.
Light color and feel
The CCT Select technology offers three color temperatures: 3000K warm white, 4000K bright white, and 5000K daylight. With a CRI of 90, colors appear accurate and vibrant. The light is dimmable, and the opal frosted shade diffuses light evenly to reduce glare.
Sizing and fit
The fan measures 52 inches in blade sweep and hangs 13.05 inches from the ceiling to the bottom with the light kit. It includes a 4.5-inch downrod and is designed for flat or slightly sloped ceilings up to 27 degrees. Optional downrods up to 72 inches are available to achieve the optimal 7-9 foot hanging height. The canopy is 6.14 inches in diameter, and the housing is 8.88 inches. It weighs 17.7 pounds.
Specifications
- Primary Finish: Dark Bronze
- Blade Material: Composite
- Blade Finish: Dark Walnut
- Shade Finish: Opal Frosted
- Collection: Wrap Custom
- Blade Sweep: 52"
- Number of Blades: 3
- Blade Pitch: Varied°
- Motor Type: DC
- Motor Size: 158 X 22
- Motor Reversible: True
- Number of Speeds: 16
- Reverse Switch Location: Control
- Light Kit Included: True
- Cap Included: True
- Included Control: TR305
- Control Type: Handheld
- 1 Bulb(s)
- Bulb Type: 18W LED Module
- Bulb Base: Connector Pin
- Bulb Max Wattage: 18W
- Color Temperature: 3000/4000/5000K
- CRI: 90
- Lumens: 1600
- Voltage: 120V
- Avg CFM: 4411
- CFM High: 6279
- Avg Energy Use: 21W
- Max Slope: 27°
- Location Rating: Damp
- Safety Rating: UL/cUL Listed
- Energy Star: True
- Warranty: Limited Lifetime Warranty
Frequently asked
Is the bulb included? Yes, the integrated 18W LED module is included and does not require replacement.
Is it dimmable, and what dimmer should I use? Yes, the light is dimmable via the included remote or the FanSync app. No separate dimmer is needed.
Can I install this in a bathroom or outdoors? Yes, it is damp-rated for indoor and covered outdoor spaces, including bathrooms and covered patios, but should not be directly exposed to rain or water.
What's the warranty? Limited Lifetime Warranty for the original purchaser.
Can I change the light color? Yes, the CCT Select technology lets you choose between 3000K, 4000K, and 5000K using the remote or app.
