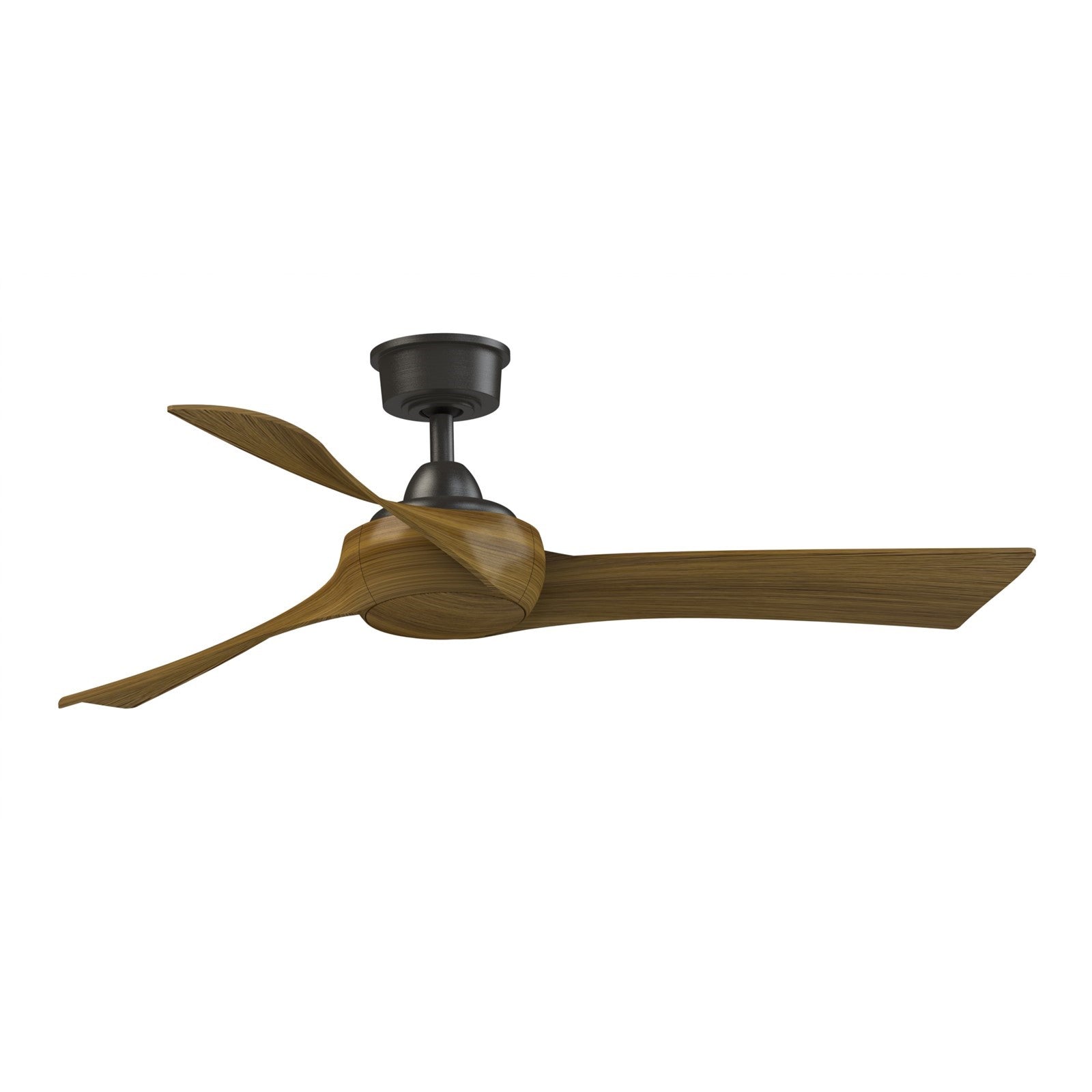

A 52-inch damp-rated smart ceiling fan for covered outdoor and indoor spaces, finished in dark bronze with sculpted Koa composite blades.
The Wrap Custom is a study in motion: Its blades are smoothly curved and twisted, so the fan reads as a sculptural object even when it's off. The dark bronze housing and Koa blade finish give it a warm, organic feel that suits covered patios, porches, sunrooms, bathrooms, and laundry rooms. This version has no light kit, keeping the profile clean and minimalist for spaces where overhead lighting isn't needed.
Best for
- Covered patios and porches where you want a sculptural statement that withstands humidity
- Sunrooms and three-season rooms with 8-9 ft ceilings, mounted with the included 4.5-inch downrod
- Bathrooms and laundry rooms where damp-rated construction is a must
- Bedrooms and living areas where you want whisper-quiet, energy-efficient airflow with smart control
- Sloped ceilings up to 27 degrees, using the included downrod or an optional longer one
Not ideal for
- Spaces directly exposed to rain or water - this fan is damp-rated, not wet-rated
- Rooms where you need an integrated light fixture - this model has no light kit
- Very large open great rooms over 400 sq ft if you need maximum airflow - consider a larger blade sweep
How bright is it?
This fan does not include a light kit, so there is no brightness to report. It is compatible with an optional 18-watt LED light kit (sold separately) that delivers 1600 lumens - about as bright as a 100W incandescent bulb - with selectable color temperatures.
Light color and feel
Not applicable - no light included. If you add the optional LED kit, you can choose 3000K warm white, 4000K bright white, or 5000K daylight, with a high CRI of 90 for accurate color rendering.
Sizing and fit
The fan measures 52 inches in diameter and hangs 12.46 inches from the ceiling (without a light kit). It comes with a 4.5-inch downrod; optional downrods up to 72 inches are available to achieve the optimal 7-9 ft hanging height. Designed for flat or slightly sloped ceilings up to 27 degrees.
Specifications
- Primary Finish: Dark Bronze
- Blade Material: Composite
- Blade Finish: Koa
- Collection: Wrap Custom
- Blade Sweep: 52"
- Number of Blades: 3
- Blade Pitch: Varied°
- Motor Type: DC
- Motor Size: 158 X 22
- Motor Reversible: True
- Number of Speeds: 16
- Reverse Switch Location: Control
- Cap Included: True
- Included Control: TR305
- Control Type: Handheld
- Voltage: 120V
- Avg CFM: 4411
- CFM High: 6279
- Avg Energy Use: 21W
- Max Slope: 27°
- Location Rating: Damp
- Safety Rating: UL/cUL Listed
- Energy Star: True
- Warranty: Limited Lifetime Warranty
Frequently asked
Is the bulb included? No bulb is included because this fan does not come with a light kit. It is compatible with an optional 18W LED light kit (sold separately).
Is it dimmable, and what dimmer should I use? The fan speed is variable with 16 speeds via the included remote or app. The optional light kit is dimmable, but no specific dimmer brand is specified by the manufacturer.
Can I install this in a bathroom or outdoors? Yes, this fan is damp-rated, making it suitable for bathrooms, covered patios, porches, and sunrooms. It should not be directly exposed to rain or water.
What's the warranty? Limited Lifetime Warranty for the original purchaser, covering the motor. Contact Fanimation Tech Support at 1-888-567-2055.
How does the Koa blade finish look in person? Koa is a warm, honey-brown wood tone with subtle grain, giving the fan a natural, organic feel that pairs well with dark bronze hardware.
