A 52-inch damp-rated smart ceiling fan with an integrated LED light kit for covered patios, porches, and large bedrooms, finished in brushed nickel with koa composite blades.

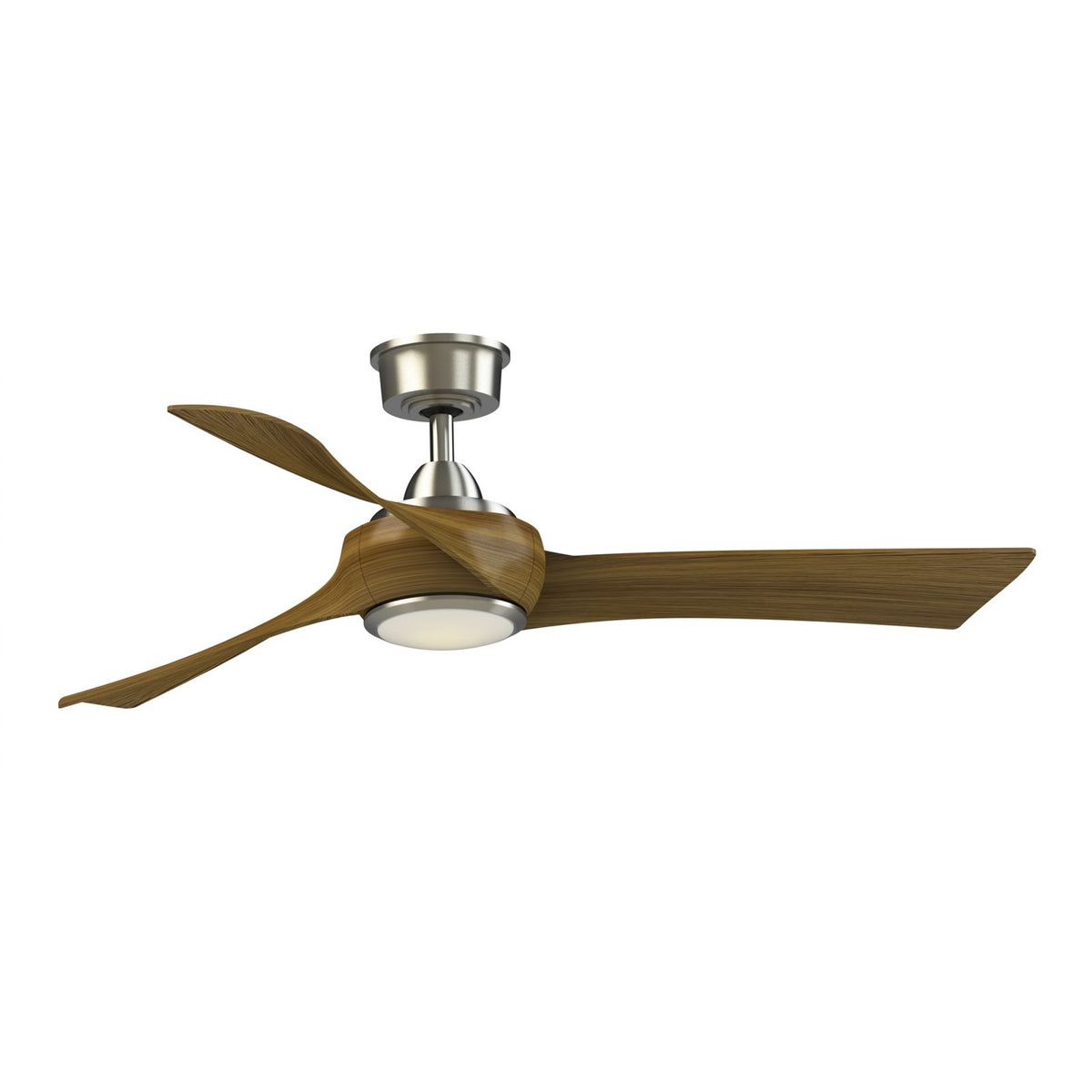

The Wrap Custom Ceiling Fan with Light Kit showcases a unique, elegant design with smoothly curved and twisted blades that create a striking visual statement. Damp-rated and Energy Star certified, this fan features a high-efficiency DC motor for powerful air circulation in a variety of settings. It includes three sleek blades, a remote control, and is compatible with the FanSync app for smart device or voice assistant control. This version comes equipped with an integrated 18-watt LED light kit featuring CCT (correlated color temperature) technology for customizable lighting.
Best for
- Covered patios and porches, where the damp-rated motor and moisture-resistant blades handle humidity without direct rain exposure
- Large bedrooms and living rooms up to 20x20 ft, providing high airflow up to 6,279 CFM and 1,600 lumens of light
- Sunrooms and laundry rooms, where humidity is common but direct water contact is not
- Smart home setups, controlled via the fanSync app or voice assistants
- Energy-conscious households, with an Energy Star certified DC motor averaging just 21W
Not ideal for
- Areas directly exposed to rain or water, as the damp rating does not cover wet locations
- Rooms with ceilings steeper than 27 degrees without an optional adapter
- Spaces needing a brighter primary light, as the 18W LED provides 1,600 lumens - suitable for ambient lighting but not task-heavy areas
How bright is it?
The integrated 18-watt LED light kit produces 1,600 lumens - roughly equivalent to a 100W incandescent bulb. This is ideal for ambient lighting in medium to large rooms, but may not be sufficient as the sole light source for task-oriented areas like kitchens.
Light color and feel
With CCT Select technology, you can choose from 3000K warm white, 4000K bright white, or 5000K daylight. The 3000K setting offers a soft, golden tone similar to traditional incandescent, flattering warm interiors. The 4000K and 5000K options provide cooler, more energizing light. With a CRI of 90, colors render accurately, making it suitable for art or reading areas. The light is dimmable via the remote or app.
Sizing and fit

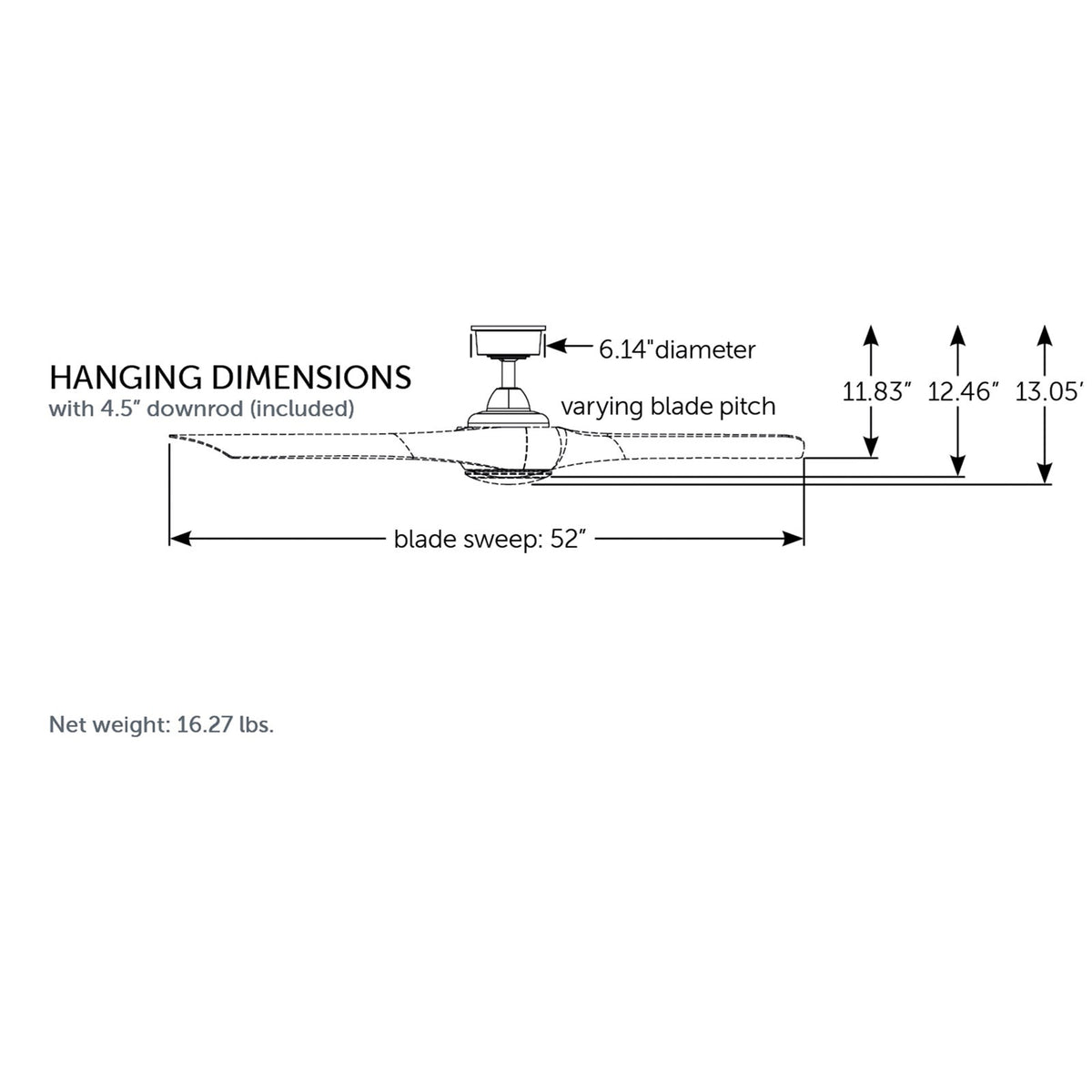

With a 52-inch blade sweep and a 13.05-inch ceiling-to-bottom profile (with light kit), this fan suits rooms at least 12x12 ft. It comes with a 4.5-inch downrod for flat or slightly sloped ceilings; optional downrods up to 72 inches are available for higher ceilings. The canopy is 6.14 inches in diameter.
Specifications
- Primary Finish: Brushed Nickel
- Blade Material: Composite
- Blade Finish: Koa
- Shade Finish: Opal Frosted
- Collection: Wrap Custom
- Blade Sweep: 52"
- Number of Blades: 3
- Blade Pitch: Varied°
- Motor Type: DC
- Motor Size: 158 X 22
- Motor Reversible: True
- Number of Speeds: 16
- Reverse Switch Location: Control
- Light Kit Included: True
- Cap Included: True
- Included Control: TR305
- Control Type: Handheld
- 1 Bulb(s)
- Bulb Type: 18W LED Module
- Bulb Base: Connector Pin
- Bulb Max Wattage: 18W
- Color Temperature: 3000/4000/5000K
- CRI: 90
- Lumens: 1600
- Voltage: 120V
- Avg CFM: 4411
- CFM High: 6279
- Avg Energy Use: 21W
- Max Slope: 27°
- Location Rating: Damp
- Safety Rating: UL/cUL Listed
- Energy Star: True
- Warranty: Limited Lifetime Warranty
- Overall Dimensions: 52"(L)52"(W) x 13.05"(H)
- Housing Diameter: 8.88"
- Canopy Dimensions: 6.14"(Dia) x 2.55"(H)
- Downrod Length: 4.5"
- Leadwire Length: 80"
- Ceiling to Bottom (With Light Kit): 13.05"
- Item Weight: 17.7 lbs.
Frequently asked
Is the bulb included? Yes, the integrated 18W LED module is included and does not require replacement.
Is it dimmable, and what dimmer should I use? Yes, the light is dimmable via the included TR305 remote or the fanSync app. No separate dimmer switch is needed.
Can I install this in a bathroom or outdoors? Yes, this fan is damp-rated, making it suitable for covered outdoor areas, bathrooms, and laundry rooms. It should not be directly exposed to rain or water.
What's the warranty? Limited Lifetime Warranty for the original purchaser, covering the motor. Contact Fanimation Tech Support at 1-888-567-2055 for assistance.
How does the CCT Select technology work? The remote or app lets you cycle through 3000K, 4000K, and 5000K color temperatures, so you can adjust the light from warm to cool to suit your mood or activity.
