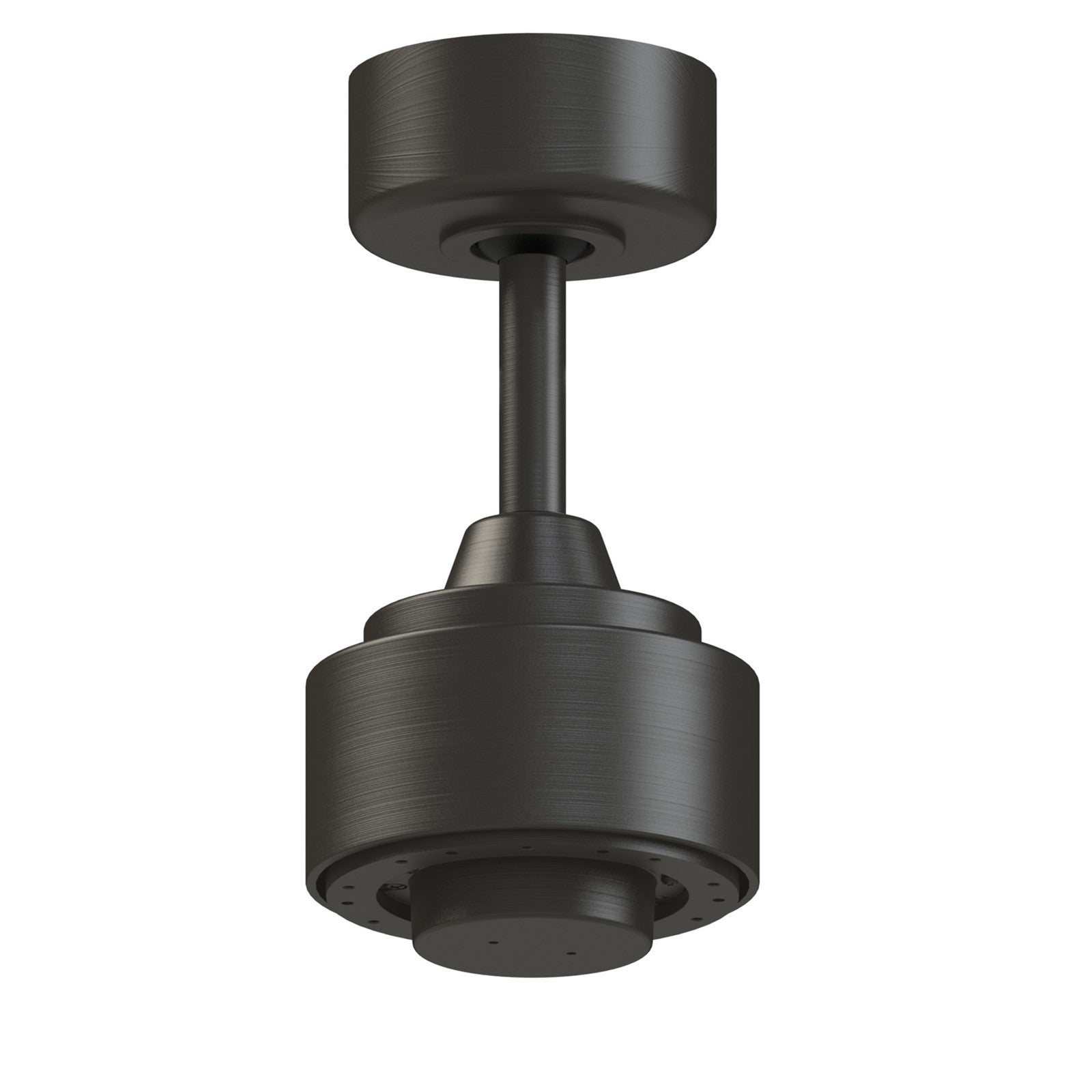

A marine-grade smart ceiling fan motor in dark bronze, designed for TriAire Custom fans, wet-rated for fully exposed outdoor areas, with a powerful 6-speed DC motor delivering up to 10,387 CFM and Wi-Fi control.
This TriAire Custom Marine ceiling fan motor by Fanimation features a durable dark bronze marine-grade finish, built for large outdoor spaces. The energy-efficient DC motor provides exceptional airflow up to 10,387 CFM with quiet operation. Includes a TR360 handheld remote and Wi-Fi fanSync technology for smart control via app or voice. Blade sets and light kits sold separately for full customization. Includes an 8-inch downrod.
Best for
- Large fully exposed outdoor areas like patios, pergolas, and gazebos needing high airflow
- Coastal homes and high-humidity environments requiring marine-grade durability
- Outdoor living rooms and large covered decks
- Smart home setups with voice control via Alexa or Google Assistant
Not ideal for
- Indoor-only spaces - this motor is optimized for outdoor use
- Low ceilings under 7 ft without a flush-mount option (downrod included is 8 in)
How bright is it?
This is a fan motor only - no light included. Compatible with optional TriAire Custom LED light kit (sold separately) for integrated lighting.
Light color and feel
Not applicable - this motor does not include a light. Add the optional light kit for CCT selectable lighting.
Sizing and fit
Motor dimensions: 15.92 in height. Canopy: 5.75 in diameter x 2.57 in height. Includes 8 in downrod; optional downrods up to 72 in available. Supports sloped ceilings up to 27 degrees.
Specifications
- Finish: Dark Bronze
- Voltage: 120V
- Motor Type: DC
- Motor Size: 153 X 25
- Number Of Blades: 3
- Length of Downrod: 8"
- Number Of Speeds: 6
- Maximum Slope Degree: 27
- Reverse Switch Location: Control
- Safety Rating: UL Only Listed
- For Use in Wet Locations
- Warranty Info: 1 Year Warranty
- Overall Dimensions: 7.09"(W) x 15.92"(H)
- Item Weight: 13.38 lbs.
Frequently asked
Does this include blades or a light? No, blades and light kit are sold separately for customization.
Is it dimmable? The motor is not a light; the optional light kit is dimmable.
Can I install this in a bathroom or outdoors? Yes, it is wet-rated for direct rain exposure.
What's the warranty? 1 Year Warranty for the original purchaser.
What size downrod is included? An 8-inch downrod is included; longer downrods up to 72 inches are available separately.
