An 84-inch damp-rated smart ceiling fan with a powerful 12-inch LED light kit, designed for large covered outdoor and indoor spaces that need both airflow and bright illumination.

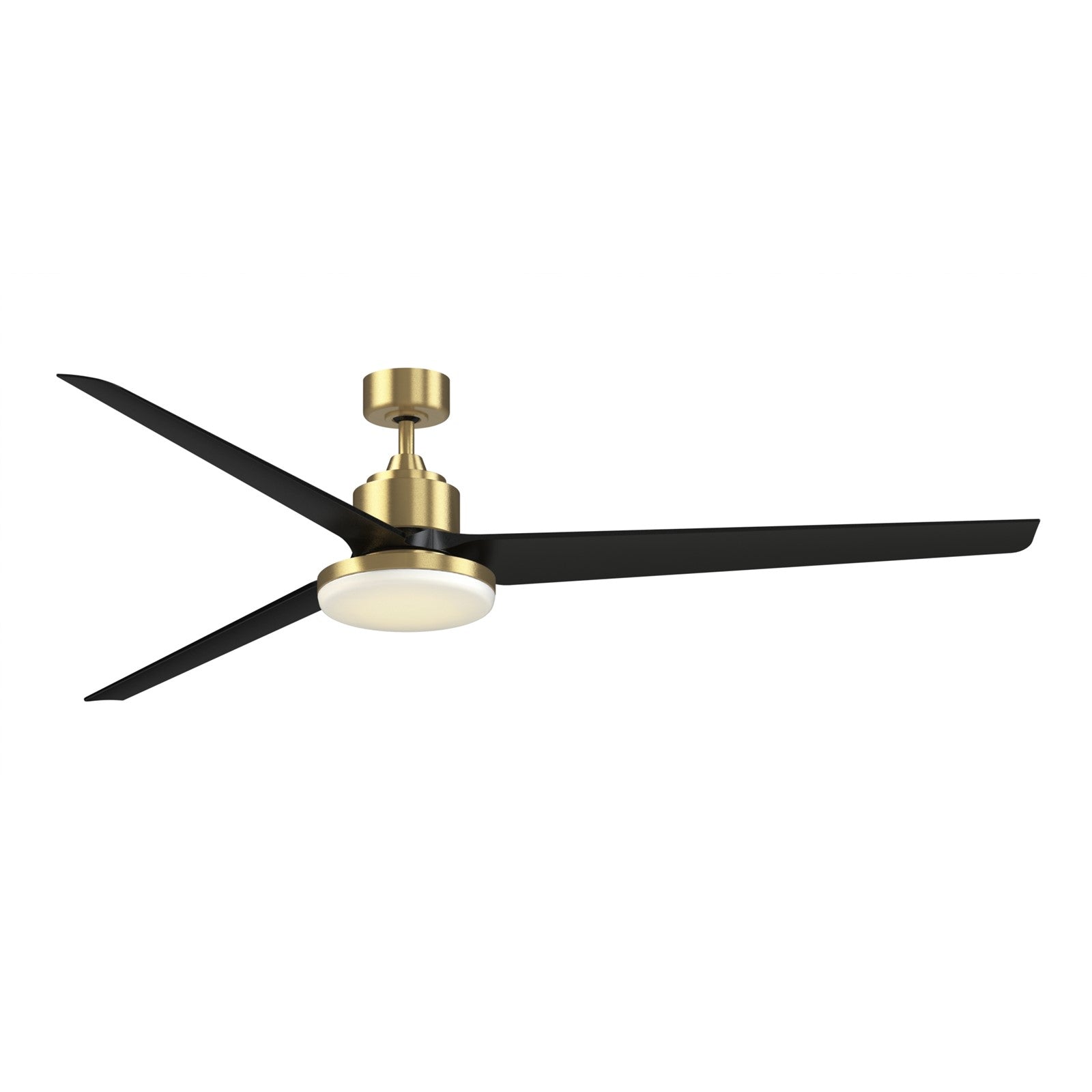

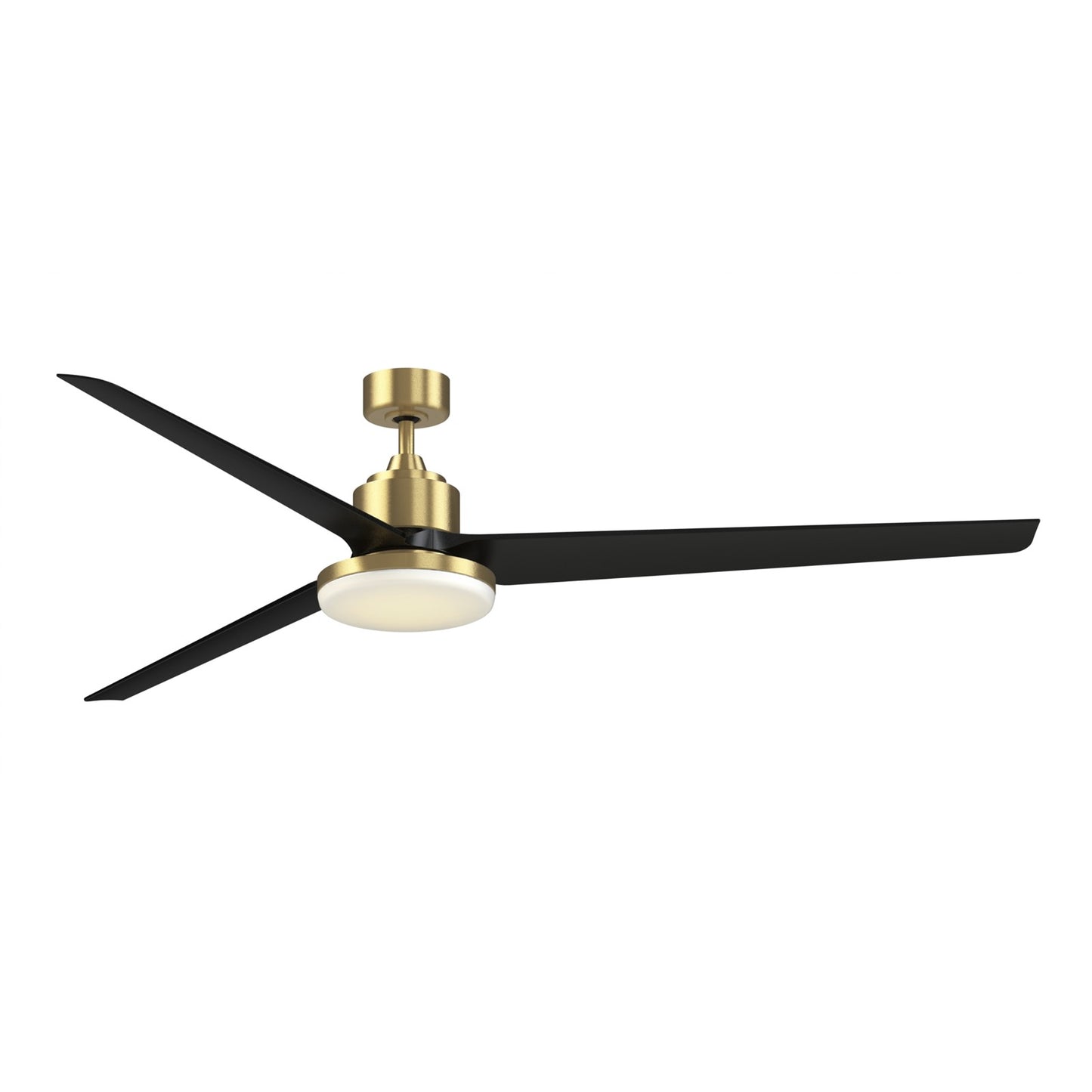

The TriAire Custom from Fanimation combines a sleek, aerodynamic three-blade design with a high-output 40-watt LED light kit. The brushed satin brass finish and black composite blades create a bold, contemporary statement. With Wi-Fi fanSync, you can control the fan and light with your voice or smartphone, and the included handheld remote offers full control.
Best for
- Covered patios, porches, and sunrooms where damp-rated fixtures are required
- Great rooms, open-plan living areas, and large entertaining spaces up to 500 sq ft, with airflow up to 10,387 CFM
- Spaces with ceilings up to 27° slope, using the included 8-inch downrod or optional longer downrods

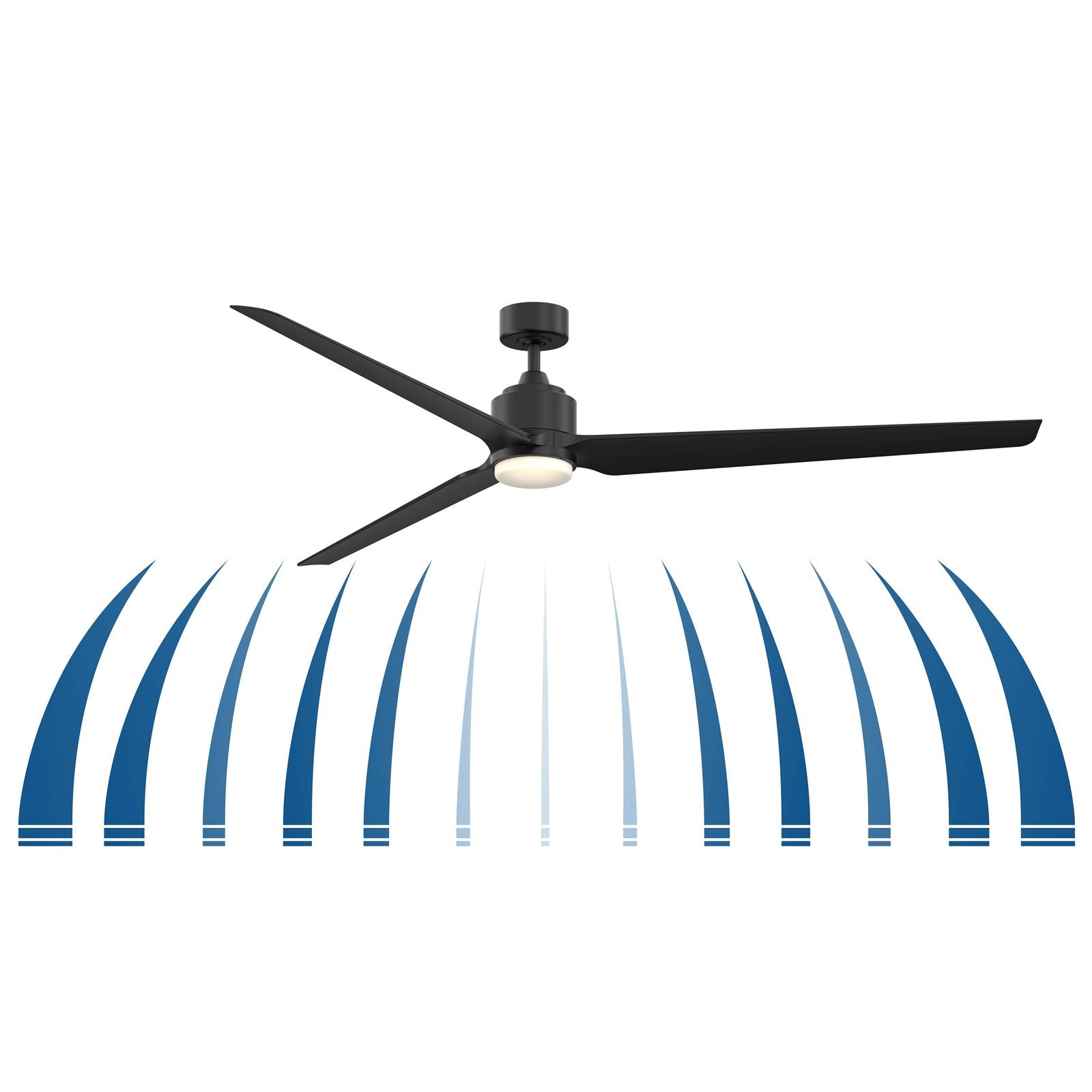

- Year-round comfort with a reversible motor for summer and winter airflow
- Areas needing bright, adjustable light with 3,600 lumens and multiple color temperatures
Not ideal for
- Areas directly exposed to rain or water - this fan is damp-rated, not wet-rated
- Rooms with ceilings under 8 ft unless you use a flush mount (not included) to maintain safe clearance
- Small spaces under 150 sq ft where an 84-inch sweep may be overpowering
How bright is it?
The integrated 40-watt LED module delivers 3,600 lumens - comparable to a 250W incandescent bulb - enough to brightly illuminate a large living area or covered patio. It's dimmable, so you can adjust from a soft glow to full brightness.
Light color and feel
With CCT Select technology, you can choose from 2700K, 3000K, 3500K, 4000K, or 5000K color temperatures. The 90 CRI ensures colors appear vivid and accurate, ideal for entertaining or reading. The opal frosted shade diffuses light evenly, reducing glare.
Sizing and fit

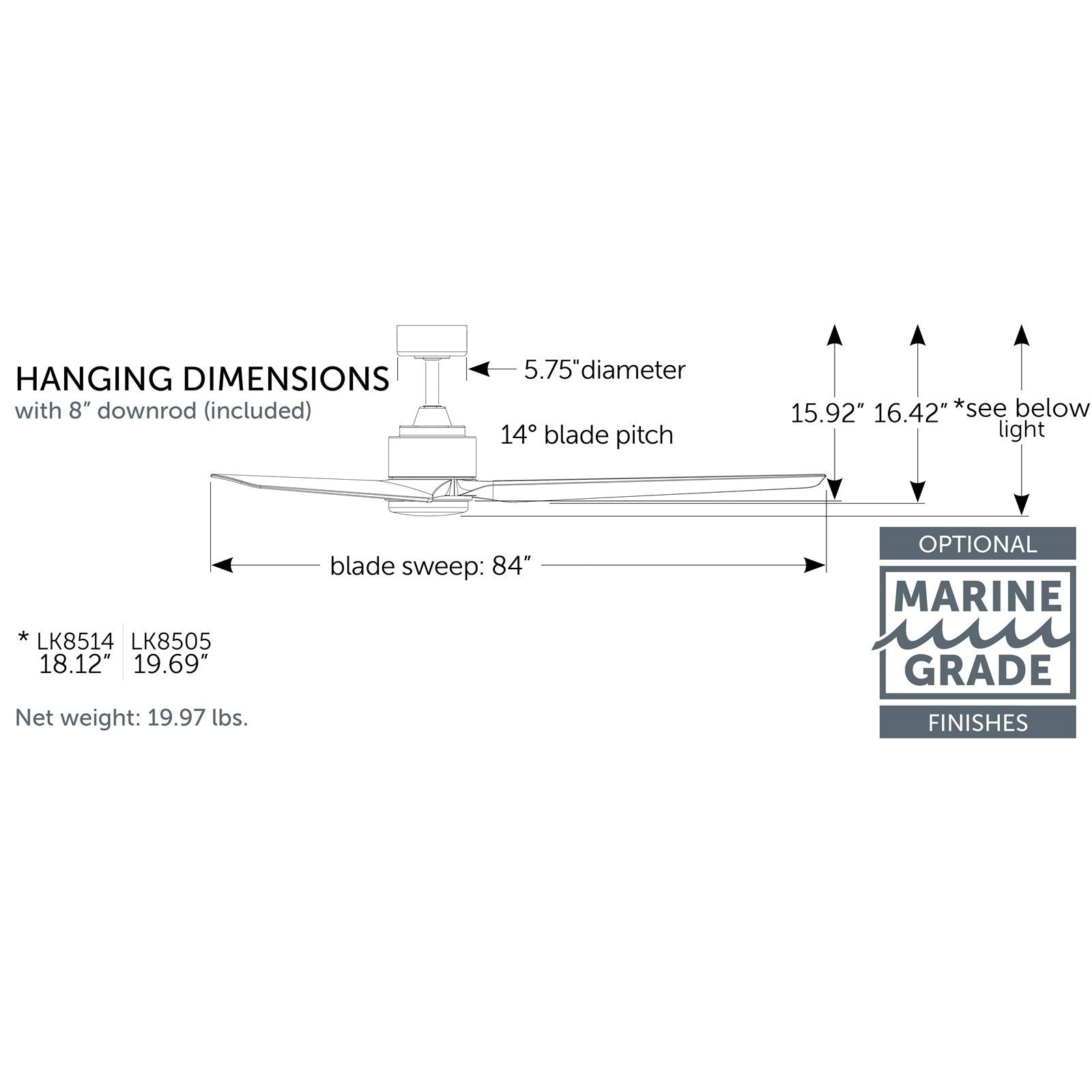

This 84-inch fan has an overall height of 19.69 inches with the 12-inch light kit and includes an 8-inch downrod. It's designed for flat or sloped ceilings up to 27°, and optional downrods up to 72 inches are available to achieve the optimal 7-9 ft hanging height. The canopy is 5.75 inches in diameter.
Specifications
- Primary Finish: Brushed Satin Brass
- Blade Material: Composite
- Blade Finish: Black
- Shade Finish: Opal Frosted
- Collection: TriAire Custom
- Blade Sweep: 84"
- Number of Blades: 3
- Blade Pitch: 14°
- Motor Type: DC
- Motor Size: 153 X 25
- Motor Reversible: True
- Number of Speeds: 16
- Reverse Switch Location: Control
- Light Kit Included: True
- Included Control: TR305
- Control Type: Handheld
- 1 Bulb(s)
- Bulb Type: LED Module
- Bulb Base: Connector Pin
- Bulb Max Wattage: 40W
- Color Temperature: 2700, 3000, 3500, 4000, 5000K
- CRI: 90
- Lumens: 3600
- Voltage: 120V
- Avg CFM: 7827
- CFM High: 10387
- Avg Energy Use: 21W
- Max Slope: 27°
- Location Rating: Damp
- Safety Rating: UL Only Listed
- Energy Star: True
- Warranty: Limited Lifetime Warranty
- Overall Dimensions: 84"(L)84"(W) x 19.69"(H)
- Housing Diameter: 7.09"
- Canopy Dimensions: 5.75"(Dia) x 2.57"(H)
- Downrod Length: 8"
- Leadwire Length: 80"
- Ceiling to Bottom (No Light Kit): 16.42"
- Ceiling to Bottom (With Light Kit): 19.69"
- Item Weight: 24.41 lbs.
Frequently asked
Is the bulb included? Yes, the integrated LED module is included.
Is it dimmable, and what dimmer should I use? Yes, it is dimmable via the included remote or the fanSync app. No wall dimmer is required.
Can I install this in a bathroom or outdoors? Yes, it is damp-rated for covered outdoor areas and bathrooms, but it should not be directly exposed to rain or water.
What's the warranty? Limited Lifetime Warranty for the original purchaser.
Can I use this on a sloped ceiling? Yes, it supports up to a 27° slope.
