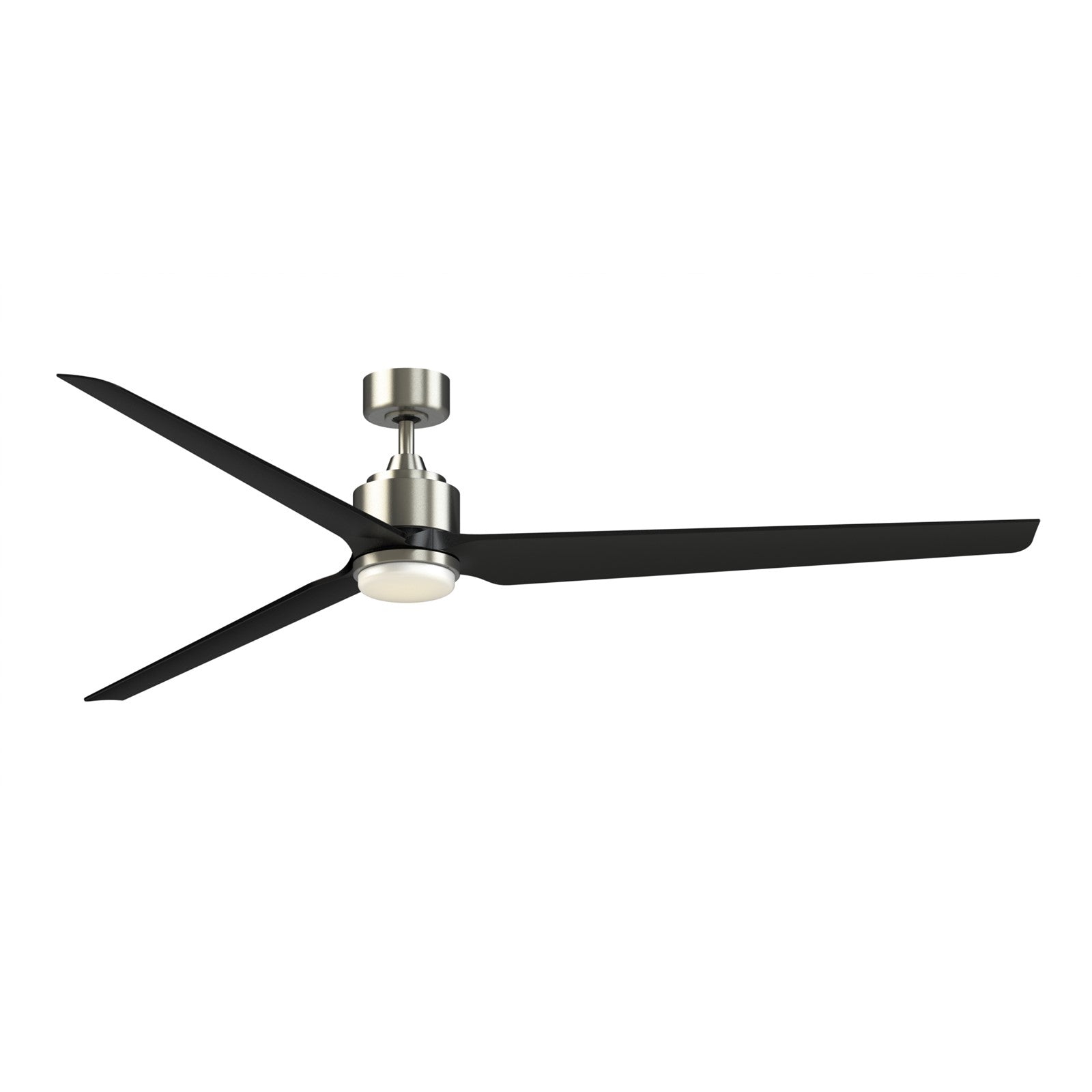

An 84-inch damp-rated smart ceiling fan with an integrated 18-watt LED light kit, designed for large covered outdoor spaces and expansive indoor rooms.
The TriAire Custom from Fanimation delivers powerful airflow and ambient lighting with a sleek, modern aesthetic. Its three aerodynamic composite blades in Black contrast with the Brushed Nickel motor housing, creating a bold look that suits contemporary and industrial interiors. The high-performance DC motor is whisper-quiet and energy-efficient, while the integrated LED light kit with CCT Select technology lets you switch between warm, bright, or daylight tones. Wi-Fi fanSync technology allows convenient control via smart devices or voice assistants.
Best for
- Covered patios, porches, and sunrooms where damp-rated fixtures are required
- Great rooms, lofts, and open-plan living areas over 400 sq ft, providing strong airflow and ambient light
- Bedrooms and home offices needing quiet, energy-efficient air movement with adjustable light color
- Bathrooms and laundry rooms with high humidity, thanks to its damp-rated construction
- Smart home setups - control via Wi-Fi with the fanSync app or voice assistants
Not ideal for
- Outdoor areas directly exposed to rain or water - this fan is damp-rated, not wet-rated
- Rooms with ceilings lower than 8 ft unless using a flush mount (not included)
- Spaces under 200 sq ft where a smaller fan would be more proportionate
How bright is it?
The integrated 18-watt LED module produces 1600 lumens - roughly equivalent to a 100-watt incandescent bulb. This is sufficient for ambient lighting in a large room, but not for task lighting. The light is dimmable, so you can adjust it to suit your mood.
Light color and feel
With CCT Select technology, you can choose from 3000K (warm white), 4000K (bright white), or 5000K (daylight). The 90 CRI ensures colors appear vivid and accurate, making it suitable for spaces where you want to showcase decor. The opal frosted shade diffuses light evenly, reducing glare.
Sizing and fit

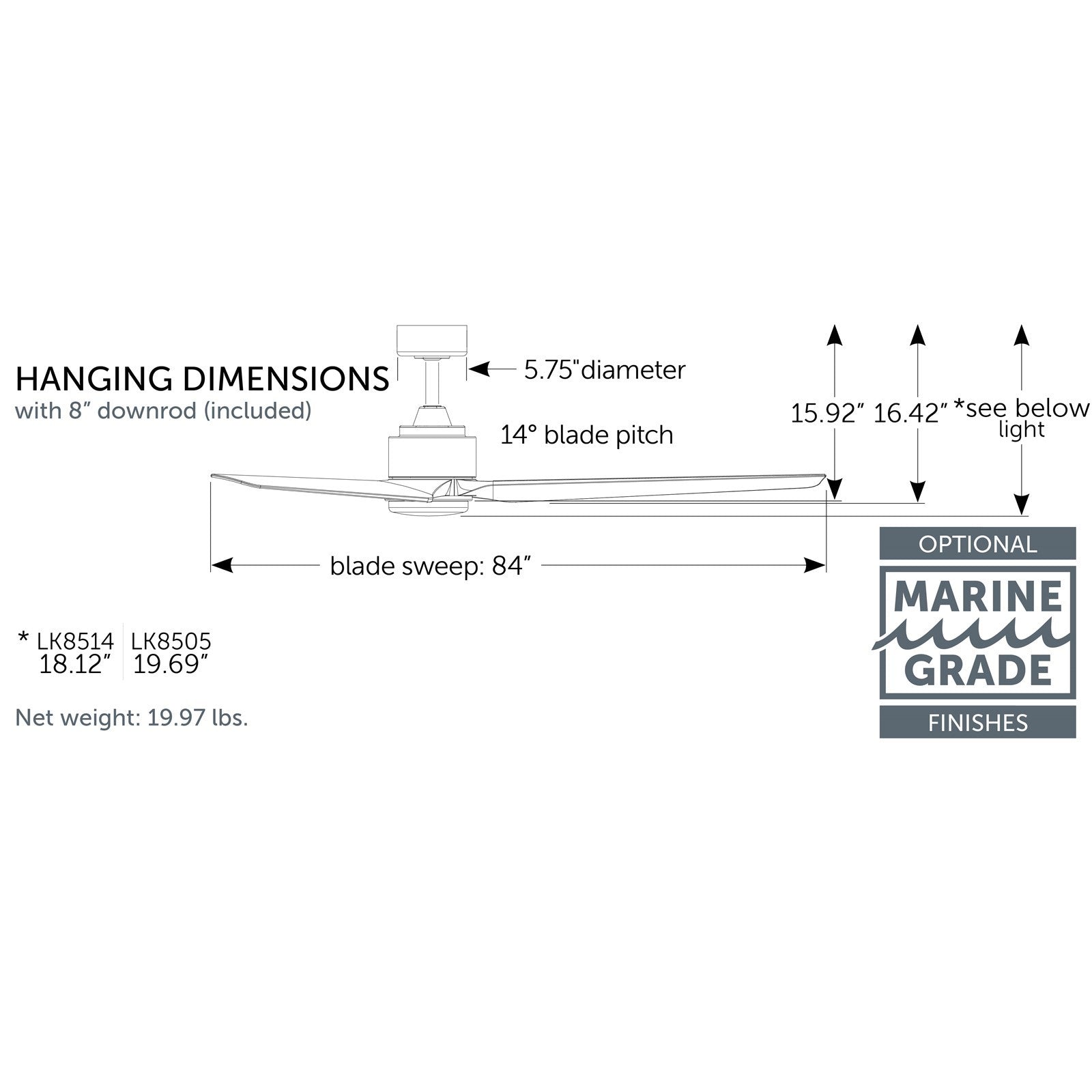

This fan has an 84-inch blade sweep and an overall height of 18.12 inches with the light kit. It comes with an 8-inch downrod, and optional downrods up to 72 inches are available to achieve the optimal 7-9 ft hanging height. Designed for flat or slightly sloped ceilings (up to 27°).
Specifications
- Primary Finish: Brushed Nickel
- Blade Material: Composite
- Blade Finish: Black
- Shade Finish: Opal Frosted
- Collection: TriAire Custom
- Blade Sweep: 84"
- Number of Blades: 3
- Blade Pitch: 14°
- Motor Type: DC
- Motor Size: 153 X 25
- Motor Reversible: True
- Number of Speeds: 16
- Reverse Switch Location: Control
- Light Kit Included: True
- Included Control: TR305
- Control Type: Handheld
- 1 Bulb(s)
- Bulb Type: LED Module
- Bulb Base: Connector Pin
- Bulb Max Wattage: 18W
- Color Temperature: 3000/4000/5000K
- CRI: 90
- Lumens: 1600
- Voltage: 120V
- Avg CFM: 7827
- CFM High: 10387
- Avg Energy Use: 21W
- Max Slope: 27°
- Location Rating: Damp
- Safety Rating: UL Only Listed
- Energy Star: True
- Warranty: Limited Lifetime Warranty
- Overall Dimensions: 84"(L) x 84"(W) x 18.12"(H)
- Housing Diameter: 7.09"
- Canopy Dimensions: 5.75"(Dia) x 2.57"(H)
- Downrod Length: 8"
- Leadwire Length: 80"
- Ceiling to Bottom (No Light Kit): 16.42"
- Ceiling to Bottom (With Light Kit): 18.12"
- Item Weight: 22.09 lbs.
Frequently asked
Is the bulb included? Yes, the integrated LED module is included and not replaceable.
Is it dimmable, and what dimmer should I use? Yes, the light is dimmable via the included remote or the fanSync app. No separate wall dimmer is required.
Can I install this in a bathroom or outdoors? Yes, it is damp-rated, making it suitable for bathrooms, covered patios, and other humid indoor or covered outdoor spaces. It should not be directly exposed to rain or water.
What's the warranty? Limited Lifetime Warranty for the original purchaser, covering the motor. For assistance, contact Fanimation Tech Support at 1-888-567-2055.
Can I use this fan with a sloped ceiling? Yes, it supports up to a 27° slope. For steeper slopes, additional accessories may be needed.
