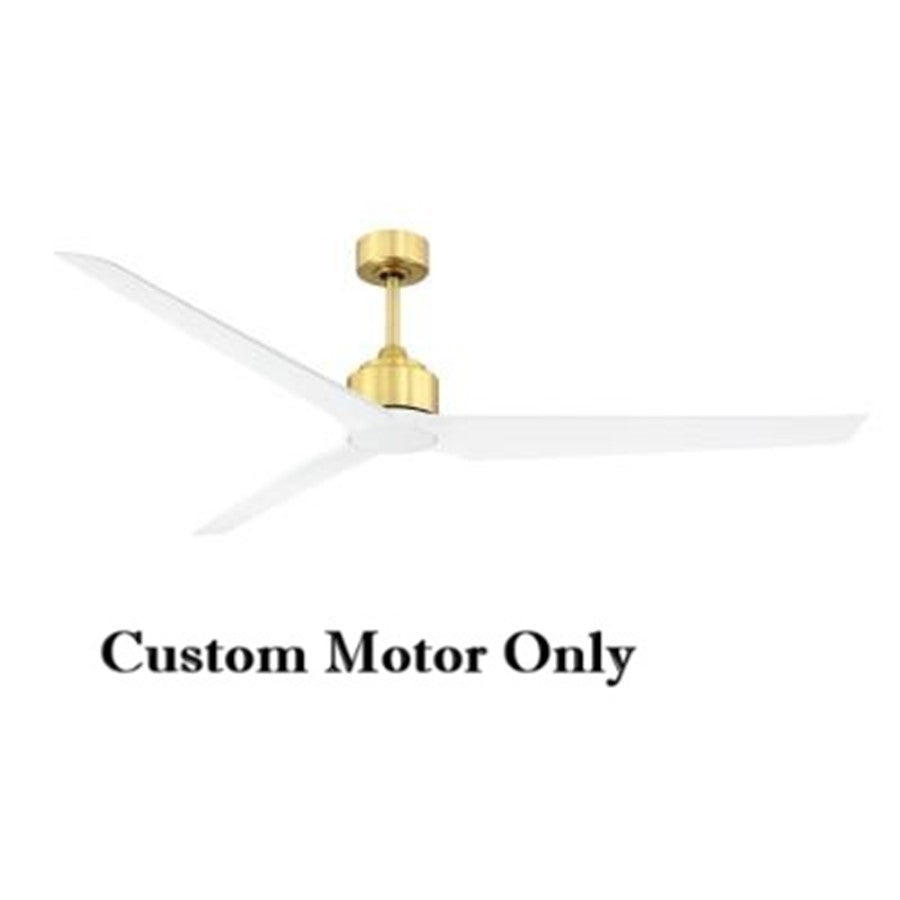

A Fanimation TriAire Custom ceiling fan motor in satin brass, for indoor and outdoor damp locations.
The TriAire Custom by Fanimation fits any style and location. With eight different blade sweeps in multiple finishes, you can create the TriAire Custom that fits your space. This wet rated ceiling fan has a 31 speed DC motor. LED with CCT Select Light kit, blades and motor sold separately. This ceiling fan is wet rated for indoor or outdoor use. It can be controlled using the Fanimation Wi-Fi fanSync application.
Best for
- Covered patios and porches where a damp-rated fan is required
- Large living rooms and great rooms with ceilings up to 27 degrees slope
- Bedrooms and home offices needing quiet, energy-efficient air movement
- Outdoor kitchens and pergolas (wet rated)
Not ideal for
- Small rooms under 8 ft ceilings if you prefer a flush mount (this motor requires downrod)
- Users who want a light kit included - this is motor only
How bright is it?
This is a ceiling fan motor only - no light kit is included. If you add the optional LED light kit with CCT Select, brightness will vary by setting.
Light color and feel
No light included. The optional LED light kit offers CCT Select (adjustable color temperature) for warm to cool light.
Sizing and fit
This motor supports blade sweeps of 64, 72, or 84 inches. Overall dimensions: 64-84"(L) x 64-84"(W) x 15.92"(H). Canopy: 5.75"(Dia) x 2.57"(H). Works on ceilings with up to 27-degree slope.
Specifications
- Part of the TriAire Custom Collection
- Finish: Brushed Satin Brass
- Voltage: 120V
- Light Kit Included: No
- Cap Kit Included: Yes
- Maximum Slope Degree: 27
- Reverse Switch Location: Control
- Motor Type: DC
- Motor Size: 153 x 25
- Length of Electrical Wire: 80"
- Number Of Blades: 3
- Blade Pitch: 14
- Downrod Length: 8
- Number Of Speeds: 16
- Safety Rating: UL/CUL Listed
- For Use in Damp Locations
- Warranty Info: 1 Year Warranty
Frequently asked
Is the bulb included? No light kit is included; this is motor only.
Is it dimmable, and what dimmer should I use? The fan speed is controlled via remote or app; not dimmable in the traditional sense.
Can I install this in a bathroom or outdoors? Yes, it is damp rated for indoor or outdoor use.
What's the warranty? 1 Year Warranty.
Can I use this on a sloped ceiling? Yes, up to 27 degrees slope.
