A 56-inch indoor/outdoor smart ceiling fan with an integrated 12-inch LED light kit, designed for large covered patios, pergolas, and open-plan living areas.
The TriAire Custom ceiling fan from Fanimation pairs a sleek, modern black housing with three slender silver composite blades for a clean, contemporary look. Its high-performance DC motor delivers powerful yet quiet airflow, while the integrated CCT Select LED light lets you choose from five color temperatures to match your space. With Wi-Fi FanSync and a handheld remote, you get full control from your smart device or voice assistant.
Best for
- Covered patios, pergolas, and porches where wet-rated durability is essential
- Open-plan living rooms and great rooms up to 20x20 ft
- Bedrooms and home offices needing customizable light color and quiet operation
- Outdoor kitchens or dining areas with 8-10 ft ceilings
- Smart-home setups with voice control via Alexa or Google Assistant
Not ideal for
- Indoor-only spaces where a less powerful fan would suffice (this is a high-CFM model)
- Low ceilings under 7 ft without an optional shorter downrod
- Rooms where you prefer a traditional wood-blade aesthetic
How bright is it?
The integrated 40-watt LED module produces 3600 lumens - roughly equivalent to a 250W incandescent bulb, making it bright enough to serve as the primary light source for a large living area or outdoor entertaining space.
Light color and feel
With CCT Select technology, you can choose from 2700K (warm white), 3000K, 3500K, 4000K, or 5000K (daylight) to create the perfect ambiance. The 90 CRI ensures colors appear vibrant and true, ideal for outdoor dining or reading areas.
Sizing and fit

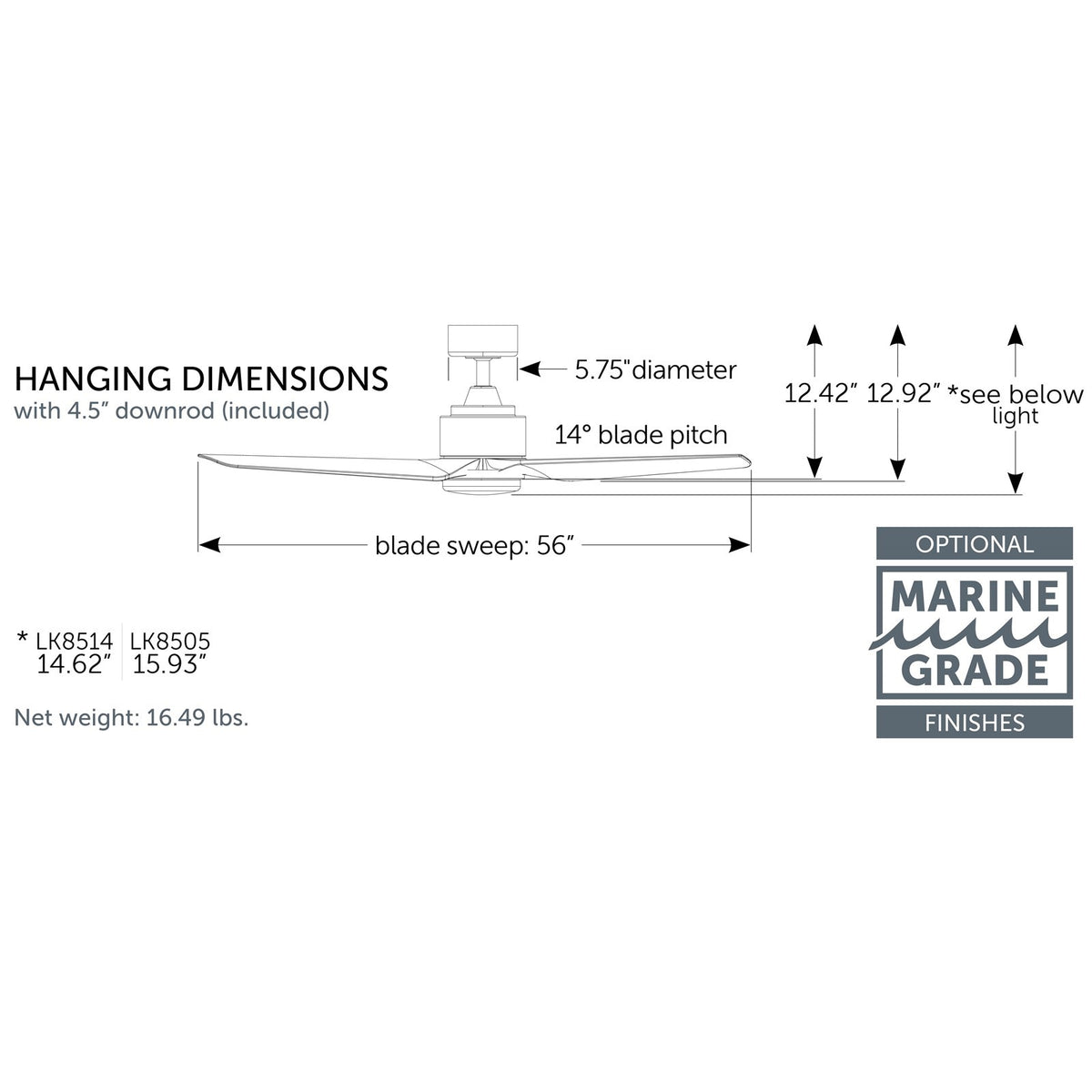

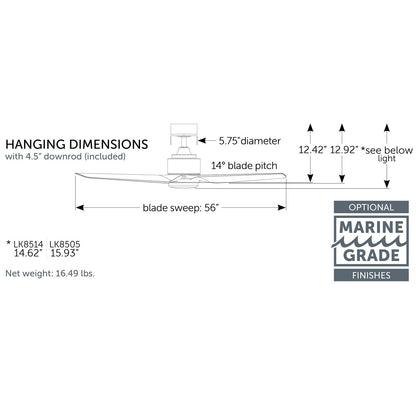

This fan measures 56 inches in diameter with a 15.93-inch height from ceiling to bottom (including light kit). It comes with a 4.5-inch downrod, and optional downrods up to 72 inches are available for taller ceilings. Designed for flat or sloped ceilings up to 27 degrees.
Specifications
- Primary Finish: Black
- Blade Material: Composite
- Blade Finish: Silver
- Shade Finish: Opal Frosted
- Collection: TriAire Custom
- Blade Sweep: 56"
- Number of Blades: 3
- Blade Pitch: 14°
- Motor Type: DC
- Motor Size: 158 X 22
- Motor Reversible: True
- Number of Speeds: 16
- Reverse Switch Location: Control
- Light Kit Included: True
- Included Control: TR305
- Control Type: Handheld
- 1 Bulb(s)
- Bulb Type: LED Module
- Bulb Base: Connector Pin
- Bulb Max Wattage: 40W
- Color Temperature: 2700, 3000, 3500, 4000, 5000K
- CRI: 90
- Lumens: 3600
- Voltage: 120V
- Avg CFM: 4252
- CFM High: 6775
- Avg Energy Use: 14W
- Max Slope: 27°
- Location Rating: Wet
- Safety Rating: UL Only Listed
- Energy Star: True
- Warranty: Limited Lifetime Warranty
Frequently asked
Is the bulb included? Yes, the integrated LED module is included and rated for 40W.
Is it dimmable, and what dimmer should I use? Yes, the light is dimmable via the included remote or the FanSync app; no separate wall dimmer is required.
Can I install this in a bathroom or outdoors? Yes, it is wet-rated, making it safe for covered outdoor areas and damp indoor spaces like bathrooms.
What's the warranty? Limited Lifetime Warranty for the original purchaser.
How does the CCT Select technology work? You can cycle through five color temperatures (2700K to 5000K) using the remote or app to match your lighting preference.
