A 52-inch wet-rated smart ceiling fan with an integrated 18-watt LED light kit, designed for covered outdoor spaces and large indoor rooms.

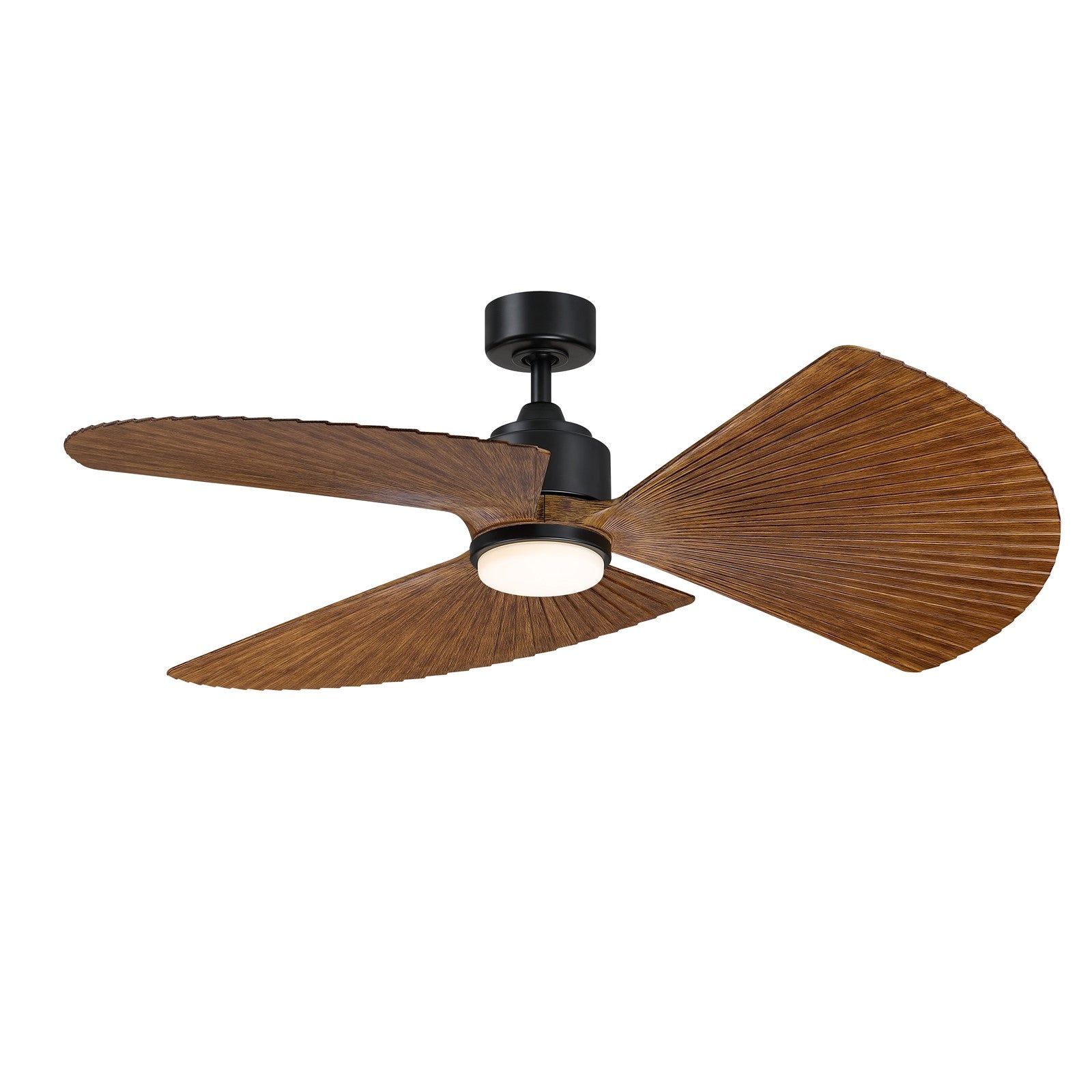

The TriAire Custom ceiling fan from Fanimation combines modern design with powerful performance. Its three slender, pleated Koa blades and matte black housing create a sleek look that complements both contemporary and transitional interiors. The integrated 18-watt LED light kit with CCT Select technology offers three color temperatures (3000K, 4000K, 5000K), allowing you to tailor the light to your space. The opal frosted shade diffuses light evenly, while the quiet DC motor delivers up to 6,100 CFM of airflow.
Best for
- Covered patios, porches, and pergolas where wet-rated durability is essential
- Great rooms and open-plan living areas up to 20x20 ft that need strong airflow
- Bedrooms and home offices where whisper-quiet operation and smart control are valued
- Outdoor kitchens and gazebos that need both air movement and ambient lighting
- Homes with sloped ceilings up to 27° using the included 4.5-inch downrod
Not ideal for
- Rooms with ceilings under 8 ft unless you use a flush mount (not included) to maintain safe clearance
- Small spaces under 100 sq ft where a 52-inch sweep may feel overpowering
- Indoor-only installations if you prefer a fan without a light kit (this model includes one)
How bright is it?
This fan's integrated LED module delivers 1600 lumens - roughly equivalent to a 100W incandescent bulb - providing ample illumination for a medium-sized room or covered patio. It's bright enough to serve as the primary light source in a 12x12 ft room, and dimmable to create a softer ambiance when needed.
Light color and feel
With CCT Select technology, you can choose from 3000K (soft white), 4000K (cool white), or 5000K (daylight) to match your mood and decor. The high CRI of 90 ensures colors appear vibrant and true, making it ideal for outdoor entertaining or showcasing artwork. The light is dimmable, and the included remote allows you to adjust brightness and color temperature with ease.
Sizing and fit
This 52-inch fan has an overall height of 14.62 inches from ceiling to bottom when installed with the included 4.5-inch downrod. It's designed for flat or sloped ceilings up to 27°, and optional downrods up to 72 inches are available to achieve the optimal 7-9 ft hanging height. The fan weighs 23.57 lbs and requires a standard 120V electrical supply.
Specifications
- Primary Finish: Black
- Blade Material: Composite
- Blade Finish: Koa
- Shade Finish: Opal Frosted
- Collection: TriAire Custom
- Blade Sweep: 52"
- Number of Blades: 3
- Blade Pitch: 14°
- Motor Type: DC
- Motor Size: 158 X 22
- Motor Reversible: True
- Number of Speeds: 16
- Reverse Switch Location: Control
- Light Kit Included: True
- Included Control: TR305
- Control Type: Handheld
- 1 Bulb(s)
- Bulb Type: LED Module
- Bulb Base: Connector Pin
- Bulb Max Wattage: 18W
- Color Temperature: 3000/4000/5000K
- CRI: 90
- Lumens: 1600
- Voltage: 120V
- Avg CFM: 3696
- CFM High: 6100
- Avg Energy Use: 12W
- Max Slope: 27°
- Location Rating: Wet
- Safety Rating: UL Only Listed
- Energy Star: True
- Warranty: Limited Lifetime Warranty
Frequently asked
Is the bulb included? Yes, the integrated LED module is included and rated for 18W.
Is it dimmable, and what dimmer should I use? Yes, the light is dimmable via the included TR305 remote or the Fanimation fanSync app. No separate wall dimmer is required.
Can I install this in a bathroom or outdoors? Yes, this fan is wet-rated, making it safe for covered outdoor areas and damp indoor spaces like bathrooms.
What's the warranty? Fanimation offers a Limited Lifetime Warranty for the original purchaser.
How does the CCT Select technology work? You can cycle through three color temperatures (3000K, 4000K, 5000K) using the remote or app, allowing you to customize the light to your preference.
