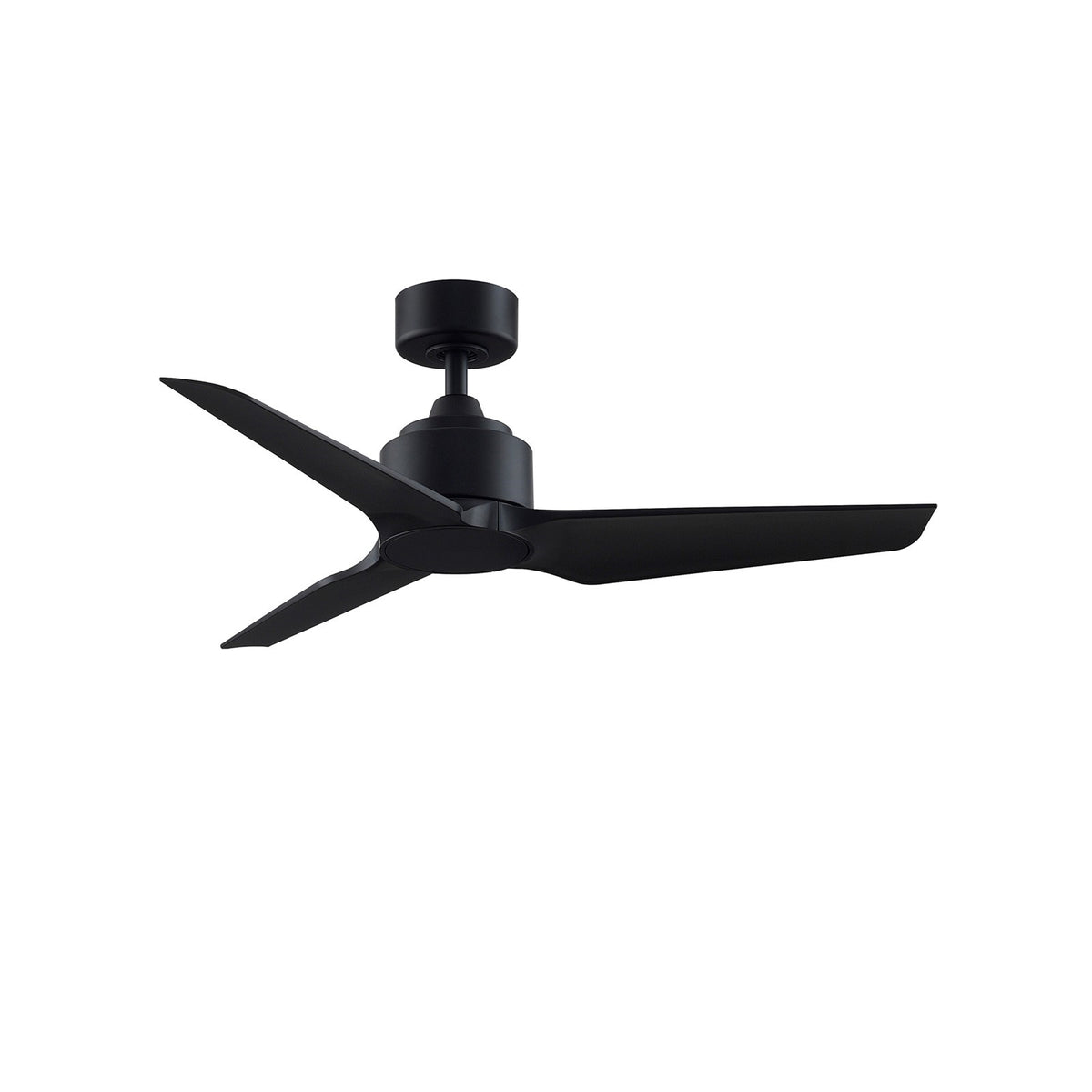

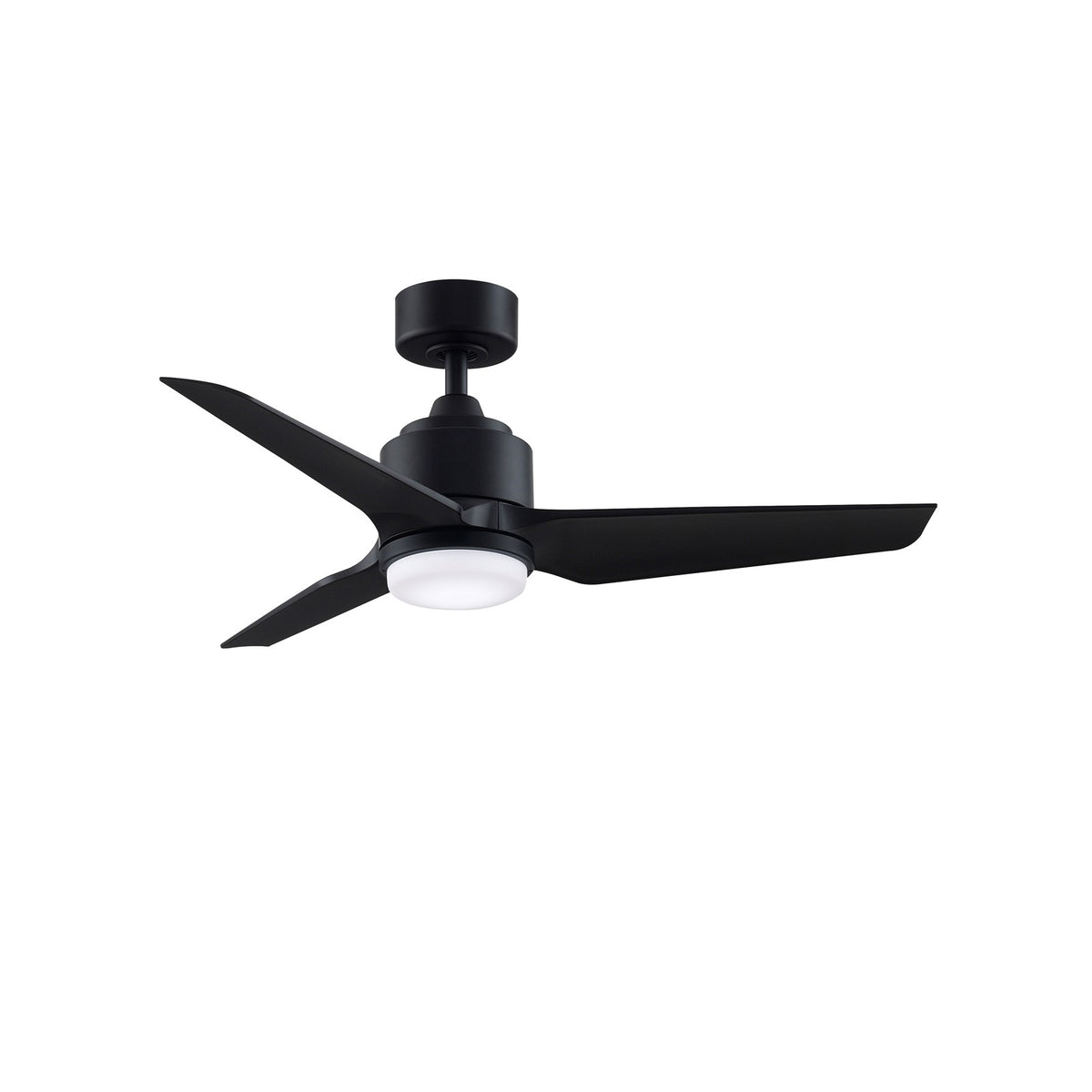

A 48-inch marine-grade smart ceiling fan with an integrated LED light kit for covered patios, pergolas, and indoor living spaces, finished in black with black composite blades.
The TriAire Custom by Fanimation is built to perform beautifully in both indoor and outdoor settings. Constructed with marine-grade materials and a weather-resistant black finish, it withstands direct exposure to rain, water, and high humidity. This version includes an 18W integrated LED light kit with CCT Select technology, offering 1,600 lumens of bright, energy-efficient illumination with three color temperatures. With a powerful DC motor, reversible airflow, and smart home integration, it delivers reliable comfort and versatile lighting year-round.
Best for
- Covered patios, pergolas, gazebos, and porches where wet-rated durability is essential
- Living rooms and bedrooms with 8-9 ft ceilings, mounted with the included downrod
- Outdoor kitchens and dining areas needing powerful, quiet airflow and adjustable lighting
- Smart home setups—control via the fanSync app or voice assistant
- Year-round comfort with reversible airflow for summer and winter
Not ideal for
- Rooms with ceilings under 7 ft—the fan hangs 12.42 inches from the ceiling (18.12 inches with light kit)
- Spaces needing a light kit out of the box—this model includes one, but if you prefer no light, choose the version without
- Very large rooms over 400 sq ft—consider a larger blade sweep for maximum airflow
How bright is it?
The integrated LED light kit provides 1,600 lumens—about as bright as a 100W incandescent bulb—ideal for ambient lighting in living areas and covered outdoor spaces. It is dimmable for adjustable brightness.
Light color and feel
With CCT Select technology, you can choose from 3000K warm white, 4000K bright white, or 5000K daylight. The high CRI of 90 ensures colors appear natural and accurate, flattering skin tones and outdoor finishes.
Sizing and fit
With a 48-inch blade sweep and 14° blade pitch, this fan suits rooms up to 250 sq ft. The overall dimensions are 48 x 48 x 12.42 inches, and it mounts to flat or sloped ceilings (up to 27°) with the included 4.5-inch downrod. Optional downrods up to 72 inches allow mounting heights of 7 to 9 feet from the floor.
Specifications
- Primary Finish: Black
- Blade Material: Composite
- Blade Finish: Black
- Shade Finish: Opal Frosted
- Collection: TriAire Custom
- Blade Sweep: 48"
- Number of Blades: 3
- Blade Pitch: 14°
- Motor Type: DC
- Motor Size: 158 X 22
- Motor Reversible: True
- Number of Speeds: 16
- Reverse Switch Location: Control
- Light Kit Included: True
- Included Control: TR305
- Control Type: Handheld
- 1 Bulb(s)
- Bulb Type: LED Module
- Bulb Base: Connector Pin
- Bulb Max Wattage: 18W
- Color Temperature: 3000/4000/5000K
- CRI: 90
- Lumens: 1600
- Voltage: 120V
- Avg CFM: 3412
- CFM High: 5297
- Avg Energy Use: 13W
- Max Slope: 27°
- Location Rating: Wet
- Safety Rating: UL Only Listed
- Warranty: Limited Lifetime Warranty
- Overall Dimensions: 48"(L)48"(W) x 12.42"(H)
- Housing Diameter: 7.09"
- Canopy Dimensions: 5.75"(Dia) x 2.57"(H)
- Downrod Length: 4.5"
- Leadwire Length: 80"
- Ceiling to Bottom (No Light Kit): 12.42"
- Ceiling to Bottom (With Light Kit): 18.12"
- Item Weight: 17.47 lbs.
Frequently asked
Is the bulb included? Yes, the integrated LED module is included and not replaceable. It is rated for 18W and provides 1,600 lumens.
Is it dimmable, and what dimmer should I use? Yes, the light is dimmable and controlled via the included TR305 remote or the fanSync app. No wall dimmer is required.
Can I install this in a bathroom or outdoors? Yes, this fan is wet rated, making it suitable for bathrooms, covered outdoor areas, and fully exposed locations like patios and pergolas.
What's the warranty? Fanimation offers a Limited Lifetime Warranty for the original purchaser, covering the motor. Contact Fanimation Tech Support at 1-888-567-2055 for assistance.
Can I change the light color temperature? Yes, the CCT Select technology lets you choose between 3000K, 4000K, and 5000K using the remote or app.
