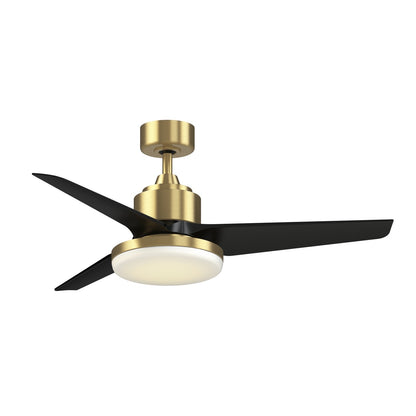

A 48-inch smart ceiling fan with an integrated 12-inch LED light kit, finished in brushed satin brass with black composite blades, designed for damp-rated indoor and covered outdoor spaces.
The TriAire Custom ceiling fan with the 12-inch LED light kit combines modern style with versatile illumination. The brushed satin brass finish and black blades create a sleek, contemporary look, while the integrated light kit offers CCT Select technology to adjust color temperature from warm white to daylight. With Wi-Fi FanSync and the included remote, you can control both fan speed and lighting with ease.
Best for
- Covered patios and porches, where the damp-rated motor and moisture-resistant blades handle humidity without direct rain exposure
- Sunrooms and three-season rooms needing quiet, efficient airflow and adjustable lighting
- Primary bedrooms and large living areas up to 400 sq ft, with 16 speeds for personalized comfort
- Bathrooms and laundry rooms where damp-rated fixtures are required
- Spaces with sloped ceilings up to 27 degrees, using the included 4.5-inch downrod or optional longer downrods
Not ideal for
- Outdoor areas directly exposed to rain or water, as the damp rating does not cover wet conditions
- Rooms with ceilings under 8 feet if you need a longer downrod to achieve proper hanging height
- Those seeking a fan with a smaller, less obtrusive light kit, as the 12-inch kit adds visual presence
How bright is it?
The integrated 12-inch LED light kit produces 3600 lumens, comparable to a 250W incandescent bulb, making it bright enough to serve as a primary light source in medium to large rooms.
Light color and feel
With CCT Select technology, you can choose from 2700K (warm white), 3000K (soft white), 3500K (neutral white), 4000K (bright white), or 5000K (daylight) to suit your activity and mood. The high CRI of 90 ensures colors appear vivid and accurate, ideal for living spaces and kitchens.
Sizing and fit
With a 48-inch blade sweep and overall dimensions of 44 x 44 x 15.93 inches, this fan suits medium to large rooms. The included 4.5-inch downrod places the fan close to the ceiling; optional downrods up to 72 inches allow for optimal 7-9 ft hanging height in rooms with higher ceilings.
Specifications
- Primary Finish: Brushed Satin Brass
- Blade Material: Composite
- Blade Finish: Black
- Shade Finish: Opal Frosted
- Collection: TriAire Custom
- Blade Sweep: 48"
- Number of Blades: 3
- Blade Pitch: 14°
- Motor Type: DC
- Motor Size: 158 X 22
- Motor Reversible: True
- Number of Speeds: 16
- Reverse Switch Location: Control
- Light Kit Included: True
- Included Control: TR305
- Control Type: Handheld
- 1 Bulb(s)
- Bulb Type: LED Module
- Bulb Base: Connector Pin
- Bulb Max Wattage: 40W
- Color Temperature: 2700, 3000, 3500, 4000, 5000K
- CRI: 90
- Lumens: 3600
- Voltage: 120V
- Avg CFM: 3412
- CFM High: 5297
- Avg Energy Use: 13W
- Max Slope: 27°
- Location Rating: Damp
- Safety Rating: UL Only Listed
- Energy Star: True
- Warranty: Limited Lifetime Warranty
- Overall Dimensions: 44"(L)44"(W) x 15.93"(H)
- Housing Diameter: 7.09"
- Canopy Dimensions: 5.75"(Dia) x 2.57"(H)
- Downrod Length: 4.5"
- Leadwire Length: 80"
- Ceiling to Bottom (No Light Kit): 12.92"
- Ceiling to Bottom (With Light Kit): 15.93"
- Item Weight: 20.25 lbs.
Frequently asked
Is the bulb included? Yes, the integrated LED module is included and rated for 40W, providing 3600 lumens.
Is it dimmable, and what dimmer should I use? The light kit is dimmable and can be controlled via the included remote or the FanSync app. No separate dimmer is needed.
Can I install this in a bathroom or outdoors? Yes, this fan is damp-rated, making it suitable for bathrooms, covered patios, and other damp locations. It should not be directly exposed to rain or water.
What's the warranty? Fanimation offers a Limited Lifetime Warranty for the original purchaser, covering the motor and providing dependable performance.
How does the CCT Select technology work? CCT Select lets you cycle through five color temperatures (2700K to 5000K) using the remote or app, so you can adjust the light from warm to cool to match your activity or time of day.
