A 48-inch wet-rated smart ceiling fan with an integrated 12-inch LED light kit, designed for covered outdoor spaces and large indoor rooms.
The TriAire Custom from Fanimation pairs a sleek, modern silhouette with serious performance. Its three slender composite blades in matte white are powered by a quiet, energy-efficient DC motor that delivers airflow up to 5,297 CFM. The integrated 12-inch LED module offers five color temperatures (2700K to 5000K) and a high 90 CRI, so you can tailor the light to your space. With built-in Wi-Fi and FanSync, you can control the fan and light from your smart device or voice assistant, and the included handheld remote puts 16 speeds and CCT selection at your fingertips.
Best for
- Covered patios, porches, and pergolas where wet-rated durability is essential
- Great rooms and open-plan living areas up to 20 x 20 ft needing strong airflow
- Bedrooms and home offices where quiet operation and smart control are valued
- Spaces with ceilings up to 27° slope, using the included 4.5-inch downrod

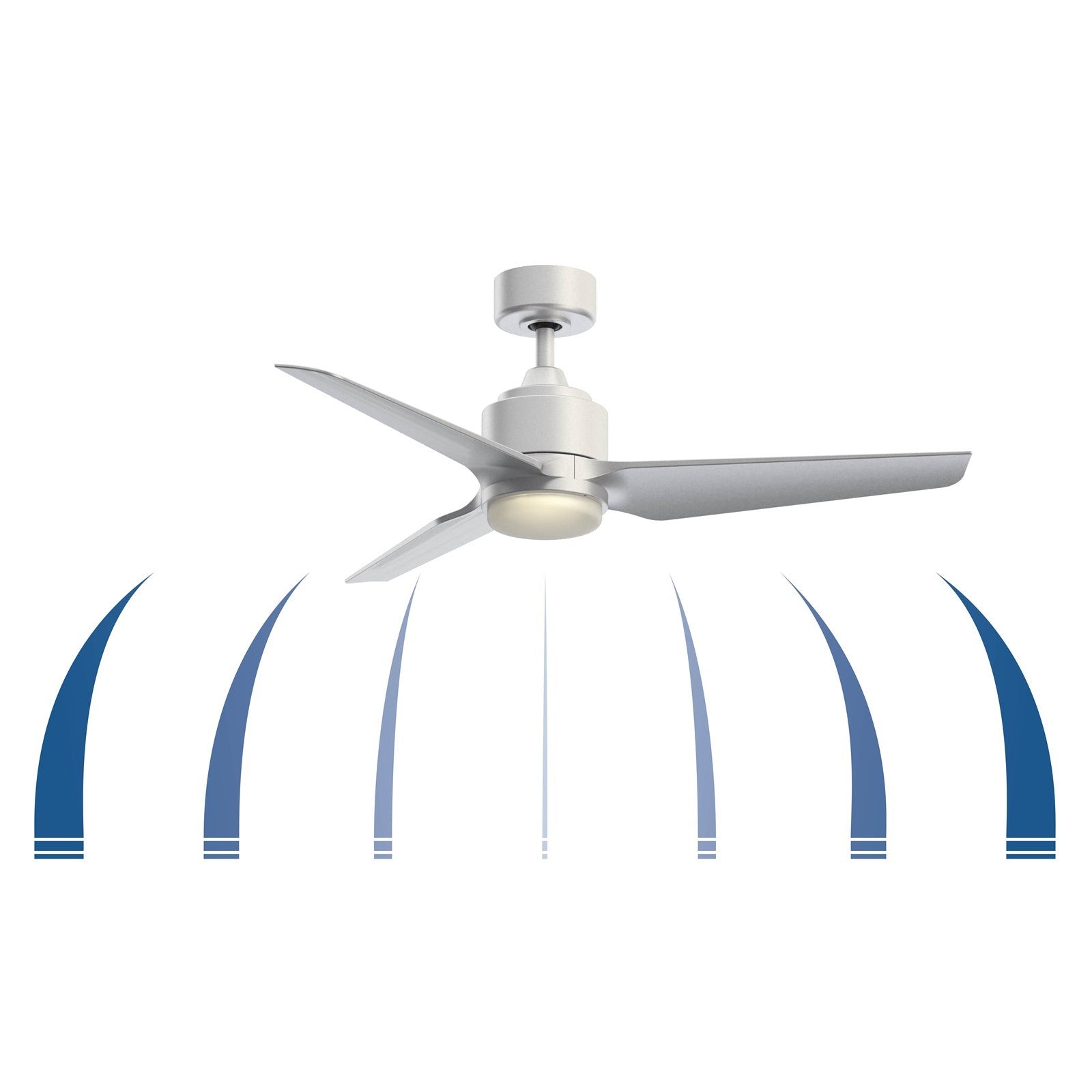

- Year-round comfort with a reversible motor for summer and winter airflow
Not ideal for
- Rooms with ceilings lower than 8 ft if you need a longer downrod to achieve safe clearance
- Spaces where you prefer a fan without a light kit, since this model includes one
- Installation on ceilings steeper than 27° without an angled-mount adapter
How bright is it?
The integrated LED module produces 3,600 lumens - roughly equivalent to a 250W incandescent bulb. This is bright enough to serve as the primary light source in a large living area or covered patio, and it's dimmable so you can lower the output for a cozy evening ambiance.
Light color and feel
Choose from five color temperatures: 2700K (warm white), 3000K (soft white), 3500K (neutral), 4000K (cool white), or 5000K (daylight). With a CRI of 90, colors appear vibrant and true, making it suitable for spaces where you want accurate color rendering. The opal frosted shade diffuses light evenly to reduce glare.
Sizing and fit
The fan measures 44 inches wide, 44 inches deep, and 15.93 inches from ceiling to bottom with the light kit. It includes a 4.5-inch downrod; optional downrods up to 72 inches are available to achieve the recommended 7-9 ft hanging height. The canopy is 5.75 inches in diameter, and the housing is 7.09 inches. Ideal for rooms at least 12 x 12 ft, with a recommended ceiling height of 8 ft or more.
Specifications
- Primary Finish: Matte White
- Blade Material: Composite
- Blade Finish: Matte White
- Shade Finish: Opal Frosted
- Collection: TriAire Custom
- Blade Sweep: 48"
- Number of Blades: 3
- Blade Pitch: 14°
- Motor Type: DC
- Motor Size: 158 X 22
- Motor Reversible: True
- Number of Speeds: 16
- Reverse Switch Location: Control
- Light Kit Included: True
- Included Control: TR305
- Control Type: Handheld
- 1 Bulb(s)
- Bulb Type: LED Module
- Bulb Base: Connector Pin
- Bulb Max Wattage: 40W
- Color Temperature: 2700, 3000, 3500, 4000, 5000K
- CRI: 90
- Lumens: 3600
- Voltage: 120V
- Avg CFM: 3412
- CFM High: 5297
- Avg Energy Use: 13W
- Max Slope: 27°
- Location Rating: Wet
- Safety Rating: UL Only Listed
- Energy Star: True
- Warranty: Limited Lifetime Warranty
Frequently asked
Is the bulb included? Yes, the integrated LED module is included and rated for 40W.
Is it dimmable, and what dimmer should I use? Yes, the light is dimmable via the included remote or the FanSync app. No special dimmer is required.
Can I install this in a bathroom or outdoors? Yes, it is wet-rated, so it can be installed in covered outdoor areas and damp indoor locations.
What's the warranty? Fanimation offers a Limited Lifetime Warranty for the original purchaser.
Can I control it with Alexa or Google Home? Yes, FanSync works with smart devices and voice assistants for hands-free control.
