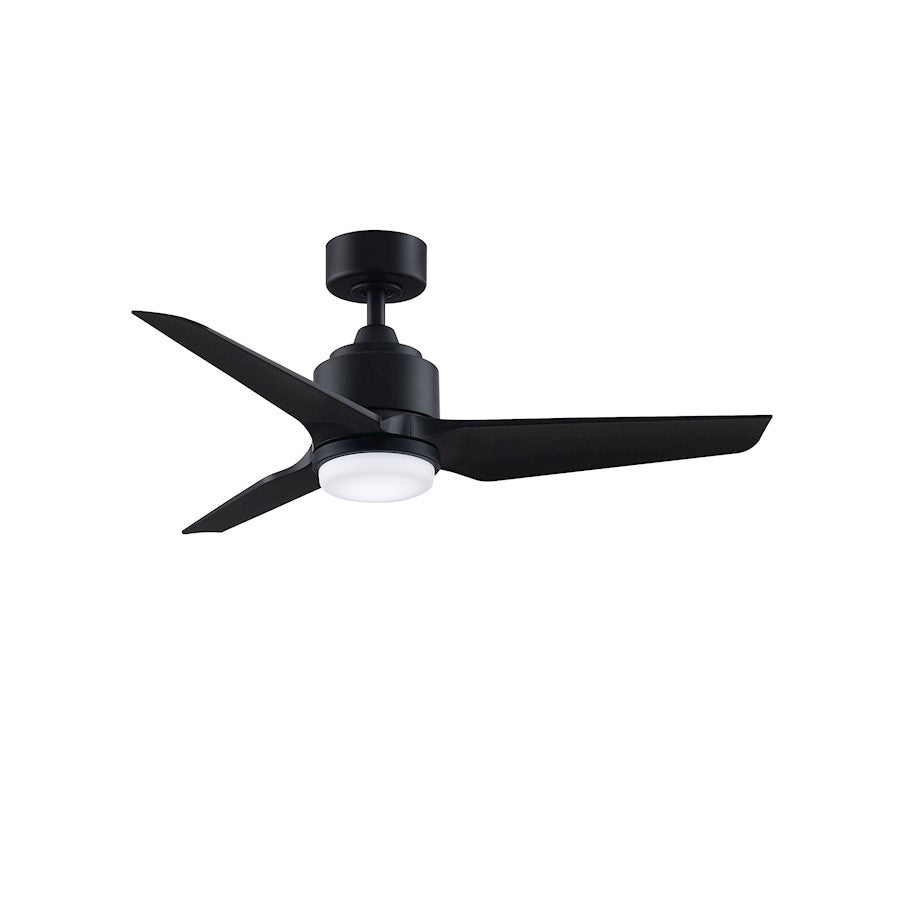

A TriAire Custom ceiling fan motor in matte black, for indoor or outdoor spaces that need powerful, quiet airflow with smart control.
This TriAire Custom motor from Fanimation is the heart of a fully customizable ceiling fan. The marine-grade matte black finish is built to withstand wet locations, so it works on covered patios, porches, and even bathrooms. With a 31-speed DC motor and included handheld remote, you get precise control and energy efficiency. Pair it with any of eight blade sweeps and an optional LED light kit (sold separately) to create the perfect fan for your space.
Best for
- Covered patios, porches, and sunrooms where a wet-rated fan is essential
- Large living rooms and great rooms with ceilings up to 12 ft, using a 60-inch blade sweep
- Bedrooms and home offices needing whisper-quiet, variable-speed airflow
- Outdoor kitchens and pergolas with damp or wet exposure
- Smart home setups, controllable via the Fanimation fanSync app
Not ideal for
- Small rooms under 8 ft ceilings if you plan to use a 60-inch blade sweep - the fan may feel overpowering
- Indoor-only installations if you don't need wet-rated durability (a standard fan may cost less)
How bright is it?
This is a fan motor only - no light kit is included. If you add the optional LED light kit (sold separately), it provides 1400 lumens, roughly equivalent to a 100W incandescent bulb, ideal for ambient room lighting.
Light color and feel
When paired with the optional light kit, you can choose color temperatures from 3000K (warm white) to 5000K (daylight) via CCT select, letting you match the mood of your space. The LED module is dimmable for flexible lighting control.
Sizing and fit
This motor is designed to work with blade sweeps from 44 to 60 inches, making it adaptable to rooms from 10x10 ft to 18x20 ft or larger. The motor body is 12.42 inches high, and the included 4.5-inch downrod allows for standard mounting. It supports sloped ceilings up to 27 degrees and can be flush-mounted if needed.
Specifications
- Part of the TriAire Custom Collection
- Finish: Black
- WiFi compatible (required controls sold separately)
- FanSync Bluetooth included
- Multiple blade finishes available, sold separately
- Optional LED Light Kit sold separately
- Wet rated for indoor or outdoor use
- Number of Blades: 3
- Length of Electrical Wire: 80
- Length of Downrod: 4.5
- Motor Type: DC
- Motor Reversible: Yes
- Ceiling to Blade Edge: 12.92
- Blade Pitch Degrees: 14
- Motor Size: 158x22
- Voltage: 120V
- For Use in Wet Locations
- Warranty Info: Limited Lifetime Warranty
- Overall Dimensions: 44, 48, 52, 56, 60"(L) x 44, 48, 52, 56, 60"(W) x 12.42"(H)
- Canopy Dimensions: 5.75"(Dia) x 2.57"(H)
- Item Weight: 12.19 lbs.
Frequently asked
Is the bulb included? No, this is a fan motor only. Blades and light kit are sold separately.
Is it dimmable, and what dimmer should I use? The motor speed is variable via the remote or app. If you add the optional LED light kit, it is dimmable.
Can I install this in a bathroom or outdoors? Yes, this motor is wet-rated for indoor or outdoor use, including damp locations like bathrooms.
What's the warranty? Limited Lifetime Warranty.
Can I use this on a sloped ceiling? Yes, it supports slopes up to 27 degrees.
