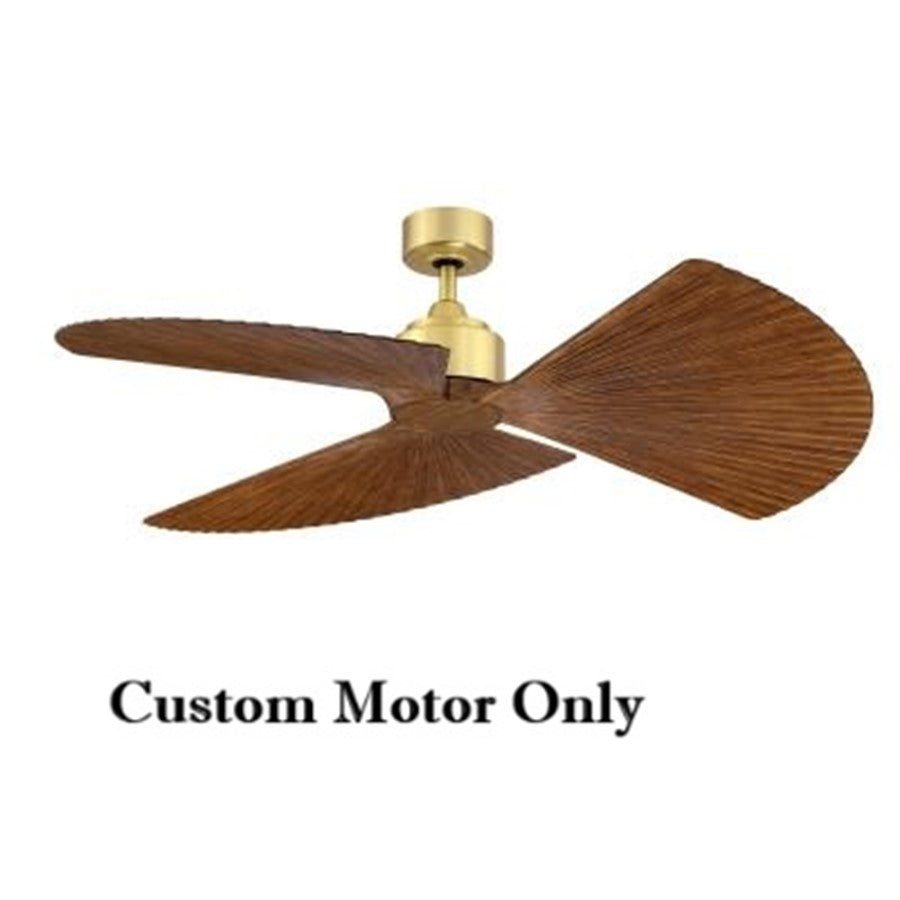

A TriAire Custom ceiling fan motor from Fanimation, finished in brushed satin brass, for indoor and outdoor spaces that need a powerful, customizable air mover.
The TriAire Custom is Fanimation's most adaptable ceiling fan. Choose from eight blade sweeps and multiple blade finishes to create a fan that fits your style and space. This motor-only unit features a 31-speed DC motor and is wet rated, so it works on covered patios, porches, and other damp or wet locations. Blades, light kit, and controls are sold separately.
Best for
- Covered patios, porches, and sunrooms where a wet-rated fan is required
- Large living rooms and great rooms with ceilings up to 27 degrees slope
- Bedrooms and home offices needing quiet, energy-efficient airflow
- Outdoor kitchens and pergolas (wet rated)
- Spaces where you want to customize blade finish and size to match your decor
Not ideal for
- Rooms with ceilings steeper than 27 degrees without an angled-mount adapter
- Buyers looking for a complete fan with blades and light kit included
- Installations without a fan-rated electrical box
How bright is it?
This is a motor only - no light kit is included. An optional LED light kit with CCT Select is available separately.
Light color and feel
Not applicable - this is a motor-only unit. If you add the optional LED light kit, you can choose from multiple color temperatures to suit your space.
Sizing and fit
The motor is designed to fit blade sweeps from 44 to 60 inches. The overall height is 12.42 inches. The canopy is 5.75 inches in diameter and 2.57 inches high. Includes a 4.5-inch downrod; sloped ceiling adapters are available for ceilings up to 27 degrees.
Specifications
- Part of the TriAire Custom Collection
- Finish: Brushed Satin Brass
- Voltage: 120V
- Light Kit Included: No
- Cap Kit Included: Yes
- Maximum Slope Degree: 27
- Reverse Switch Location: Control
- Motor Type: DC
- Motor Size: 158 X 22
- Length of Electrical Wire: 80"
- Number Of Blades: 3
- Blade Pitch: 14
- Downrod Length: 4.5
- Number Of Speeds: 16
- Safety Rating: UL/CUL Listed
- For Use in Damp Locations
- Warranty Info: 1 Year Warranty
Frequently asked
Is the bulb included? This is a motor only; no light kit is included.
Is it dimmable, and what dimmer should I use? This is a fan motor, not a light. Speed is controlled via the included remote or the fanSync app.
Can I install this in a bathroom or outdoors? Yes, this fan is wet rated for indoor or outdoor use.
What's the warranty? 1 Year Warranty.
Do I need to buy blades separately? Yes, blades are sold separately. This motor is compatible with Fanimation TriAire blades in multiple finishes and sizes.
Ships from our warehouse in 1-4 Business Days
