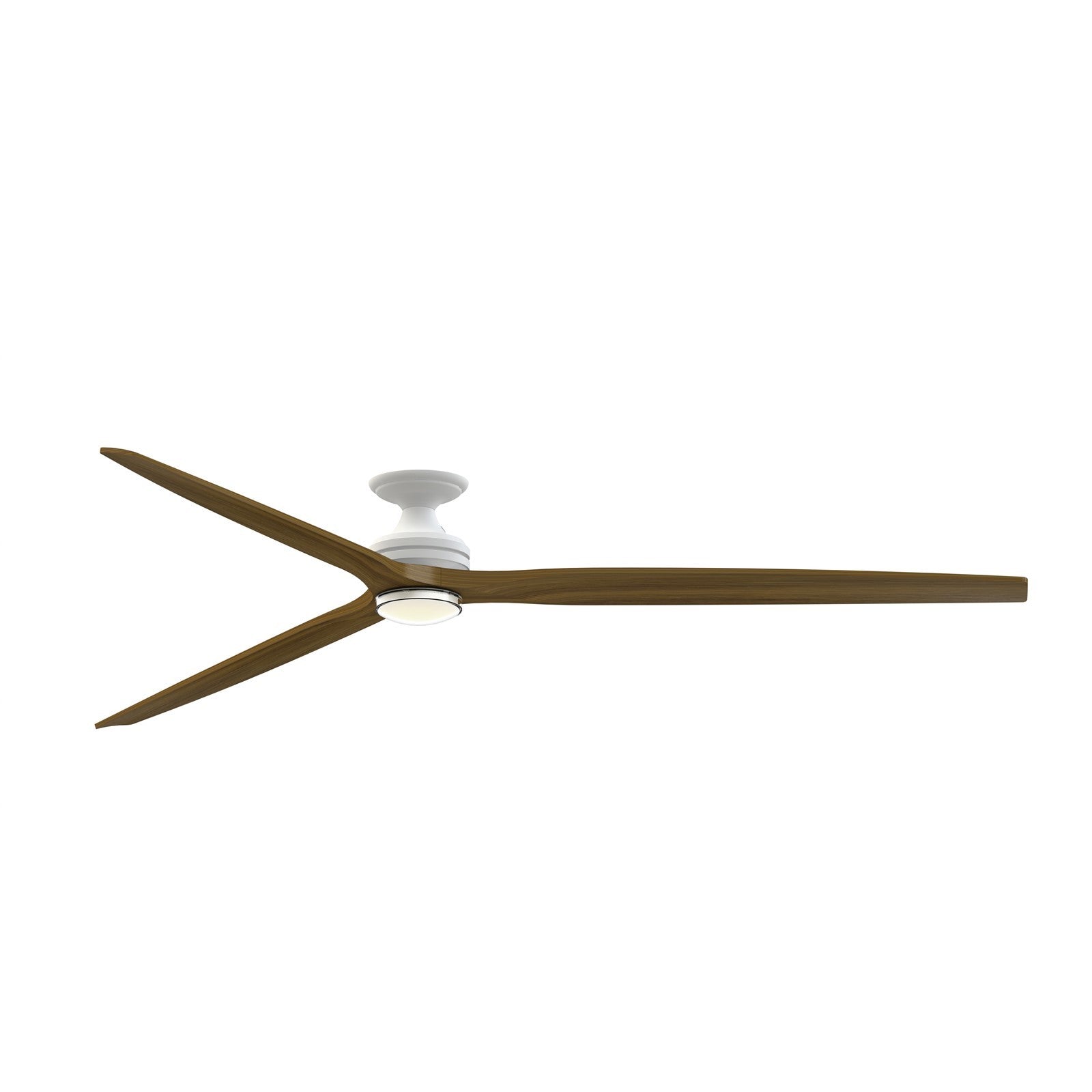

A 96-inch flush-mount smart ceiling fan with an integrated LED light kit and Koa blades, designed for large covered outdoor and indoor living spaces.
The Spitfire DC Custom pairs a Matte White motor housing with three Koa blades, delivering powerful, quiet airflow up to 12,413 CFM. This version includes a 24-watt LED light kit with CCT Select technology, offering five color temperatures from warm to daylight. The double-walled marine-grade glass shade is built for durability and wet locations. With Wi-Fi fanSync and the included TR360 remote, you have full control over fan speed, light dimming, and color temperature.
Best for
- Covered patios and porches, where damp-rated construction and marine-grade light kit excel
- Large living rooms and great rooms with high ceilings, providing strong airflow
- Sunrooms and enclosed porches needing both cooling and adjustable lighting
- Bedrooms and home offices where quiet operation and smart control are valued
- Low-ceiling rooms where a flush mount is required
Not ideal for
- Outdoor areas directly exposed to rain or water—this fan is damp-rated, not wet-rated
- Small rooms under 12x12 ft, where the 96-inch sweep may be overpowering
- Spaces with ceilings lower than 8 ft, as the fan's size and flush mount may feel imposing
How bright is it?
The integrated LED module produces 2000 lumens—comparable to a 150-watt incandescent bulb—providing bright, even light for a large space. With five selectable color temperatures, you can adjust from warm, cozy light to bright, energizing daylight.
Light color and feel
Choose from 2700K (warm white), 3000K (soft white), 3500K (neutral), 4000K (cool white), or 5000K (daylight). With a CRI of 90, colors appear vivid and true. The light is dimmable via the remote or app, allowing you to set the perfect ambiance.
Sizing and fit

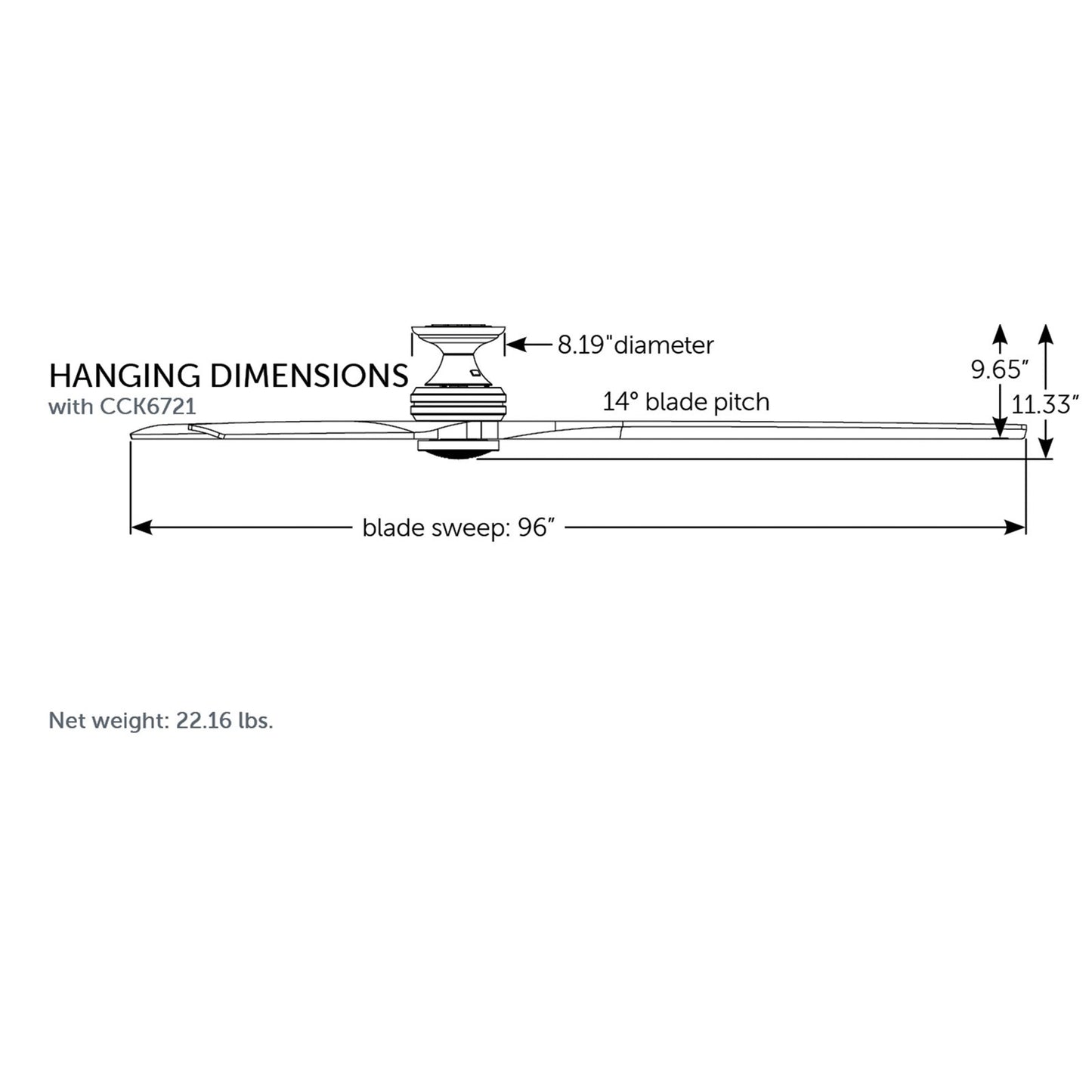

This fan measures 96 inches in diameter and hangs 12 inches from the ceiling. It is designed for flat ceilings and mounts flush, making it ideal for rooms with low ceilings. The 96-inch blade sweep suits large spaces—think great rooms, covered patios, and open-plan living areas.
Specifications
- Primary Finish: Matte White
- Blade Material: Wood
- Blade Finish: Koa
- Shade Finish: Clear
- Collection: Spitfire
- Blade Sweep: 96"
- Number of Blades: 3
- Blade Pitch: 14°
- Motor Type: DC
- Motor Size: 153 X 22
- Motor Reversible: True
- Number of Speeds: 6
- Reverse Switch Location: Control
- Light Kit Included: True
- Cap Included: True
- Included Control: TR360
- Control Type: Handheld
- 1 Bulb(s)
- Bulb Type: LED Module
- Bulb Base: Connector Pin
- Bulb Max Wattage: 24W
- Color Temperature: 2700, 3000, 3500, 4000, 5000K
- CRI: 90
- Lumens: 2000
- Voltage: 120V
- Avg CFM: 8515
- CFM High: 12413
- Avg Energy Use: 24W
- Location Rating: Damp
- Safety Rating: UL Only Listed
- Warranty: Limited Lifetime Warranty
Frequently asked
Is the bulb included? Yes, the integrated LED module is included.
Is it dimmable, and what dimmer should I use? Yes, it is dimmable via the included TR360 remote or the fanSync app. No wall dimmer is needed.
Can I install this in a bathroom or outdoors? This fan is damp-rated, and the light kit is marine-grade, making it suitable for covered outdoor areas, bathrooms, and laundry rooms, but it should not be directly exposed to rain or water.
What's the warranty? Fanimation offers a Limited Lifetime Warranty for the original purchaser.
How does the double-walled marine light kit differ from the standard kit? The double-walled glass shade is more durable and designed for wet locations, making it ideal for coastal or high-humidity environments.
