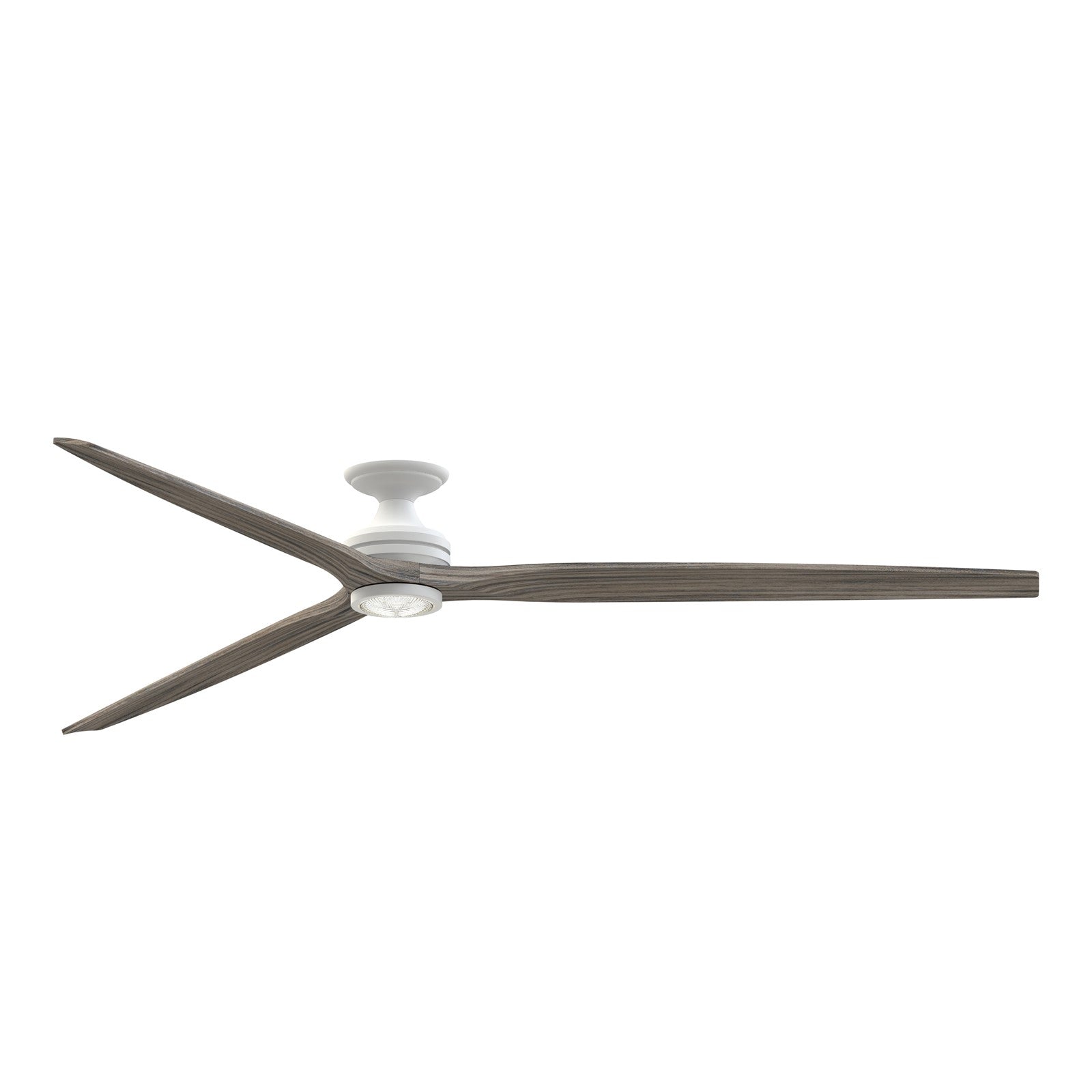

A 96-inch flush-mount smart ceiling fan from Fanimation's Spitfire DC Custom collection, finished in matte white with weathered wood blades and an integrated LED light kit, for large indoor and covered outdoor spaces.
The Spitfire DC Custom pairs a streamlined matte white motor with three weathered wood blades, creating a clean, contemporary look that suits modern and transitional homes. Its powerful 6-speed DC motor delivers up to 12,413 CFM of airflow while running quietly and efficiently. This version includes an integrated 18-watt LED light kit with CCT Select technology, offering five color temperatures, and it includes a TR360 handheld remote and Wi-Fi fanSync for smart control.
Best for
- Covered patios, porches, and sunrooms where damp-rated fixtures are needed
- Great rooms, open-plan living areas, and large bedrooms (over 18x20 ft)
- Low ceilings, thanks to the flush mount design
- Spaces where smart control via app or voice assistant is desired
- Year-round comfort with reversible motor for seasonal airflow
Not ideal for
- Areas directly exposed to rain or water—this fan is damp-rated, not wet-rated
- Small rooms under 12x12 ft where a 96-inch fan would overwhelm the space
- Rooms with ceilings higher than 10 ft if you prefer a closer mount—this flush version hangs only 11.33 inches from the ceiling with light kit
How bright is it?
The integrated 18-watt LED light kit provides 1600 lumens—comparable to a 100W incandescent bulb—suitable for ambient lighting in large rooms.
Light color and feel
With CCT Select technology, you can choose from five color temperatures (2700K to 5000K), ranging from warm, cozy light to bright daylight. The high CRI of 90 ensures colors appear natural and vibrant.
Sizing and fit

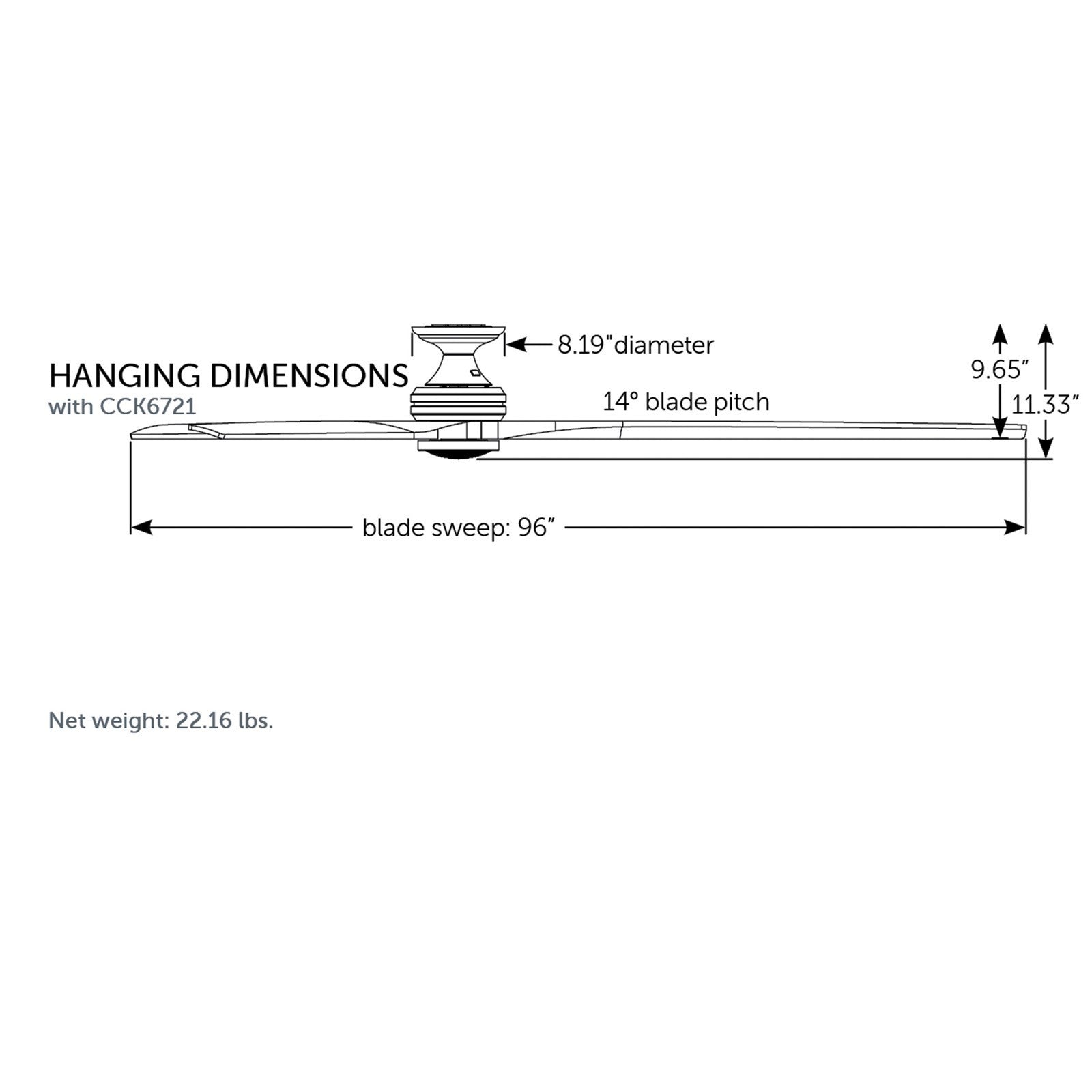

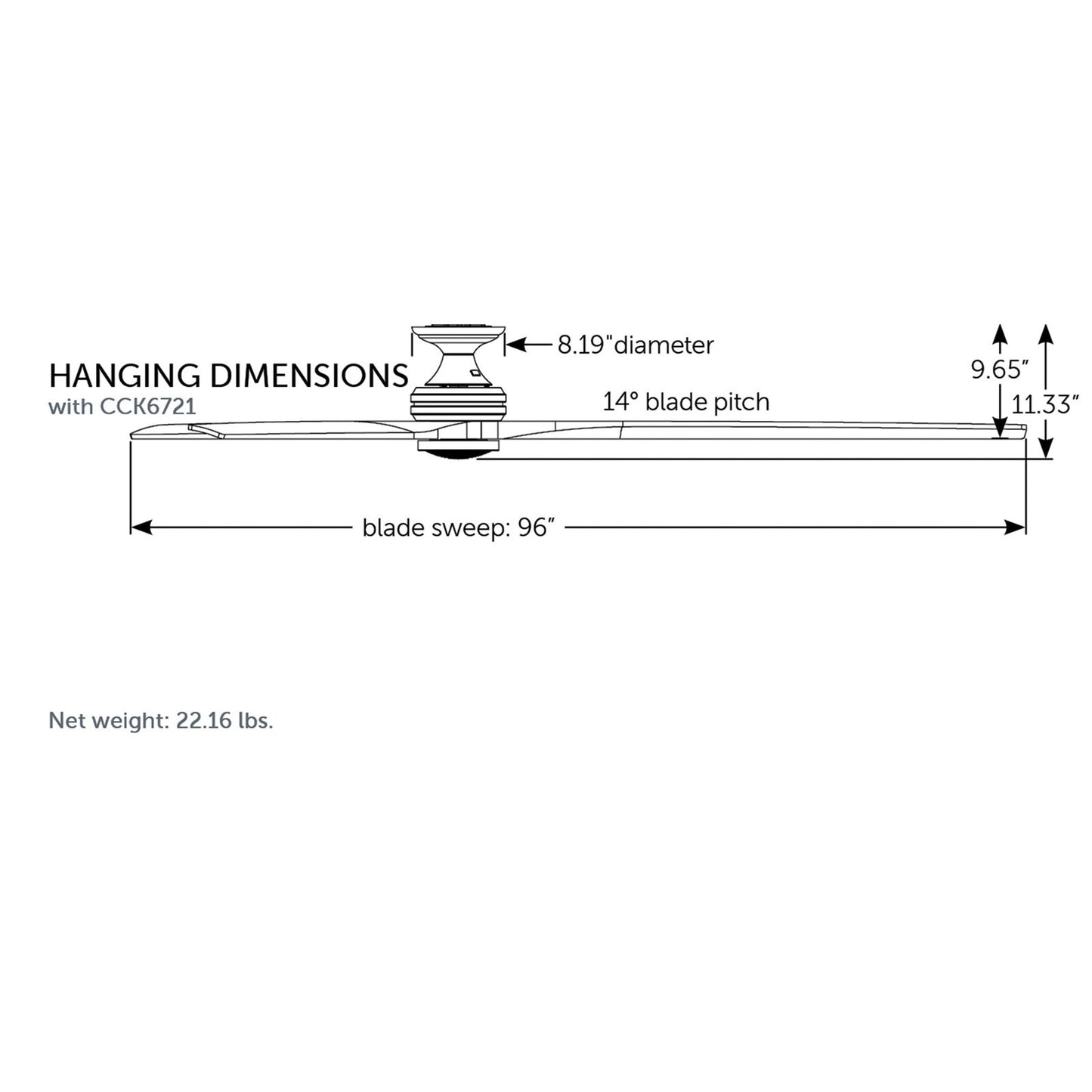

This fan has a 96-inch blade sweep and overall dimensions of 96 x 96 x 11.33 inches. It mounts flush to flat ceilings, making it ideal for rooms with low ceilings. The included ceiling bracket supports a secure installation.
Specifications
- Primary Finish: Matte White
- Blade Material: Buttonwood
- Blade Finish: Weathered Wood
- Shade Finish: Fresnel and Frosted
- Collection: Spitfire
- Blade Sweep: 96"
- Number of Blades: 3
- Blade Pitch: 14°
- Motor Type: DC
- Motor Size: 153 X 22
- Motor Reversible: True
- Number of Speeds: 6
- Reverse Switch Location: Control
- Light Kit Included: True
- Cap Included: True
- Included Control: TR360
- Control Type: Handheld
- 1 Bulb(s)
- Bulb Type: LED Module
- Bulb Base: Connector Pin
- Bulb Max Wattage: 18W
- Color Temperature: 2700, 3000, 3500, 4000, 5000K
- CRI: 90
- Lumens: 1600
- Voltage: 120V
- Avg CFM: 8515
- CFM High: 12413
- Avg Energy Use: 24W
- Location Rating: Damp
- Safety Rating: UL Only Listed
- Warranty: Limited Lifetime Warranty
- Overall Dimensions: 96"(L) x 96"(W) x 11.33"(H)
- Housing Diameter: 8.07"
- Canopy Dimensions: 7.85"(Dia) x 5.02"(H)
- Leadwire Length: 14 motor & 15 light"
- Ceiling to Bottom (No Light Kit): 9.65"
- Ceiling to Bottom (With Light Kit): 11.33"
- Item Weight: 24.01 lbs.
Frequently asked
Is the bulb included? Yes, the integrated LED light kit is included and features CCT Select technology.
Is it dimmable, and what dimmer should I use? The light is dimmable via the included TR360 remote. The fan speed is also controlled via the remote.
Can I install this in a bathroom or outdoors? Yes, this fan is damp-rated, making it suitable for bathrooms and covered outdoor areas, but it should not be directly exposed to rain or water.
What's the warranty? Fanimation offers a Limited Lifetime Warranty for the original purchaser. Contact Fanimation Tech Support at 1-888-567-2055 for assistance.
How does the flush mount affect airflow? The flush mount keeps the fan close to the ceiling, which is ideal for low ceilings but may slightly reduce airflow compared to a downrod mount in rooms with high ceilings.
