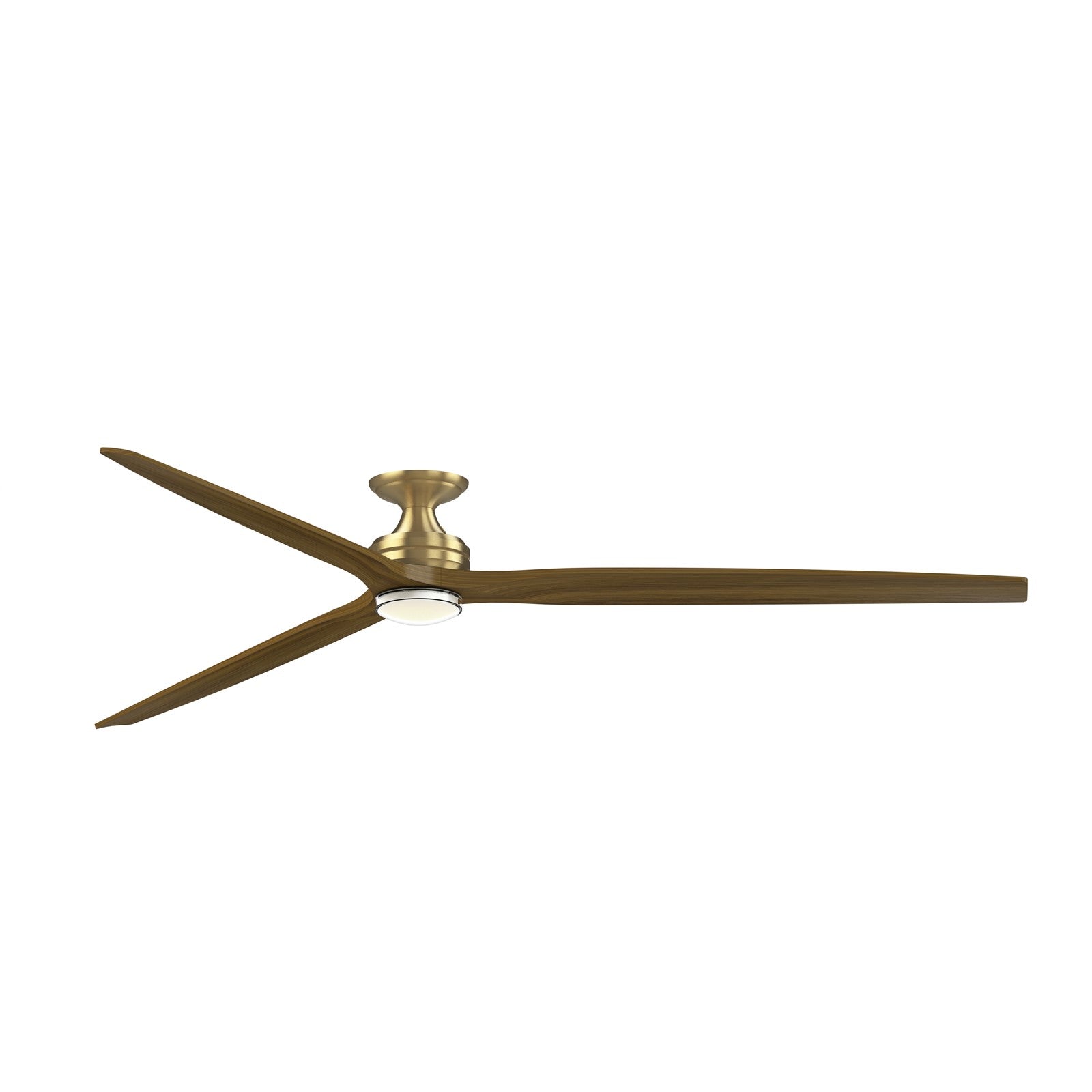

A 96-inch flush-mount indoor/outdoor smart ceiling fan with an integrated LED light kit, finished in brushed satin brass with Koa wood blades, for covered patios and rooms with low ceilings.
The Spitfire DC Custom flush mount brings the same powerful performance and sleek design as the downrod version, but mounts directly to the ceiling for a low-profile look. The brushed satin brass motor housing and Koa wood blades create a warm, modern aesthetic. This version includes a double-walled marine-grade light kit with a clear glass shade, built to withstand humidity and moisture.
Best for
- Covered patios and porches, where the damp-rated construction and marine-grade light kit handle humidity
- Rooms with ceilings under 9 feet, thanks to the flush mount design
- Sunrooms and three-season rooms that need both airflow and adjustable lighting
- Large bedrooms or home offices where smart control and quiet operation are valued
- Homes with smart assistants, thanks to Wi-Fi fanSync technology for voice and app control
Not ideal for
- Directly exposed outdoor areas without a roof, as it is damp-rated, not wet-rated
- Small spaces under 12x12 feet, where the 96-inch blade sweep would overwhelm the room
- Rooms with sloped ceilings, as the flush mount is designed for flat ceilings only
How bright is it?
This fan's integrated LED module produces 2000 lumens - roughly equivalent to a 100-watt incandescent bulb. That's plenty of light for ambient illumination in a large living area, though you may want additional task lighting for reading or detailed work.
Light color and feel
With CCT Select technology, you can choose from five color temperatures: 2700K (warm white), 3000K (soft white), 3500K (neutral), 4000K (cool white), and 5000K (daylight). This lets you shift from a cozy, golden glow to crisp, bright light to match the mood or time of day. The high CRI of 90 ensures colors appear vibrant and true.
Sizing and fit

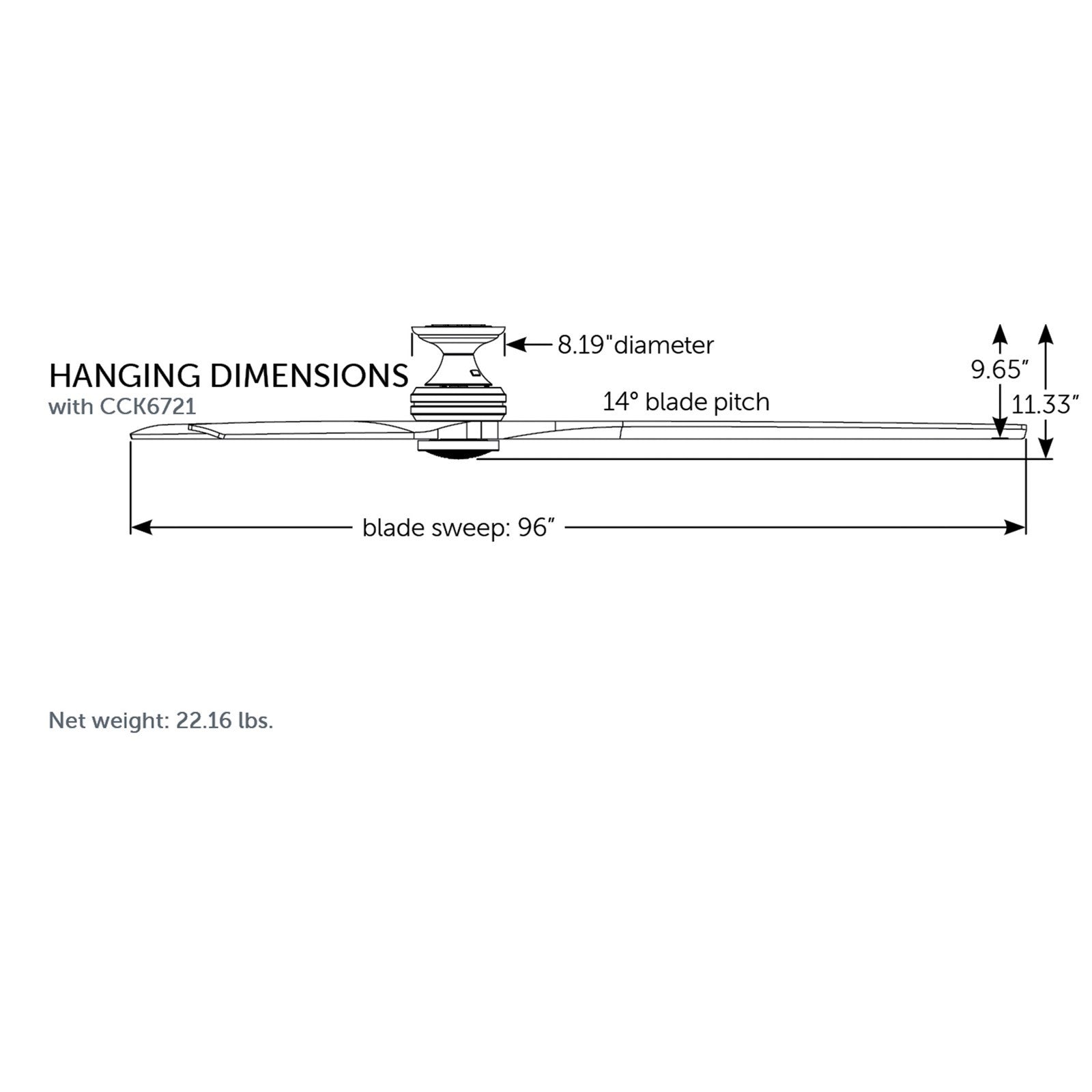

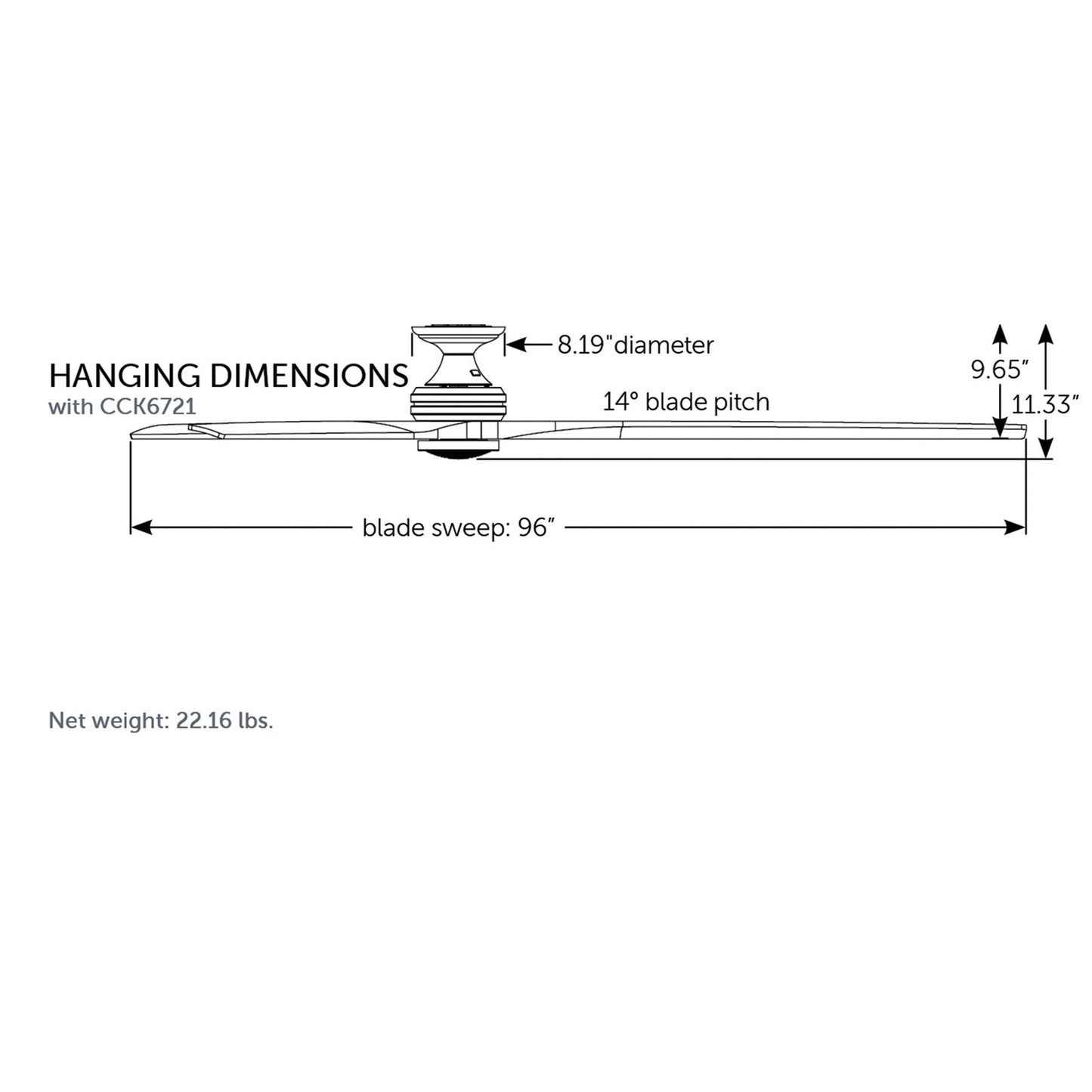

This fan has a 96-inch blade sweep and overall dimensions of 96 inches wide by 96 inches deep, with a height of just 12 inches. It's designed for large rooms, ideally 18x20 feet or larger, but its low profile makes it suitable for rooms with standard 8-foot ceilings.
Specifications
- Primary Finish: Brushed Satin Brass
- Blade Material: Wood
- Blade Finish: Koa
- Shade Finish: Clear
- Collection: Spitfire
- Blade Sweep: 96"
- Number of Blades: 3
- Blade Pitch: 14°
- Motor Type: DC
- Motor Size: 153 X 22
- Motor Reversible: True
- Number of Speeds: 6
- Reverse Switch Location: Control
- Light Kit Included: True
- Cap Included: True
- Included Control: TR360
- Control Type: Handheld
- 1 Bulb(s)
- Bulb Type: LED Module
- Bulb Base: Connector Pin
- Bulb Max Wattage: 24W
- Color Temperature: 2700, 3000, 3500, 4000, 5000K
- CRI: 90
- Lumens: 2000
- Voltage: 120V
- Avg CFM: 8515
- CFM High: 12413
- Avg Energy Use: 24W
- Location Rating: Damp
- Safety Rating: UL Only Listed
- Warranty: Limited Lifetime Warranty
Frequently asked
Is the bulb included? Yes, the integrated LED module is included and rated for 24W.
Is it dimmable, and what dimmer should I use? Yes, the light is dimmable via the included TR360 remote or the fanSync app. No wall dimmer is needed.
Can I install this in a bathroom or outdoors? This fan is damp-rated, making it suitable for covered outdoor areas and bathrooms with adequate ventilation, but it should not be directly exposed to rain or water.
What's the warranty? Fanimation offers a Limited Lifetime Warranty for the original purchaser.
How does the double-walled marine light kit differ from the standard kit? The double-walled construction adds durability and is designed for outdoor wet locations, making it more resistant to moisture and impact.
