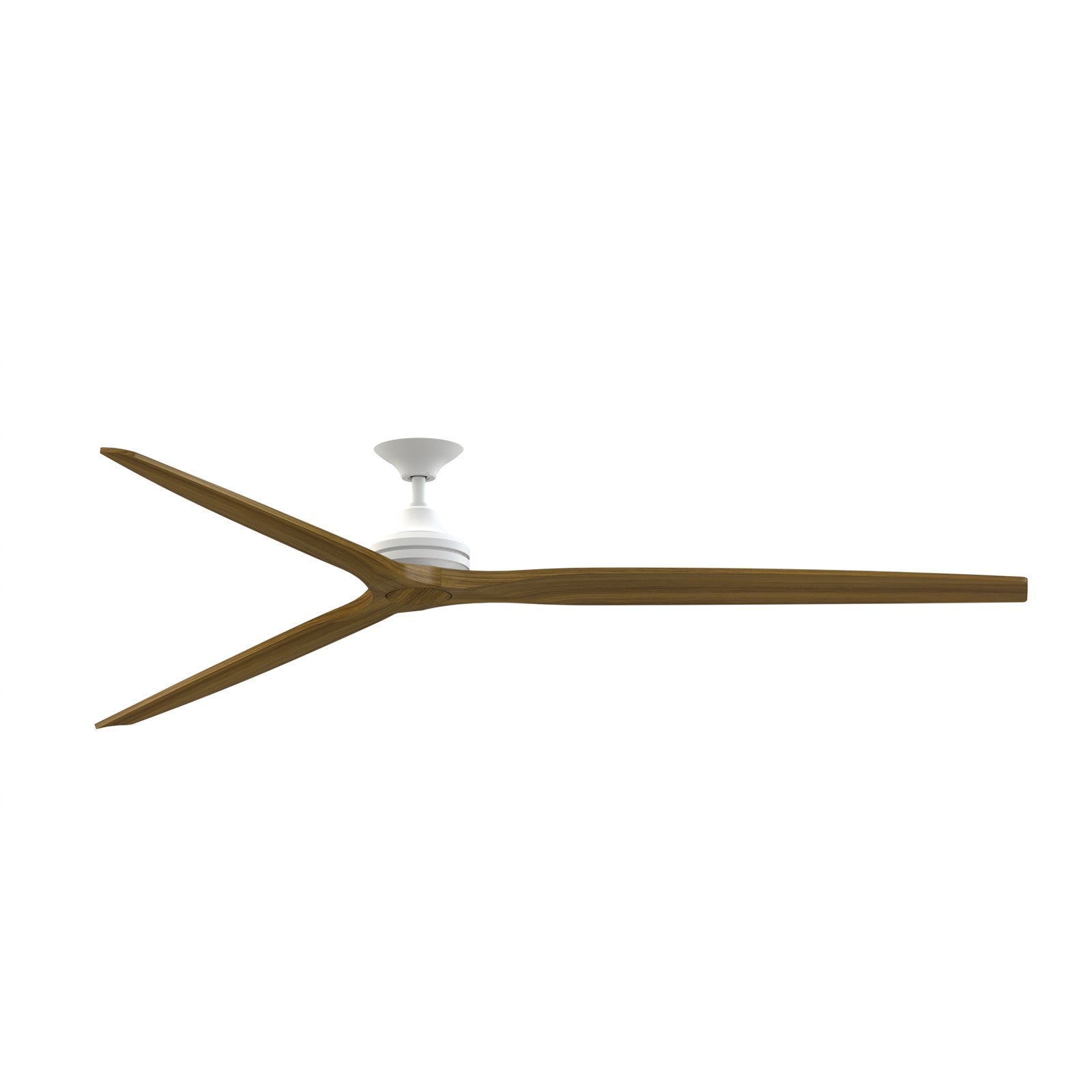

A 96-inch downrod smart ceiling fan with a sleek Matte White finish and Koa blades, designed for large indoor and covered outdoor spaces.
The Spitfire DC Custom delivers powerful, quiet airflow up to 12,413 CFM from its 6-speed DC motor. This version is compatible with an optional integrated LED light kit (sold separately) featuring CCT Select technology. With Wi-Fi fanSync, you can control the fan via app or voice assistant, and the included TR360 remote offers full control. Damp-rated for indoor and covered outdoor use, this fan combines modern design with smart functionality.
Best for
- Covered patios and porches, where damp-rated construction withstands humidity
- Large living rooms and great rooms with high ceilings, providing strong airflow
- Sunrooms and enclosed porches needing efficient cooling
- Bedrooms and home offices where quiet operation and smart control are valued
- Rooms with slightly sloped ceilings (up to 20°), thanks to included downrods
Not ideal for
- Outdoor areas directly exposed to rain or water—this fan is damp-rated, not wet-rated
- Small rooms under 12x12 ft, where the 96-inch sweep may be overpowering
- Low ceilings under 8 ft, as the downrod adds height
How bright is it?
This fan does not include a light kit, but it is compatible with Fanimation's integrated LED light kit (sold separately), which offers 1600 lumens and five color temperatures.
Light color and feel
When paired with the optional light kit, you can choose from 2700K to 5000K, with a CRI of 90 for accurate color rendering. The light is dimmable via the remote or app.
Sizing and fit
This fan measures 96 inches in diameter and hangs 19.69 inches from the ceiling with the included 12-inch downrod. It is designed for flat or slightly sloped ceilings (up to 20°) and includes both 6-inch and 12-inch downrods. Optional downrods up to 72 inches are available to achieve the recommended 7-9 foot hanging height.
Specifications
- Primary Finish: Matte White
- Blade Material: Wood
- Blade Finish: Koa
- Collection: Spitfire
- Blade Sweep: 96"
- Number of Blades: 3
- Blade Pitch: 14°
- Motor Type: DC
- Motor Size: 153 X 22
- Motor Reversible: True
- Number of Speeds: 6
- Reverse Switch Location: Control
- Cap Included: True
- Included Control: TR360
- Control Type: Handheld
- Voltage: 120V
- Avg CFM: 8515
- CFM High: 12413
- Avg Energy Use: 24W
- Max Slope: 20°
- Location Rating: Damp
- Safety Rating: UL Only Listed
- Warranty: Limited Lifetime Warranty
Frequently asked
What is it made of? The motor housing is Matte White metal, and the blades are real wood with a Koa finish.
Where in the home does this work best? This fan is ideal for large living rooms, covered patios, sunrooms, and bedrooms with high ceilings.
How is it mounted or assembled? It mounts to the ceiling using a downrod (6-inch and 12-inch included) and includes Fanimation's KwikWire technology for easier wiring.
What's the warranty? Fanimation offers a Limited Lifetime Warranty for the original purchaser.
Can I add a light kit later? Yes, this fan is compatible with Fanimation's integrated LED light kit, which is sold separately.
