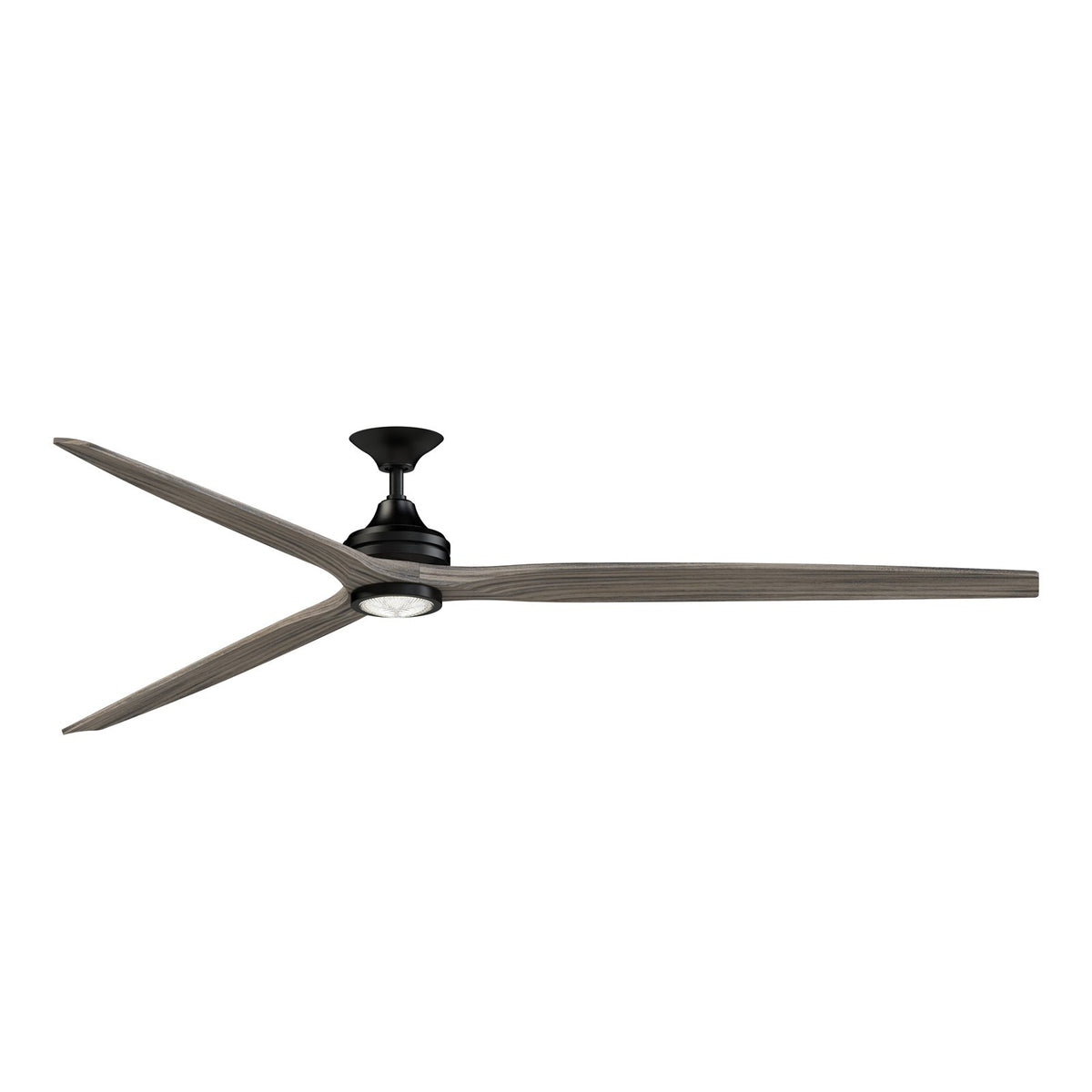

A 96-inch downrod smart ceiling fan with an integrated LED light kit, designed for large indoor and covered outdoor spaces.
The Spitfire DC Custom combines a sleek Black motor with Weathered Wood Buttonwood blades, delivering powerful yet quiet airflow up to 12,413 CFM. The integrated 18-watt LED light kit offers five color temperatures via CCT Select, from warm white to daylight, and the included TR360 remote plus Wi-Fi fanSync app control make it effortless to manage. Damp rated for covered outdoor use, this fan brings smart comfort and flexible lighting to expansive rooms.
Best for
- Covered patios and porches, where damp-rated construction withstands humidity
- Great rooms and open-plan living areas with ceilings at least 9 ft high
- Sunrooms and three-season rooms needing both airflow and adjustable light
- Large bedrooms or home gyms where a downrod mount suits higher ceilings
- Spaces where smart control via app or voice assistant is desired
Not ideal for
- Directly exposed outdoor areas without a roof or cover - this fan is damp rated, not wet rated
- Small rooms under 12 x 12 ft, where the 96-inch sweep may be overpowering
- Rooms with ceilings under 8 ft, as the downrod adds height
How bright is it?
The integrated LED module produces 1600 lumens - comparable to a 100W incandescent bulb, sufficient for ambient lighting in a large room. It is dimmable for lower light levels.
Light color and feel
Choose from 2700K warm white, 3000K soft white, 3500K neutral, 4000K cool white, or 5000K daylight. With a CRI of 90, colors appear vivid and natural, ideal for living spaces and kitchens.
Sizing and fit
With a 96-inch blade sweep and 19.42-inch height from ceiling to bottom (using the 12-inch downrod), this fan suits rooms at least 15 x 15 ft. The included 6-inch and 12-inch downrods allow flexible installation on flat or sloped ceilings up to 20°.
Specifications
- Primary Finish: Black
- Blade Material: Buttonwood
- Blade Finish: Weathered Wood
- Shade Finish: Fresnel and Frosted
- Collection: Spitfire
- Blade Sweep: 96"
- Number of Blades: 3
- Blade Pitch: 14°
- Motor Type: DC
- Motor Size: 153 X 22
- Motor Reversible: True
- Number of Speeds: 6
- Reverse Switch Location: Control
- Light Kit Included: True
- Cap Included: True
- Included Control: TR360
- Control Type: Handheld
- 1 Bulb(s)
- Bulb Type: LED Module
- Bulb Base: Connector Pin
- Bulb Max Wattage: 18W
- Color Temperature: 2700, 3000, 3500, 4000, 5000K
- CRI: 90
- Lumens: 1600
- Voltage: 120V
- Avg CFM: 8515
- CFM High: 12413
- Avg Energy Use: 24W
- Max Slope: 20°
- Location Rating: Damp
- Safety Rating: UL Only Listed
- Warranty: Limited Lifetime Warranty
- Overall Dimensions: 96"(L)96"(W) x 19.42"(H)
- Housing Diameter: 8.07"
- Canopy Dimensions: 8.76"(Dia) x 2.52"(H)
- Downrod Length: 6, 12"
- Leadwire Length: 14 motor & 15 light"
- Ceiling to Bottom (No Light Kit): 13.69, 19.69"
- Ceiling to Bottom (With Light Kit): 15.35, 21.35"
- Item Weight: 22.25 lbs.
Frequently asked
Is the bulb included? Yes, the integrated LED module is included.
Is it dimmable, and what dimmer should I use? Yes, the light is dimmable via the included TR360 remote or the fanSync app.
Can I install this in a bathroom or outdoors? This fan is damp rated, suitable for bathrooms and covered outdoor areas, but not for direct rain exposure.
What's the warranty? Limited Lifetime Warranty for the original purchaser.
How does the CCT Select technology work? The remote or app lets you choose among five color temperatures to match your mood or activity.
