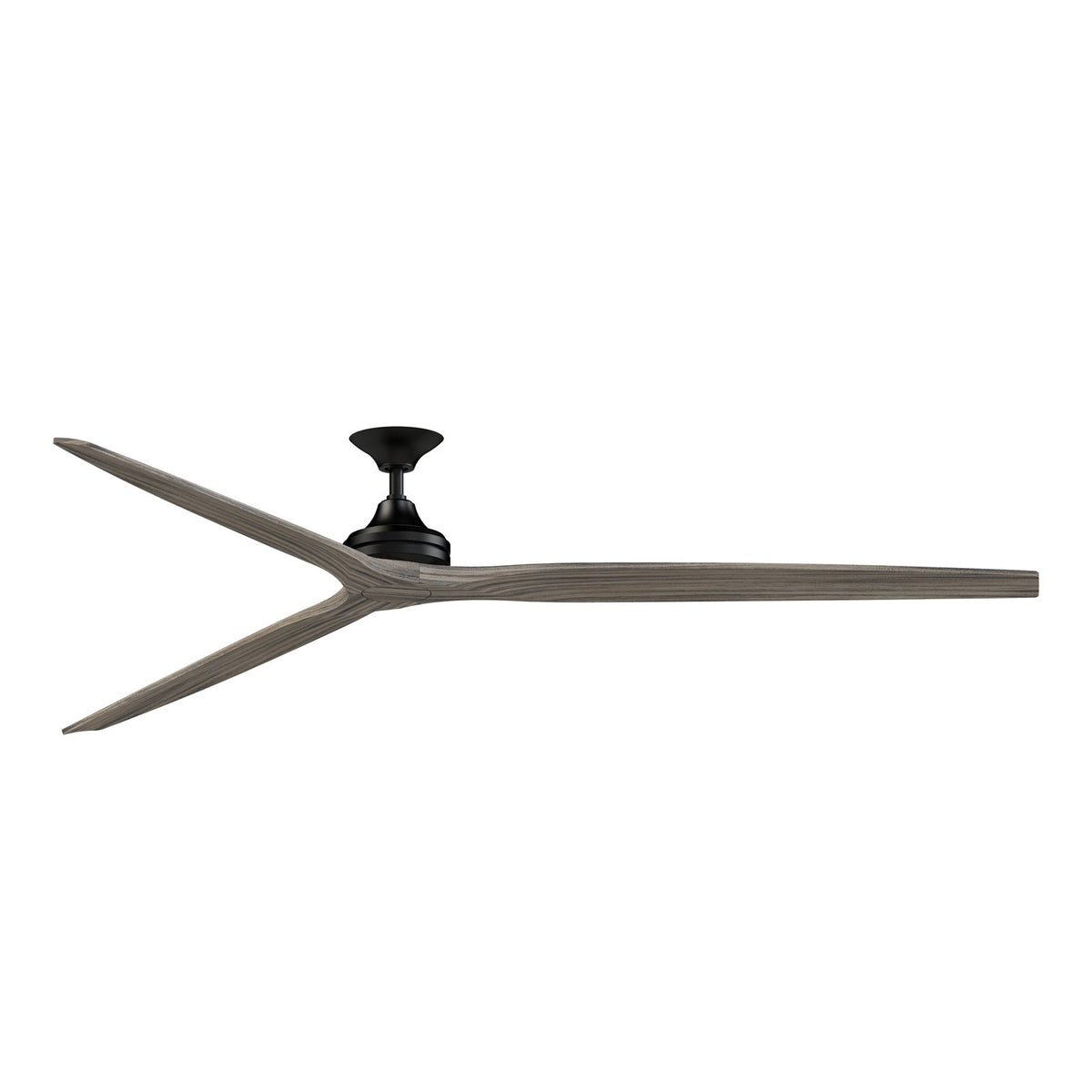

A 96-inch downrod smart ceiling fan for large indoor and covered outdoor spaces, with a Black motor and Weathered Wood blades.
The Spitfire DC Custom delivers powerful airflow up to 12,413 CFM from its quiet 6-speed DC motor. The Black finish pairs with Weathered Wood Buttonwood blades for a natural, contemporary look. This fan is compatible with an optional LED light kit (sold separately) and includes the TR360 remote and Wi-Fi fanSync app control. Damp rated for covered outdoor use, it brings smart comfort to expansive rooms.
Best for
- Covered patios and porches, where damp-rated construction withstands humidity
- Great rooms and open-plan living areas with ceilings at least 9 ft high
- Sunrooms and three-season rooms needing both airflow and adjustable light
- Large bedrooms or home gyms where a downrod mount suits higher ceilings
- Spaces where smart control via app or voice assistant is desired
Not ideal for
- Directly exposed outdoor areas without a roof or cover - this fan is damp rated, not wet rated
- Small rooms under 12 x 12 ft, where the 96-inch sweep may be overpowering
- Rooms with ceilings under 8 ft, as the downrod adds height
How bright is it?
This fan does not include a light kit; the optional LED module produces 1600 lumens when added, comparable to a 100W incandescent bulb.
Light color and feel
If you add the optional light kit, you can choose from 2700K warm white, 3000K soft white, 3500K neutral, 4000K cool white, or 5000K daylight, with a CRI of 90 for accurate color rendering.
Sizing and fit
With a 96-inch blade sweep and 19.69-inch height from ceiling to bottom (using the 12-inch downrod), this fan suits rooms at least 15 x 15 ft. The included 6-inch and 12-inch downrods allow flexible installation on flat or sloped ceilings up to 20°.
Specifications
- Primary Finish: Black
- Blade Material: Buttonwood
- Blade Finish: Weathered Wood
- Collection: Spitfire
- Blade Sweep: 96"
- Number of Blades: 3
- Blade Pitch: 14°
- Motor Type: DC
- Motor Size: 153 X 22
- Motor Reversible: True
- Number of Speeds: 6
- Reverse Switch Location: Control
- Cap Included: True
- Included Control: TR360
- Control Type: Handheld
- Voltage: 120V
- Avg CFM: 8515
- CFM High: 12413
- Avg Energy Use: 24W
- Max Slope: 20°
- Location Rating: Damp
- Safety Rating: UL Only Listed
- Warranty: Limited Lifetime Warranty
- Overall Dimensions: 96"(L)96"(W) x 19.69"(H)
- Housing Diameter: 8.07"
- Canopy Dimensions: 8.76"(Dia) x 2.52"(H)
- Downrod Length: 6, 12"
- Leadwire Length: 14 motor & 15 light"
- Ceiling to Bottom (No Light Kit): 13.69, 19.69"
- Item Weight: 20.95 lbs.
Frequently asked
What is it made of? The motor housing is Black metal, and the blades are Buttonwood with a Weathered Wood finish.
Where in the home does this work best? This fan suits large living areas, covered patios, and sunrooms where its size and damp rating are appropriate.
How is it mounted or assembled? It mounts with a downrod (6 or 12 inches included) to flat or sloped ceilings up to 20°.
What's the warranty? Limited Lifetime Warranty for the original purchaser.
Can I add a light kit later? Yes, the fan is compatible with an optional integrated LED light kit, sold separately.
Ships from our warehouse in 1-4 Business Days
