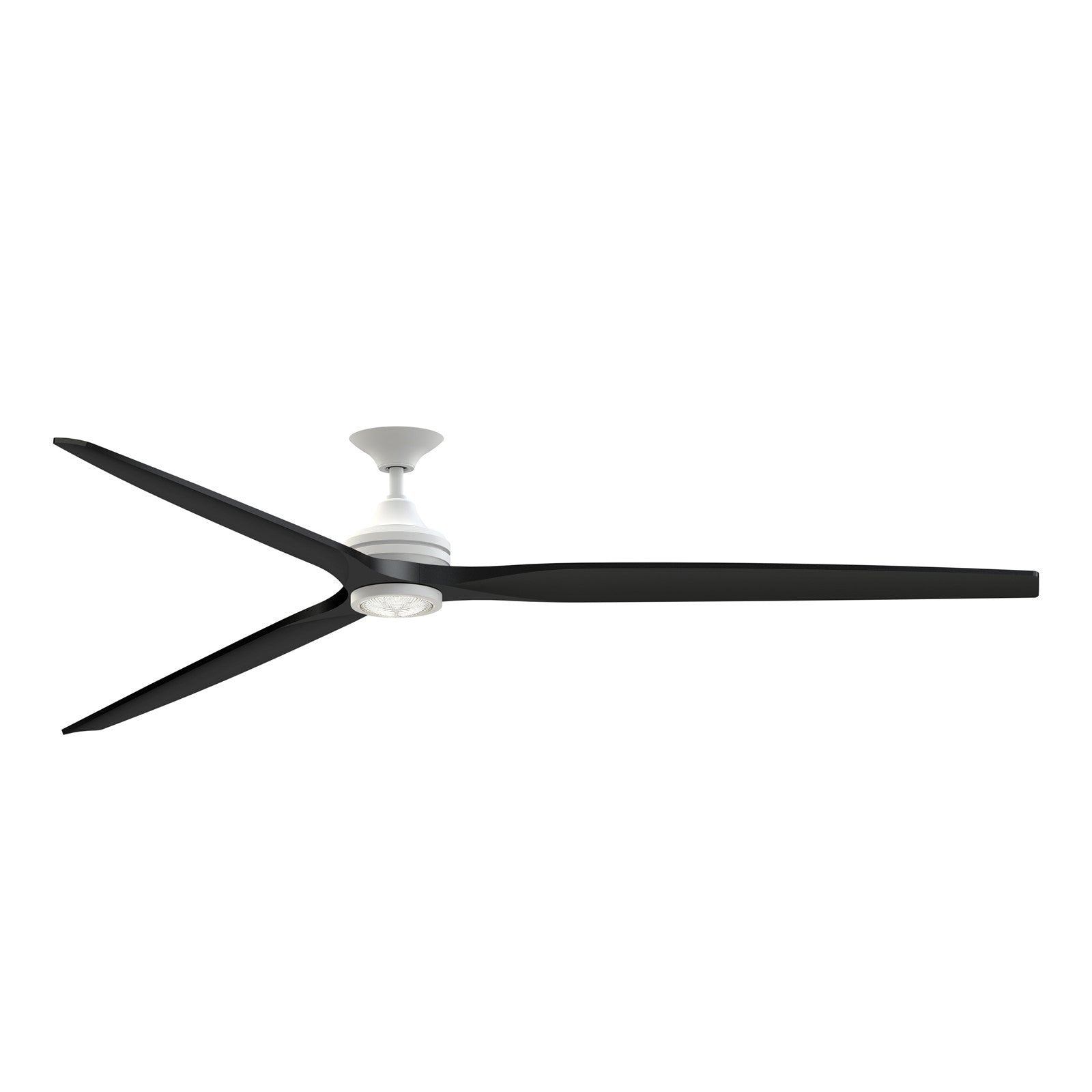

A 96-inch downrod smart ceiling fan from Fanimation's Spitfire DC Custom collection, finished in matte white with black blades and an integrated LED light kit, for large covered outdoor and indoor living spaces.
The Spitfire DC Custom pairs a sleek matte white motor with three black buttonwood blades, delivering powerful, quiet airflow up to 12,413 CFM. This version includes an integrated 18-watt LED light kit with CCT Select technology, letting you shift from warm 2700K to cool 5000K. The included TR360 remote and Wi-Fi fanSync app provide full control over fan speed, light dimming, and color temperature.
Best for
- Covered patios and porches with high ceilings, where its 96-inch sweep moves air across large seating areas
- Great rooms and open-plan living areas needing powerful, quiet airflow plus integrated lighting
- Sunrooms and three-season rooms with humidity exposure
- Rooms with 8-9 ft ceilings, using the included 6-inch or 12-inch downrods
- Smart-home setups with voice assistant or app control
Not ideal for
- Spaces directly exposed to rain or water—this fan is damp rated, not wet rated
- Small rooms under 12 x 12 ft, where the 96-inch sweep may be overpowering
- Low ceilings under 8 ft, as the downrod adds height
How bright is it?
The integrated 18-watt LED light kit delivers 1600 lumens—comparable to a 100W incandescent bulb—suitable for ambient lighting in large spaces. It is dimmable via the remote.
Light color and feel
With CCT Select technology, you can choose from five color temperatures—2700K warm white to 5000K daylight—allowing you to shift from cozy to crisp. The high CRI of 90 ensures colors appear vibrant and accurate, ideal for entertaining areas.
Sizing and fit

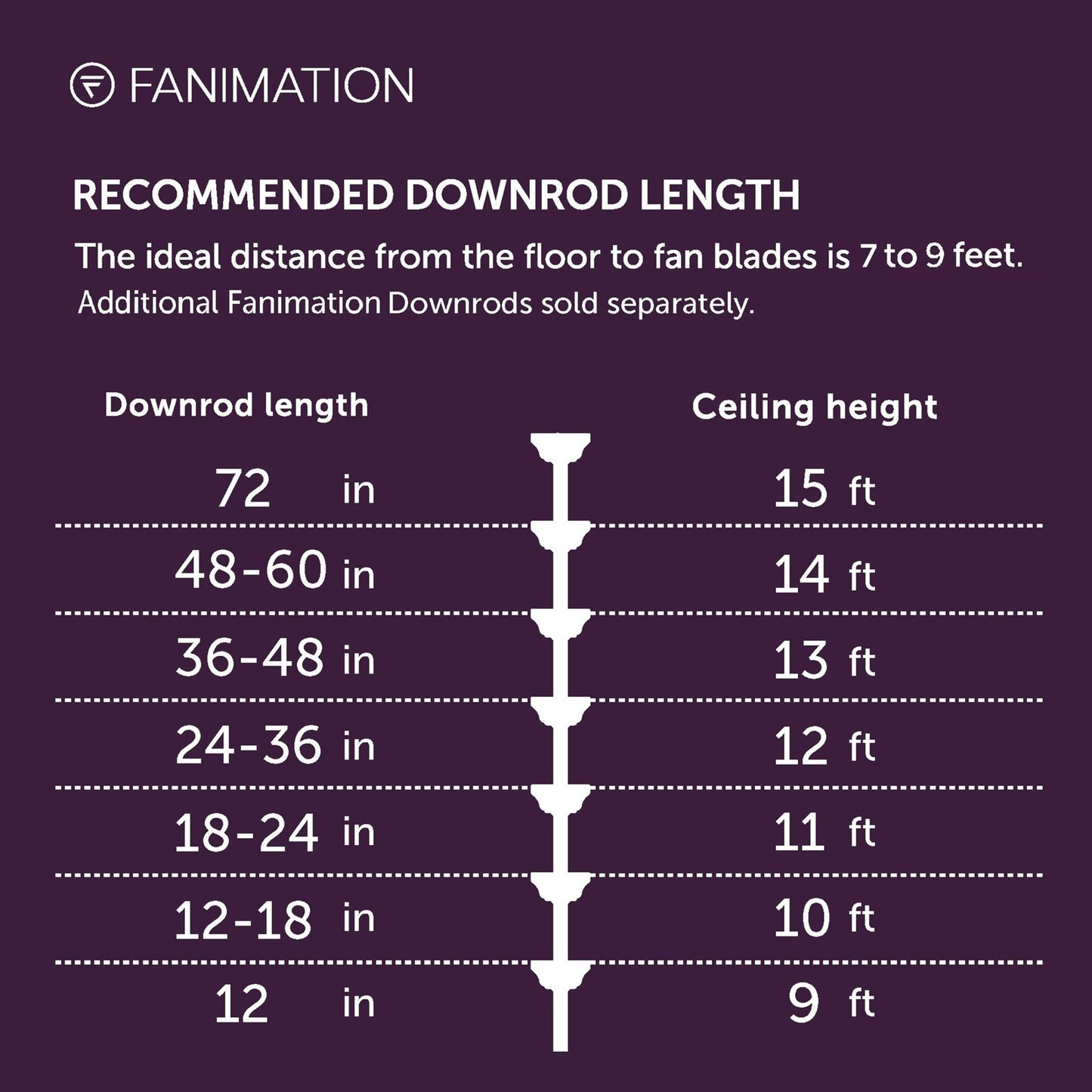

This downrod fan measures 96 inches in diameter and hangs 19.42 inches from the ceiling with the included 12-inch downrod. It is designed for flat or slightly sloped ceilings (up to 20 degrees) and works best in rooms at least 18 x 18 ft.
Specifications
- Primary Finish: Matte White
- Blade Material: Buttonwood
- Blade Finish: Black
- Shade Finish: Fresnel and Frosted
- Collection: Spitfire
- Blade Sweep: 96"
- Number of Blades: 3
- Blade Pitch: 14°
- Motor Type: DC
- Motor Size: 153 X 22
- Motor Reversible: True
- Number of Speeds: 6
- Reverse Switch Location: Control
- Light Kit Included: True
- Cap Included: True
- Included Control: TR360
- Control Type: Handheld
- 1 Bulb(s)
- Bulb Type: LED Module
- Bulb Base: Connector Pin
- Bulb Max Wattage: 18W
- Color Temperature: 2700, 3000, 3500, 4000, 5000K
- CRI: 90
- Lumens: 1600
- Voltage: 120V
- Avg CFM: 8515
- CFM High: 12413
- Avg Energy Use: 24W
- Max Slope: 20°
- Location Rating: Damp
- Safety Rating: UL Only Listed
- Warranty: Limited Lifetime Warranty
Frequently asked
Is the bulb included? Yes, the integrated LED module is included and not replaceable.
Is it dimmable, and what dimmer should I use? Yes, the light is dimmable via the included TR360 remote; no wall dimmer is required.
Can I install this in a bathroom or outdoors? It is damp rated for covered outdoor areas and bathrooms, but should not be directly exposed to rain or water.
What's the warranty? Fanimation offers a Limited Lifetime Warranty for the original purchaser.
Does this fan work with sloped ceilings? Yes, it supports slopes up to 20 degrees.
