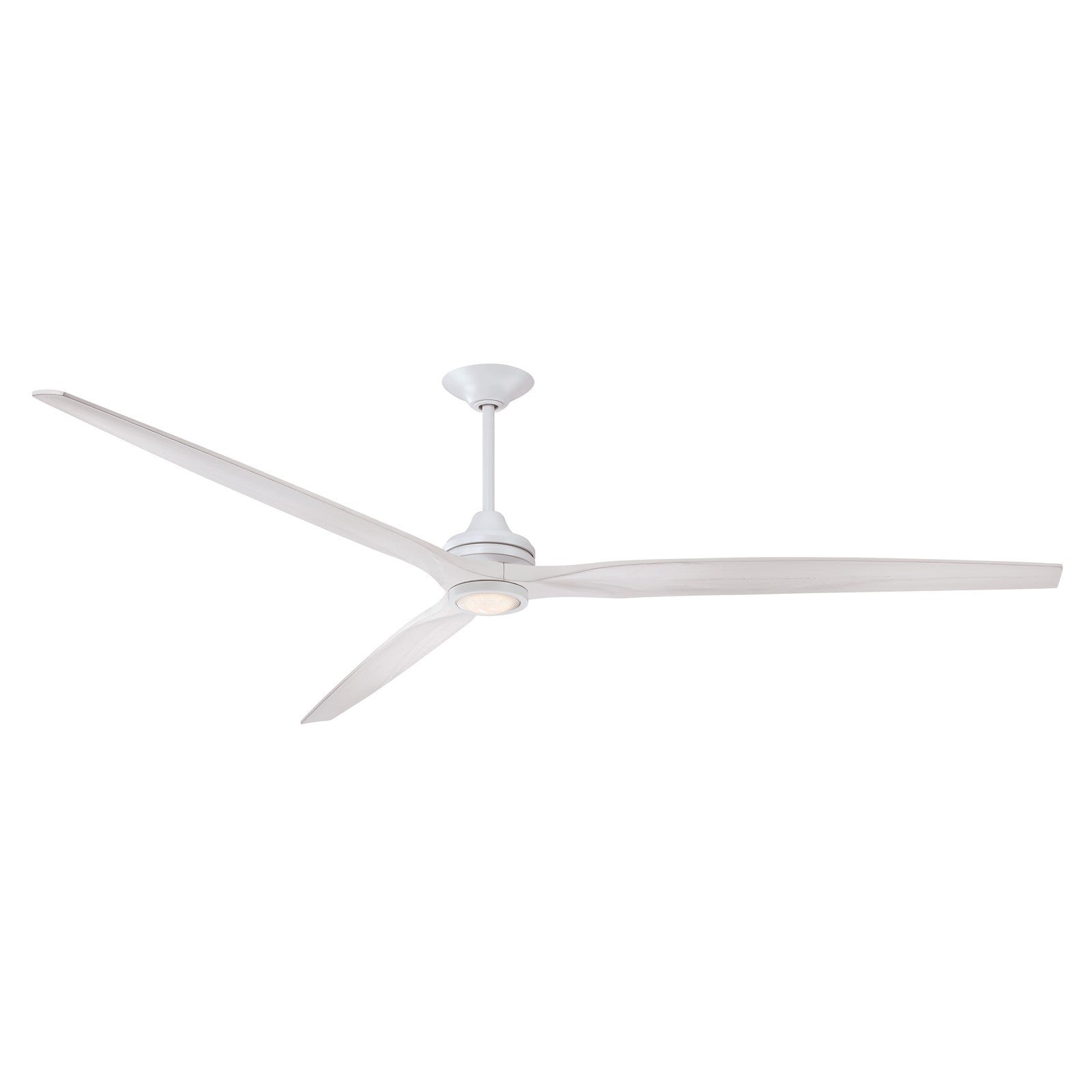

A 96-inch smart ceiling fan with an integrated LED light kit for large covered patios and great rooms, finished in matte white with white-washed buttonwood blades.
The Spitfire DC Custom pairs a streamlined matte white motor with three white-washed buttonwood blades for a clean, contemporary look that suits both indoor and covered outdoor spaces. Its 6-speed DC motor delivers powerful yet quiet airflow up to 12,413 CFM, and the included TR360 remote plus Wi-Fi fanSync app control make it easy to adjust from anywhere. This version includes an integrated 18-watt LED light kit with CCT Select technology, offering five color temperatures from warm white to daylight, and comes with both fresnel and frosted shades.
Best for
- Covered patios, porches, and sunrooms where a damp-rated fan is needed
- Great rooms and open-plan living areas with ceilings 10 ft or higher
- Bedrooms and home offices where quiet, energy-efficient airflow is a priority
- Spaces with standard or slightly sloped ceilings (up to 20°)
- Smart-home setups wanting voice or app control via fanSync
Not ideal for
- Fully exposed outdoor areas without a roof or cover - this fan is damp-rated, not wet-rated
- Small rooms under 12 x 12 ft where a 96-inch sweep is oversized
- Rooms with ceilings under 8 ft - the downrod adds height
How bright is it?
The integrated 18-watt LED light kit delivers 1600 lumens - about as bright as a 100W incandescent bulb - making it suitable for ambient lighting in large spaces. It is dimmable via the remote or app.
Light color and feel
Choose from five color temperatures: 2700K warm white, 3000K soft white, 3500K neutral white, 4000K cool white, or 5000K daylight. With a high CRI of 90, colors appear accurate and vibrant. The light is dimmable for the perfect ambiance.
Sizing and fit
With a 96-inch blade sweep and a height of 19.42 inches from the ceiling (with the included 6-inch downrod), this fan is ideal for rooms with 9-10 ft ceilings. It comes with 6-inch and 12-inch downrods, and optional downrods up to 72 inches are available. The fan weighs 22.25 lbs.
Specifications
- Primary Finish: Matte White
- Blade Material: Buttonwood
- Blade Finish: White Washed
- Shade Finish: Fresnel and Frosted
- Collection: Spitfire
- Blade Sweep: 96"
- Number of Blades: 3
- Blade Pitch: 14°
- Motor Type: DC
- Motor Size: 153 X 22
- Motor Reversible: True
- Number of Speeds: 6
- Reverse Switch Location: Control
- Light Kit Included: True
- Cap Included: True
- Included Control: TR360
- Control Type: Handheld
- 1 Bulb(s)
- Bulb Type: LED Module
- Bulb Base: Connector Pin
- Bulb Max Wattage: 18W
- Color Temperature: 2700, 3000, 3500, 4000, 5000K
- CRI: 90
- Lumens: 1600
- Voltage: 120V
- Avg CFM: 8515
- CFM High: 12413
- Avg Energy Use: 24W
- Max Slope: 20°
- Location Rating: Damp
- Safety Rating: UL Only Listed
- Warranty: Limited Lifetime Warranty
- Overall Dimensions: 96"(L) x 96"(W) x 19.42"(H)
- Housing Diameter: 8.07"
- Canopy Dimensions: 8.76"(Dia) x 2.52"(H)
- Downrod Length: 6, 12"
- Leadwire Length: 14 motor & 15 light"
- Ceiling to Bottom (No Light Kit): 13.69, 19.69"
- Ceiling to Bottom (With Light Kit): 15.35, 21.35"
- Item Weight: 22.25 lbs.
Frequently asked
Is the bulb included? Yes, the integrated LED module is included and does not require replacement.
Is it dimmable, and what dimmer should I use? The light is dimmable via the included TR360 remote or the fanSync app. No separate wall dimmer is needed.
Can I install this in a bathroom or outdoors? This fan is damp-rated, so it is suitable for bathrooms and covered outdoor areas like patios and porches, but it should not be directly exposed to rain or water.
What's the warranty? Fanimation offers a Limited Lifetime Warranty for the original purchaser.
Does this fan work with sloped ceilings? Yes, it supports slopes up to 20° with the included downrods.
