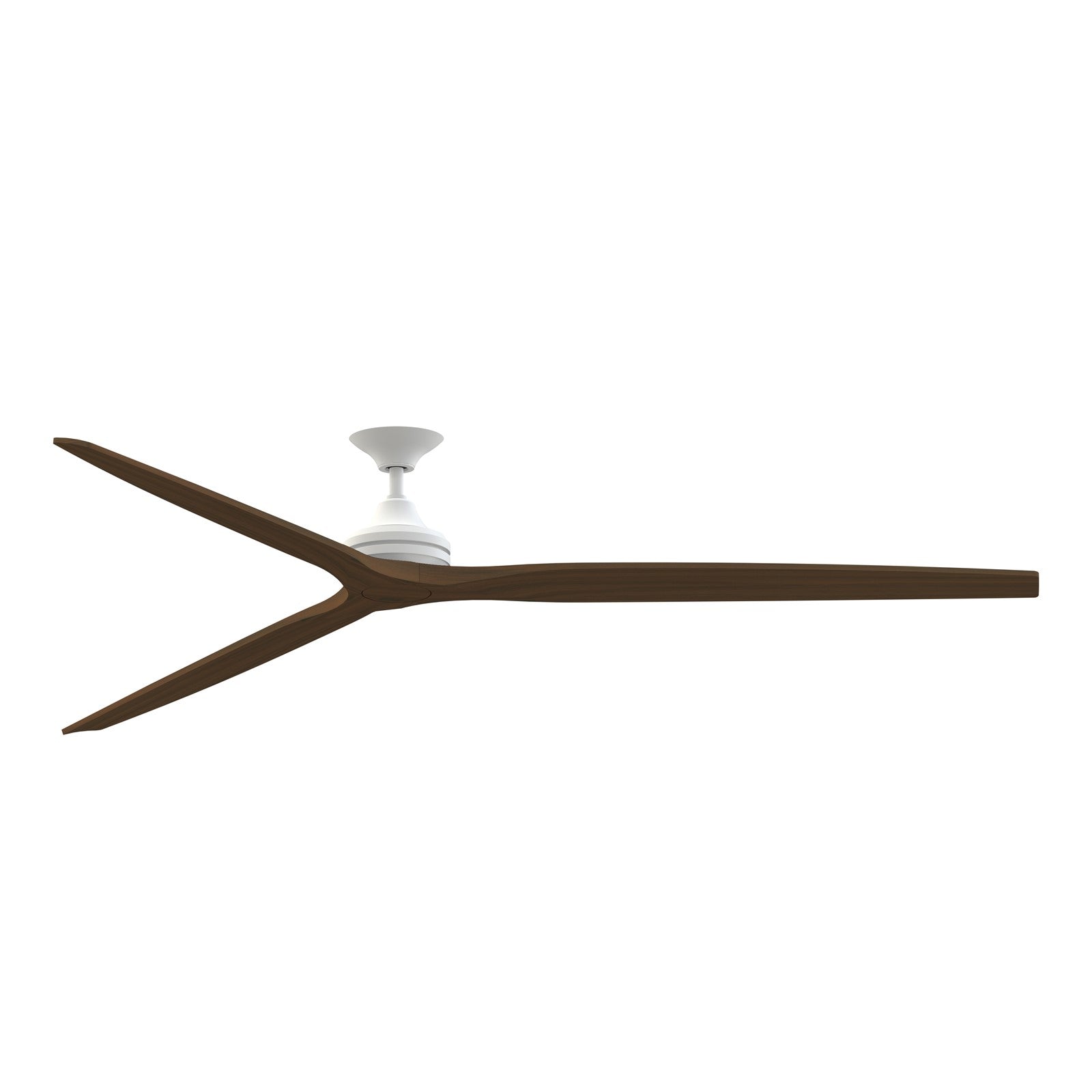

A 96-inch downrod smart ceiling fan from Fanimation's Spitfire DC Custom collection, finished in matte white with whiskey wood blades, for large indoor and covered outdoor spaces.
The Spitfire DC Custom pairs a streamlined matte white motor with three whiskey wood blades, creating a warm, contemporary look that suits modern and transitional homes. Its powerful 6-speed DC motor delivers up to 12,413 CFM of airflow while running quietly and efficiently. This fan is compatible with an optional integrated LED light kit (sold separately) featuring CCT Select technology for five color temperatures, and it includes a TR360 handheld remote and Wi-Fi fanSync for smart control.
Best for
- Covered patios, porches, and sunrooms where damp-rated fixtures are needed
- Great rooms, open-plan living areas, and large bedrooms (over 18x20 ft)
- Rooms with standard to slightly sloped ceilings (up to 20°), thanks to included downrods
- Spaces where smart control via app or voice assistant is desired
- Year-round comfort with reversible motor for seasonal airflow
Not ideal for
- Areas directly exposed to rain or water—this fan is damp-rated, not wet-rated
- Small rooms under 12x12 ft where a 96-inch fan would overwhelm the space
- Low ceilings under 8 ft, as the downrod adds height (minimum ceiling-to-bottom is 13.69 inches)
How bright is it?
This fan does not include a light kit. If you add the optional 18-watt LED module, it provides 1600 lumens—comparable to a 100W incandescent bulb—suitable for ambient lighting in large rooms.
Light color and feel
With the optional light kit, you can select from five color temperatures (2700K to 5000K), ranging from warm, cozy light to bright daylight. The high CRI of 90 ensures colors appear natural and vibrant.
Sizing and fit
This fan has a 96-inch blade sweep and overall dimensions of 96 x 96 x 19.69 inches. It includes 6-inch and 12-inch downrods for flexible installation on flat or slightly sloped ceilings (up to 20°). Optional downrods up to 72 inches are available for higher ceilings.
Specifications
- Primary Finish: Matte White
- Blade Material: Buttonwood
- Blade Finish: Whiskey Wood
- Collection: Spitfire
- Blade Sweep: 96"
- Number of Blades: 3
- Blade Pitch: 14°
- Motor Type: DC
- Motor Size: 153 X 22
- Motor Reversible: True
- Number of Speeds: 6
- Reverse Switch Location: Control
- Cap Included: True
- Included Control: TR360
- Control Type: Handheld
- Voltage: 120V
- Avg CFM: 8515
- CFM High: 12413
- Avg Energy Use: 24W
- Max Slope: 20°
- Location Rating: Damp
- Safety Rating: UL Only Listed
- Warranty: Limited Lifetime Warranty
- Overall Dimensions: 96"(L) x 96"(W) x 19.69"(H)
- Housing Diameter: 8.07"
- Canopy Dimensions: 8.76"(Dia) x 2.52"(H)
- Downrod Length: 6, 12"
- Leadwire Length: 14 motor & 15 light"
- Ceiling to Bottom (No Light Kit): 13.69, 19.69"
- Item Weight: 20.95 lbs.
Frequently asked
Is the bulb included? No, this fan does not include a light kit. The optional LED light kit is sold separately.
Is it dimmable, and what dimmer should I use? The fan speed is controlled via the included TR360 remote. If you add the optional light kit, it is dimmable via the remote.
Can I install this in a bathroom or outdoors? Yes, this fan is damp-rated, making it suitable for bathrooms and covered outdoor areas, but it should not be directly exposed to rain or water.
What's the warranty? Fanimation offers a Limited Lifetime Warranty for the original purchaser. Contact Fanimation Tech Support at 1-888-567-2055 for assistance.
Can I use this on a sloped ceiling? Yes, this fan is rated for up to 20° slope, and the included downrods allow for flexible installation.
