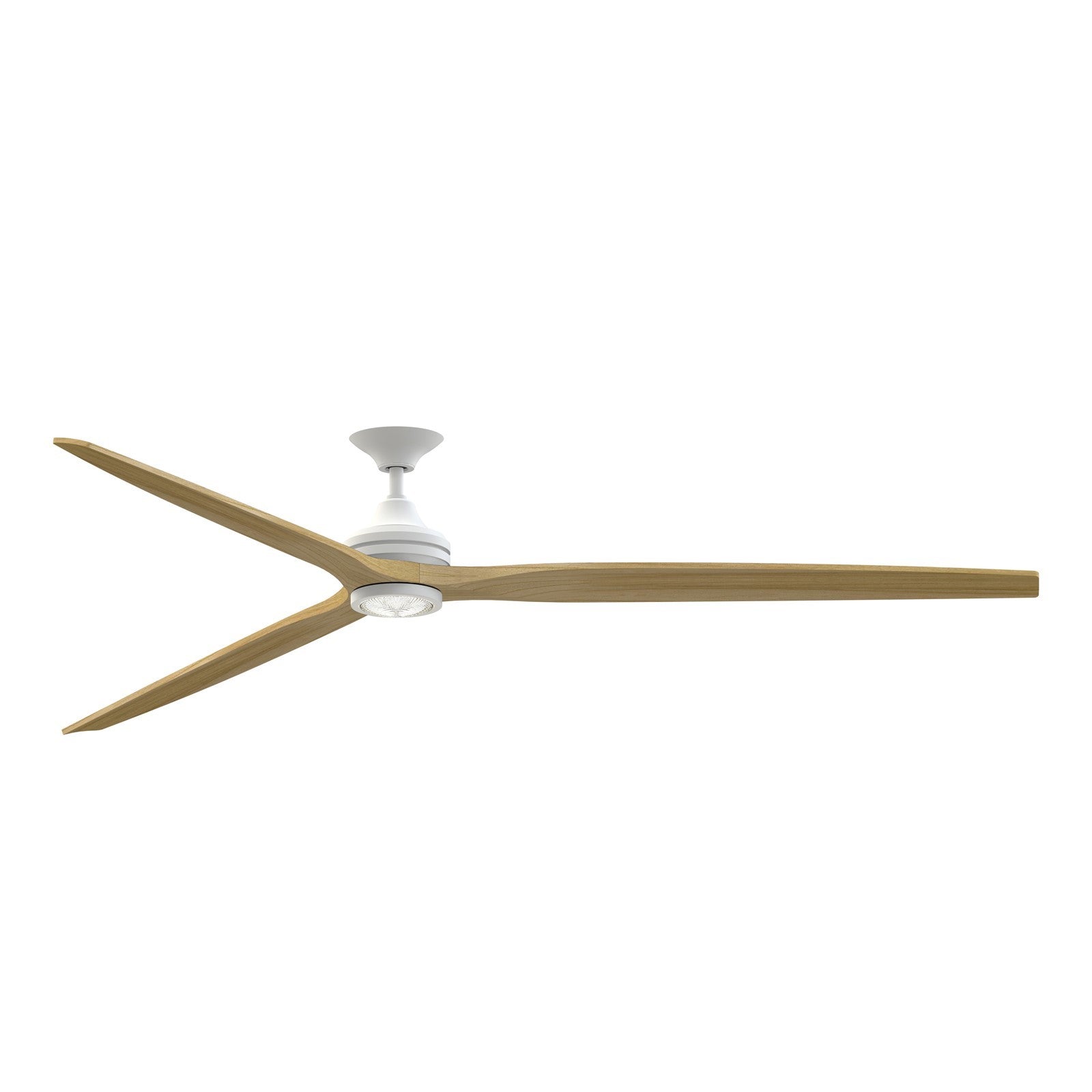

A 96-inch downrod smart ceiling fan with an integrated LED light kit, matte white motor, and natural buttonwood blades, designed for large covered outdoor and indoor living spaces.
The Spitfire DC Custom pairs a sleek matte white finish with three natural buttonwood blades for a clean, contemporary look that suits modern and transitional homes. Its powerful 6-speed DC motor delivers up to 12,413 CFM of airflow, keeping large rooms comfortable while running quietly and efficiently. This version includes an integrated 18-watt LED light kit with CCT Select technology, offering five color temperatures from warm to daylight. The fan is smart-enabled with fanSync Wi-Fi technology, so you can control it from your phone or voice assistant, and it comes with a handheld remote for easy everyday use.
Best for
- Covered patios and porches, where its damp rating handles humidity and moisture
- Large living rooms and great rooms (over 20x20 ft) needing powerful airflow
- Sunrooms and three-season rooms with high ceilings
- Bedrooms and home offices where quiet operation is a priority
- Rooms with slightly sloped ceilings (up to 20°), thanks to the included downrods
Not ideal for
- Outdoor areas directly exposed to rain or water - this fan is damp rated, not wet rated
- Small rooms under 10x10 ft, where its 96-inch sweep may be overpowering
- Low ceilings under 8 ft, as the downrod adds height
How bright is it?
The integrated 18-watt LED light kit provides 1600 lumens - roughly equivalent to a 100-watt incandescent bulb. It is dimmable, allowing you to adjust brightness to your preference.
Light color and feel
With CCT Select technology, you can choose from five color temperatures: 2700K (warm white), 3000K (soft white), 3500K (neutral white), 4000K (cool white), and 5000K (daylight). This flexibility lets you create anything from a cozy, warm glow to bright, energizing light. The kit also features a high CRI of 90, ensuring colors appear vivid and accurate.
Sizing and fit
This fan has a 96-inch blade sweep and overall dimensions of 96 x 96 x 19.42 inches. It includes 6-inch and 12-inch downrods, allowing you to adjust the hanging height. The canopy is 8.76 inches in diameter, and the fan weighs 22.25 pounds. Ensure your ceiling can support the weight and that there is adequate clearance from walls and furniture.
Specifications
- Primary Finish: Matte White
- Blade Material: Buttonwood
- Blade Finish: Natural
- Shade Finish: Fresnel and Frosted
- Collection: Spitfire
- Blade Sweep: 96"
- Number of Blades: 3
- Blade Pitch: 14°
- Motor Type: DC
- Motor Size: 153 X 22
- Motor Reversible: True
- Number of Speeds: 6
- Reverse Switch Location: Control
- Light Kit Included: True
- Cap Included: True
- Included Control: TR360
- Control Type: Handheld
- 1 Bulb(s)
- Bulb Type: LED Module
- Bulb Base: Connector Pin
- Bulb Max Wattage: 18W
- Color Temperature: 2700, 3000, 3500, 4000, 5000K
- CRI: 90
- Lumens: 1600
- Voltage: 120V
- Avg CFM: 8515
- CFM High: 12413
- Avg Energy Use: 24W
- Max Slope: 20°
- Location Rating: Damp
- Safety Rating: UL Only Listed
- Warranty: Limited Lifetime Warranty
Frequently asked
Is the bulb included? Yes, the integrated LED light kit is included and features an 18-watt LED module.
Is it dimmable, and what dimmer should I use? The light is dimmable via the included remote or the fanSync app. No separate wall dimmer is required.
Can I install this in a bathroom or outdoors? This fan is damp rated, so it can be installed in bathrooms, covered patios, porches, sunrooms, and laundry rooms. It should not be directly exposed to rain or water.
What's the warranty? Fanimation offers a Limited Lifetime Warranty for the original purchaser, covering the motor. For assistance, contact Fanimation Tech Support at 1-888-567-2055.
Can I use this on a sloped ceiling? Yes, this fan supports sloped ceilings up to 20° and includes 6-inch and 12-inch downrods. Optional downrods up to 72 inches are available for higher ceilings.
