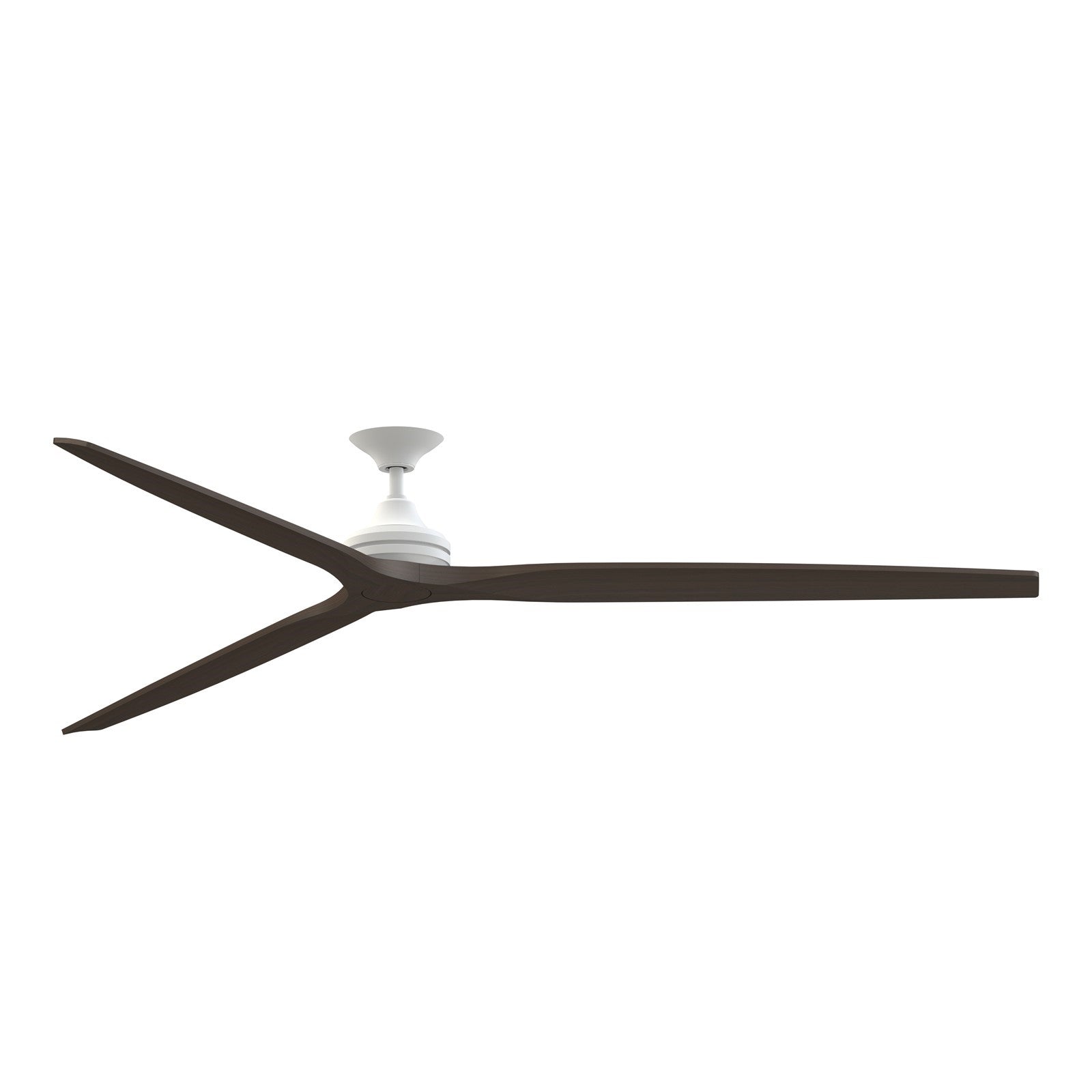

A 96-inch downrod smart ceiling fan from Fanimation's Spitfire DC Custom collection, finished in matte white with dark walnut blades, for large covered outdoor and indoor living spaces.
The Spitfire DC Custom pairs a sleek matte white motor with three dark walnut buttonwood blades, delivering powerful, quiet airflow up to 12,413 CFM. The included TR360 remote and Wi-Fi fanSync app put six speeds, reversing, and optional lighting at your fingertips. Damp rated for covered outdoor use, it brings smart comfort to patios, porches, and great rooms.
Best for
- Covered patios and porches with high ceilings, where its 96-inch sweep moves air across large seating areas
- Great rooms and open-plan living areas needing powerful, quiet airflow
- Sunrooms and three-season rooms with humidity exposure
- Rooms with 8-9 ft ceilings, using the included 6-inch or 12-inch downrods
- Smart-home setups with voice assistant or app control
Not ideal for
- Spaces directly exposed to rain or water—this fan is damp rated, not wet rated
- Small rooms under 12 x 12 ft, where the 96-inch sweep may be overpowering
- Low ceilings under 8 ft, as the downrod adds height
How bright is it?
This fan is compatible with an optional integrated 18-watt LED light kit (sold separately) that delivers 1600 lumens—comparable to a 100W incandescent bulb—suitable for ambient lighting in large spaces. Without the light kit, it provides no illumination.
Light color and feel
With the optional light kit, you can select from five color temperatures—2700K warm white to 5000K daylight—allowing you to shift from cozy to crisp. The high CRI of 90 ensures colors appear vibrant and accurate, ideal for entertaining areas.
Sizing and fit
This downrod fan measures 96 inches in diameter and hangs 19.69 inches from the ceiling with the included 12-inch downrod. It is designed for flat or slightly sloped ceilings (up to 20 degrees) and works best in rooms at least 18 x 18 ft.
Specifications
- Primary Finish: Matte White
- Blade Material: Buttonwood
- Blade Finish: Dark Walnut
- Collection: Spitfire
- Blade Sweep: 96"
- Number of Blades: 3
- Blade Pitch: 14°
- Motor Type: DC
- Motor Size: 153 X 22
- Motor Reversible: True
- Number of Speeds: 6
- Reverse Switch Location: Control
- Cap Included: True
- Included Control: TR360
- Control Type: Handheld
- Voltage: 120V
- Avg CFM: 8515
- CFM High: 12413
- Avg Energy Use: 24W
- Max Slope: 20°
- Location Rating: Damp
- Safety Rating: UL Only Listed
- Warranty: Limited Lifetime Warranty
Frequently asked
Is the bulb included? No, the light kit is sold separately and uses an LED module with a connector pin base.
Is it dimmable, and what dimmer should I use? The optional light kit is dimmable via the included TR360 remote; no wall dimmer is required.
Can I install this in a bathroom or outdoors? It is damp rated for covered outdoor areas and bathrooms, but should not be directly exposed to rain or water.
What's the warranty? Fanimation offers a Limited Lifetime Warranty for the original purchaser.
Does this fan work with sloped ceilings? Yes, it supports slopes up to 20 degrees.
