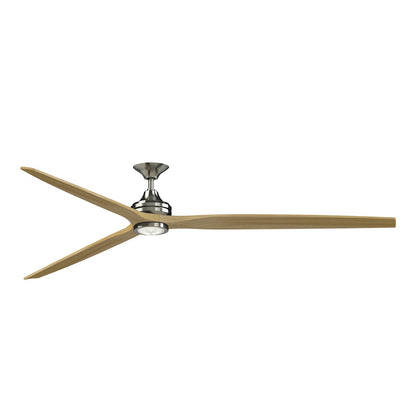

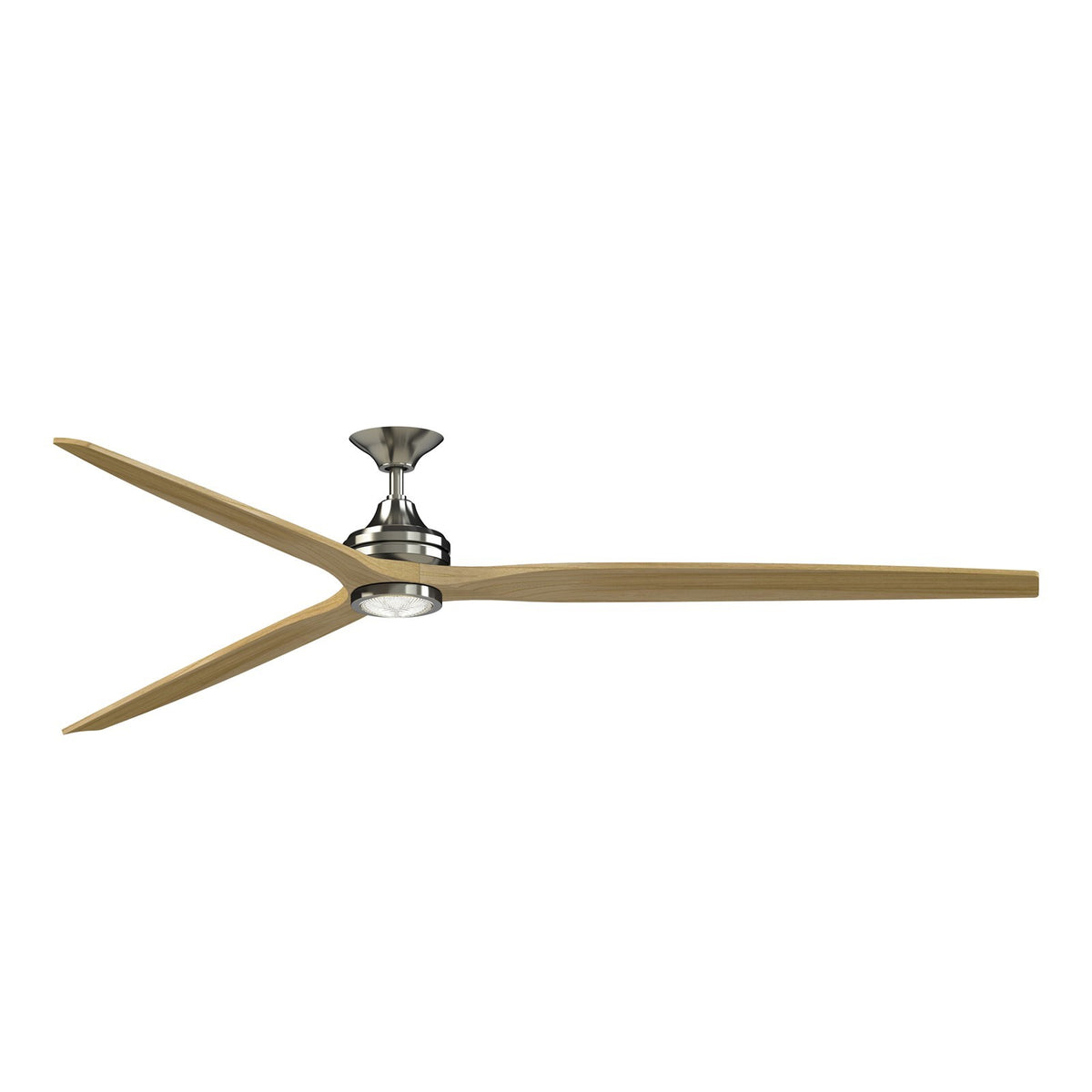

A 96-inch smart ceiling fan with integrated LED light kit from Fanimation's Spitfire DC Custom collection, finished in brushed nickel with natural buttonwood blades, for large covered outdoor and indoor spaces.
The Spitfire DC Custom pairs a streamlined brushed nickel motor housing with three natural buttonwood blades for a clean, contemporary look that suits modern and transitional homes. Its powerful 6-speed DC motor moves up to 12,413 CFM of air quietly, while the included TR360 handheld remote and Wi-Fi fanSync app give you full control from anywhere. This downrod version includes an integrated 18-watt LED light kit with CCT Select technology, letting you choose from five color temperatures to match your mood.
Best for
- Covered patios, porches, and sunrooms where damp-rated fixtures are required
- Great rooms and open-plan living areas with ceilings 8 ft or higher
- Bedrooms and home offices needing quiet, energy-efficient airflow with integrated lighting
- Spaces with standard or slightly sloped ceilings (up to 20°)
- Smart-home setups with voice assistants or the fanSync app
Not ideal for
- Areas directly exposed to rain or water - this fan is damp-rated, not wet-rated
- Small rooms under 12 x 12 ft where a 96-inch sweep is oversized
- Installations with ceilings lower than 8 ft - the downrod adds height
How bright is it?
The integrated 18-watt LED light kit delivers 1600 lumens - about as bright as a 100W incandescent bulb - suitable for ambient lighting in medium to large rooms.
Light color and feel
With CCT Select technology, you can choose from five color temperatures - 2700K (warm white), 3000K, 3500K, 4000K, and 5000K (daylight) - to match the mood of your space. The high CRI of 90 ensures colors appear natural and vibrant.
Sizing and fit
This fan has a 96-inch blade sweep and an overall height of 19.42 inches from the ceiling (with the included 6-inch downrod). It includes both 6-inch and 12-inch downrods, and optional downrods up to 72 inches are available. The housing diameter is 8.07 inches, and the canopy is 8.76 inches in diameter. It weighs 22.25 lbs.
Specifications
- Primary Finish: Brushed Nickel
- Blade Material: Buttonwood
- Blade Finish: Natural
- Shade Finish: Fresnel and Frosted
- Collection: Spitfire
- Blade Sweep: 96"
- Number of Blades: 3
- Blade Pitch: 14°
- Motor Type: DC
- Motor Size: 153 X 22
- Motor Reversible: True
- Number of Speeds: 6
- Reverse Switch Location: Control
- Light Kit Included: True
- Cap Included: True
- Included Control: TR360
- Control Type: Handheld
- 1 Bulb(s)
- Bulb Type: LED Module
- Bulb Base: Connector Pin
- Bulb Max Wattage: 18W
- Color Temperature: 2700, 3000, 3500, 4000, 5000K
- CRI: 90
- Lumens: 1600
- Voltage: 120V
- Avg CFM: 8515
- CFM High: 12413
- Avg Energy Use: 24W
- Max Slope: 20°
- Location Rating: Damp
- Safety Rating: UL Only Listed
- Warranty: Limited Lifetime Warranty
Frequently asked
Is the bulb included? Yes, the integrated LED light kit is included and the LED module is built in.
Is it dimmable, and what dimmer should I use? Yes, the light is dimmable via the included TR360 remote or the fanSync app.
Can I install this in a bathroom or outdoors? Yes, this fan is damp-rated for covered outdoor areas and bathrooms, but it should not be directly exposed to rain or water.
What's the warranty? Fanimation offers a Limited Lifetime Warranty for the original purchaser.
Does this fan work with sloped ceilings? Yes, it supports slopes up to 20°.
