A downrod smart ceiling fan with a powerful DC motor, designed for large covered outdoor and indoor spaces.

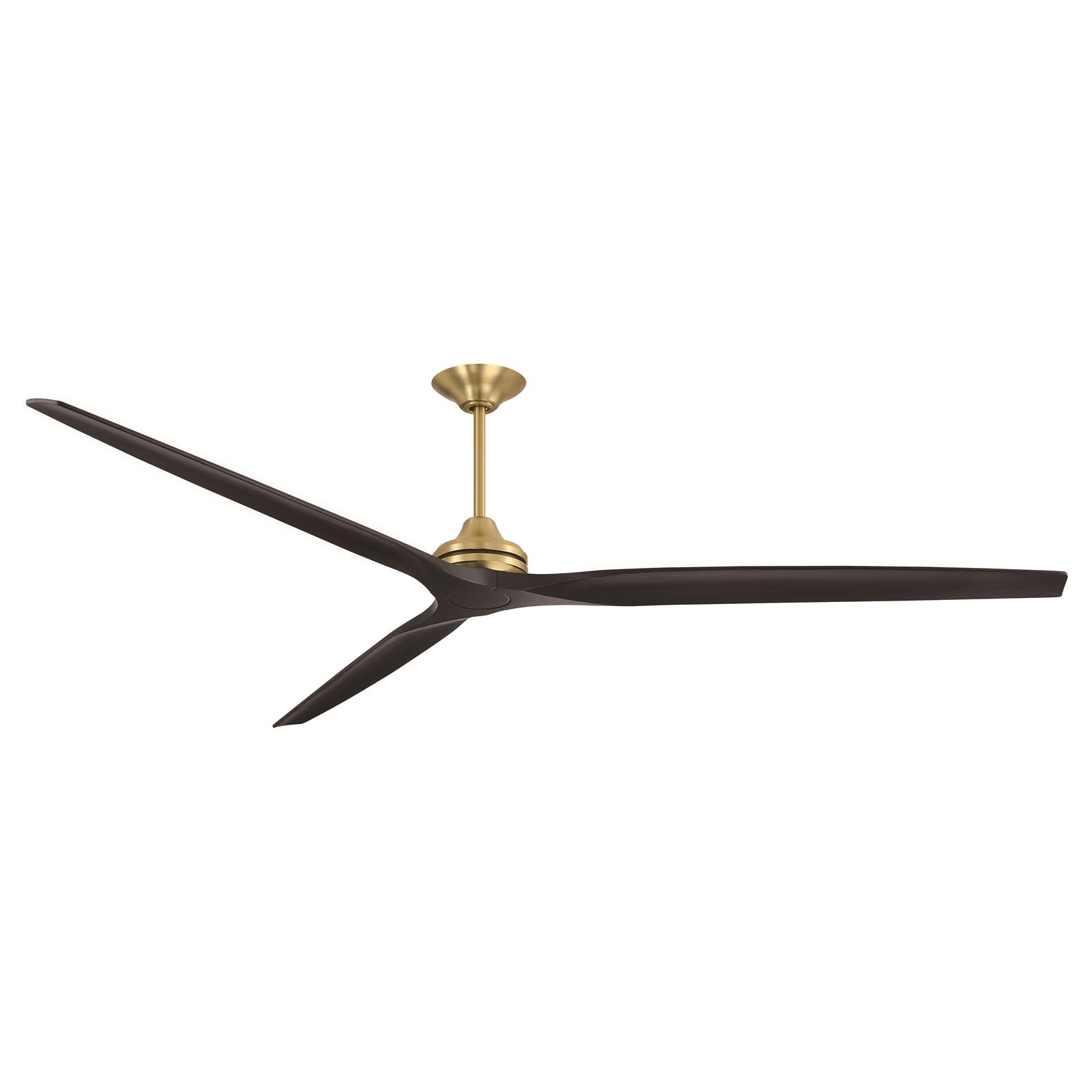

The Spitfire DC Custom combines a Brushed Satin Brass motor with three Black blades for a bold, contemporary look. Its 6-speed DC motor moves up to 12,413 CFM of air, making it ideal for large rooms. The fan is compatible with an optional LED light kit (sold separately) and includes the TR360 remote and fanSync Wi-Fi for smart control.
Best for
- Covered patios, porches, and sunrooms where damp-rated fixtures are needed
- Large living rooms, great rooms, and open-plan areas over 400 sq ft
- High ceilings (9-10 ft) with the included 6-inch and 12-inch downrods
- Bedrooms and home offices where quiet operation is a priority
- Smart home setups with voice control via Alexa or Google Assistant
Not ideal for
- Outdoor areas exposed directly to rain or water - this is damp-rated, not wet-rated
- Small rooms under 150 sq ft where the 96-inch sweep would be too large
- Rooms with ceilings under 8 feet unless you use a flush mount (not included)
How bright is it?
This fan does not include a light kit. If you add the compatible LED light kit (sold separately), it provides up to 2000 lumens - similar to a 150-watt incandescent bulb, suitable for ambient lighting in large spaces.
Light color and feel
When paired with the optional light kit, you can select from 2700K to 5000K color temperatures, ranging from warm and cozy to bright and energizing. The 90 CRI ensures accurate color rendering.
Sizing and fit

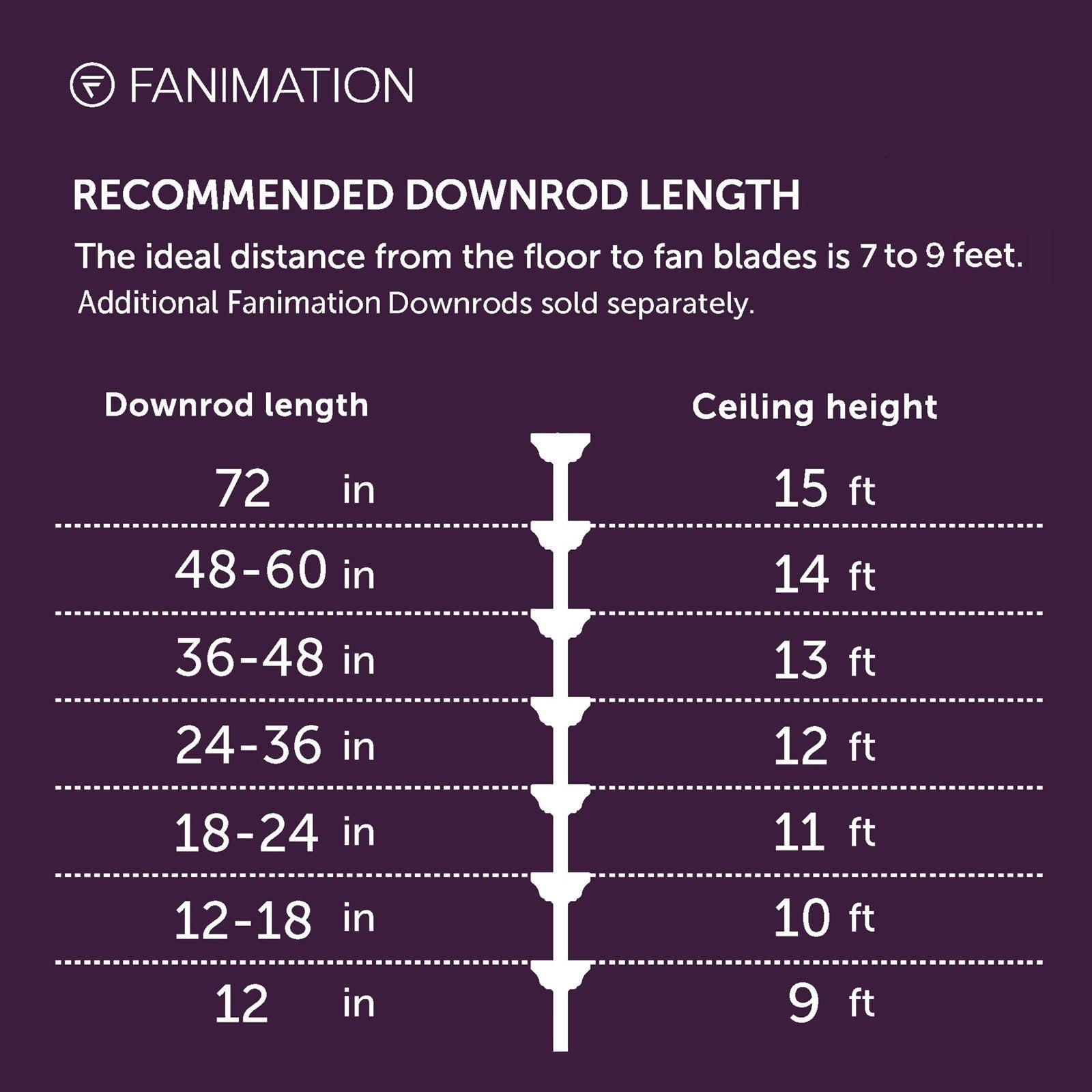

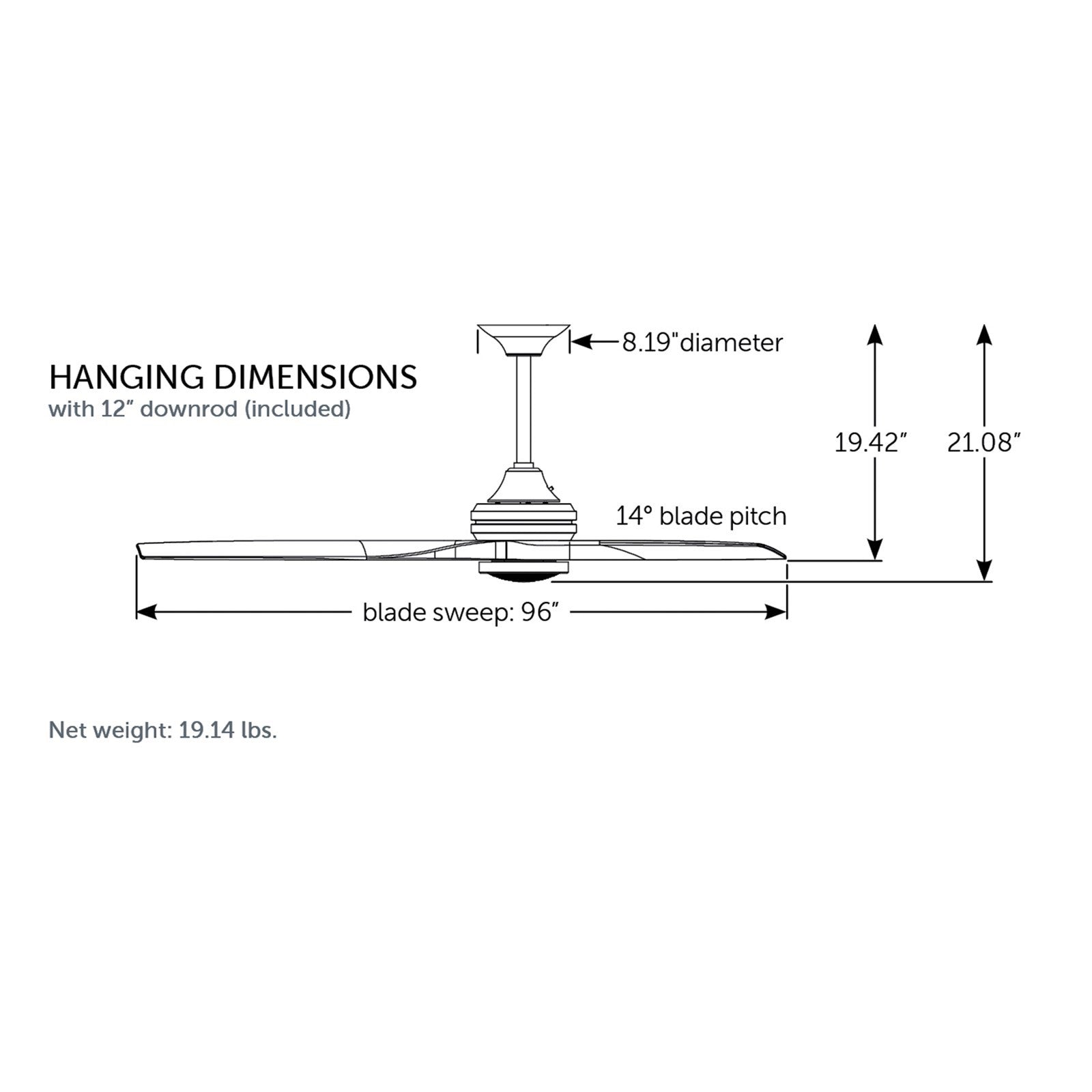

This fan has a 96-inch blade sweep and overall dimensions of 96 x 96 x 19.69 inches. It includes both 6-inch and 12-inch downrods, and optional downrods up to 72 inches are available to achieve the recommended 7-9 foot hanging height. The housing diameter is 8.07 inches.
Specifications
- Primary Finish: Brushed Satin Brass
- Blade Material: Buttonwood
- Blade Finish: Black
- Collection: Spitfire
- Blade Sweep: 96"
- Number of Blades: 3
- Blade Pitch: 14°
- Motor Type: DC
- Motor Size: 153 X 22
- Motor Reversible: True
- Number of Speeds: 6
- Reverse Switch Location: Control
- Cap Included: True
- Included Control: TR360
- Control Type: Handheld
- Voltage: 120V
- Avg CFM: 8515
- CFM High: 12413
- Avg Energy Use: 24W
- Max Slope: 20°
- Location Rating: Damp
- Safety Rating: UL Only Listed
- Warranty: Limited Lifetime Warranty
- Overall Dimensions: 96"(L)96"(W) x 19.69"(H)
- Housing Diameter: 8.07"
- Canopy Dimensions: 8.76"(Dia) x 2.52"(H)
- Downrod Length: 6, 12"
- Leadwire Length: 14 motor & 15 light"
- Ceiling to Bottom (No Light Kit): 13.69, 19.69"
- Item Weight: 20.95 lbs.
Frequently asked
What is it made of? The motor housing is finished in Brushed Satin Brass, and the blades are made of Buttonwood with a Black finish.
Where in the home does this work best? This fan is ideal for large living rooms, covered patios, and sunrooms. Its damp rating allows use in bathrooms and covered outdoor areas, but not in direct rain.

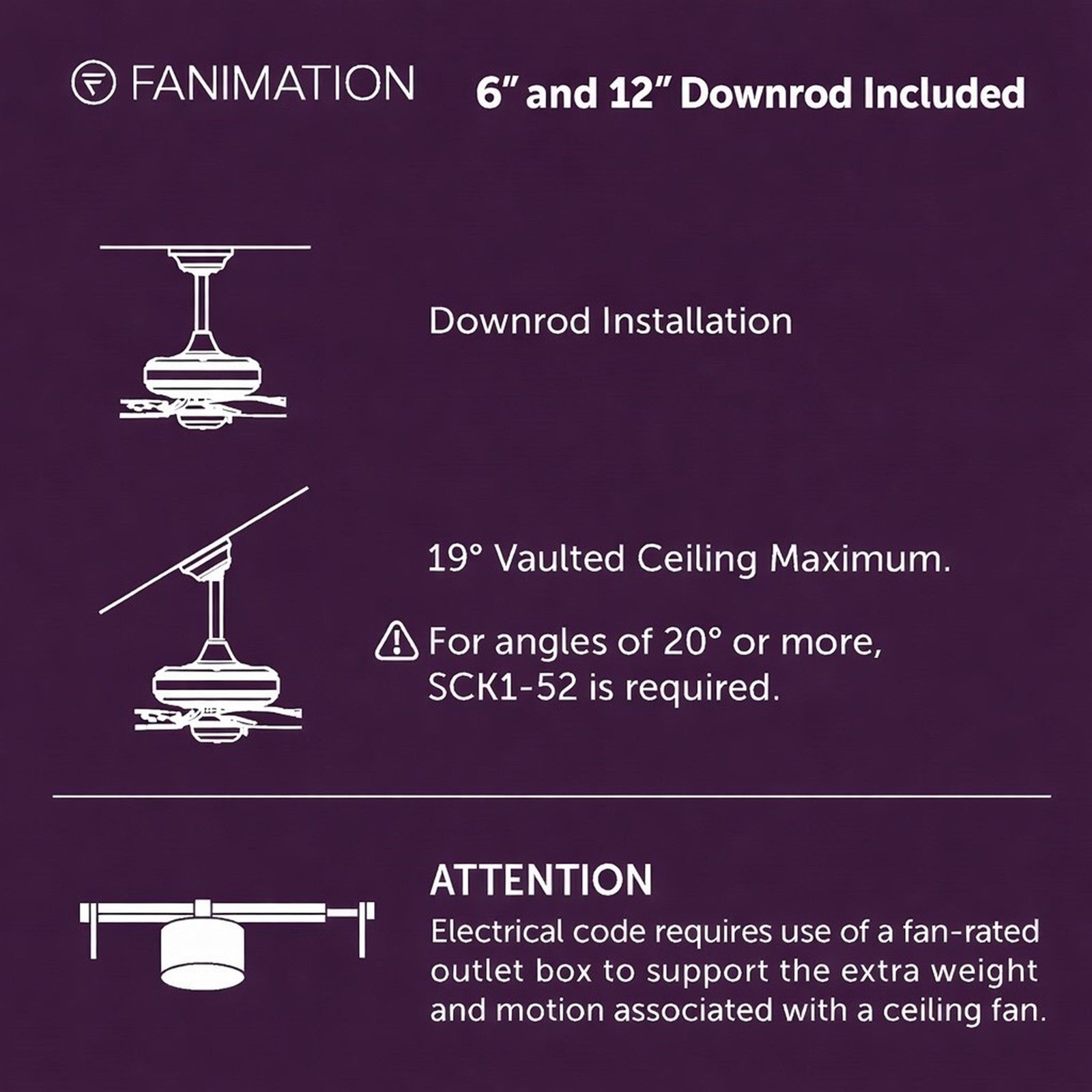

How is it mounted or assembled? It mounts to flat or sloped ceilings (up to 20°) using the included 6-inch and 12-inch downrods. Optional longer downrods are available.
What's the warranty? Fanimation offers a Limited Lifetime Warranty for the original purchaser.
Can I add a light kit later? Yes, this fan is compatible with Fanimation's integrated LED light kit, which is sold separately.
