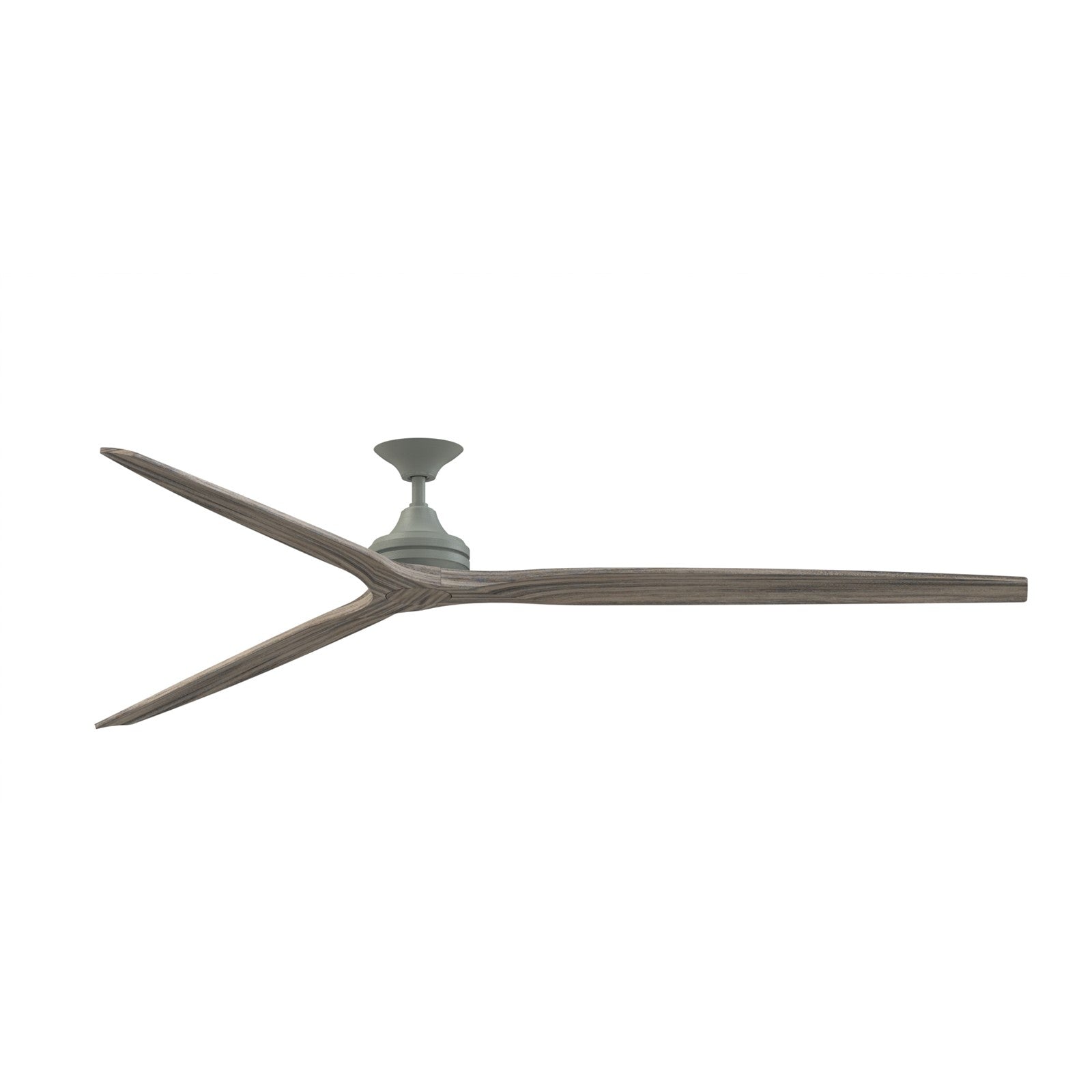

A 96-inch smart ceiling fan without a light kit, designed for large covered outdoor and indoor spaces, finished in antique graphite with weathered wood blades.
The Spitfire DC Custom is a statement piece for expansive rooms and covered patios. Its 96-inch blade sweep and powerful DC motor move air up to 12,413 CFM. This version is compatible with an optional LED light kit (sold separately) and includes a remote and Wi-Fi fanSync app for full control.
Best for
- Covered patios, porches, and sunrooms where damp-rated fixtures are needed
- Great rooms, open-plan living areas, and large bedrooms with high ceilings
- Spaces with sloped ceilings up to 20 degrees, using the included downrods
- Smart home setups, with voice assistant and app control
- Year-round comfort with reversible motor for summer and winter airflow
Not ideal for
- Directly exposed outdoor areas without a roof or cover
- Small rooms under 12x12 ft where a 96-inch fan would overwhelm the space
- Rooms that require a light fixture, since this model does not include a light kit
How bright is it?
This fan does not include a light kit. If you add the compatible LED light kit (sold separately), it produces 1600 lumens - comparable to a 100W incandescent bulb.
Light color and feel
When paired with the optional light kit, you can choose from five color temperatures: 2700K (warm white), 3000K (soft white), 3500K (neutral), 4000K (cool white), and 5000K (daylight). The light is dimmable via the remote or app.
Sizing and fit
This fan measures 96 inches in diameter and 19.69 inches from ceiling to bottom with the included 12-inch downrod. It includes both 6-inch and 12-inch downrods for flexible installation on flat or sloped ceilings up to 20 degrees. Optional downrods up to 72 inches are available.
Specifications
- Primary Finish: Antique Graphite
- Blade Material: Buttonwood
- Blade Finish: Weathered Wood
- Collection: Spitfire
- Blade Sweep: 96"
- Number of Blades: 3
- Blade Pitch: 14°
- Motor Type: DC
- Motor Size: 153 X 22
- Motor Reversible: True
- Number of Speeds: 6
- Reverse Switch Location: Control
- Cap Included: True
- Included Control: TR360
- Control Type: Handheld
- Voltage: 120V
- Avg CFM: 8515
- CFM High: 12413
- Avg Energy Use: 24W
- Max Slope: 20°
- Location Rating: Damp
- Safety Rating: UL Only Listed
- Warranty: Limited Lifetime Warranty
Frequently asked
Is the bulb included? No, this fan does not include a light kit. The LED light kit is sold separately.
Is it dimmable, and what dimmer should I use? When the optional light kit is added, it is dimmable via the included TR360 remote or the fanSync app. No wall dimmer is required.
Can I install this in a bathroom or outdoors? It is damp-rated, so it is suitable for covered outdoor areas and bathrooms with humidity, but not for direct rain exposure.
What's the warranty? Limited Lifetime Warranty for the original purchaser.
Does it work with sloped ceilings? Yes, it is designed for flat or sloped ceilings up to 20 degrees, with included downrods.
