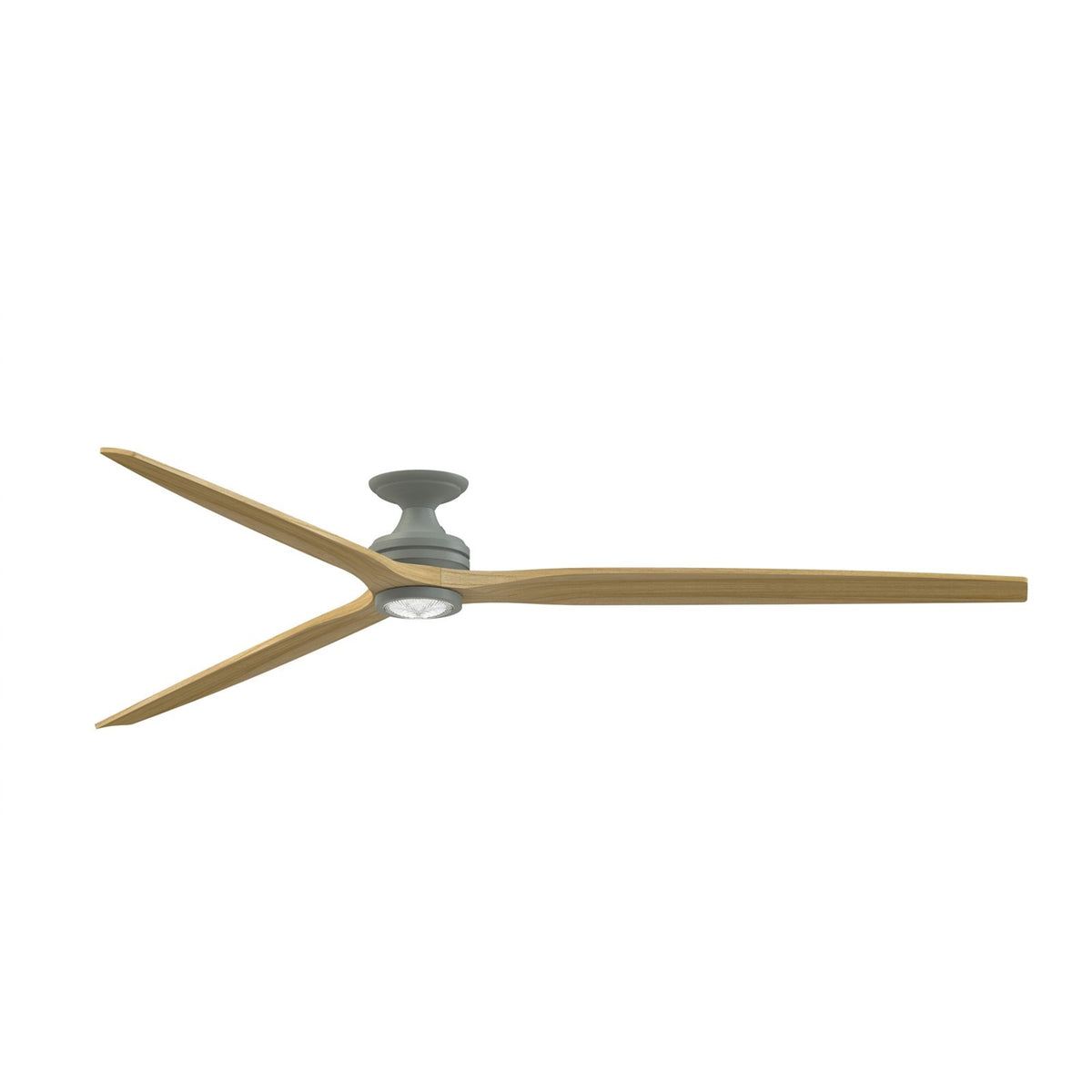

A 96-inch smart ceiling fan with an integrated LED light kit, designed for large covered outdoor and indoor spaces, finished in antique graphite with natural buttonwood blades.
The Spitfire DC Custom is a statement piece for expansive rooms and covered patios. Its 96-inch blade sweep and powerful DC motor move air up to 12,413 CFM, while the integrated 18-watt LED light kit offers five color temperatures from warm to daylight. The included remote and Wi-Fi fanSync app give you full control over fan speed, light dimming, and color selection.
Best for
- Covered patios, porches, and sunrooms where damp-rated fixtures are needed
- Great rooms, open-plan living areas, and large bedrooms with high ceilings
- Spaces with low ceilings, thanks to the flush mount design
- Smart home setups, with voice assistant and app control
- Year-round comfort with reversible motor for summer and winter airflow
Not ideal for
- Directly exposed outdoor areas without a roof or cover
- Small rooms under 12x12 ft where a 96-inch fan would overwhelm the space
- Ceilings with a slope greater than 0 degrees (flush mount requires flat ceiling)
How bright is it?
The integrated LED light kit produces 1600 lumens - comparable to a 100W incandescent bulb, suitable for ambient lighting in large rooms. It is dimmable for adjustable brightness.
Light color and feel
Choose from five color temperatures: 2700K (warm white), 3000K (soft white), 3500K (neutral), 4000K (cool white), and 5000K (daylight). With a CRI of 90, colors appear vibrant and accurate. The light is dimmable via the remote or app.
Sizing and fit

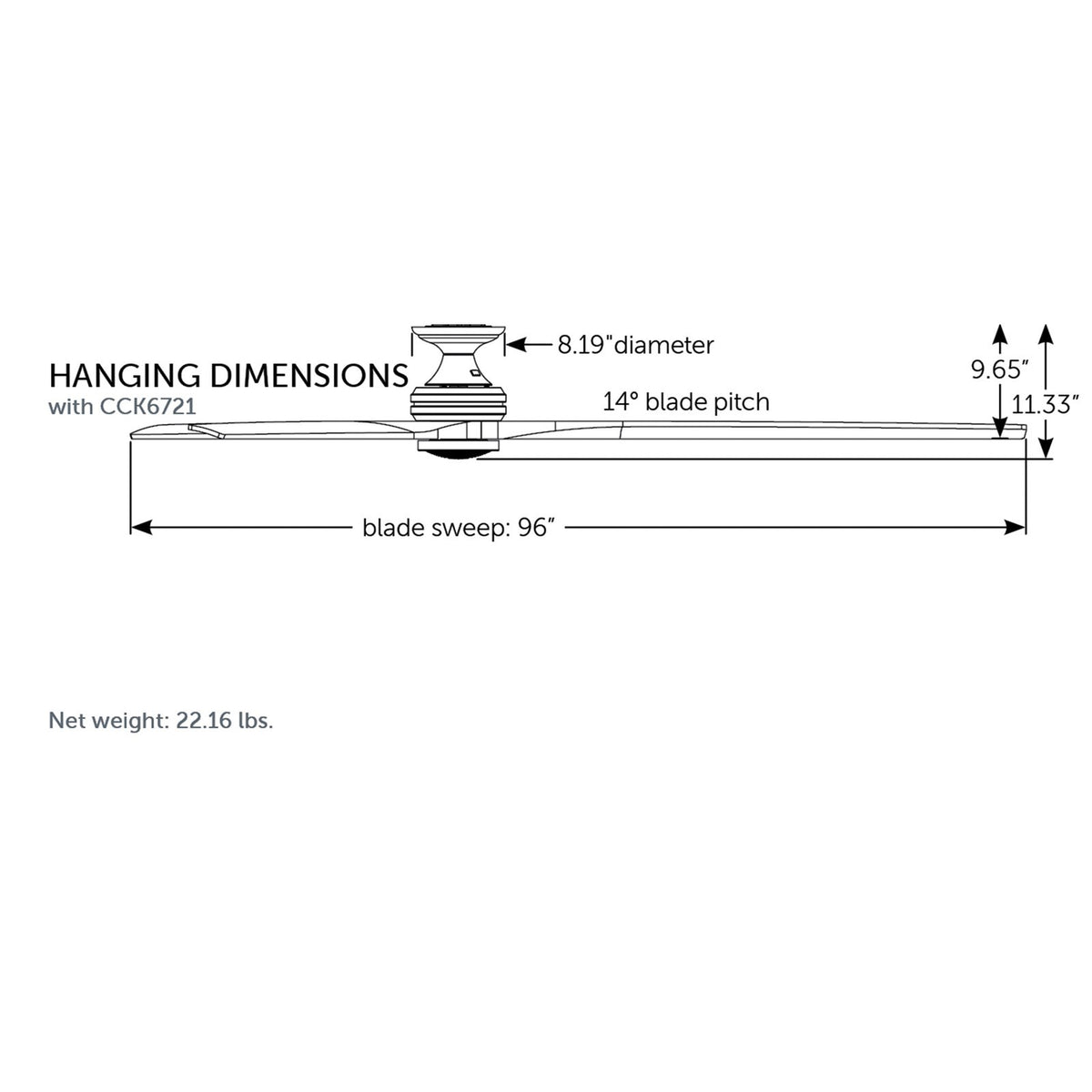

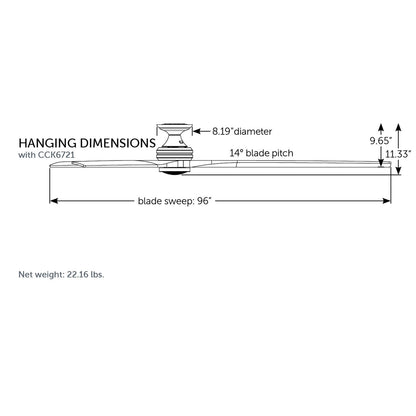

This fan measures 96 inches in diameter and 11.33 inches from ceiling to bottom with the light kit. It mounts flush to flat ceilings, making it ideal for rooms with low ceilings. The canopy is 7.85 inches in diameter.
Specifications
- Primary Finish: Antique Graphite
- Blade Material: Buttonwood
- Blade Finish: Natural
- Shade Finish: Fresnel and Frosted
- Collection: Spitfire
- Blade Sweep: 96"
- Number of Blades: 3
- Blade Pitch: 14°
- Motor Type: DC
- Motor Size: 153 X 22
- Motor Reversible: True
- Number of Speeds: 6
- Reverse Switch Location: Control
- Light Kit Included: True
- Cap Included: True
- Included Control: TR360
- Control Type: Handheld
- 1 Bulb(s)
- Bulb Type: LED Module
- Bulb Base: Connector Pin
- Bulb Max Wattage: 18W
- Color Temperature: 2700, 3000, 3500, 4000, 5000K
- CRI: 90
- Lumens: 1600
- Voltage: 120V
- Avg CFM: 8515
- CFM High: 12413
- Avg Energy Use: 24W
- Location Rating: Damp
- Safety Rating: UL Only Listed
- Warranty: Limited Lifetime Warranty
Frequently asked
Is the bulb included? Yes, the LED module is integrated and included.
Is it dimmable, and what dimmer should I use? Yes, it is dimmable via the included TR360 remote or the fanSync app. No wall dimmer is required.
Can I install this in a bathroom or outdoors? It is damp-rated, so it is suitable for covered outdoor areas and bathrooms with humidity, but not for direct rain exposure.
What's the warranty? Limited Lifetime Warranty for the original purchaser.
Does it work with sloped ceilings? No, this flush mount version requires a flat ceiling. For sloped ceilings, consider the downrod version.
Ships from our warehouse in 1-4 Business Days
