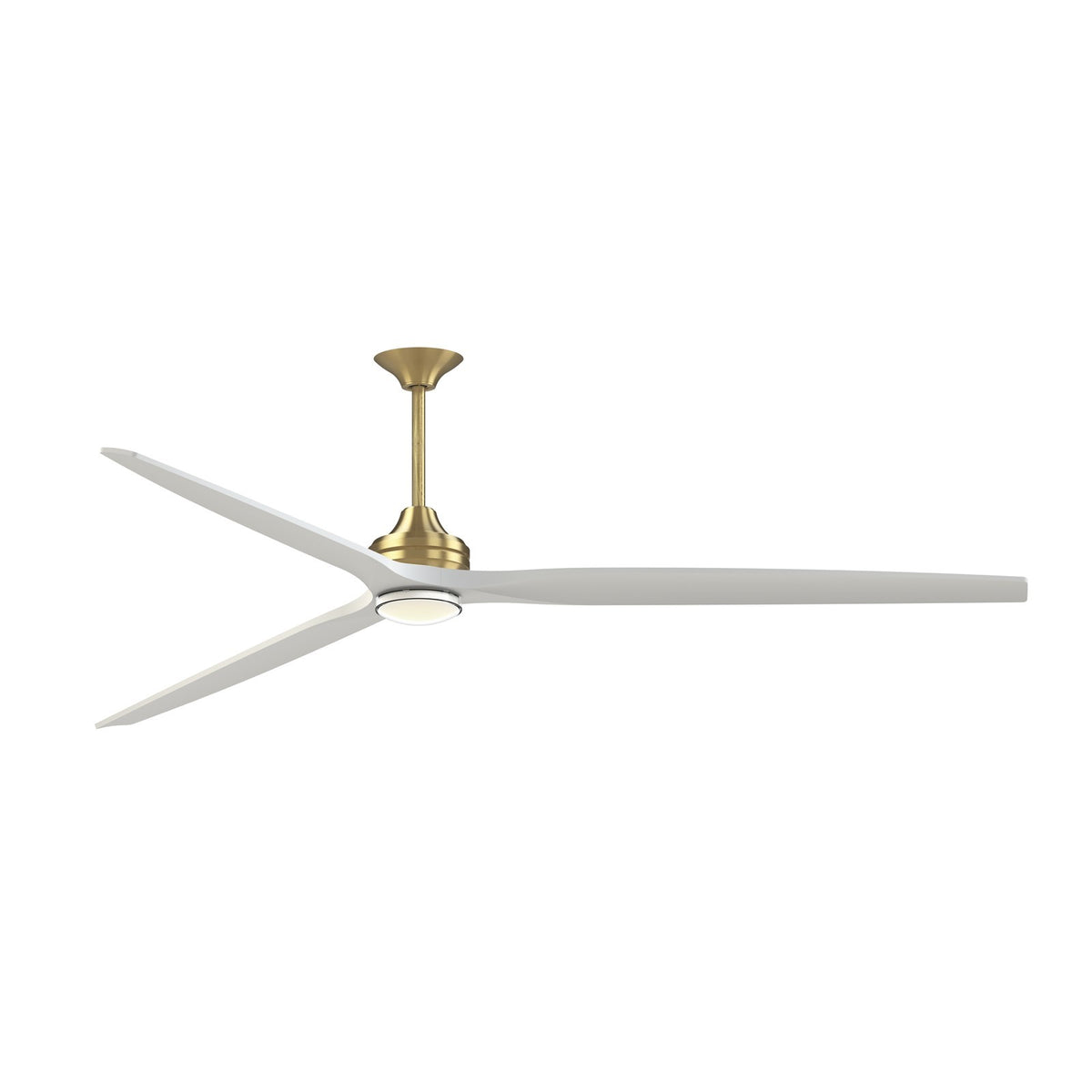

A 96-inch downrod smart ceiling fan with an integrated LED light kit, designed for large covered outdoor and indoor spaces, finished in brushed satin brass with matte white blades.
The Spitfire DC Custom delivers powerful, quiet airflow up to 12,413 CFM from its 6-speed DC motor. This version includes a 24-watt LED light kit with CCT Select technology, offering five color temperatures. The double-walled marine-grade glass shade is built for durability and wet locations. Wi-Fi fanSync control and a handheld remote put full control at your fingertips.
Best for
- Covered patios and porches, providing powerful airflow and ambient light for outdoor entertaining
- Sunrooms and three-season rooms, where damp-rated construction handles humidity
- Large living rooms and great rooms with standard to high ceilings
- Primary bedrooms, with quiet operation and dimmable light for relaxation
- Bathrooms and laundry rooms, where moisture resistance is a plus
Not ideal for
- Spaces with ceilings under 8 feet, as the downrod adds height
- Directly exposed to rain or water, despite the damp rating
- Small rooms under 12x12 feet, where the 96-inch sweep is oversized
How bright is it?
The integrated 24-watt LED module produces 2000 lumens, roughly equivalent to a 150-watt incandescent bulb. This is sufficient for ambient lighting in a large room, but not for task lighting.
Light color and feel
Choose from five color temperatures: 2700K (warm), 3000K (soft white), 3500K (neutral), 4000K (cool), and 5000K (daylight). With a CRI of 90, colors appear vivid and accurate. The light is dimmable, and the included remote allows infinite dimming.
Sizing and fit
This fan measures 96 inches in diameter and 22 inches from ceiling to bottom with the included 12-inch downrod. It is designed for flat or slightly sloped ceilings up to 20 degrees.
Specifications
- Primary Finish: Brushed Satin Brass
- Blade Material: Buttonwood
- Blade Finish: Matte White
- Collection: Spitfire
- Blade Sweep: 96"
- Number of Blades: 3
- Blade Pitch: 14°
- Motor Type: DC
- Motor Size: 153 X 22
- Motor Reversible: True
- Number of Speeds: 6
- Reverse Switch Location: Control
- Cap Included: True
- Included Control: TR360
- Control Type: Handheld
- 1 Bulb(s)
- Bulb Type: LED Module
- Bulb Base: Connector Pin
- Bulb Max Wattage: 24W
- Color Temperature: 2700, 3000, 3500, 4000, 5000K
- CRI: 90
- Lumens: 2000
- Voltage: 120V
- Avg CFM: 8515
- CFM High: 12413
- Avg Energy Use: 24W
- Max Slope: 20°
- Location Rating: Damp
- Safety Rating: UL Only Listed
- Warranty: Limited Lifetime Warranty
Frequently asked
Is the bulb included? Yes, an integrated LED module is included.
Is it dimmable, and what dimmer should I use? Yes, the light is dimmable via the included TR360 remote. No wall dimmer is required.
Can I install this in a bathroom or outdoors? This fan is damp-rated, suitable for covered outdoor areas and bathrooms, but not for direct rain exposure.
What's the warranty? Limited Lifetime Warranty for the original purchaser.
Is the light kit marine-grade? Yes, the double-walled glass shade is constructed with marine-grade materials, making it suitable for wet locations.
