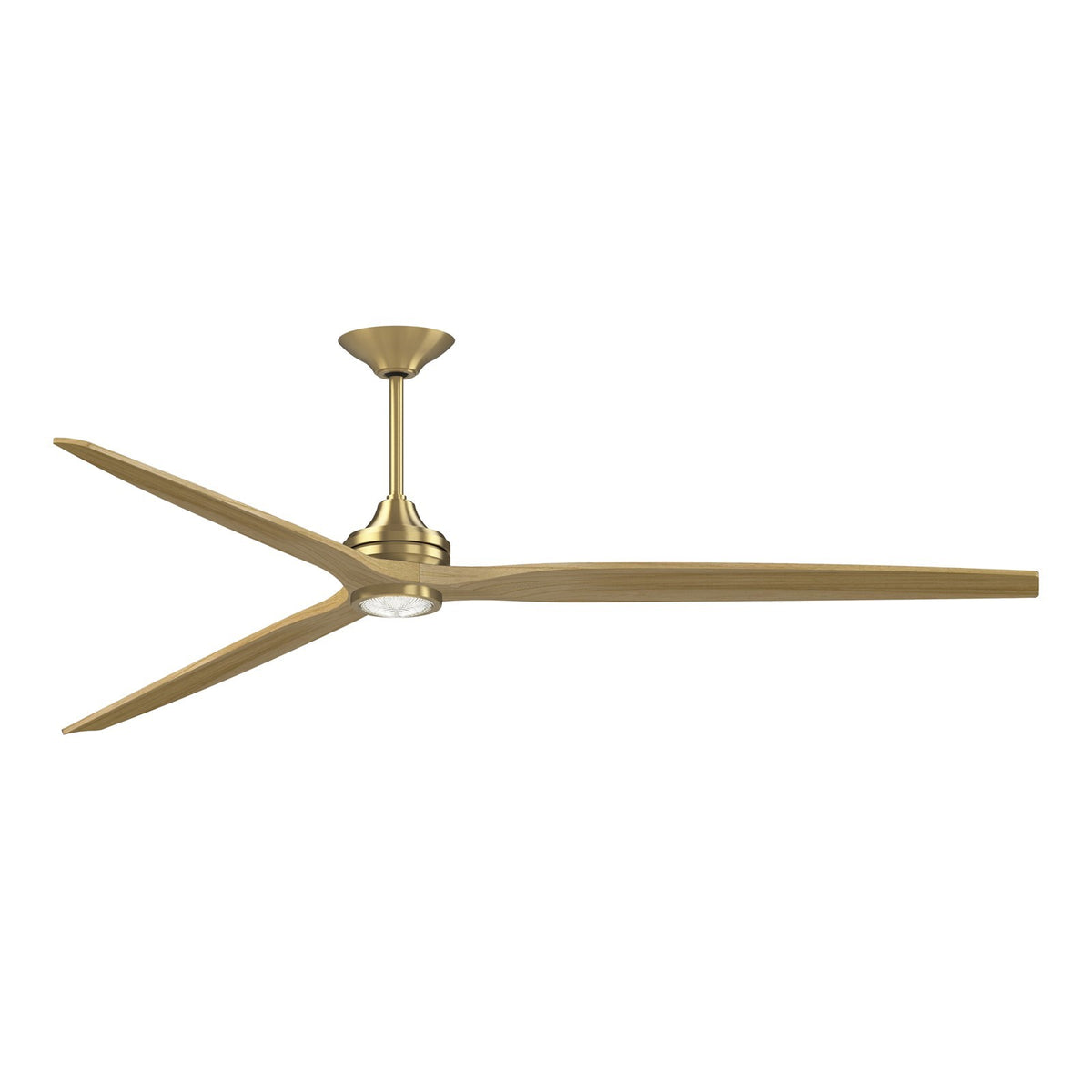

A 96-inch indoor/outdoor smart ceiling fan with an LED CCT Select light kit, finished in brushed satin brass with natural buttonwood blades, for large covered patios and great rooms.
The Spitfire DC Custom pairs a streamlined brushed satin brass motor with three natural buttonwood blades, delivering powerful yet quiet airflow up to 12,413 CFM from its 6-speed DC motor. This version includes an integrated 18-watt LED light kit with CCT Select technology, offering five color temperatures from warm to daylight, and includes both fresnel and frosted shades for versatility. Control it all with the included TR360 handheld remote or via Wi-Fi with the fanSync app and voice assistants.
Best for
- Covered patios and porches, rated for damp locations
- Great rooms and open-plan living areas with ceilings 8 ft or higher
- Sunrooms and three-season rooms where humidity is a concern
- Large bedrooms or home offices needing both airflow and adjustable lighting
Not ideal for
- Directly exposed outdoor areas - damp rated, not wet rated, so avoid rain or water spray
- Rooms with ceilings under 8 ft unless you use the flush mount option
- Small spaces under 12x12 ft where a 96-inch sweep is overpowering
How bright is it?
1600 lumens - about as bright as a 100W incandescent bulb, suitable for ambient lighting in large rooms. With CCT Select, you can adjust from warm to daylight to suit the mood.
Light color and feel
Five selectable color temperatures from 2700K warm white to 5000K daylight. CRI 90 ensures accurate color rendering. The light is dimmable via the remote, and the included fresnel and frosted shades let you choose the light distribution.
Sizing and fit
96-inch blade sweep with a 14° blade pitch. Includes 6-inch and 12-inch downrods; optional downrods up to 72 inches for higher ceilings. Recommended hanging height is 7 to 9 feet. Canopy diameter is 8.76 inches.
Specifications
- Primary Finish: Brushed Satin Brass
- Blade Material: Buttonwood
- Blade Finish: Natural
- Shade Finish: Fresnel and Frosted
- Collection: Spitfire
- Blade Sweep: 96"
- Number of Blades: 3
- Blade Pitch: 14°
- Motor Type: DC
- Motor Size: 153 X 22
- Motor Reversible: True
- Number of Speeds: 6
- Reverse Switch Location: Control
- Light Kit Included: True
- Cap Included: True
- Included Control: TR360
- Control Type: Handheld
- 1 Bulb(s)
- Bulb Type: LED Module
- Bulb Base: Connector Pin
- Bulb Max Wattage: 18W
- Color Temperature: 2700, 3000, 3500, 4000, 5000K
- CRI: 90
- Lumens: 1600
- Voltage: 120V
- Avg CFM: 8515
- CFM High: 12413
- Avg Energy Use: 24W
- Max Slope: 20°
- Location Rating: Damp
- Safety Rating: UL Only Listed
- Warranty: Limited Lifetime Warranty
Frequently asked
Is the bulb included? Yes, the LED module is integrated.
Is it dimmable, and what dimmer should I use? Yes, dimmable via the included TR360 remote; no wall dimmer needed.
Can I install this in a bathroom or outdoors? It is damp rated, so it is safe for covered outdoor areas and bathrooms with ventilation, but not for direct rain exposure.
What's the warranty? Limited Lifetime Warranty for the original purchaser.
What is the difference between the fresnel and frosted shades? The fresnel shade provides a more focused, brighter light, while the frosted shade offers a softer, more diffused glow. Both are included so you can choose the look.
