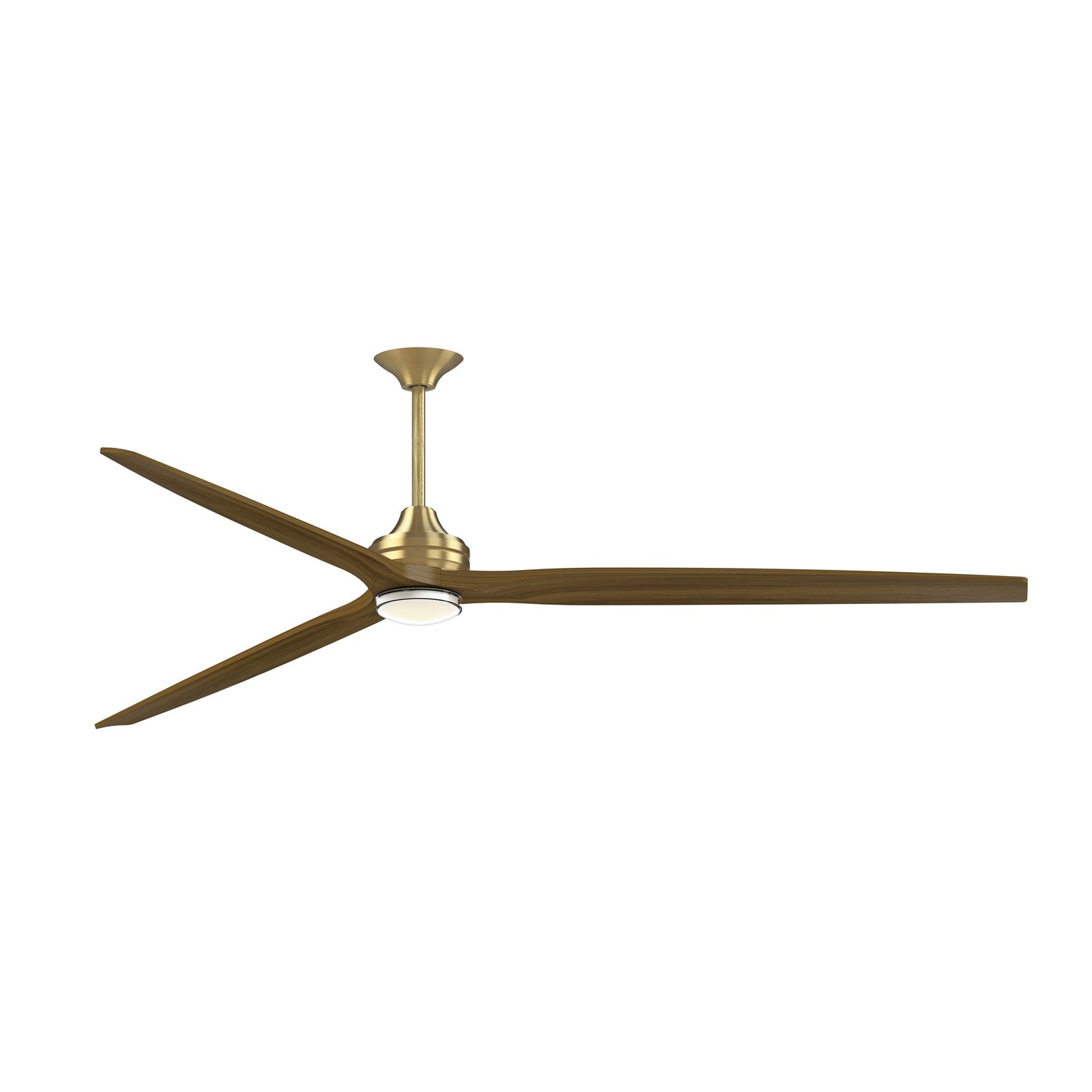

A 96-inch indoor/outdoor smart ceiling fan with an integrated LED light kit, finished in brushed satin brass with Koa wood blades, for large covered patios and great rooms.
The Spitfire DC Custom is a statement piece for expansive spaces, combining a sleek, modern profile with powerful, quiet airflow. The brushed satin brass motor housing pairs beautifully with the rich Koa wood blades, creating a warm yet contemporary look. This version includes a double-walled marine-grade light kit with a clear glass shade, designed to withstand the elements while providing versatile, dimmable light.
Best for
- Covered patios and porches, where the damp-rated construction and marine-grade light kit handle humidity and moisture
- Great rooms and open-plan living areas with ceilings at least 9 feet high, using the included downrods
- Sunrooms and three-season rooms that need both airflow and adjustable lighting
- Large bedrooms or home offices where smart control and quiet operation are valued
- Homes with smart assistants, thanks to Wi-Fi fanSync technology for voice and app control
Not ideal for
- Rooms with ceilings under 8 feet, as the fan hangs 16 inches from the ceiling with the light kit
- Directly exposed outdoor areas without a roof, as it is damp-rated, not wet-rated
- Small spaces under 12x12 feet, where the 96-inch blade sweep would overwhelm the room
How bright is it?
This fan's integrated LED module produces 2000 lumens - roughly equivalent to a 100-watt incandescent bulb. That's plenty of light for ambient illumination in a large living area, though you may want additional task lighting for reading or detailed work.
Light color and feel
With CCT Select technology, you can choose from five color temperatures: 2700K (warm white), 3000K (soft white), 3500K (neutral), 4000K (cool white), and 5000K (daylight). This lets you shift from a cozy, golden glow to crisp, bright light to match the mood or time of day. The high CRI of 90 ensures colors appear vibrant and true.
Sizing and fit
This fan has a 96-inch blade sweep and overall dimensions of 96 inches wide by 96 inches deep, with a height of 16 inches (using the 6-inch downrod) or 22 inches (using the 12-inch downrod). It's designed for large rooms, ideally 18x20 feet or larger. The included downrods allow for a hanging height of 7 to 9 feet, and optional downrods up to 72 inches are available for higher ceilings.
Specifications
- Primary Finish: Brushed Satin Brass
- Blade Material: Wood
- Blade Finish: Koa
- Shade Finish: Clear
- Collection: Spitfire
- Blade Sweep: 96"
- Number of Blades: 3
- Blade Pitch: 14°
- Motor Type: DC
- Motor Size: 153 X 22
- Motor Reversible: True
- Number of Speeds: 6
- Reverse Switch Location: Control
- Light Kit Included: True
- Cap Included: True
- Included Control: TR360
- Control Type: Handheld
- 1 Bulb(s)
- Bulb Type: LED Module
- Bulb Base: Connector Pin
- Bulb Max Wattage: 24W
- Color Temperature: 2700, 3000, 3500, 4000, 5000K
- CRI: 90
- Lumens: 2000
- Voltage: 120V
- Avg CFM: 8515
- CFM High: 12413
- Avg Energy Use: 24W
- Max Slope: 20°
- Location Rating: Damp
- Safety Rating: UL Only Listed
- Warranty: Limited Lifetime Warranty
Frequently asked
Is the bulb included? Yes, the integrated LED module is included and rated for 24W.
Is it dimmable, and what dimmer should I use? Yes, the light is dimmable via the included TR360 remote or the fanSync app. No wall dimmer is needed.
Can I install this in a bathroom or outdoors? This fan is damp-rated, making it suitable for covered outdoor areas and bathrooms with adequate ventilation, but it should not be directly exposed to rain or water.
What's the warranty? Fanimation offers a Limited Lifetime Warranty for the original purchaser.
How does the double-walled marine light kit differ from the standard kit? The double-walled construction adds durability and is designed for outdoor wet locations, making it more resistant to moisture and impact.
