A downrod smart ceiling fan with a marine-grade LED light kit, designed for large covered outdoor and indoor spaces.
The Spitfire DC Custom pairs a Brushed Satin Brass motor with three Black blades for a sleek, modern look. Its 6-speed DC motor delivers up to 12,413 CFM of airflow. This version includes a double-walled marine-grade LED light kit with CCT Select technology, offering five color temperatures and dimming via the included remote or fanSync app.
Best for
- Covered patios, porches, and sunrooms where damp-rated fixtures are needed
- Large living rooms, great rooms, and open-plan areas over 400 sq ft
- High ceilings (9-10 ft) with the included 6-inch and 12-inch downrods
- Spaces needing both high airflow and integrated lighting
- Smart home setups with voice control via Alexa or Google Assistant
Not ideal for
- Outdoor areas exposed directly to rain or water - this is damp-rated, not wet-rated
- Small rooms under 150 sq ft where the 96-inch sweep would be too large
- Rooms with ceilings under 8 feet unless you use a flush mount (not included)
How bright is it?
The integrated 24-watt LED module produces 2000 lumens - roughly equivalent to a 150-watt incandescent bulb. This is ideal for ambient lighting in large rooms, but not as a primary task light.
Light color and feel
With CCT Select technology, you can choose from 2700K (warm white) to 5000K (daylight). At 2700K, the light is soft and golden; at 5000K, it's crisp and energizing. The 90 CRI ensures colors appear vivid and accurate.

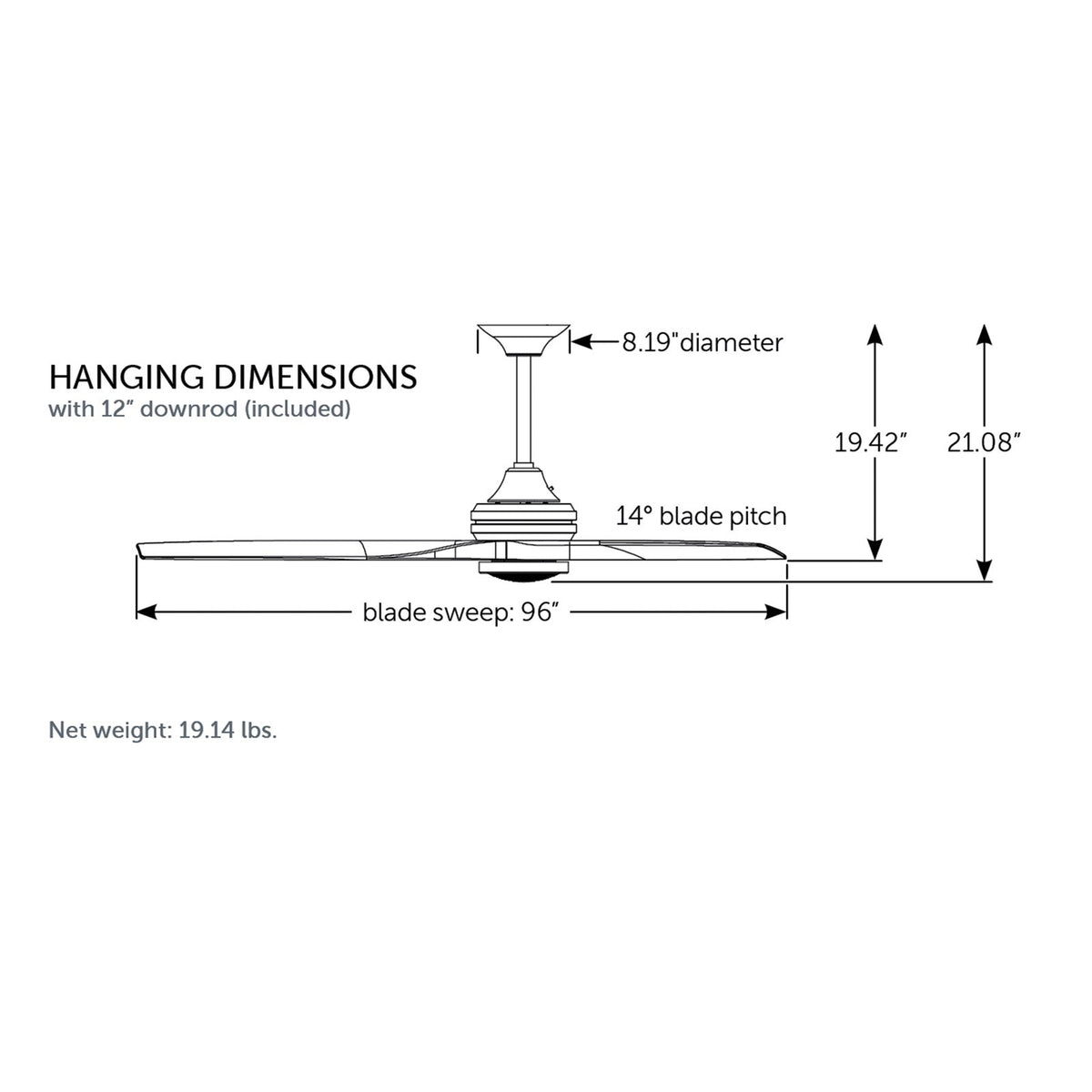

Sizing and fit

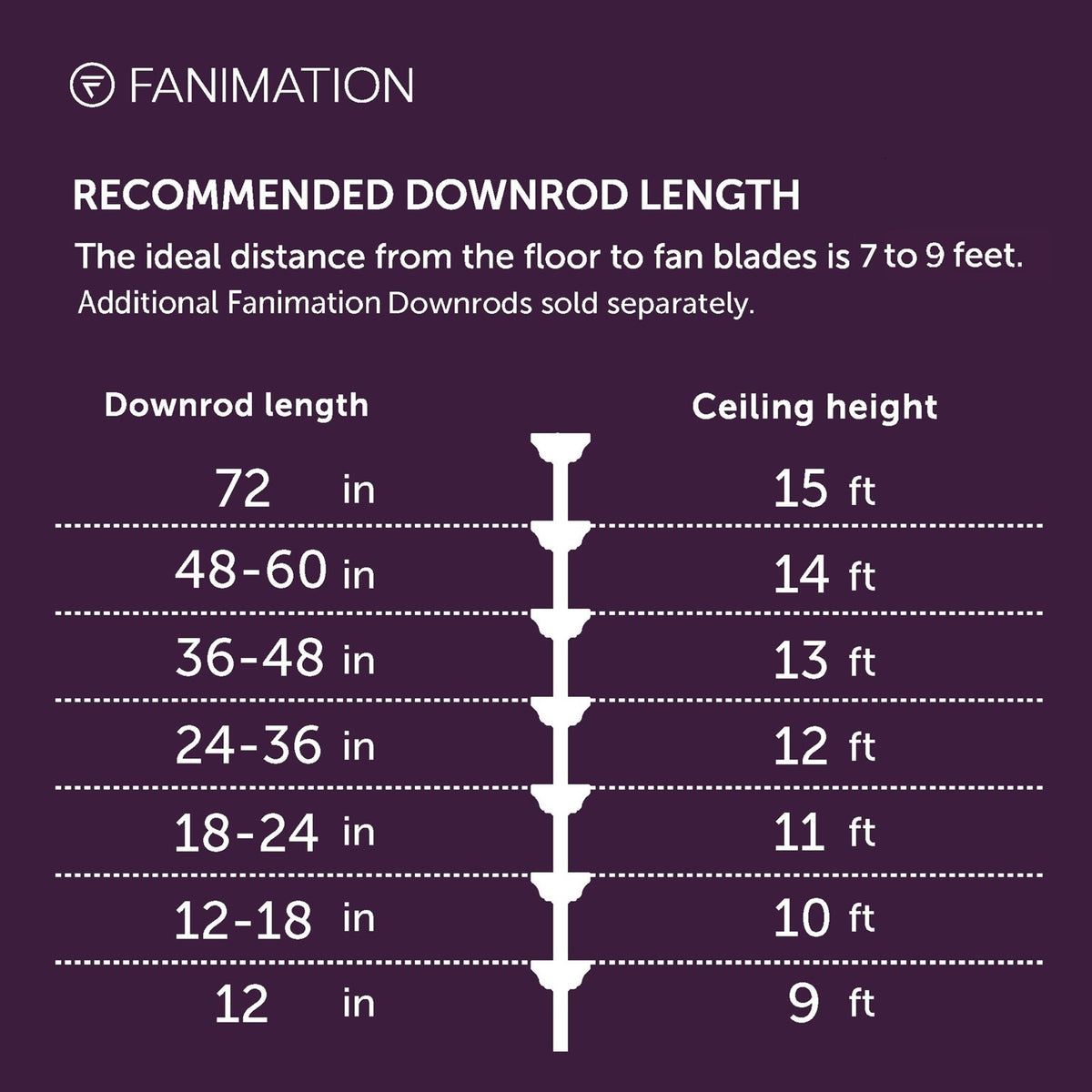

This fan has a 96-inch blade sweep and overall dimensions of 96 x 96 x 16 inches (with light kit). It includes both 6-inch and 12-inch downrods, and optional downrods up to 72 inches are available. The housing diameter is 8.07 inches.
Specifications
- Primary Finish: Brushed Satin Brass
- Blade Material: Buttonwood
- Blade Finish: Black
- Shade Finish: Clear
- Collection: Spitfire
- Blade Sweep: 96"
- Number of Blades: 3
- Blade Pitch: 14°
- Motor Type: DC
- Motor Size: 153 X 22
- Motor Reversible: True
- Number of Speeds: 6
- Reverse Switch Location: Control
- Light Kit Included: True
- Cap Included: True
- Included Control: TR360
- Control Type: Handheld
- 1 Bulb(s)
- Bulb Type: LED Module
- Bulb Base: Connector Pin
- Bulb Max Wattage: 24W
- Color Temperature: 2700, 3000, 3500, 4000, 5000K
- CRI: 90
- Lumens: 2000
- Voltage: 120V
- Avg CFM: 8515
- CFM High: 12413
- Avg Energy Use: 24W
- Max Slope: 20°
- Location Rating: Damp
- Safety Rating: UL Only Listed
- Warranty: Limited Lifetime Warranty
- Overall Dimensions: 96"(L)96"(W) x 16, 22"(H)
- Housing Diameter: 8.07"
- Canopy Dimensions: 8.76"(Dia) x 2.52"(H)
- Downrod Length: 6, 12"
- Leadwire Length: 14 motor & 15 light"
- Ceiling to Bottom (No Light Kit): 13.69, 19.69"
- Ceiling to Bottom (With Light Kit): 16, 22"
- Item Weight: 20.95 lbs.
Frequently asked
Is the bulb included? Yes, the integrated LED module is included and does not require replacement.
Is it dimmable, and what dimmer should I use? Yes, the light is dimmable via the included remote or the fanSync app. No separate wall dimmer is needed.
Can I install this in a bathroom or outdoors? This fan is damp-rated, making it suitable for bathrooms and covered outdoor areas, but it should not be exposed to direct rain or water.
What's the warranty? Fanimation offers a Limited Lifetime Warranty for the original purchaser.
What makes the light kit marine-grade? The double-walled glass shade and marine-grade materials make it more durable and suitable for damp environments.
