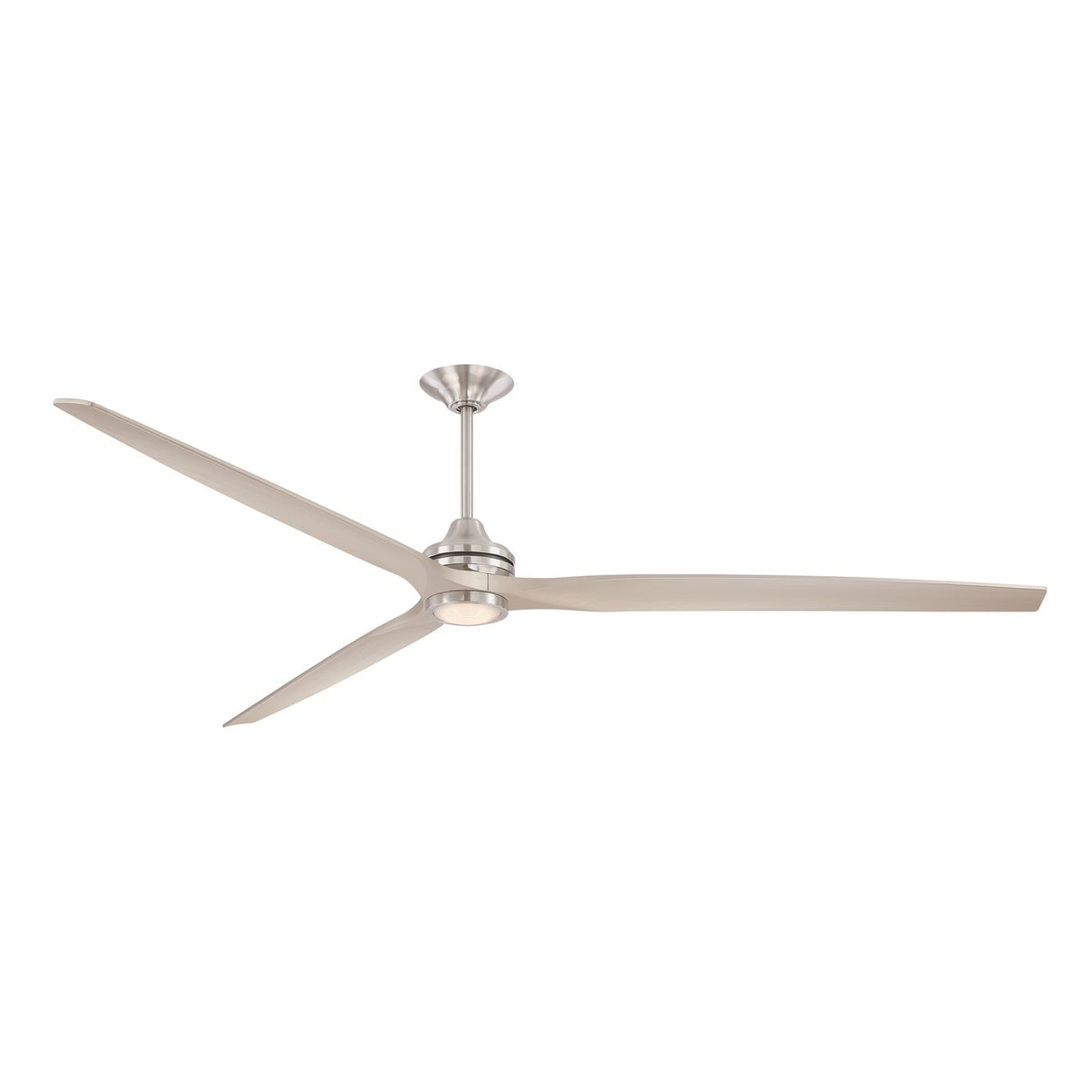

A 96-inch indoor/outdoor smart ceiling fan with an integrated LED light kit, designed for large covered patios, porches, and sunrooms.
The Spitfire DC Custom pairs a Brushed Nickel motor with Brushed Nickel blades and a fresnel/frosted glass shade. Its 6-speed DC motor delivers powerful airflow up to 12,413 CFM, while the integrated LED module offers five color temperatures. Control it with the included TR360 remote or via Wi-Fi with the fanSync app.
Best for
- Covered patios and porches, providing high airflow and damp-rated durability
- Sunrooms and large living areas with ceilings 8 feet or higher
- Bedrooms and home offices where quiet, energy-efficient cooling is needed
- Spaces with sloped ceilings up to 20 degrees
- Smart home setups with voice assistant control
Not ideal for
- Areas directly exposed to rain or water - this fan is damp-rated, not wet-rated
- Small rooms under 12x12 feet where a 96-inch sweep may be overpowering
- Low ceilings under 8 feet without using a shorter downrod or flush mount
How bright is it?
1600 lumens - about as bright as a 100W incandescent bulb, suitable for ambient lighting in large spaces. It can be dimmed to your preferred level.
Light color and feel
Selectable color temperatures from 2700K (warm white) to 5000K (daylight). With a CRI of 90, colors appear accurate and vibrant. Dimmable via the remote or app.
Sizing and fit
96-inch blade sweep with a 14-degree blade pitch. Includes 6-inch and 12-inch downrods; optional downrods up to 72 inches available. Recommended hanging height is 7 to 9 feet from the floor.
Specifications
- Primary Finish: Brushed Nickel
- Blade Material: Buttonwood
- Blade Finish: Brushed Nickel
- Shade Finish: Fresnel and Frosted
- Collection: Spitfire
- Blade Sweep: 96"
- Number of Blades: 3
- Blade Pitch: 14°
- Motor Type: DC
- Motor Size: 153 X 22
- Motor Reversible: True
- Number of Speeds: 6
- Reverse Switch Location: Control
- Light Kit Included: True
- Cap Included: True
- Included Control: TR360
- Control Type: Handheld
- 1 Bulb(s)
- Bulb Type: LED Module
- Bulb Base: Connector Pin
- Bulb Max Wattage: 18W
- Color Temperature: 2700, 3000, 3500, 4000, 5000K
- CRI: 90
- Lumens: 1600
- Voltage: 120V
- Avg CFM: 8515
- CFM High: 12413
- Avg Energy Use: 24W
- Max Slope: 20°
- Location Rating: Damp
- Safety Rating: UL Only Listed
- Warranty: Limited Lifetime Warranty
Frequently asked
Is the bulb included? Yes, an integrated LED module is included.
Is it dimmable, and what dimmer should I use? Yes, it is dimmable via the included remote or the fanSync app. No separate wall dimmer is needed.
Can I install this in a bathroom or outdoors? It is damp-rated, so it can be used in covered outdoor areas and bathrooms with humidity, but not directly exposed to rain.
What's the warranty? Limited Lifetime Warranty for the original purchaser.
What is the difference between the fresnel and frosted shades? Both shades are included; the fresnel shade provides a more focused light distribution, while the frosted shade offers a softer, more diffused glow.
