A 96-inch smart ceiling fan with an integrated LED light kit, designed for large indoor and covered outdoor spaces like great rooms, covered patios, and sunrooms.

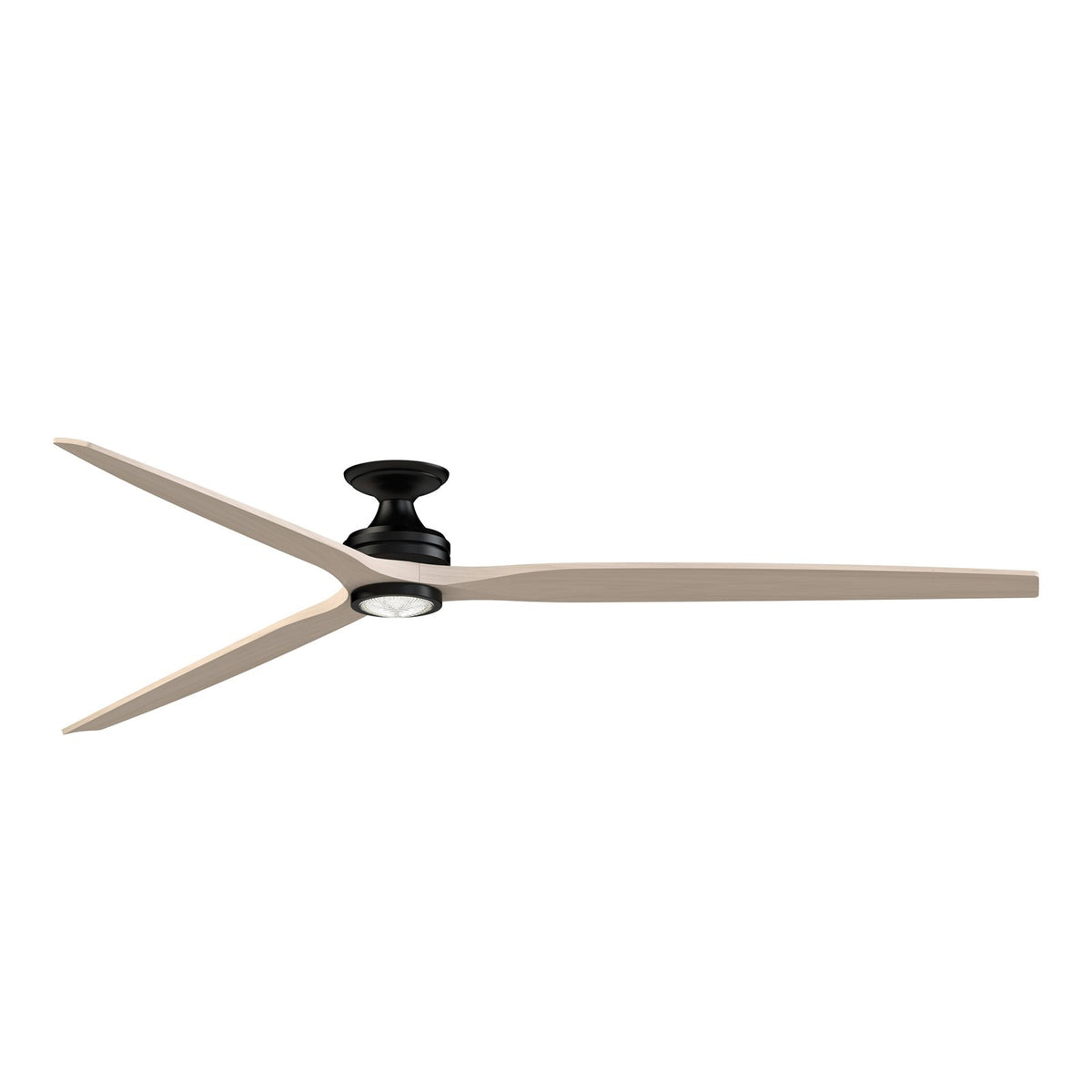

The Spitfire DC Custom pairs a sleek Black motor with White Washed Buttonwood blades for a modern, coastal-inspired look. Its powerful 6-speed DC motor delivers quiet airflow up to 12,413 CFM, while the integrated 18-watt LED light kit offers five color temperatures from warm to daylight. Control everything with the included TR360 remote or your smart device via Wi-Fi fanSync technology.
Best for
- Great rooms and open-concept living areas 20x20 ft or larger, where high airflow is needed
- Covered patios, porches, and sunrooms, thanks to its damp-rated construction
- Bedrooms and living rooms with low ceilings, thanks to the flush mount design
- Spaces where you want both cooling and customizable lighting from one fixture
- Smart home setups, with voice control via compatible assistants
Not ideal for
- Outdoor areas exposed directly to rain or water - this fan is damp-rated, not wet-rated
- Small rooms under 12x12 ft, where the 96-inch sweep may be overpowering
- Rooms with ceilings under 8 ft if you prefer a downrod mount for extra clearance
How bright is it?
The integrated 18-watt LED module produces 1600 lumens - roughly equivalent to a 100W incandescent bulb. This is sufficient for ambient lighting in a large room, but you may want additional task lighting for reading or detailed work.
Light color and feel
With CCT Select technology, you can choose from 2700K (warm white), 3000K (soft white), 3500K (neutral), 4000K (cool white), or 5000K (daylight). The 90 CRI rating ensures colors appear vivid and accurate, ideal for showcasing decor. The light is dimmable via the remote or app.
Sizing and fit

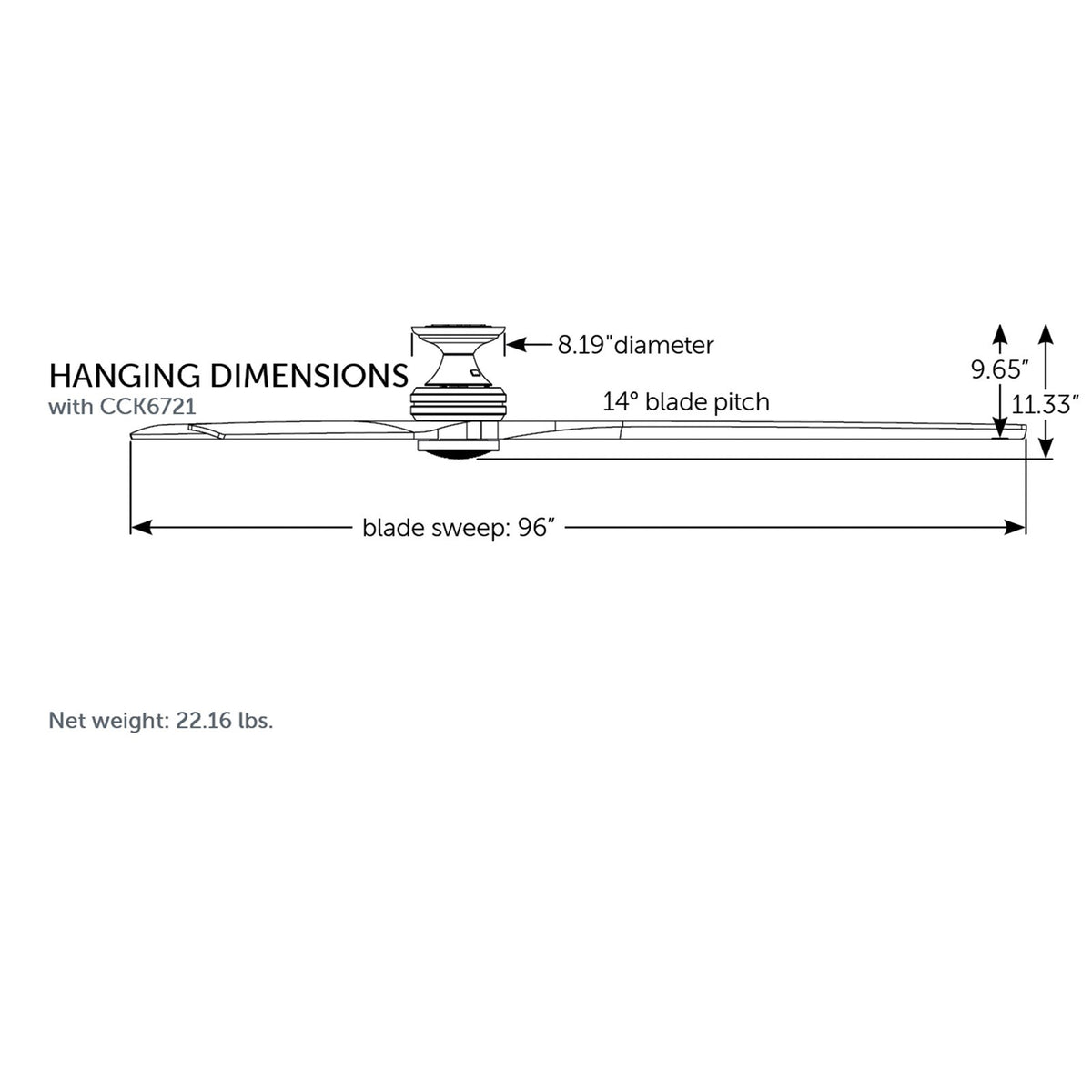

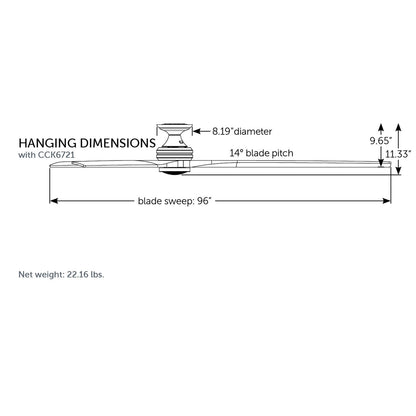

This fan has a 96-inch blade sweep and measures 96 inches wide by 96 inches deep by 11.33 inches high. It mounts flush to the ceiling, making it suitable for rooms with standard 8-9 ft ceilings. The canopy is 7.85 inches in diameter, and the housing is 8.07 inches.
Specifications
- Primary Finish: Black
- Blade Material: Buttonwood
- Blade Finish: White Washed
- Shade Finish: Fresnel and Frosted
- Collection: Spitfire
- Blade Sweep: 96"
- Number of Blades: 3
- Blade Pitch: 14°
- Motor Type: DC
- Motor Size: 153 X 22
- Motor Reversible: True
- Number of Speeds: 6
- Reverse Switch Location: Control
- Light Kit Included: True
- Cap Included: True
- Included Control: TR360
- Control Type: Handheld
- 1 Bulb(s)
- Bulb Type: LED Module
- Bulb Base: Connector Pin
- Bulb Max Wattage: 18W
- Color Temperature: 2700, 3000, 3500, 4000, 5000K
- CRI: 90
- Lumens: 1600
- Voltage: 120V
- Avg CFM: 8515
- CFM High: 12413
- Avg Energy Use: 24W
- Location Rating: Damp
- Safety Rating: UL Only Listed
- Warranty: Limited Lifetime Warranty
- Overall Dimensions: 96"(L)96"(W) x 11.33"(H)
- Housing Diameter: 8.07"
- Canopy Dimensions: 7.85"(Dia) x 5.02"(H)
- Leadwire Length: 14 motor & 15 light"
- Ceiling to Bottom (No Light Kit): 9.65"
- Ceiling to Bottom (With Light Kit): 11.33"
- Item Weight: 24.01 lbs.
Frequently asked
Is the bulb included? Yes, the integrated LED module is included.
Is it dimmable, and what dimmer should I use? Yes, it is dimmable via the included TR360 remote or the fanSync app. No wall dimmer is required.
Can I install this in a bathroom or outdoors? This fan is damp-rated, so it is suitable for bathrooms and covered outdoor areas, but it should not be directly exposed to rain or water.
What's the warranty? Fanimation offers a Limited Lifetime Warranty for the original purchaser.
How does the CCT Select technology work? The remote or app lets you cycle through five color temperatures (2700K to 5000K) to match your preferred ambiance.
