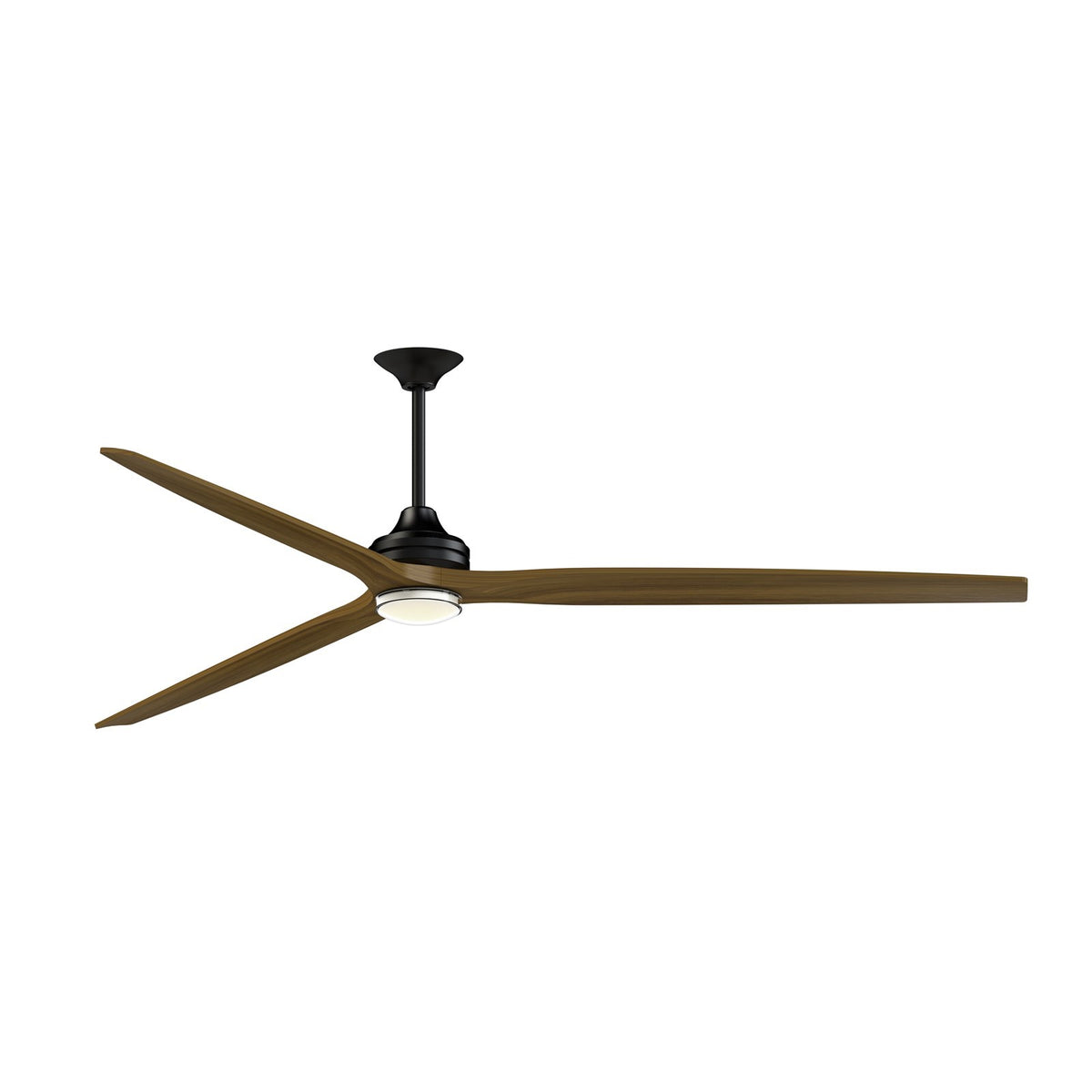

A 96-inch smart ceiling fan with an integrated LED light kit, designed for large indoor and covered outdoor spaces like great rooms and patios.
The Spitfire DC Custom pairs a sleek Black motor with warm Koa wood blades, delivering powerful airflow up to 12,413 CFM from its quiet 6-speed DC motor. The included double-walled marine light kit features CCT Select technology, letting you shift from warm to daylight with five color temperatures. Control it all with the included TR360 remote or your smart device via Wi-Fi fanSync.
Best for
- Covered patios and porches, where the damp-rated motor and marine-grade light kit stand up to humidity
- Great rooms and open-plan living areas over 400 sq ft, where the 96-inch sweep moves air effectively
- Sunrooms and three-season rooms that need both airflow and adjustable lighting
- High ceilings (10 ft or more) when paired with an optional longer downrod
- Smart-home setups, thanks to Wi-Fi fanSync compatibility with voice assistants
Not ideal for
- Rooms with ceilings under 8 ft, unless you use the flush-mount version
- Directly exposed outdoor areas without a roof or cover - this fan is damp-rated, not wet-rated
- Small bedrooms or offices under 100 sq ft, where a 96-inch fan is overpowering
How bright is it?
2000 lumens - about as bright as a 150W incandescent bulb, enough to light a large living area. It's dimmable, so you can lower it for a cozy evening.
Light color and feel
Five color temperatures from 2700K warm white to 5000K daylight, with a high CRI of 90 for accurate color rendering. Warm settings flatter wood tones; daylight is great for reading or tasks.
Sizing and fit
The fan measures 96 inches wide and 16 inches tall (with light kit) when hung on the included 6-inch downrod. For higher ceilings, optional downrods up to 72 inches are available. Recommended hanging height is 7-9 feet from the floor.
Specifications
- Primary Finish: Black
- Blade Material: Wood
- Blade Finish: Koa
- Shade Finish: Clear
- Collection: Spitfire
- Blade Sweep: 96"
- Number of Blades: 3
- Blade Pitch: 14°
- Motor Type: DC
- Motor Size: 153 X 22
- Motor Reversible: True
- Number of Speeds: 6
- Reverse Switch Location: Control
- Light Kit Included: True
- Cap Included: True
- Included Control: TR360
- Control Type: Handheld
- 1 Bulb(s)
- Bulb Type: LED Module
- Bulb Base: Connector Pin
- Bulb Max Wattage: 24W
- Color Temperature: 2700, 3000, 3500, 4000, 5000K
- CRI: 90
- Lumens: 2000
- Voltage: 120V
- Avg CFM: 8515
- CFM High: 12413
- Avg Energy Use: 24W
- Max Slope: 20°
- Location Rating: Damp
- Safety Rating: UL Only Listed
- Warranty: Limited Lifetime Warranty
Frequently asked
Is the bulb included? Yes, the integrated LED module is included.
Is it dimmable, and what dimmer should I use? Yes, the light is dimmable via the included TR360 remote or the fanSync app. No wall dimmer needed.
Can I install this in a bathroom or outdoors? It's damp-rated, so it's fine in bathrooms and covered outdoor areas, but not directly exposed to rain.
What's the warranty? Limited Lifetime Warranty for the original purchaser.
Does it work with sloped ceilings? Yes, it supports up to a 20° slope.
