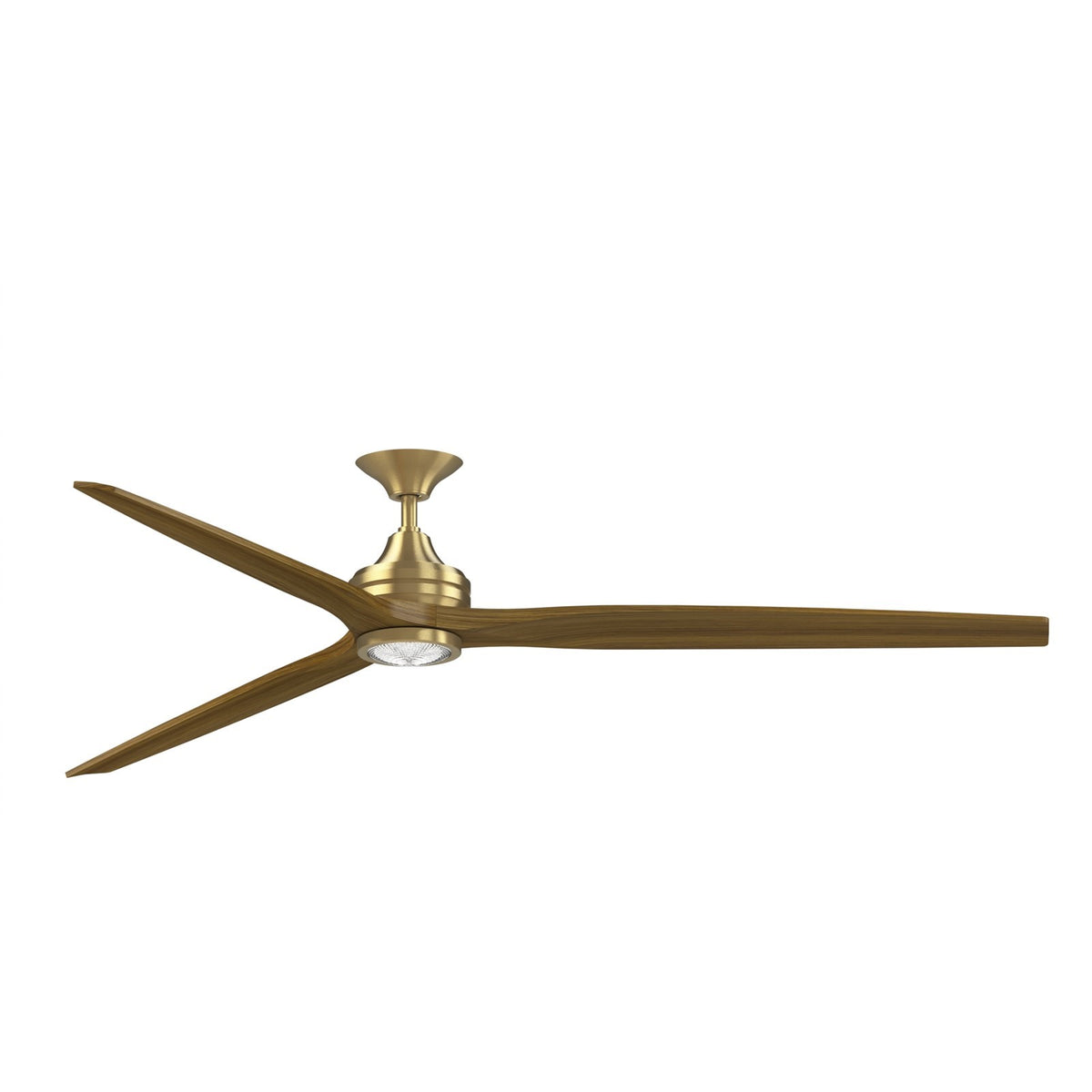

A downrod 84-inch smart ceiling fan from Fanimation's Spitfire DC Custom collection, finished in brushed satin brass with Koa wood blades, featuring an integrated LED light kit with CCT Select technology.
This ceiling fan combines powerful, quiet airflow up to 10,688 CFM with customizable lighting. The brushed satin brass finish and Koa blades create a warm, modern aesthetic. The included 18-watt LED light kit offers five selectable color temperatures (2700K to 5000K) and is dimmable. Control it with the included TR360 handheld remote or via Wi-Fi with the fanSync app and voice assistants. The downrod design allows for flexible installation on flat or slightly sloped ceilings.
Best for
- Covered patios and porches, where damp-rated construction handles humidity without direct rain exposure
- Sunrooms and large living areas with standard to high ceilings, using the included 6-inch or 12-inch downrods
- Bathrooms and laundry rooms, where moisture resistance is a plus
- Open-concept great rooms needing powerful, quiet airflow and integrated lighting
- Smart home setups, with Wi-Fi control via fanSync app and voice assistants
Not ideal for
- Outdoor areas directly exposed to rain or water, as this fan is damp-rated, not wet-rated
- Rooms with very low ceilings (under 8 feet), as the downrod adds height
- Those who prefer a fan without a light kit, as this model includes one
How bright is it?
The integrated 18-watt LED light kit delivers 1600 lumens—comparable to a 100-watt incandescent bulb—suitable for ambient lighting in medium to large rooms.
Light color and feel
Choose from five color temperatures (2700K, 3000K, 3500K, 4000K, 5000K) to shift from warm, cozy light to bright daylight. With a CRI of 90, colors appear accurate and vibrant. The light is dimmable via the remote or app for full control.
Sizing and fit
This fan has an 84-inch blade sweep and overall dimensions of 84 inches wide by 84 inches deep by 19.42 inches high (with the 12-inch downrod). It includes 6-inch and 12-inch downrods for flexible installation on flat or slightly sloped ceilings (up to 20°). The canopy is 8.76 inches in diameter, and the housing is 8.07 inches. It weighs 21.28 pounds.
Specifications
- Primary Finish: Brushed Satin Brass
- Blade Material: Wood
- Blade Finish: Koa
- Shade Finish: Fresnel and Frosted
- Collection: Spitfire
- Blade Sweep: 84"
- Number of Blades: 3
- Blade Pitch: 14°
- Motor Type: DC
- Motor Size: 153 X 22
- Motor Reversible: True
- Number of Speeds: 6
- Reverse Switch Location: Control
- Light Kit Included: True
- Cap Included: True
- Included Control: TR360
- Control Type: Handheld
- 1 Bulb(s)
- Bulb Type: LED Module
- Bulb Base: Connector Pin
- Bulb Max Wattage: 18W
- Color Temperature: 2700, 3000, 3500, 4000, 5000K
- CRI: 90
- Lumens: 1600
- Voltage: 120V
- Avg CFM: 7610
- CFM High: 10688
- Avg Energy Use: 20W
- Max Slope: 20°
- Location Rating: Damp
- Safety Rating: UL Only Listed
- Warranty: Limited Lifetime Warranty
Frequently asked
Is the bulb included? Yes, the integrated LED light kit is included and features an LED module with connector pin base.
Is it dimmable, and what dimmer should I use? The light is dimmable via the included TR360 remote or the fanSync app. No separate dimmer switch is needed.
Can I install this in a bathroom or outdoors? Yes, this fan is damp-rated, making it suitable for bathrooms and covered outdoor areas, but it should not be directly exposed to rain or water.
What's the warranty? Fanimation offers a Limited Lifetime Warranty for the original purchaser. Contact Fanimation Tech Support at 1-888-567-2055 for assistance.
Can I use this on a sloped ceiling? Yes, this fan is designed for flat or slightly sloped ceilings up to 20°. Optional downrods up to 72 inches are available for higher ceilings.
