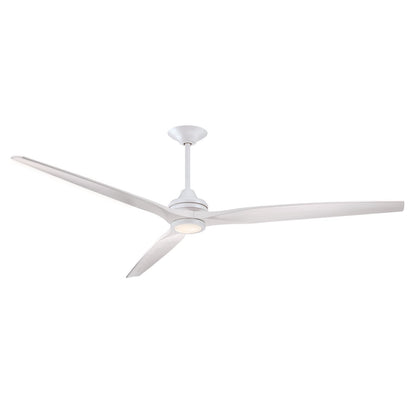

An 84-inch smart ceiling fan with an integrated LED light kit, designed for large indoor and covered outdoor spaces like patios and great rooms.
The Spitfire DC Custom pairs a sleek Matte White motor with White Washed Buttonwood blades, delivering powerful yet quiet airflow up to 10,688 CFM. This version includes an integrated LED light kit with CCT Select technology, letting you choose from five color temperatures. Control it all with the included TR360 remote or your smart device via Wi-Fi fanSync.
Best for
- Covered patios and porches, where the damp-rated construction stands up to humidity
- Large living rooms and great rooms needing high airflow (up to 10,688 CFM)
- Sunrooms and three-season rooms with moisture exposure
- Bedrooms and home offices where quiet operation and smart control are valued
- Spaces with ceilings up to 20° slope, using the included 6-inch and 12-inch downrods
Not ideal for
- Directly exposed outdoor areas - this fan is damp-rated, not wet-rated, so it should not be installed where it will be hit by rain
- Rooms with ceilings lower than 8 feet if you need the full hanging height
- Small rooms under 10x10 feet where an 84-inch sweep is oversized
How bright is it?
The integrated LED module produces 1600 lumens - comparable to a 100W incandescent bulb, bright enough to illuminate a large living area or patio. It is dimmable, so you can adjust the light level to suit the mood.
Light color and feel
With CCT Select, you can choose from 2700K (warm white), 3000K, 3500K, 4000K, and 5000K (daylight). This flexibility lets you shift from cozy, warm light for evenings to crisp, bright light for tasks. The 90 CRI ensures colors appear vivid and accurate.
Sizing and fit
The fan measures 84 inches in diameter and hangs 15.35 to 21.35 inches from the ceiling (with light kit) depending on downrod length. It is designed for flat or sloped ceilings up to 20 degrees. The included 6-inch and 12-inch downrods allow for standard mounting, and optional downrods up to 72 inches are available for higher ceilings.
Specifications
- Primary Finish: Matte White
- Blade Material: Buttonwood
- Blade Finish: White Washed
- Shade Finish: Fresnel and Frosted
- Collection: Spitfire
- Blade Sweep: 84"
- Number of Blades: 3
- Blade Pitch: 14°
- Motor Type: DC
- Motor Size: 153 X 22
- Motor Reversible: True
- Number of Speeds: 6
- Reverse Switch Location: Control
- Light Kit Included: True
- Cap Included: True
- Included Control: TR360
- Control Type: Handheld
- 1 Bulb(s)
- Bulb Type: LED Module
- Bulb Base: Connector Pin
- Bulb Max Wattage: 18W
- Color Temperature: 2700, 3000, 3500, 4000, 5000K
- CRI: 90
- Lumens: 1600
- Voltage: 120V
- Avg CFM: 7610
- CFM High: 10688
- Avg Energy Use: 20W
- Max Slope: 20°
- Location Rating: Damp
- Safety Rating: UL Only Listed
- Warranty: Limited Lifetime Warranty
Frequently asked
Is the bulb included? Yes, the LED module is integrated and included.
Is it dimmable, and what dimmer should I use? Yes, the light is dimmable via the included TR360 remote or the fanSync app. No wall dimmer is required.
Can I install this in a bathroom or outdoors? This fan is damp-rated, so it is suitable for covered outdoor areas, bathrooms, and other humid spaces, but it should not be directly exposed to rain or water.
What's the warranty? Fanimation offers a Limited Lifetime Warranty for the original purchaser.
What shade options are included? The light kit includes both fresnel and frosted shades, so you can choose the light diffusion that suits your space.
